Model # 96112009000 Official Weed Eater rotary lawn mower
Here are the diagrams and repair parts for Official Weed Eater 96112009000 rotary lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
96112009000 Walk-Behind Mowers
#46

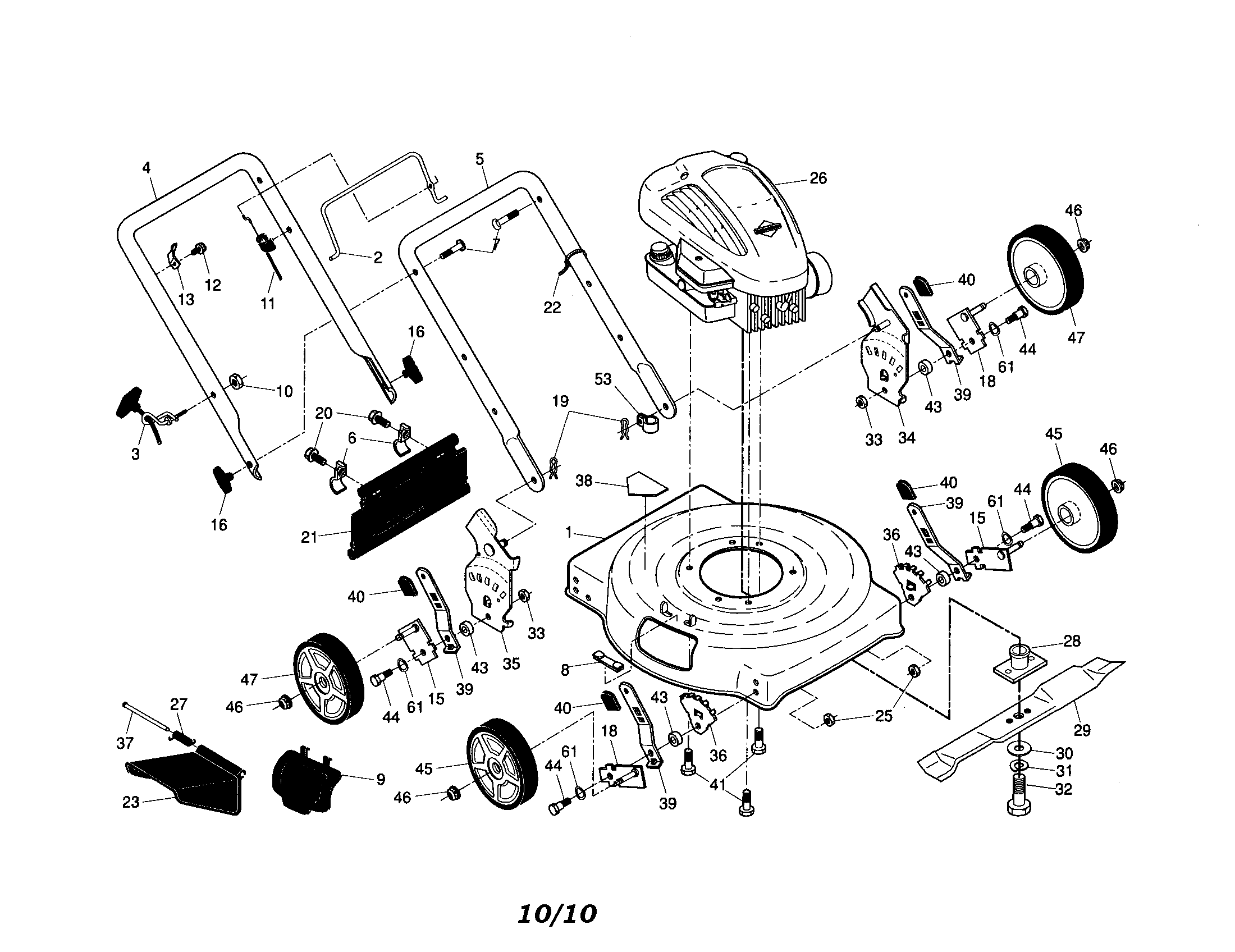

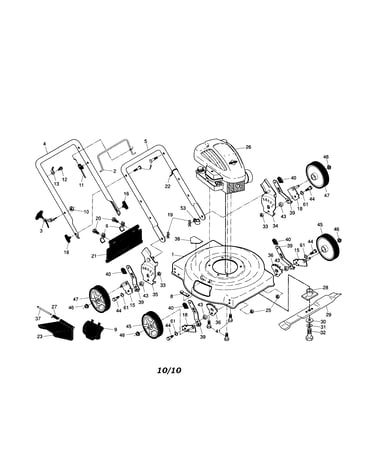

Rotary mower diagram
Lawn & garden equipment nut
Part #409148
Replaced by #532409149
?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
This item is not returnable
$6.11 |
14% OFF Phone Price : $7.11
In Stock
#16
Rotary mower diagram
Hndl.knob.bl
Part #189713X428
Replaced by #532185577
?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
$11.58 |
15% OFF Phone Price : $13.58
In Stock
#44
Rotary mower diagram
Bolt
Part #401638
Replaced by #596203801
?
Manufacturer substitution
This part replaces 401638. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
#10
Rotary mower diagram
Nut
Part #132004
Replaced by #582478602
?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
This item is not returnable
$2.87 |
26% OFF Phone Price : $3.87
In Stock
#21
Rotary mower diagram
Lawn mower rear skirt (replaces 188987, 189008, 532413160, 5324131-60)
Part #413160
Replaced by #532413160
?
Manufacturer substitution
This part replaces 413160. Substitute parts can look different from the original.
$18.54 |
10% OFF Phone Price : $20.54
In Stock
#3
Rotary mower diagram
Guide.rope.s
Part #194788
Replaced by #586122501
?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
#30
Rotary mower diagram
Lawn & garden equipment washer (replaces 532851074, 5328510-74)
Part #851074
Replaced by #532851074
?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
#32
Rotary mower diagram
Lawn & garden equipment screw
Part #851084
Replaced by #532851084
?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
#47
Rotary mower diagram
Wheel.8x1.75
Part #193905X617
Replaced by #532400542
?
Manufacturer substitution
This part replaces 193905X617. Substitute parts can look different from the original.
This item is not returnable
$33.09 |
15% OFF Phone Price : $39.09
In Stock
#4
Rotary mower diagram
Upper handle
Part #194179X479
Replaced by #532194179
?
Manufacturer substitution
This part replaces 194179X479. Substitute parts can look different from the original.
$33.20
In Stock
