Kenmore
Evaporative Cooler

Model #758624400 Kenmore convertible down front outlet evaporative air cooler

Here are the diagrams and repair parts for Kenmore 758624400 convertible down front outlet evaporative air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

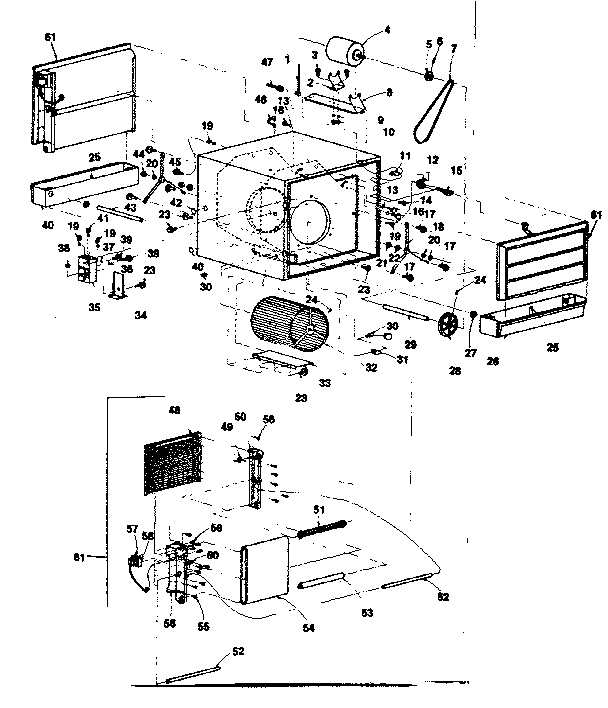

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 117 parts

    Screw#23

    Functional replacement parts Diagram

    Screw

    Part #30686

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Head Bolt, 5/16-18 x 3/4-in, 5-pack#3

    Functional replacement parts Diagram

    Hex head bolt, 5/16-18 x 3/4-in, 5-pack

    Part #STD523107

    The manufacturer no longer makes this part, and there's no substitute part

    Motor#4C

    Functional replacement parts Diagram

    Motor

    Part #30491

    The manufacturer no longer makes this part, and there's no substitute part

    Bearing#22B

    Functional replacement parts Diagram

    Bearing

    Part #30291

    The manufacturer no longer makes this part, and there's no substitute part

    Air Conditioner Grille#48D

    Functional replacement parts Diagram

    Air conditioner grille

    Part #29738-01

    The manufacturer no longer makes this part, and there's no substitute part

    Air Conditioner Blower Wheel#32B

    Functional replacement parts Diagram

    Air conditioner blower wheel

    Part #30322

    The manufacturer no longer makes this part, and there's no substitute part

    Plug#42

    Functional replacement parts Diagram

    Plug

    Part #29996

    The manufacturer no longer makes this part, and there's no substitute part

    V-Belt#7B

    Functional replacement parts Diagram

    V-belt

    Part #STD304580

    The manufacturer no longer makes this part, and there's no substitute part

    Roller#53A

    Functional replacement parts Diagram

    Roller

    Part #30236

    The manufacturer no longer makes this part, and there's no substitute part

    Set Screw#24

    Functional replacement parts Diagram

    Set screw

    Part #STD503105

    The manufacturer no longer makes this part, and there's no substitute part
