Model # FFMS221CQ20 Official Frigidaire split room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFMS221CQ20 split room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

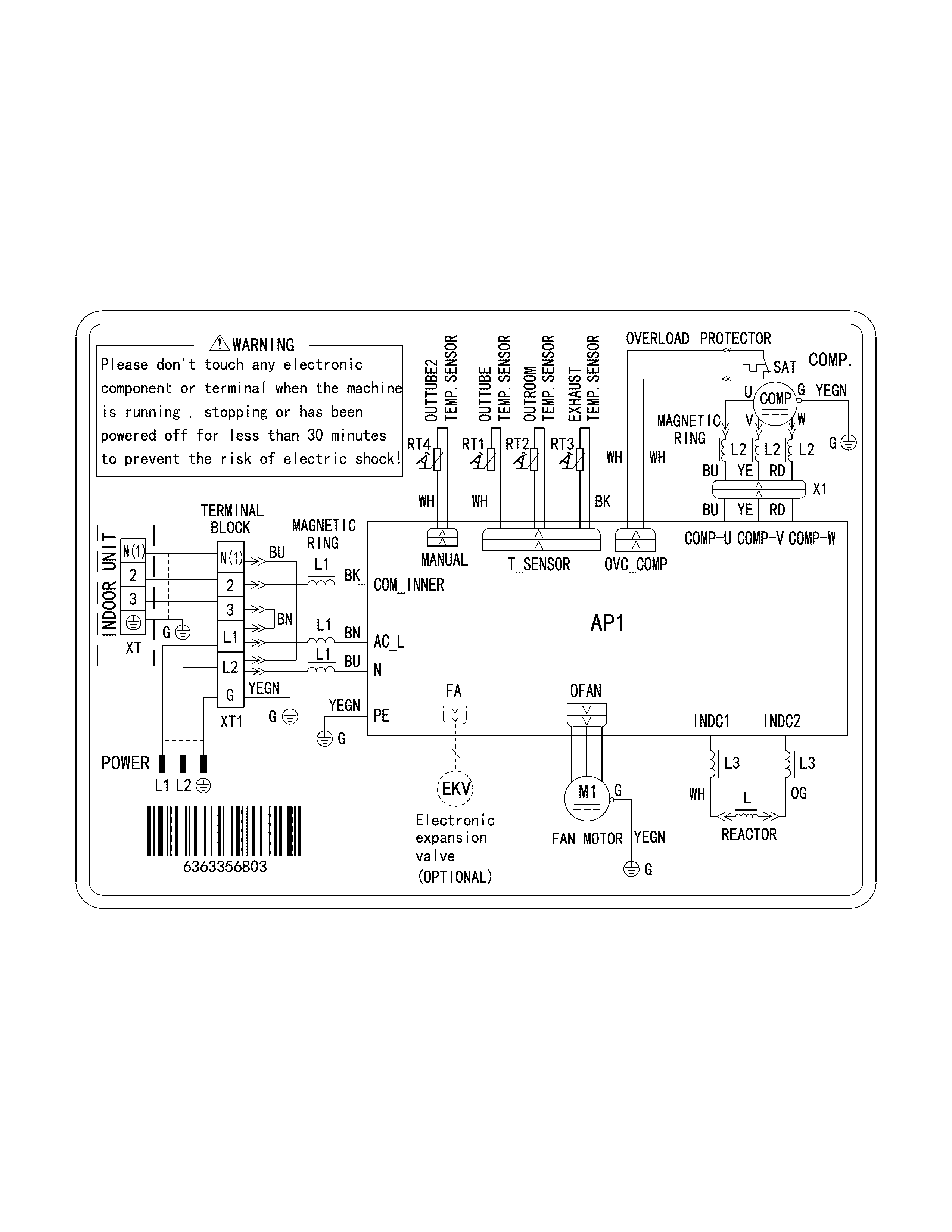

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Winding 5304502371
#27

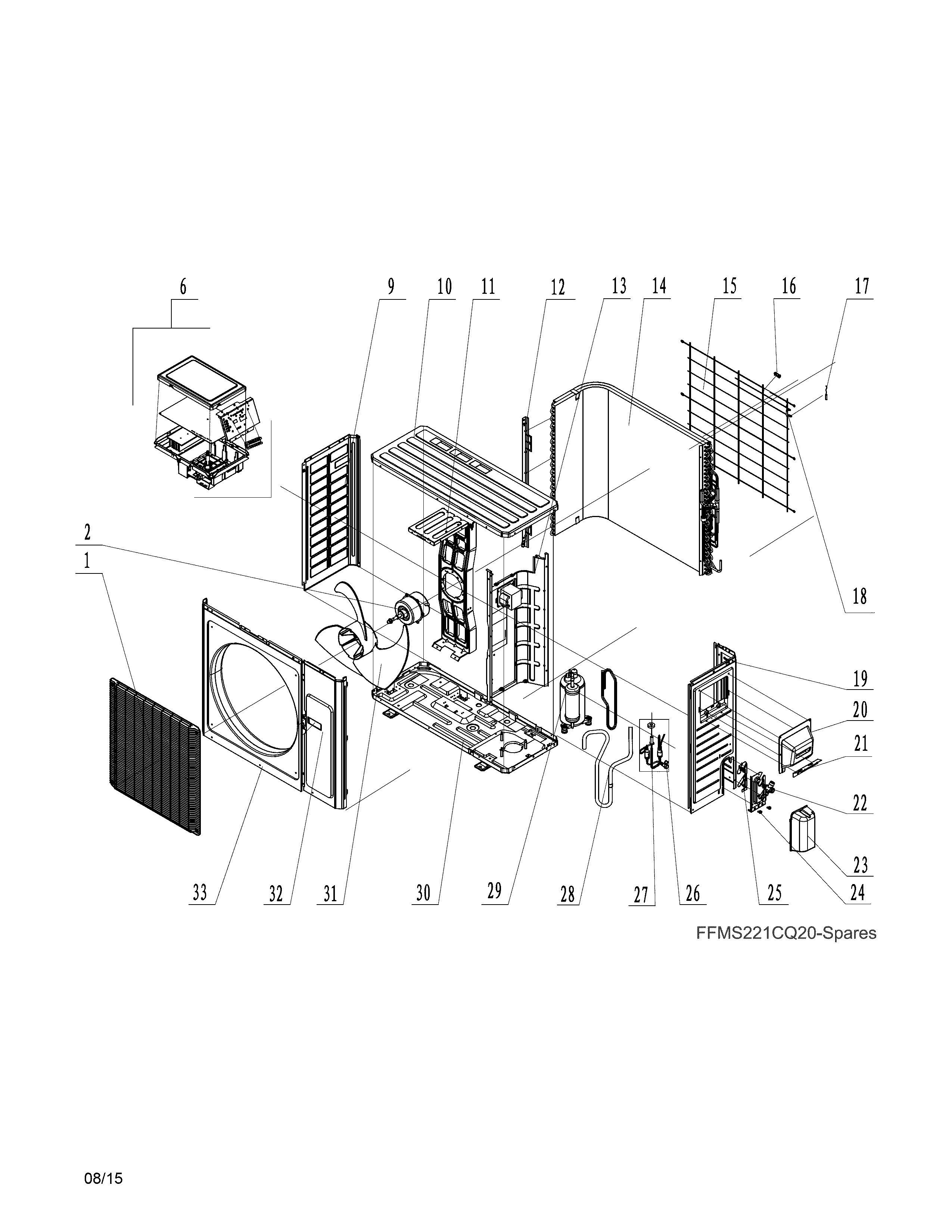

Recommended spare parts diagram

Winding

Part #5304502371

$97.68
In Stock
Sensor 5304502340
#17

Recommended spare parts diagram

Sensor

Part #5304502340

$33.46
In Stock
Panel 5304483751
#9

Recommended spare parts diagram

Panel

Part #5304483751

$39.96
In Stock
Fan Blade 5304502375
#31

Recommended spare parts diagram

Fan blade

Part #5304502375

$70.76
In Stock
Compressor 5304502373
#29

Recommended spare parts diagram

Compressor

Part #5304502373

$774.82 |
$10.00 OFF Phone Price : $784.82
In Stock
Valve 5304483768
#26

Recommended spare parts diagram

Valve

Part #5304483768

$54.86
In Stock
Motor 5304502366
#2

Recommended spare parts diagram

Motor

Part #5304502366

Replaced by #5304529997

?
Manufacturer substitution
This part replaces 5304502366. Substitute parts can look different from the original.
$151.36
In Stock
Sensor Kit 5304483684
#18

Recommended spare parts diagram

Sensor kit

Part #5304483684

The manufacturer no longer makes this part, and there's no substitute part

Base 5304502374
#30

Recommended spare parts diagram

Base

Part #5304502374

The manufacturer no longer makes this part, and there's no substitute part

Valve 5304483783
#22

Recommended spare parts diagram

Valve

Part #5304483783

The manufacturer no longer makes this part, and there's no substitute part
