Model # 917D4360-79 Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 917D4360-79 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Lock Nut 73810500
#23

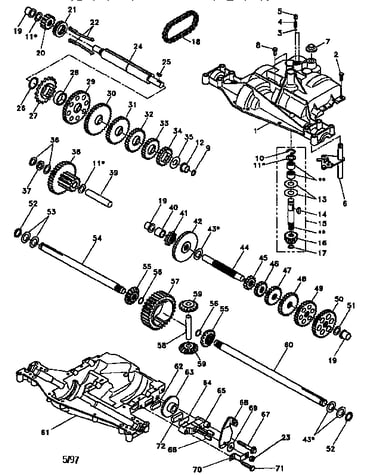

Dana transaxle d4360-79 diagram

Lock nut

Part #73810500

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2274J
#2

Dana transaxle d4360-79 diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 120470X
#27

Dana transaxle d4360-79 diagram

Sprocket

Part #120470X

The manufacturer no longer makes this part, and there's no substitute part

Gear 142675
#20

Dana transaxle d4360-79 diagram

Gear

Part #142675

The manufacturer no longer makes this part, and there's no substitute part

Shaft 120952X
#58

Dana transaxle d4360-79 diagram

Shaft

Part #120952X

The manufacturer no longer makes this part, and there's no substitute part

Gear 142681
#30

Dana transaxle d4360-79 diagram

Gear

Part #142681

The manufacturer no longer makes this part, and there's no substitute part

Spur Gear 120405X
#31

Dana transaxle d4360-79 diagram

Spur gear

Part #120405X

The manufacturer no longer makes this part, and there's no substitute part

Spacer 108989X
#64

Dana transaxle d4360-79 diagram

Spacer

Part #108989X

The manufacturer no longer makes this part, and there's no substitute part

Intermediate Shaft 142676
#24

Dana transaxle d4360-79 diagram

Intermediate shaft

Part #142676

The manufacturer no longer makes this part, and there's no substitute part

Gear 110084X
#42

Dana transaxle d4360-79 diagram

Gear

Part #110084X

The manufacturer no longer makes this part, and there's no substitute part
