Model # AGQ08AHG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGQ08AHG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

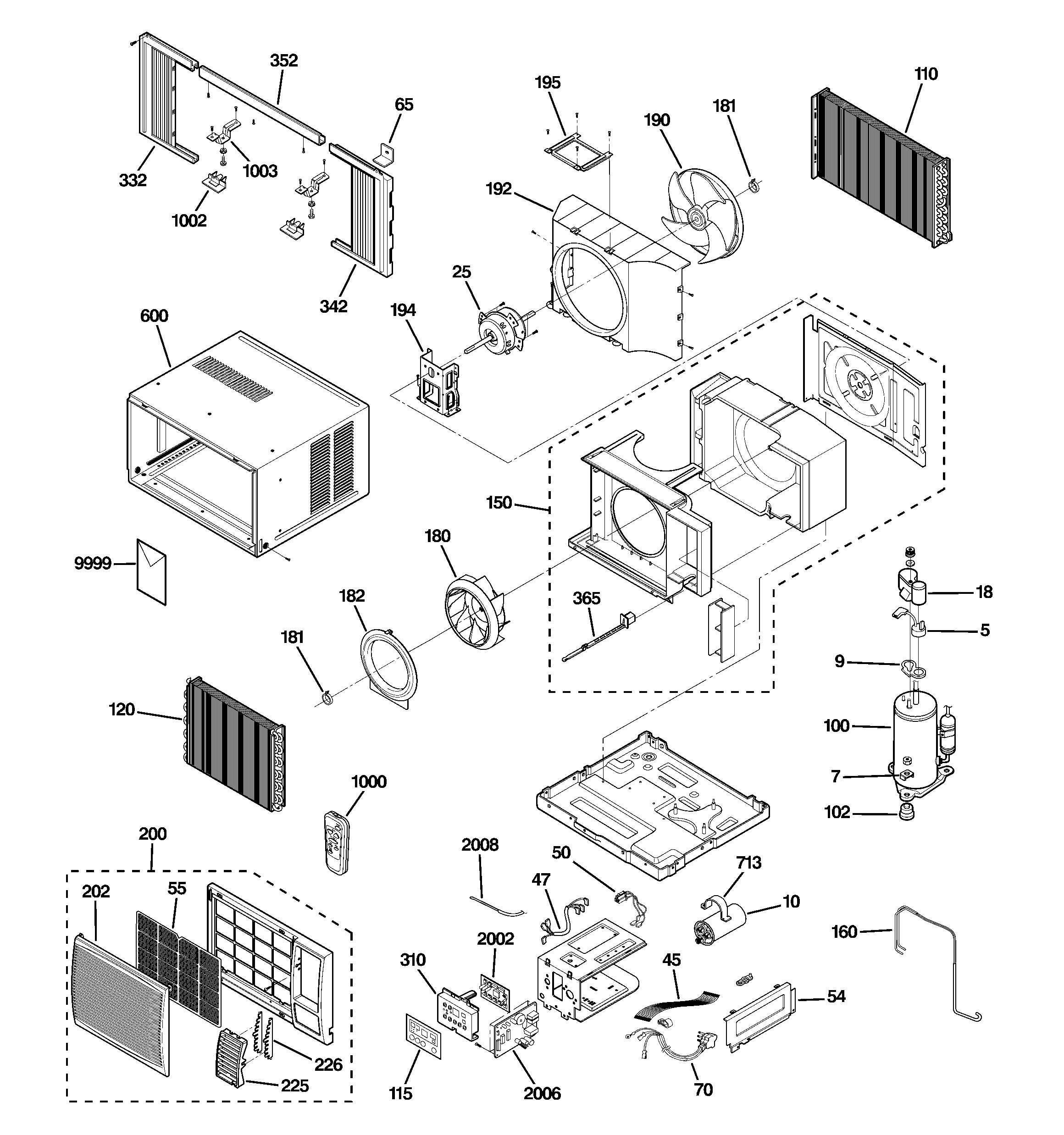

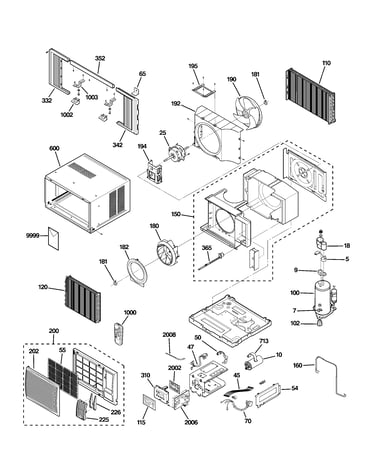

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Gasket WJ43X10020
#9

Room air conditioner diagram

Gasket

Part #WJ43X10020

The manufacturer no longer makes this part, and there's no substitute part

Washer WJ01X10065
#7

Room air conditioner diagram

Washer

Part #WJ01X10065

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X10087
#10

Room air conditioner diagram

Capacitor

Part #WJ20X10087

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Accordion Filler WJ86X10004
#332

Room air conditioner diagram

Room air conditioner accordion filler

Part #WJ86X10004

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount WJ65X10036
#194

Room air conditioner diagram

Motor mount

Part #WJ65X10036

The manufacturer no longer makes this part, and there's no substitute part

Horizontal Louver WJ71X10186
#225

Room air conditioner diagram

Horizontal louver

Part #WJ71X10186

The manufacturer no longer makes this part, and there's no substitute part

Power Board Pcb WJ26X10161
#2006

Room air conditioner diagram

Power board pcb

Part #WJ26X10161

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WJ07X10058
#115

Room air conditioner diagram

Escutcheon

Part #WJ07X10058

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WJ35X10100
#70

Room air conditioner diagram

Power cord

Part #WJ35X10100

The manufacturer no longer makes this part, and there's no substitute part

Guide Frame WJ05X10024
#1002

Room air conditioner diagram

Guide frame

Part #WJ05X10024

The manufacturer no longer makes this part, and there's no substitute part
