Microwave/Hood Combo

Model # R-1871 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1871 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Switch FFS-BA016/KIT
#1-12

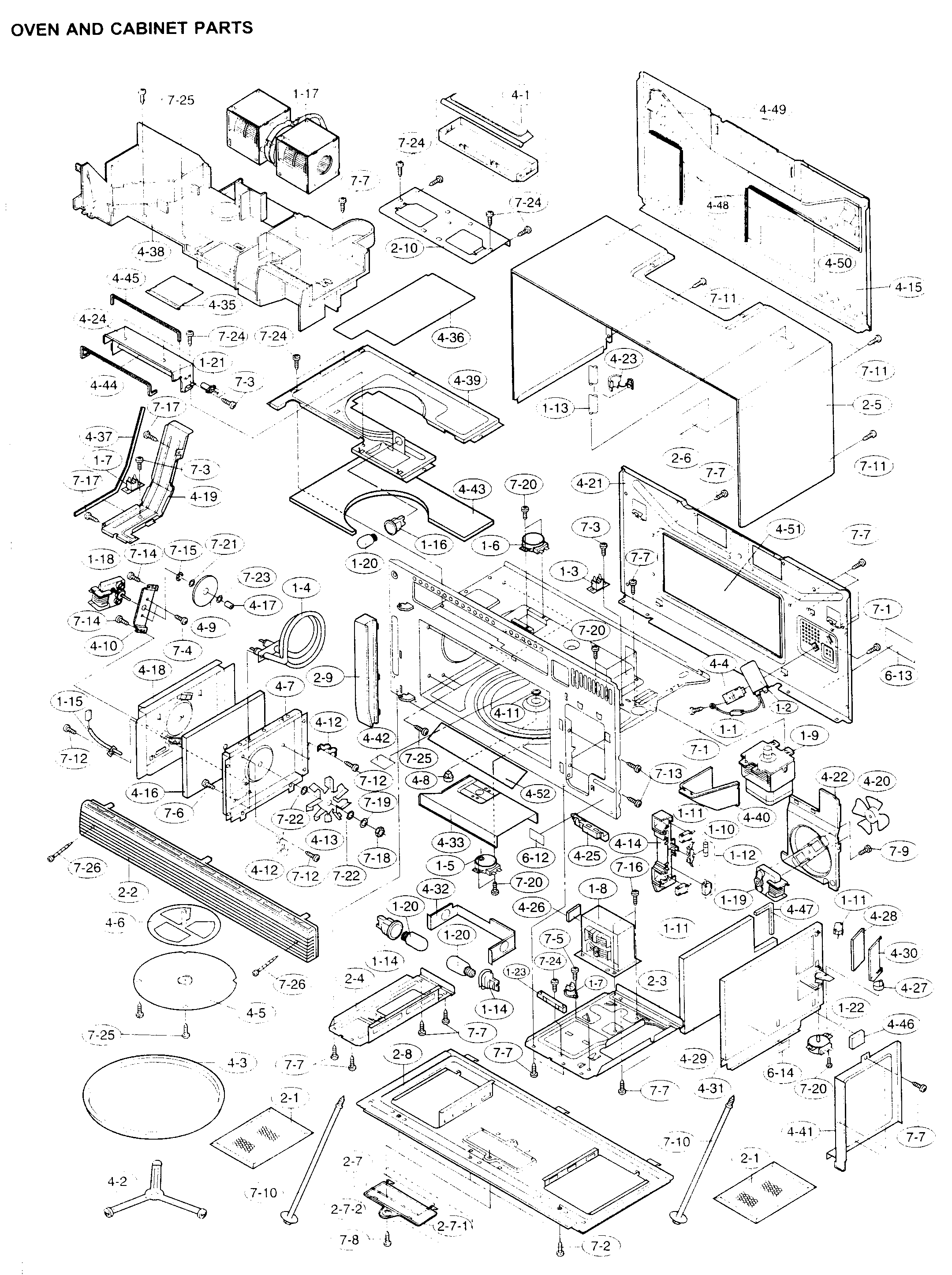

Cabinet parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover FCOVPB002MRY0
#4-5

Cabinet parts diagram

Stirrer cover

Part #FCOVPB002MRY0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B013MRF0
#4-14

Cabinet parts diagram

Latch hook

Part #PHOK-B013MRF0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Power Control Board Assembly DPWBFB061MRU0
#3-1

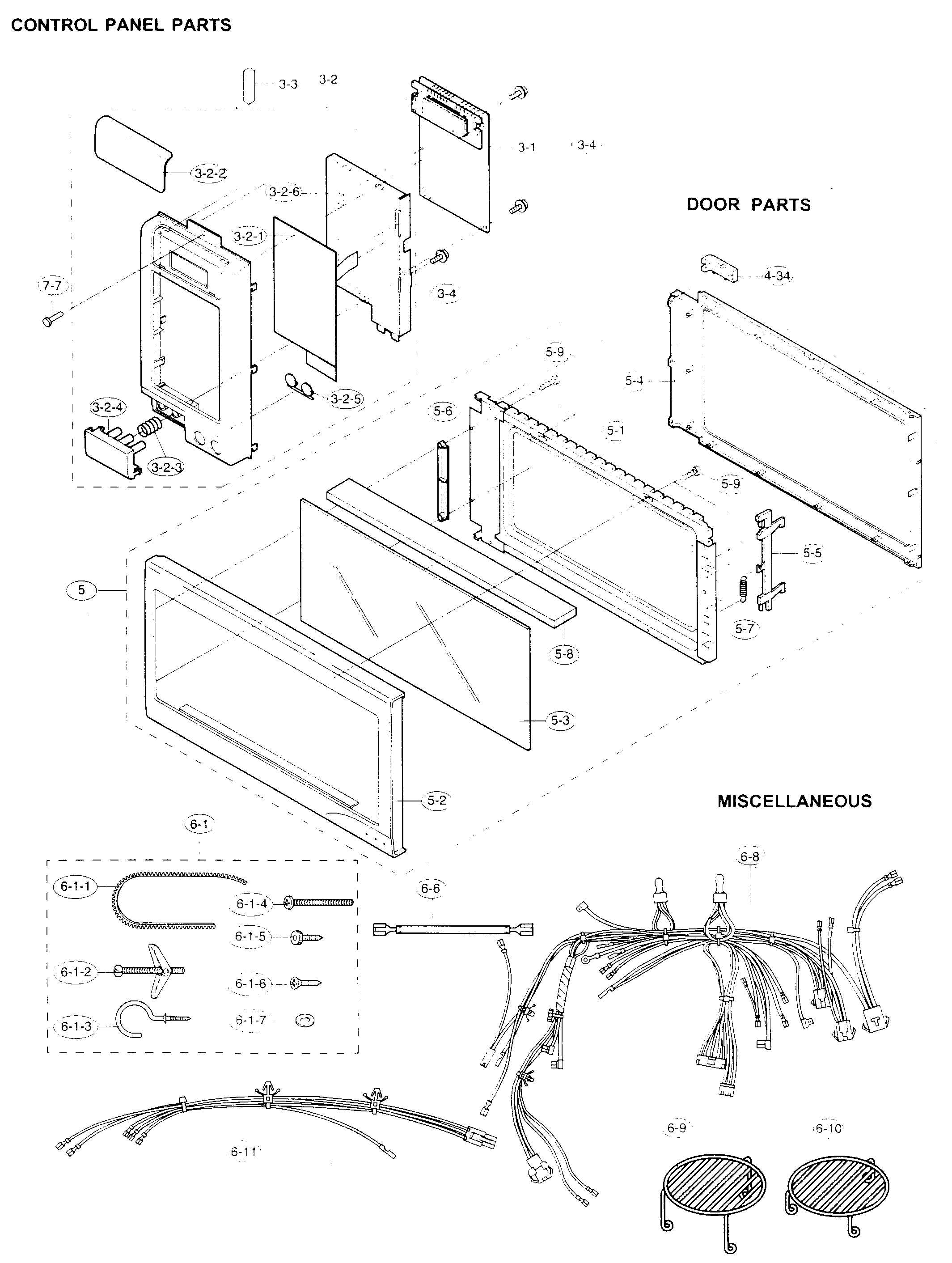

Control panel,door,miscellaneous diagram

Microwave power control board assembly

Part #DPWBFB061MRU0

The manufacturer no longer makes this part, and there's no substitute part

Fan FFAN-B008MRK0
#4-6

Cabinet parts diagram

Fan

Part #FFAN-B008MRK0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZB234MRE0
#1-2

Cabinet parts diagram

Capacitor

Part #RC-QZB234MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens FANGKB009MRY0
#2-7

Cabinet parts diagram

Microwave surface light lens

Part #FANGKB009MRY0

The manufacturer no longer makes this part, and there's no substitute part

Damper FFTA-B004MRK0
#4-1

Cabinet parts diagram

Damper

Part #FFTA-B004MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave/hood Sensor FDTCTA217WRKZ
#1-21

Cabinet parts diagram

Microwave/hood sensor

Part #FDTCTA217WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Bracket LANGQB033MRP0
Bracket

Part #LANGQB033MRP0

The manufacturer no longer makes this part, and there's no substitute part
