GE A3B688DACSW3 room air conditioner Parts

Here are the diagrams and repair parts for GE A3B688DACSW3 room air conditioner, as well as links to manuals and error code tables, if available.

GE A3B688DACSW3 room air conditioner
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

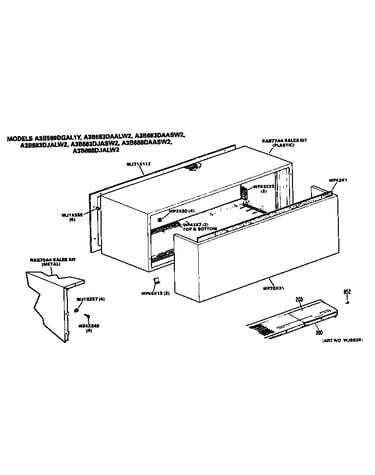

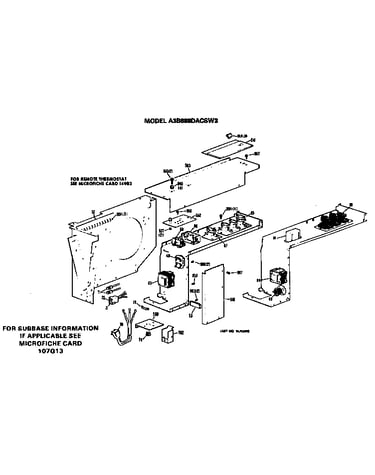

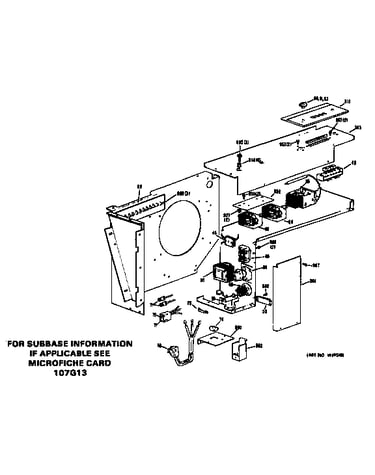

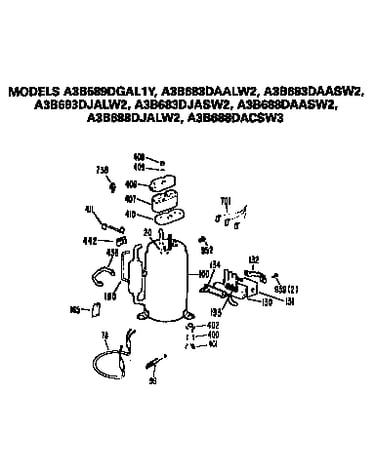

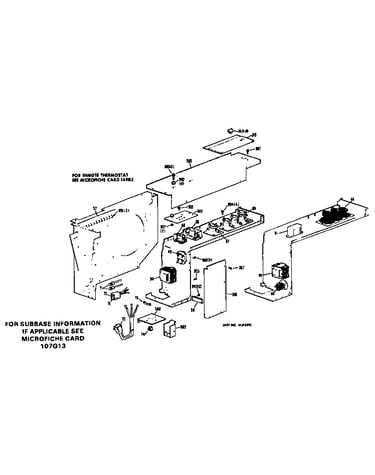

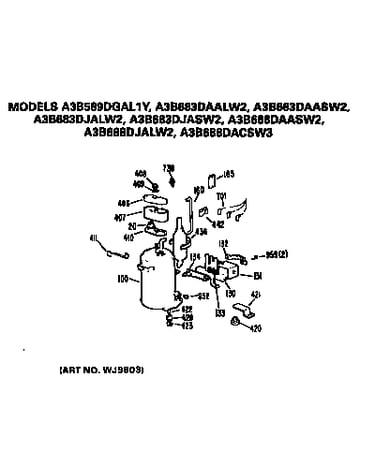

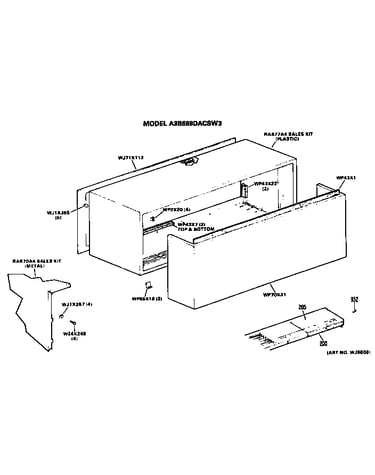

Browse Parts for A3B688DACSW3 Room Air Conditioner

  • Unknown for GE A3B688DACSW3 - Part WZ10X152

    #707

    All parts diagram

    Unknown

    Part #WZ10X152

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for GE A3B688DACSW3 - Part WJ20X545

    #10

    All parts diagram

    Capacitor

    Part #WJ20X545

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw & Washer 10-32 for GE A3B688DACSW3 - Part WZ6X108

    #956

    All parts diagram

    Screw & Washer 10-32

    Part #WZ6X108

    The manufacturer no longer makes this part, and there's no substitute part

  • Splice Kit for GE A3B688DACSW3 - Part WJ41X135

    #5000

    All parts diagram

    Splice Kit

    Part #WJ41X135

    The manufacturer no longer makes this part, and there's no substitute part

  • Grommet Relay Plate for GE A3B688DACSW3 - Part WP1X01

    #940

    All parts diagram

    Grommet Relay Plate

    Part #WP1X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Coupling 1/2" To 3-3/8" for GE A3B688DACSW3 - Part WJ56X62

    #165

    All parts diagram

    Coupling 1/2" To 3-3/8"

    Part #WJ56X62

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket for GE A3B688DACSW3 - Part WJ43X232

    #133

    All parts diagram

    Gasket

    Part #WJ43X232

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 6-32 X 3/8 Hex for GE A3B688DACSW3 - Part WZ5X122

    #946

    All parts diagram

    Screw 6-32 X 3/8 Hex

    Part #WZ5X122

    The manufacturer no longer makes this part, and there's no substitute part

  • Damper Door Link for GE A3B688DACSW3 - Part WP14X01

    #366

    All parts diagram

    Damper Door Link

    Part #WP14X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal Block for GE A3B688DACSW3 - Part WJ27X56

    #62

    All parts diagram

    Terminal Block

    Part #WJ27X56

    The manufacturer no longer makes this part, and there's no substitute part
