Microwave/Hood Combo

Model # JVM2050SJ04 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM2050SJ04 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

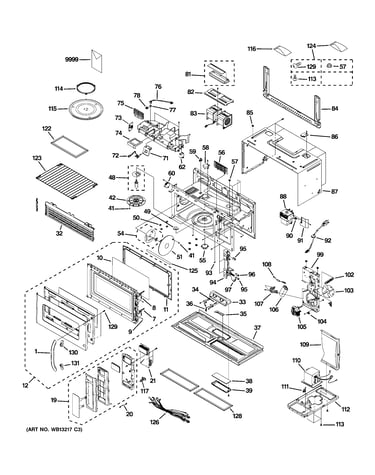

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#106

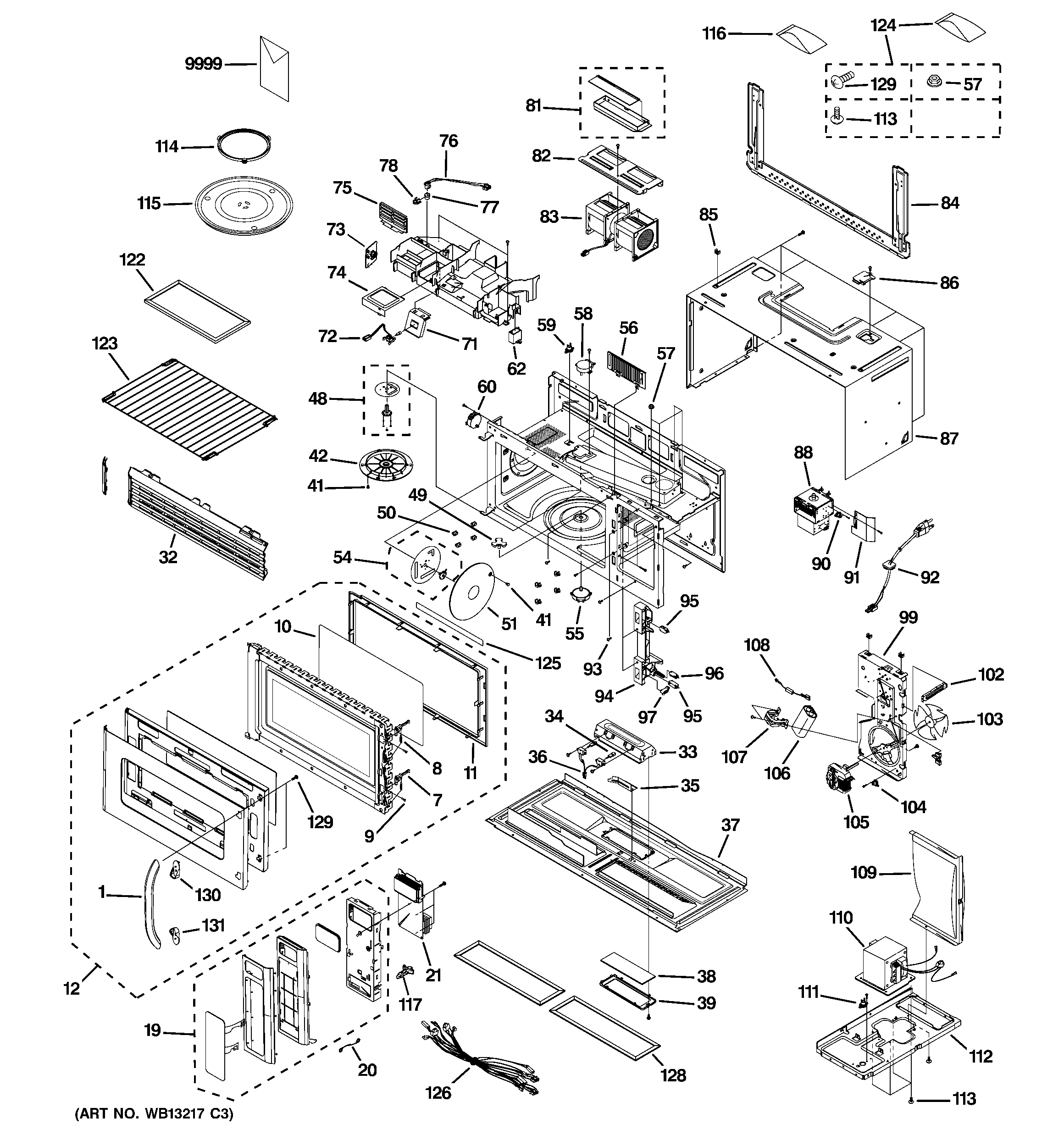

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74
10% OFF Phone Price : $51.74
In Stock
Micro-switch WB24X10075
#96

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$27.94
15% OFF Phone Price : $32.94
In Stock
Microwave Cooking Rack Support WB06X10521
#50

Microwave diagram

Microwave cooking rack support

Part #WB06X10521

$7.09
12% OFF Phone Price : $8.09
In Stock
Microwave Mounting Plate WB56X10446
#84

Microwave diagram

Microwave mounting plate

Part #WB56X10446

$93.90
5% OFF Phone Price : $98.90
In Stock
Microwave Vent Motor Capacitor WB27X10170
#62

Microwave diagram

Microwave vent motor capacitor

Part #WB27X10170

$48.79
9% OFF Phone Price : $53.79
In Stock
Microwave Grease Filter WB06X10288
#128

Microwave diagram

Microwave grease filter

Part #WB06X10288

This item is not returnable
$21.41
19% OFF Phone Price : $26.41
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#97

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Screw WB01X10084
#113

Microwave diagram

Washer screw

Part #WB01X10084

$6.51
13% OFF Phone Price : $7.51
In Stock
Microwave Thermal Cut-off (replaces Wb20x141, Wb27x10670) WB27X10195
#59

Microwave diagram

Microwave thermal cut-off (replaces wb20x141, wb27x10670)

Part #WB27X10195

$22.40
18% OFF Phone Price : $27.40
In Stock
Microwave Thermal Cut-off WB27X10166
#90

Microwave diagram

Microwave thermal cut-off

Part #WB27X10166

$32.99
13% OFF Phone Price : $37.99
In Stock
