Model # DW708TY3 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DW708TY3 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

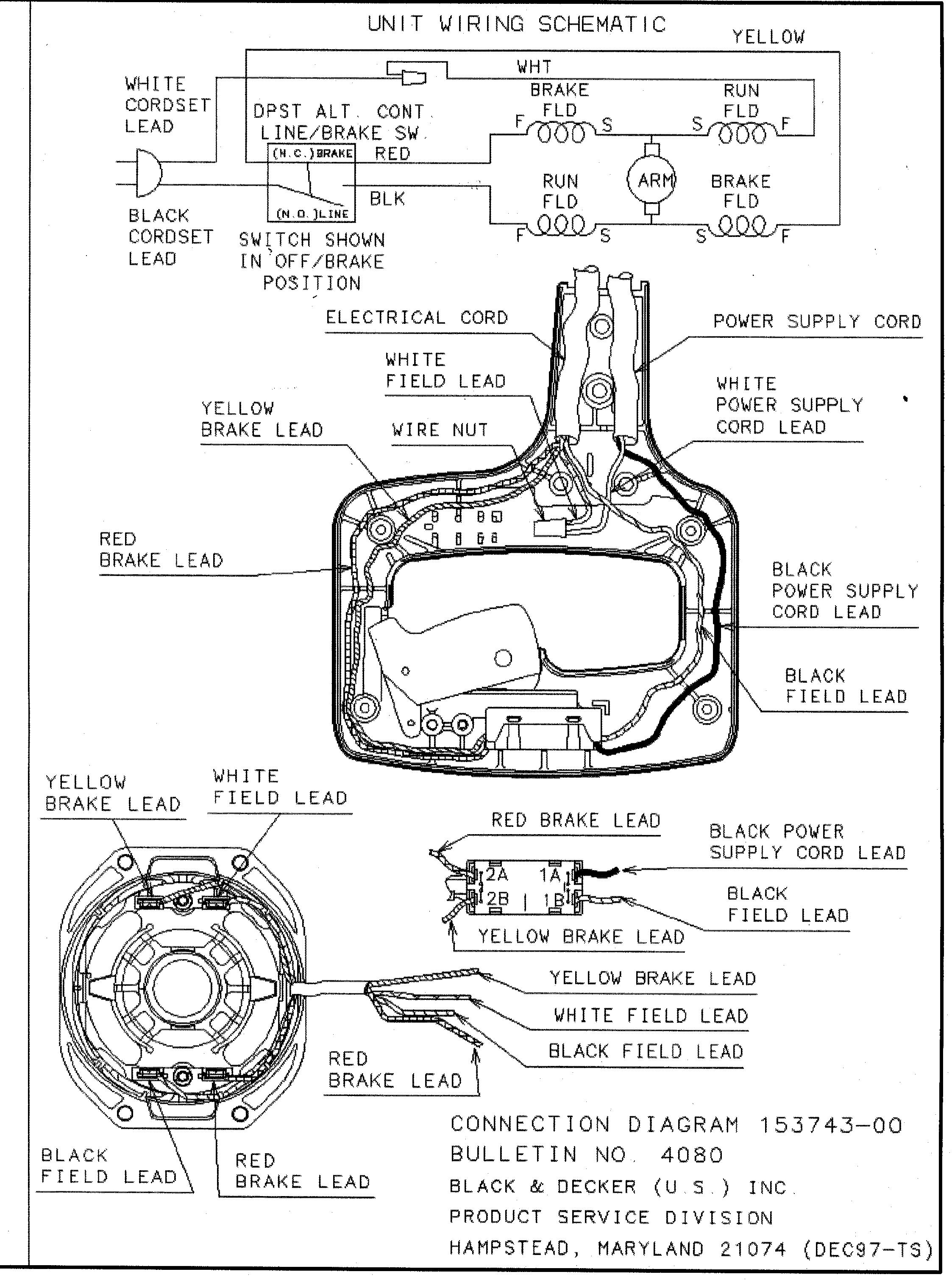

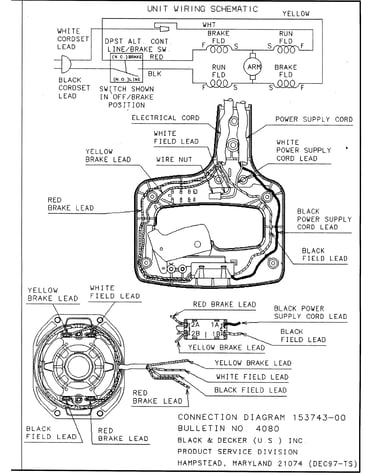

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Ring 153753-00
#46

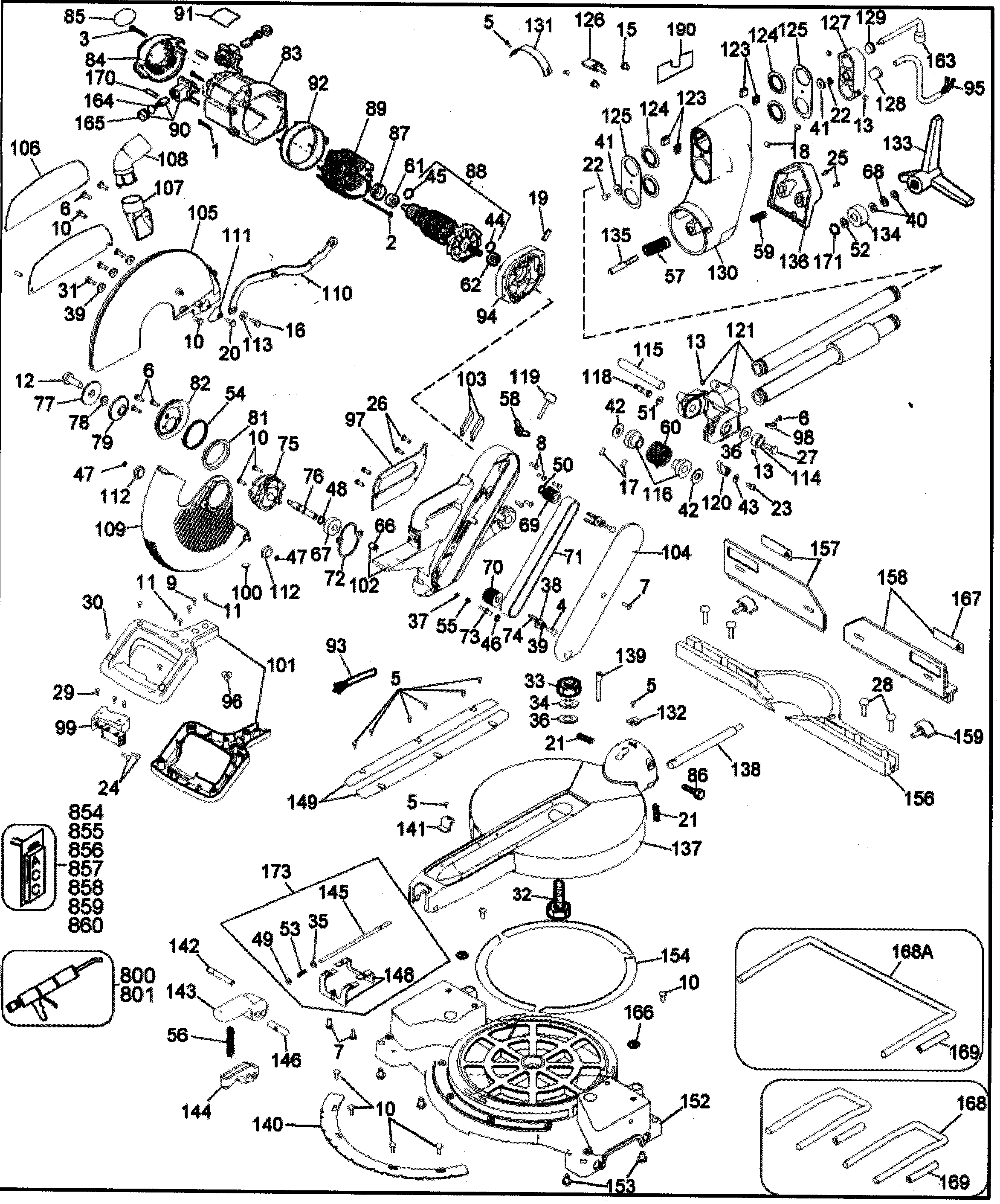

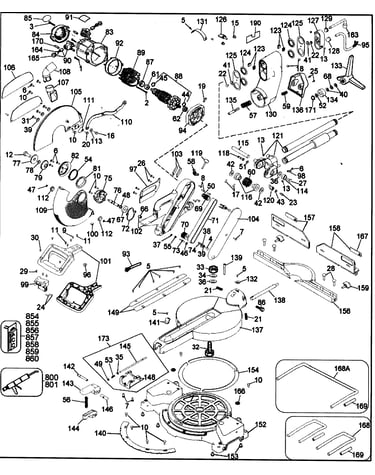

Saw diagram

Ring

Part #153753-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 153559-00
#37

Saw diagram

Washer

Part #153559-00

The manufacturer no longer makes this part, and there's no substitute part

Pulley 153796-00
#70

Saw diagram

Pulley

Part #153796-00

The manufacturer no longer makes this part, and there's no substitute part

Foot 153612-00
#153

Saw diagram

Foot

Part #153612-00

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 153561-00
#73

Saw diagram

Lock pin

Part #153561-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Trunnion Assembly 429941-00
#121

Saw diagram

Miter saw trunnion assembly

Part #429941-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 93488-00
#800

Saw diagram

Grease

Part #93488-00

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 153781-00
#36

Saw diagram

Plain washer

Part #153781-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp 153669-00
#98

Saw diagram

Clamp

Part #153669-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw 153778-00
#4

Saw diagram

Miter saw screw

Part #153778-00

The manufacturer no longer makes this part, and there's no substitute part
