Craftsman
Water Pump

Model # 2593016 Official Craftsman submersible sump drainer

Here are the diagrams and repair parts for Official Craftsman 2593016 submersible sump drainer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Capacitor W-36511
#6

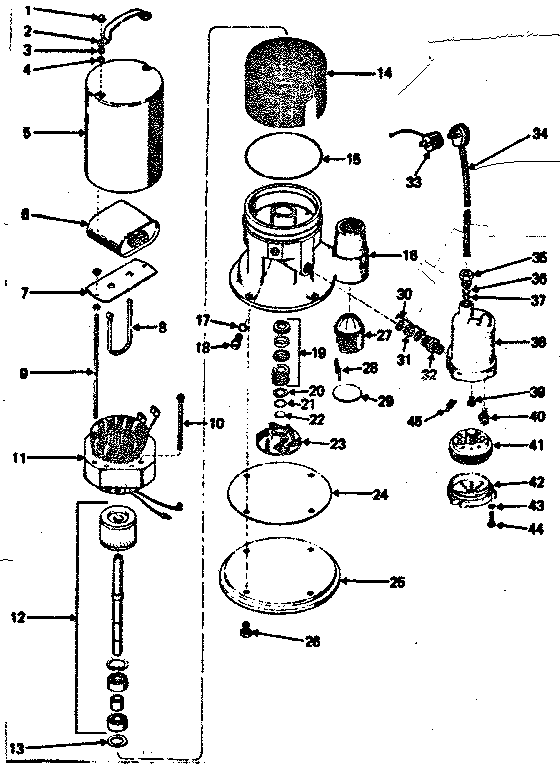

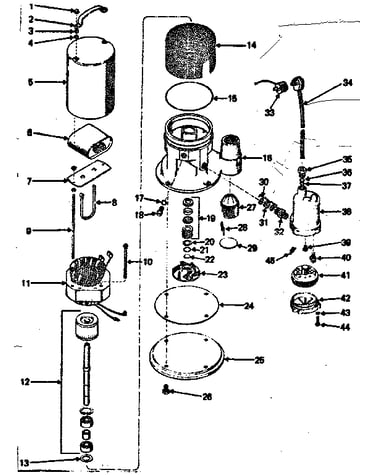

Replacement parts diagram

Capacitor

Part #W-36511

Replaced by #12910

?
Manufacturer substitution
This part replaces W-36511. Substitute parts can look different from the original.
$8.37
11% OFF Phone Price : $9.37
In Stock
Connector 25047
#45

Replacement parts diagram

Connector

Part #25047

The manufacturer no longer makes this part, and there's no substitute part

Guarantee F642-7969

#NI

All parts diagram

Guarantee

Part #F642-7969

The manufacturer no longer makes this part, and there's no substitute part

Shaft Bearing W-36520-L
#12

Replacement parts diagram

Shaft bearing

Part #W-36520-L

The manufacturer no longer makes this part, and there's no substitute part

Stud W-36531
#9

Replacement parts diagram

Stud

Part #W-36531

The manufacturer no longer makes this part, and there's no substitute part

O-ring 24783
#37

Replacement parts diagram

O-ring

Part #24783

The manufacturer no longer makes this part, and there's no substitute part

Screw W-36530
#10

Replacement parts diagram

Screw

Part #W-36530

The manufacturer no longer makes this part, and there's no substitute part

Housing W36502S
#16

Replacement parts diagram

Housing

Part #W36502S

The manufacturer no longer makes this part, and there's no substitute part

Washer W-6481
#20

Replacement parts diagram

Washer

Part #W-6481

The manufacturer no longer makes this part, and there's no substitute part

Housing W36518S
#38

Replacement parts diagram

Housing

Part #W36518S

The manufacturer no longer makes this part, and there's no substitute part
