Model # 47219054 Official Craftsman broadcast spreader/seeder

Here are the diagrams and repair parts for Official Craftsman 47219054 broadcast spreader/seeder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Idle Wheel S-731
#22

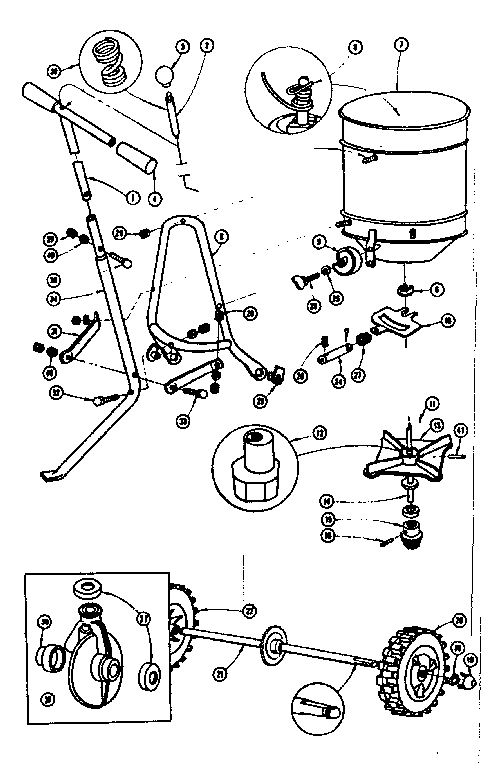

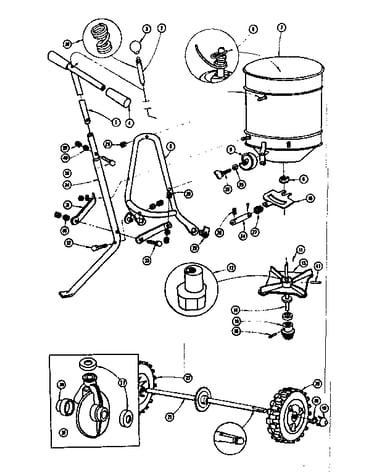

Replacement parts diagram

Idle wheel

Part #S-731

The manufacturer no longer makes this part, and there's no substitute part

Gear S-710
#15

Replacement parts diagram

Gear

Part #S-710

The manufacturer no longer makes this part, and there's no substitute part

Washer S-753
#40

Replacement parts diagram

Washer

Part #S-753

The manufacturer no longer makes this part, and there's no substitute part

Cap S-738
#37

Replacement parts diagram

Cap

Part #S-738

The manufacturer no longer makes this part, and there's no substitute part

Handle S-714B
#1

Replacement parts diagram

Handle

Part #S-714B

The manufacturer no longer makes this part, and there's no substitute part

Cam S-719
#12

Replacement parts diagram

Cam

Part #S-719

The manufacturer no longer makes this part, and there's no substitute part

Drive Wheel S-730
#20

Replacement parts diagram

Drive wheel

Part #S-730

The manufacturer no longer makes this part, and there's no substitute part

Rod S-705
#24

Replacement parts diagram

Rod

Part #S-705

The manufacturer no longer makes this part, and there's no substitute part

Gear Bx Cmp S-737
#36

Replacement parts diagram

Gear bx cmp

Part #S-737

The manufacturer no longer makes this part, and there's no substitute part

Bearing Liner S-708
#27

Replacement parts diagram

Bearing liner

Part #S-708

The manufacturer no longer makes this part, and there's no substitute part
