Model # 306233900 Official Craftsman planer/molder

Here are the diagrams and repair parts for Official Craftsman 306233900 planer/molder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

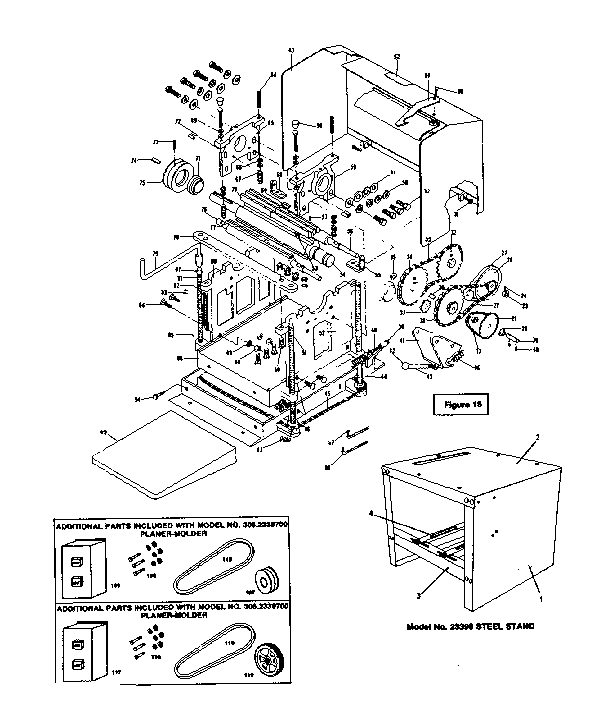

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |

Washer Z-178
#7

Unit parts diagram

Washer

Part #Z-178

The manufacturer no longer makes this part, and there's no substitute part

Washer Z-57
#91

Unit parts diagram

Washer

Part #Z-57

The manufacturer no longer makes this part, and there's no substitute part

Bolt Z-179
#5

Unit parts diagram

Bolt

Part #Z-179

The manufacturer no longer makes this part, and there's no substitute part

Rol Chain-27 P-354A
#22

Unit parts diagram

Rol chain-27

Part #P-354A

The manufacturer no longer makes this part, and there's no substitute part

Bolt Washer Nut Z-111
#9

Unit parts diagram

Bolt washer nut

Part #Z-111

The manufacturer no longer makes this part, and there's no substitute part

Bolt W/nut Z-112
Bolt w/nut

Part #Z-112

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Z-67
Cap screw

Part #Z-67

The manufacturer no longer makes this part, and there's no substitute part

Hood-lh P-379
#68

Unit parts diagram

Hood-lh

Part #P-379

The manufacturer no longer makes this part, and there's no substitute part

Corner Screw S-5A
#51

Unit parts diagram

Corner screw

Part #S-5A

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Z-63
#94

Unit parts diagram

Cap screw

Part #Z-63

The manufacturer no longer makes this part, and there's no substitute part
