Model # FFPA0522R10 Official Frigidaire portable room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFPA0522R10 portable room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

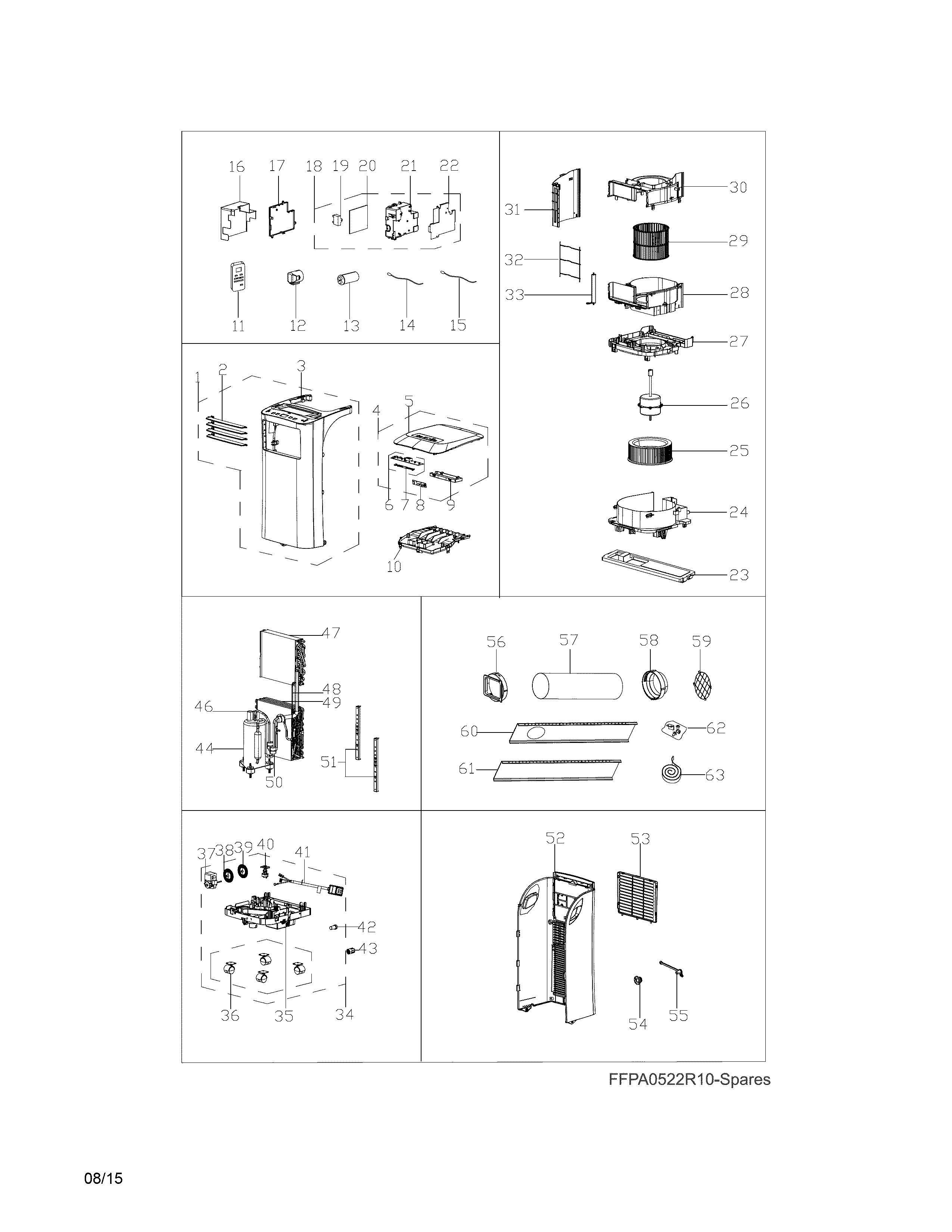

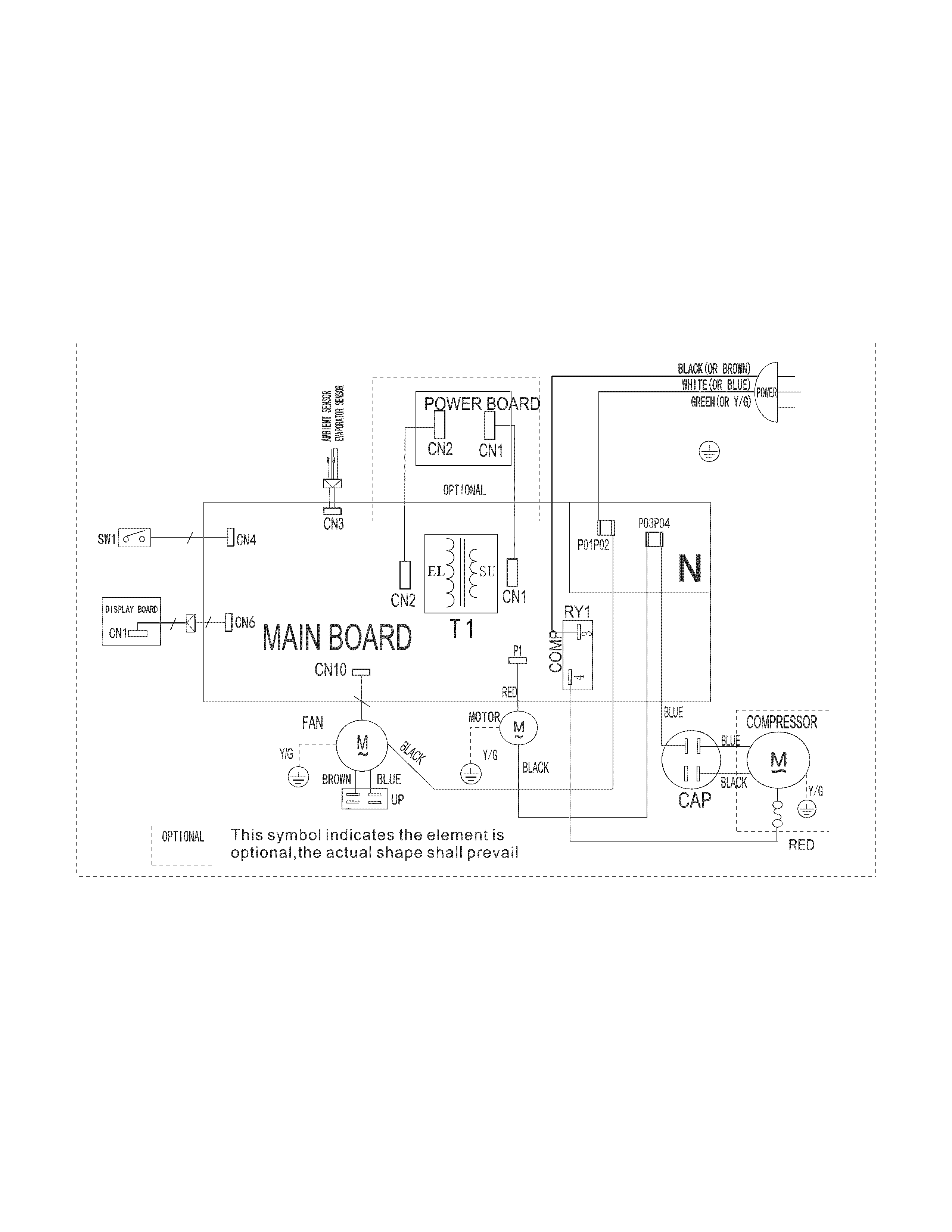

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Room Air Conditioner Drain Hose Connector Plug 5304502043
#42

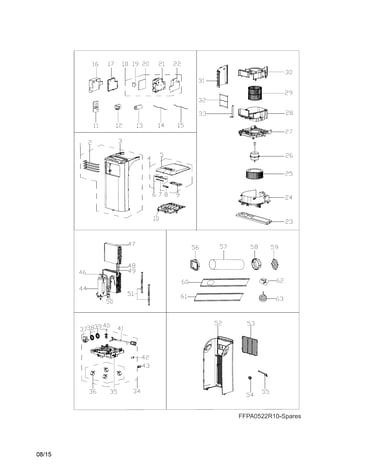

Recommended spare parts diagram

Room air conditioner drain hose connector plug

Part #5304502043

In Stock
Room Air Conditioner Exhaust Hose Connector 5304502059
#58

Recommended spare parts diagram

Room air conditioner exhaust hose connector

Part #5304502059

In Stock
Pc Board 5304502022
#20

Recommended spare parts diagram

Pc board

Part #5304502022

In Stock
Connector 5304502055
#54

Recommended spare parts diagram

Connector

Part #5304502055

In Stock
Air Conditioner Blower 5304502030
#29

Recommended spare parts diagram

Air conditioner blower

Part #5304502030

In Stock
Control Panel 5304502006
#4

Recommended spare parts diagram

Control panel

Part #5304502006

In Stock
Power Cord 5304502068
#41

Recommended spare parts diagram

Power cord

Part #5304502068

In Stock
Scroll 5304502029
#28

Recommended spare parts diagram

Scroll

Part #5304502029

In Stock
Partition Burner 5304502012
#10

Recommended spare parts diagram

Partition burner

Part #5304502012

In Stock
Plug 5304502056
#55

Recommended spare parts diagram

Plug

Part #5304502056

In Stock
