Craftsman
Gas Snowblower

Model # 536886470 Official Craftsman snow blower

Here are the diagrams and repair parts for Official Craftsman 536886470 snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

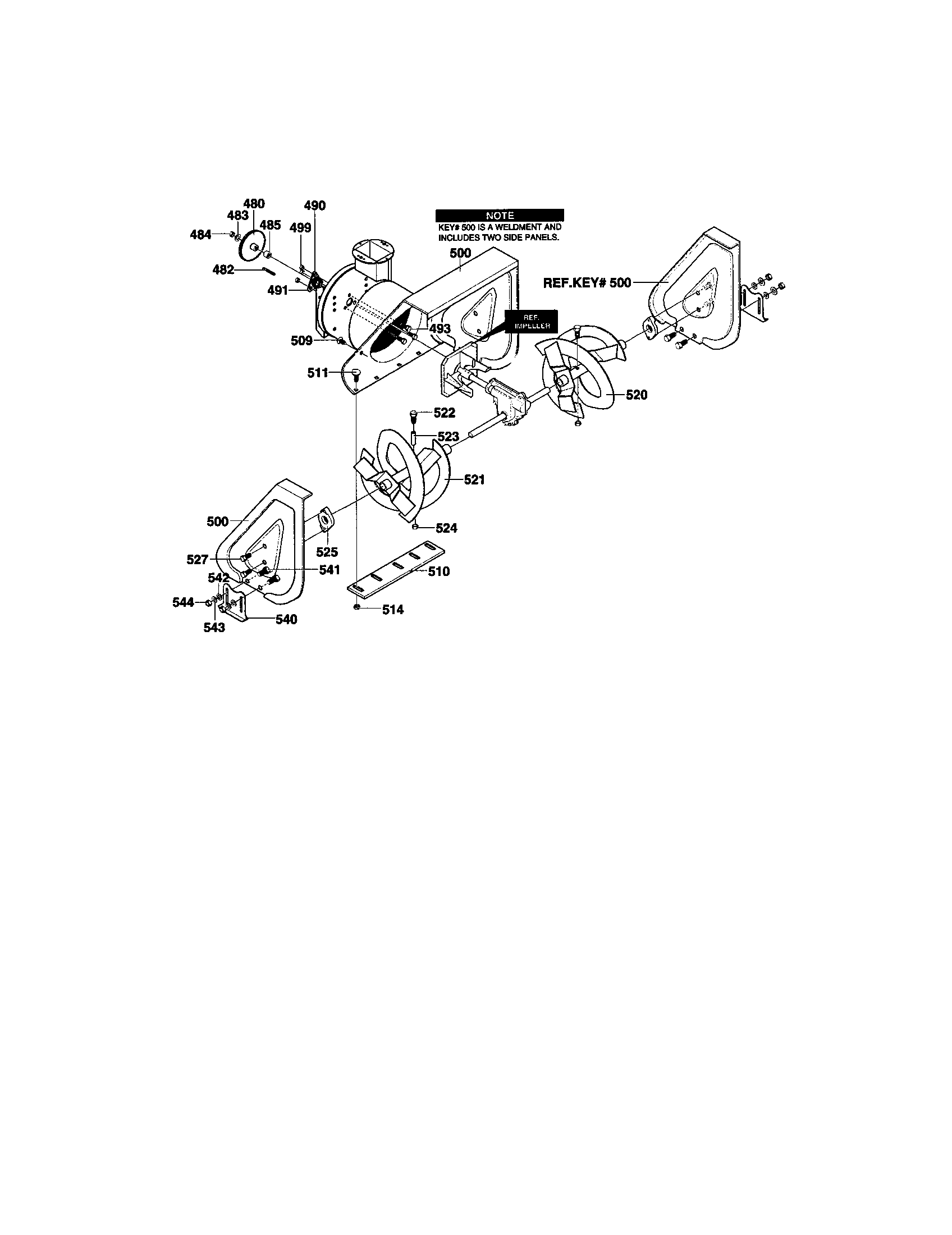

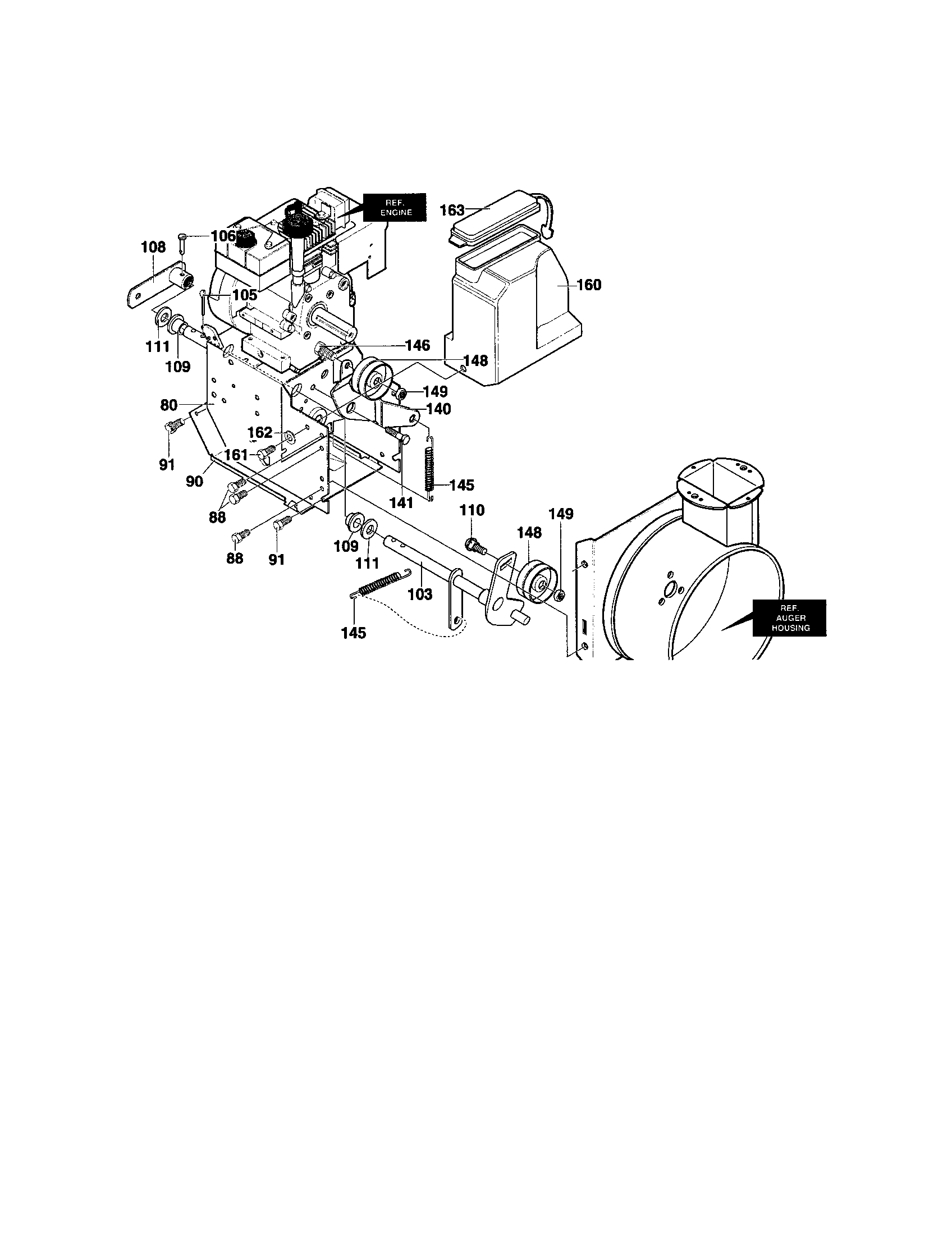

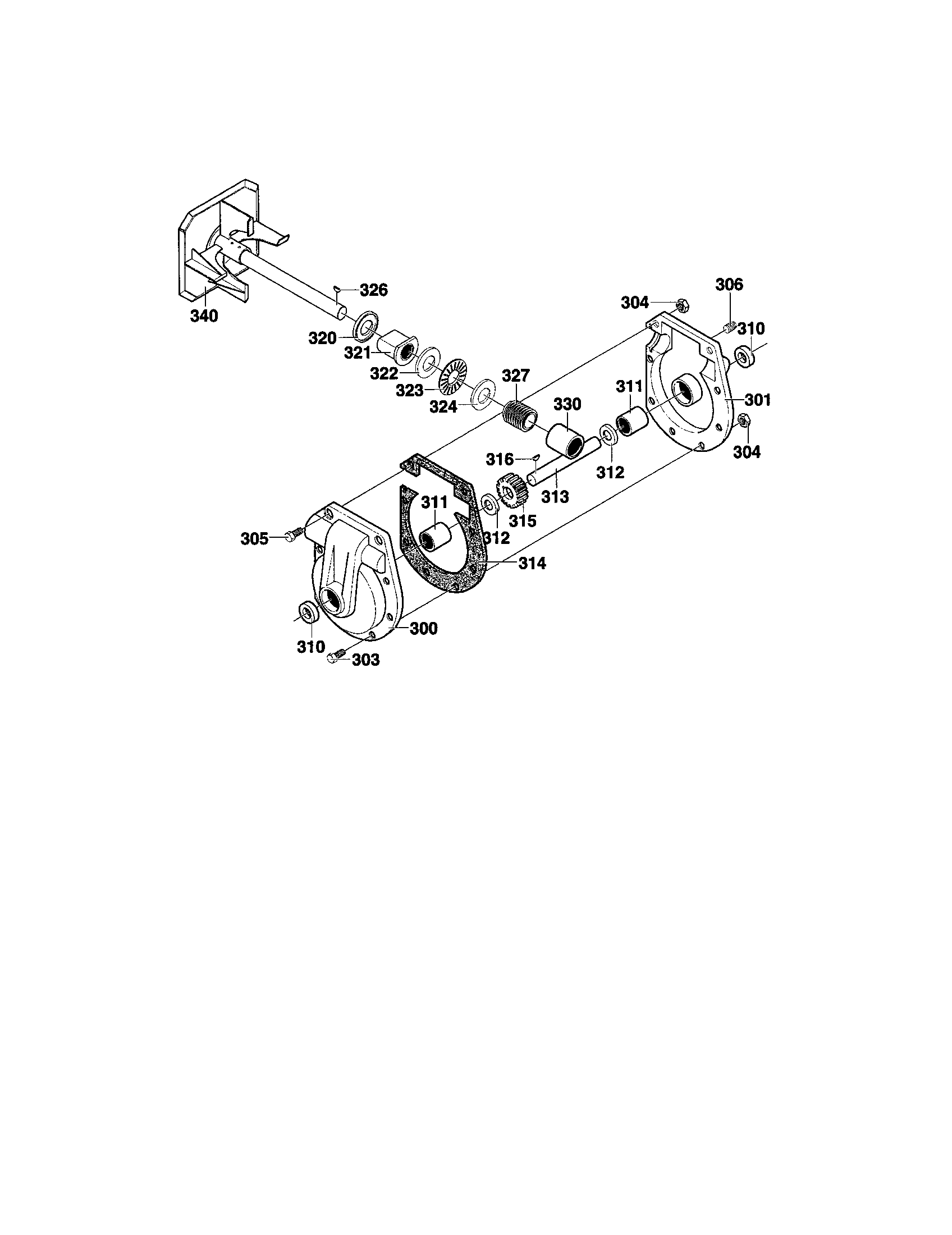

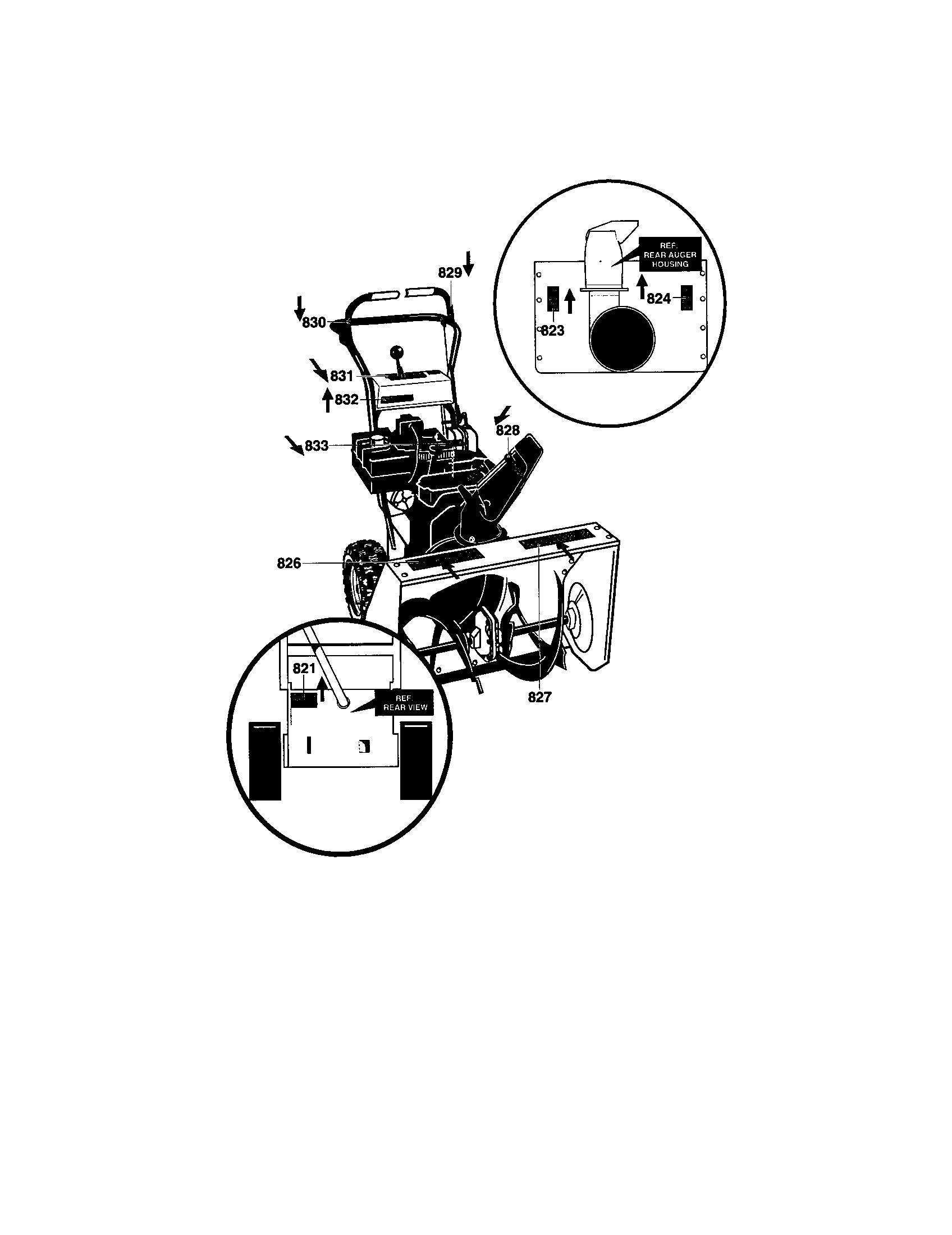

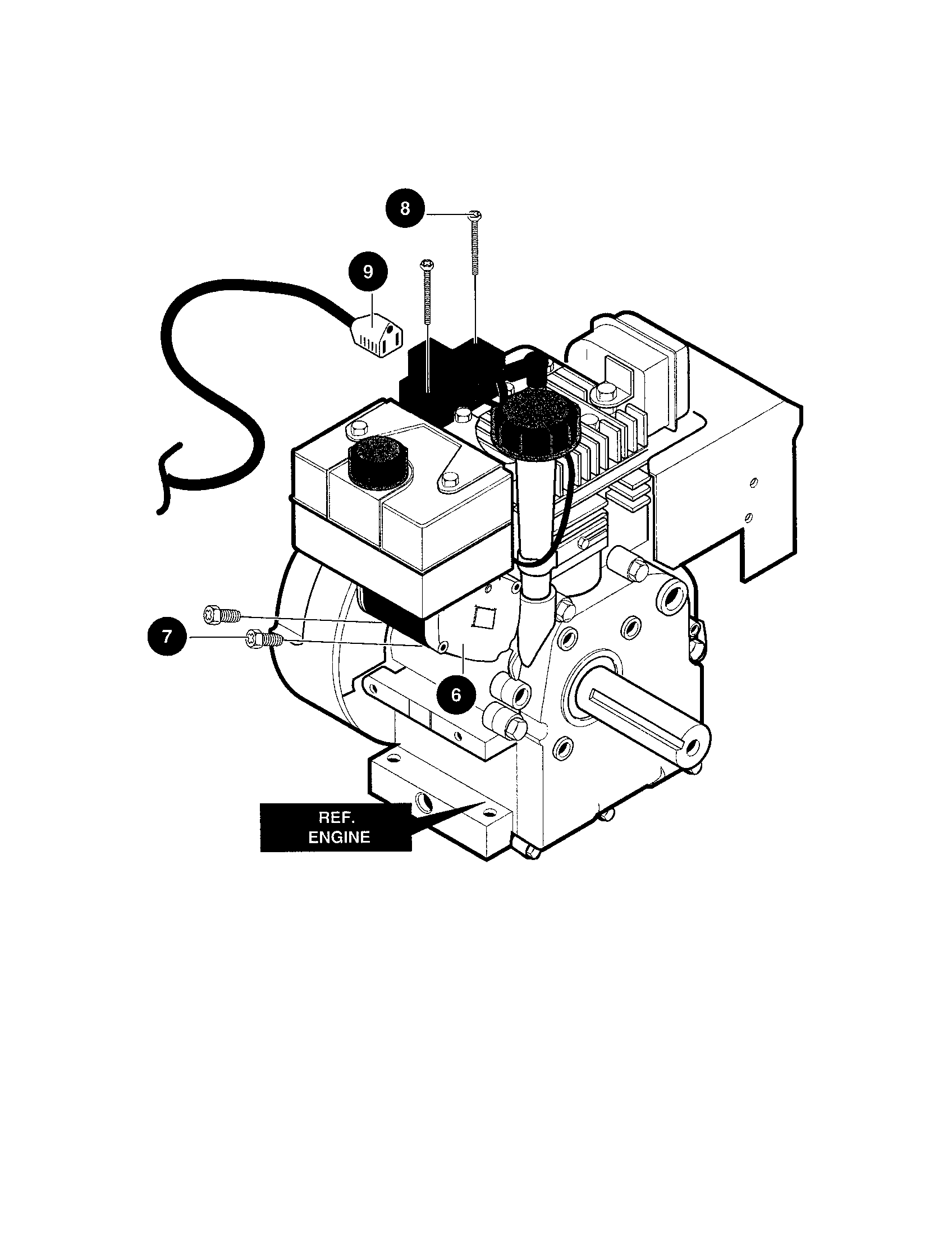

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 392 parts  |
Snowblower Drive Belt 579932
#57

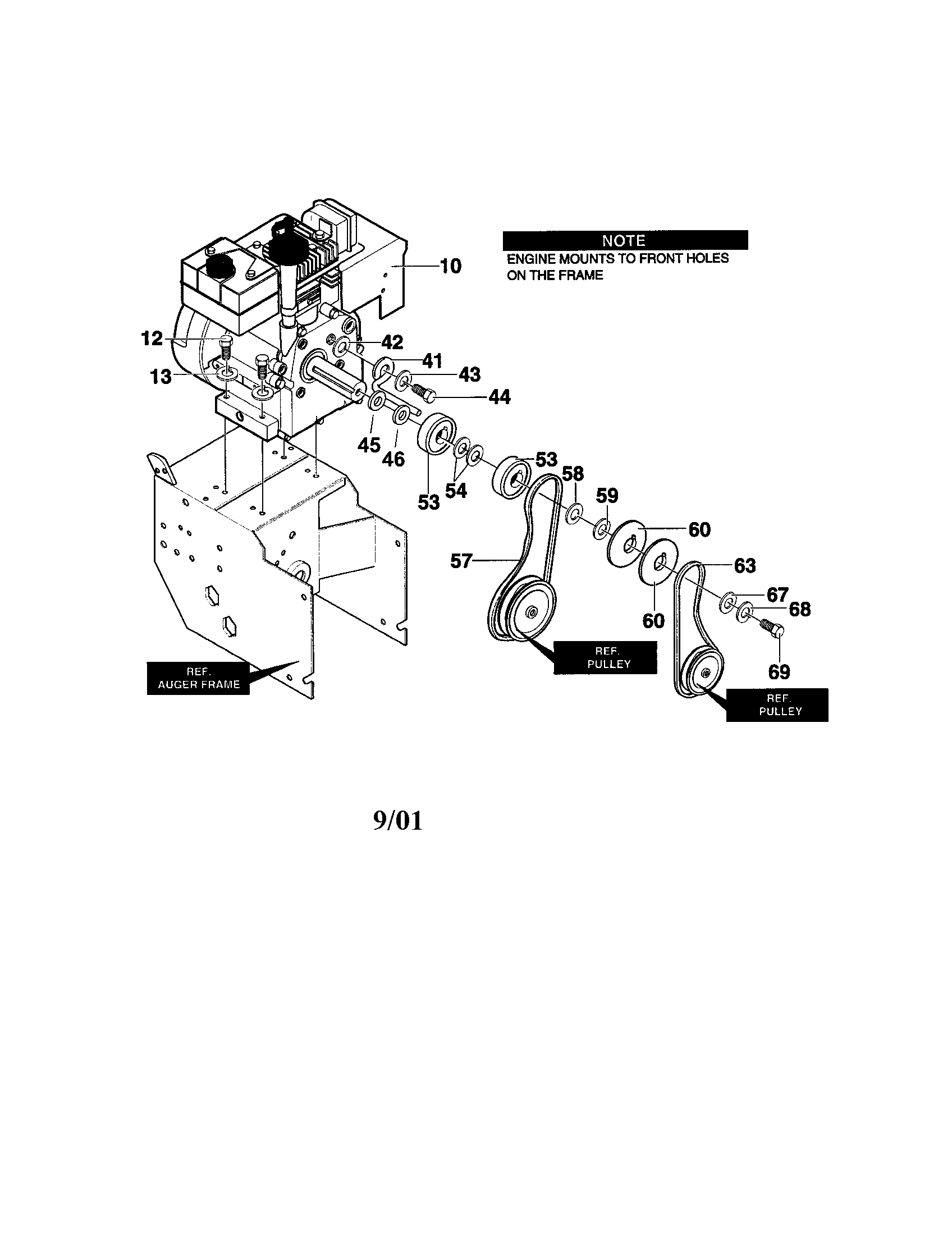

Engine diagram

Snowblower drive belt

Part #579932

Replaced by #1733324SM

?
Manufacturer substitution
This part replaces 579932. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$25.00 |
17% OFF Phone Price : $30.00
In Stock
Snowblower Gas Belt 585416
#63

Engine diagram

Snowblower gas belt

Part #585416

Replaced by #585416MA

?
Manufacturer substitution
This part replaces 585416. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.61 |
14% OFF Phone Price : $36.61
In Stock
Disc Wheel 53830
#246

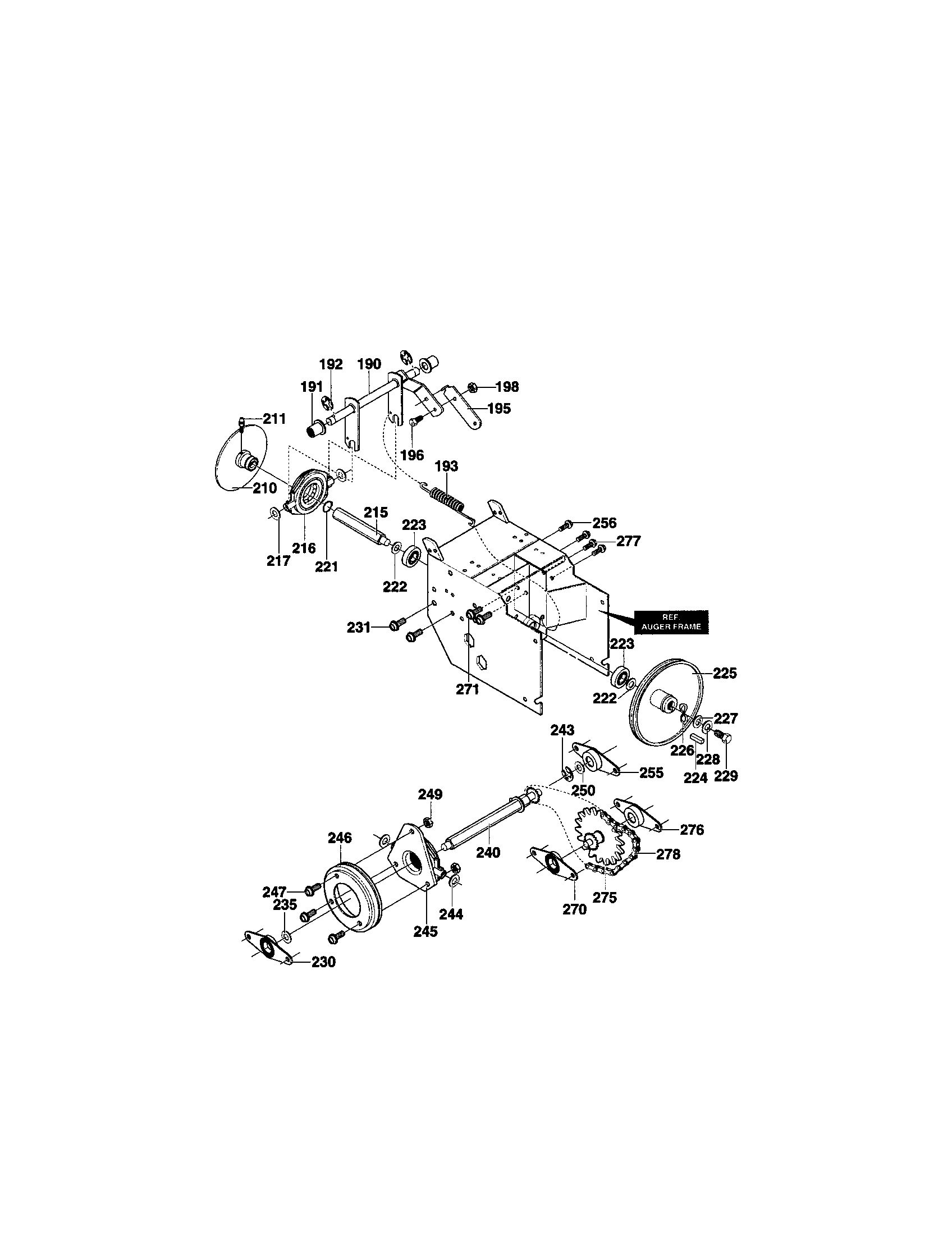

Drive components diagram

Disc wheel

Part #53830

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 53830. Substitute parts can look different from the original.
BEST SELLER
$28.81 |
15% OFF Phone Price : $33.81
In Stock
Snowblower Chute Retainer Ring, Inner 337227
#610

Discharge chute diagram

Snowblower chute retainer ring, inner

Part #337227

Replaced by #337227MA

?
Manufacturer substitution
This part replaces 337227. Substitute parts can look different from the original.
BEST SELLER
$25.11 |
17% OFF Phone Price : $30.11
In Stock
1/4-20 Hex N 780029
1/4-20 hex n

Part #780029

Replaced by #703232

?
Manufacturer substitution
This part replaces 780029. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Knob 57171
#597

Discharge chute diagram

Knob

Part #57171

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 57171. Substitute parts can look different from the original.
BEST SELLER
$10.15 |
16% OFF Phone Price : $12.15
In Stock
Worm 585196
#871

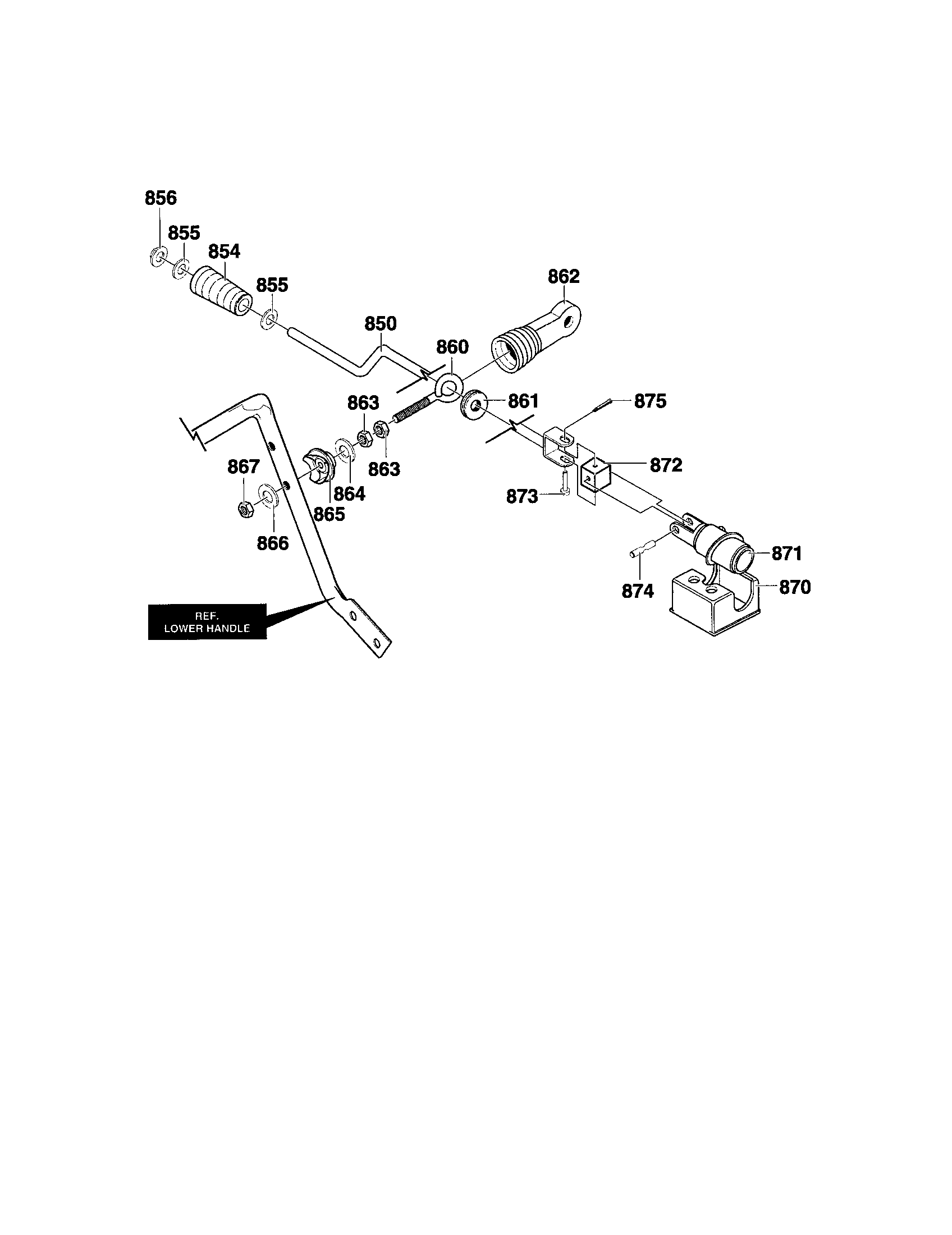

Chute rod diagram

Worm

Part #585196

Replaced by #585196MA

?
Manufacturer substitution
This part replaces 585196. Substitute parts can look different from the original.
BEST SELLER
$20.23 |
20% OFF Phone Price : $25.23
In Stock
Clutch Cable 1579
#740

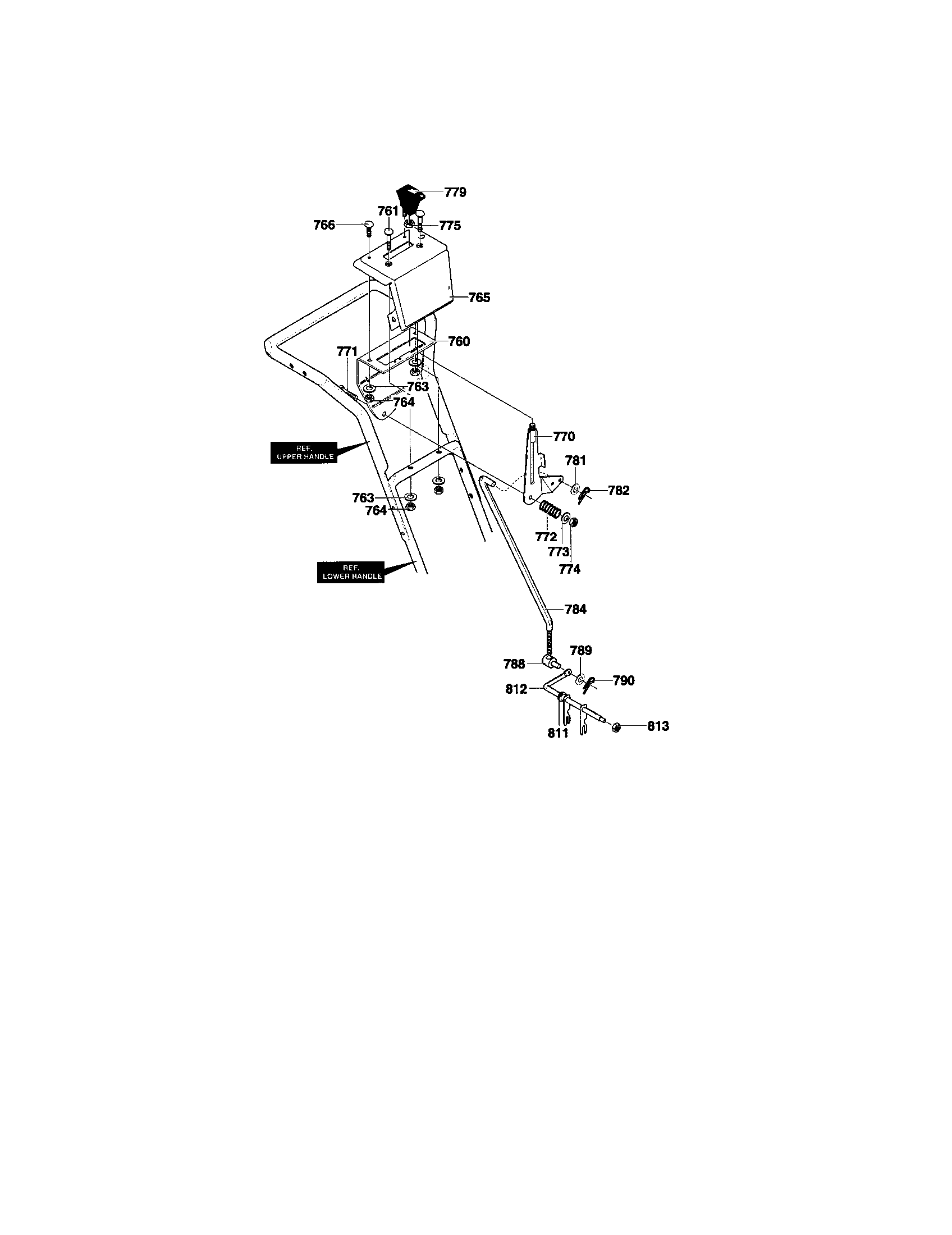

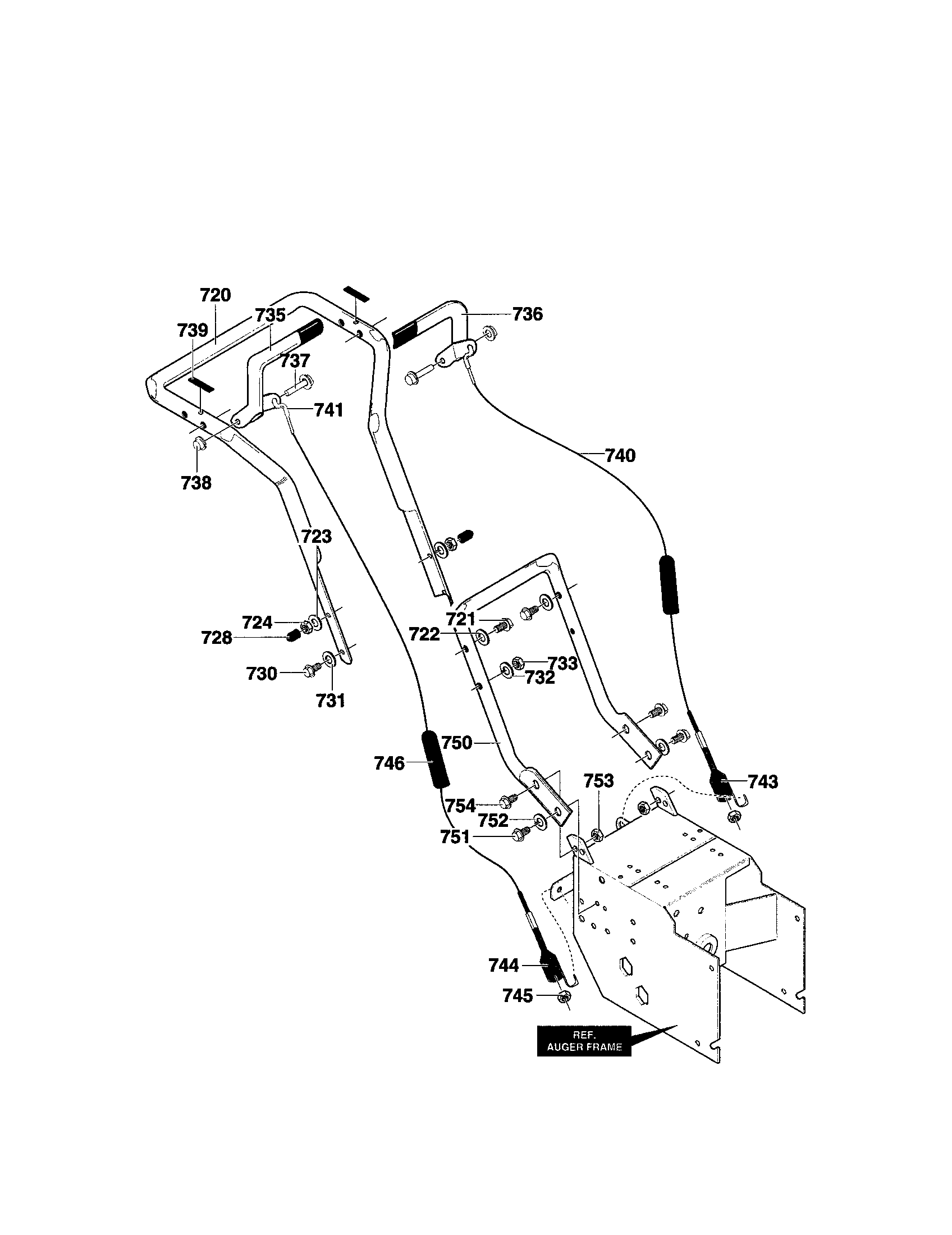

Handle diagram

Clutch cable

Part #1579

Replaced by #1579MA

?
Manufacturer substitution
This part replaces 1579. Substitute parts can look different from the original.
$22.04 |
18% OFF Phone Price : $27.04
In Stock
Retaining Ring 239
#678

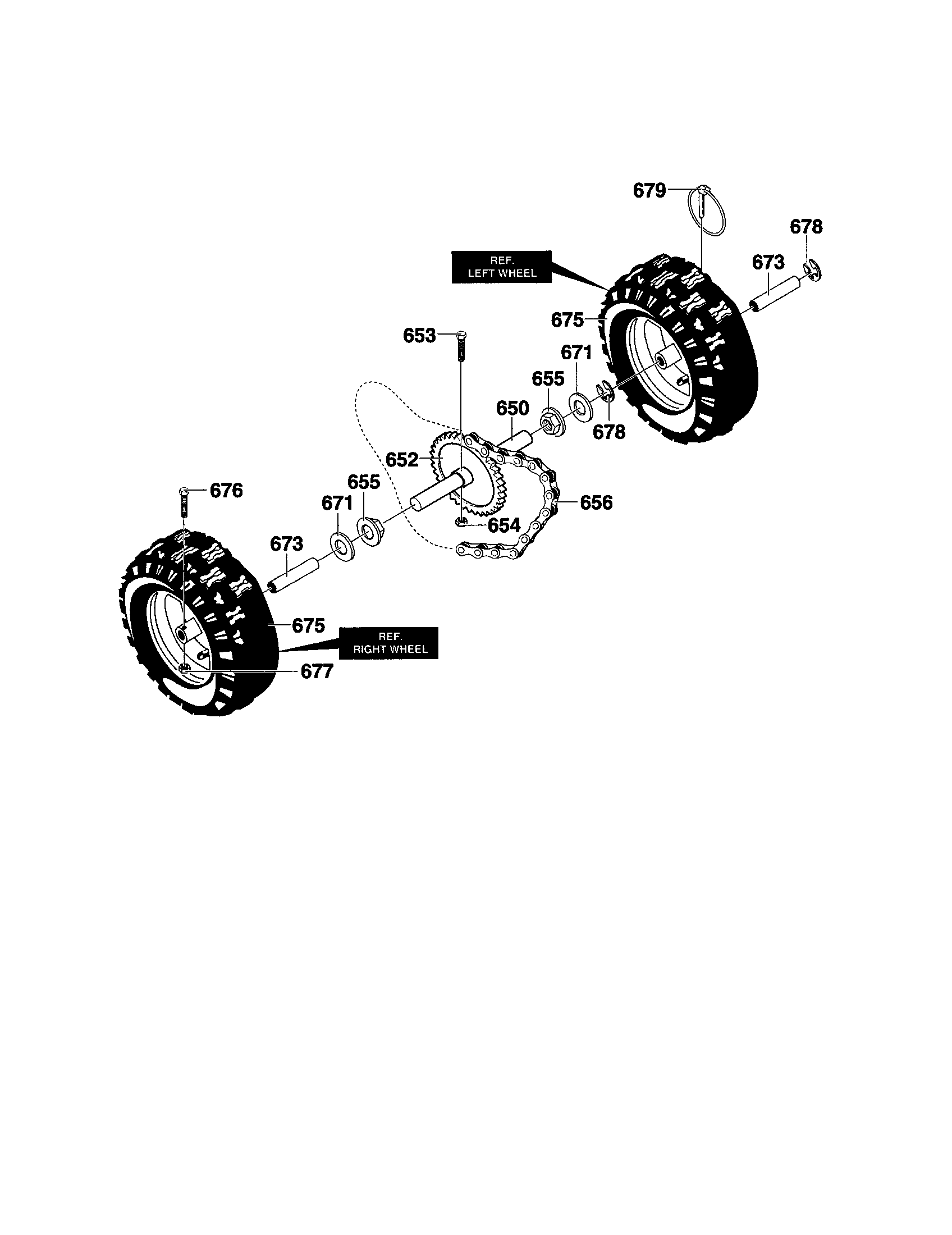

Wheels diagram

Retaining ring

Part #239

Replaced by #1657528SM

?
Manufacturer substitution
This part replaces 239. Substitute parts can look different from the original.
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Universal Pin 578060
#874

Chute rod diagram

Universal pin

Part #578060

Replaced by #578060MA

?
Manufacturer substitution
This part replaces 578060. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
