Kenmore 22996464 hot water boiler Parts

Name: Kenmore 22996464 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 22996464
Availability: InStock

Here are the diagrams and repair parts for Kenmore 22996464 hot water boiler, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for 22996464 Hot Water Boiler

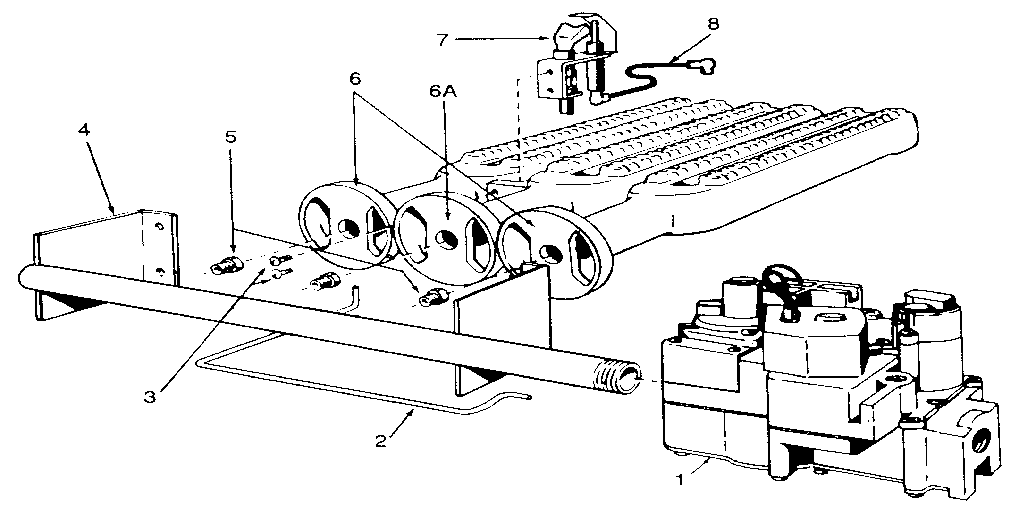

Gas burners and manifold diagram
Burner
Part #146-62-054
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Ignitn Cable
Part #146-62-074
The manufacturer no longer makes this part, and there's no substitute part

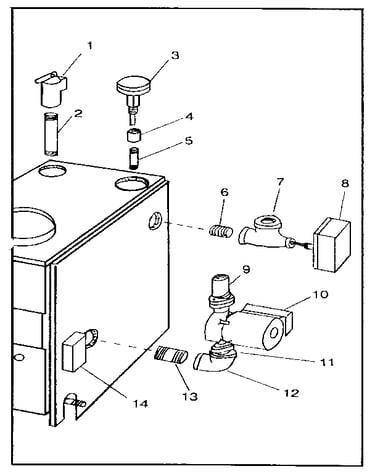

Boiler controls and piping diagram
Circulator
Part #146-26-045
Replaced by #103251
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
In Stock
$274.41
$12.00 OFF Phone Price : $286.41
Qty
Gas burners and manifold diagram
Gas Valve
Part #146-62-052
The manufacturer no longer makes this part, and there's no substitute part
Boiler controls and piping diagram
Relief Valve
Part #146-22-011
Replaced by #10-408-05
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
In Stock
$62.18
9% OFF Phone Price : $68.18
Qty

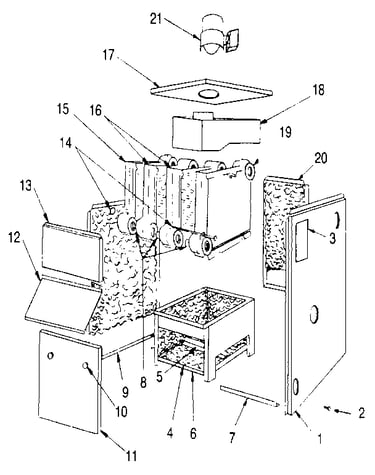

Jacket - section and base diagram
Jacket Door
Part #425-00-914
The manufacturer no longer makes this part, and there's no substitute part
Jacket - section and base diagram
Jckt Tiebar
Part #425-00-654
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Rollout Shld
Part #425-00-934
The manufacturer no longer makes this part, and there's no substitute part
Jacket - section and base diagram
Jkt Top Pnl
Part #425-00-844
The manufacturer no longer makes this part, and there's no substitute part
Boiler controls and piping diagram
Flange Set
Part #146-26-050
The manufacturer no longer makes this part, and there's no substitute part
