Model # T4A330GKD100 Official ICP air conditioner heat pump outside unit

Here are the diagrams and repair parts for Official ICP T4A330GKD100 air conditioner heat pump outside unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Capacitor 1172147
#5

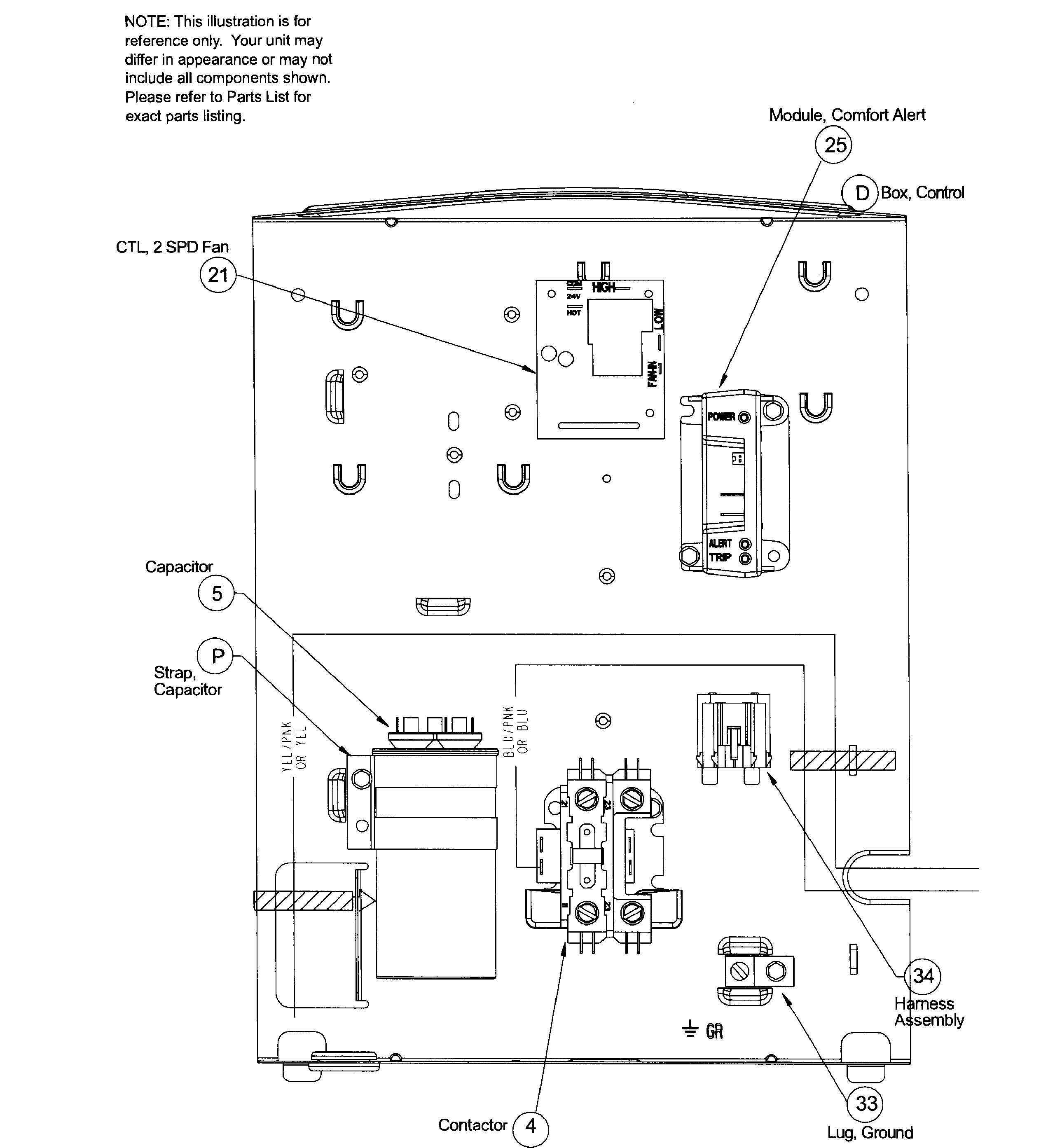

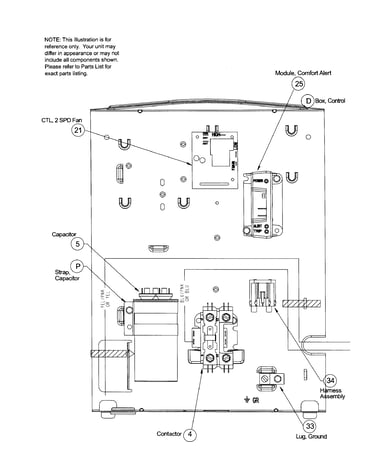

Control box asy diagram

Capacitor

Part #1172147

Replaced by #1172148

?
Manufacturer substitution
This part replaces 1172147. Substitute parts can look different from the original.
$24.69 |
17% OFF Phone Price : $29.69
In Stock
Central Air Conditioner Comfort Alert Board (replaces 943001000) 1177402
#25

Control box asy diagram

Central air conditioner comfort alert board (replaces 943001000)

Part #1177402

The manufacturer no longer makes this part, and there's no substitute part

Switch 1177095
#17

Inner asy diagram

Switch

Part #1177095

$48.60
In Stock
Central Air Conditioner Contactor 1172472
#4

Control box asy diagram

Central air conditioner contactor

Part #1172472

$61.35 |
8% OFF Phone Price : $66.35
In Stock
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

Control box asy diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
6% OFF Phone Price : $90.61
In Stock

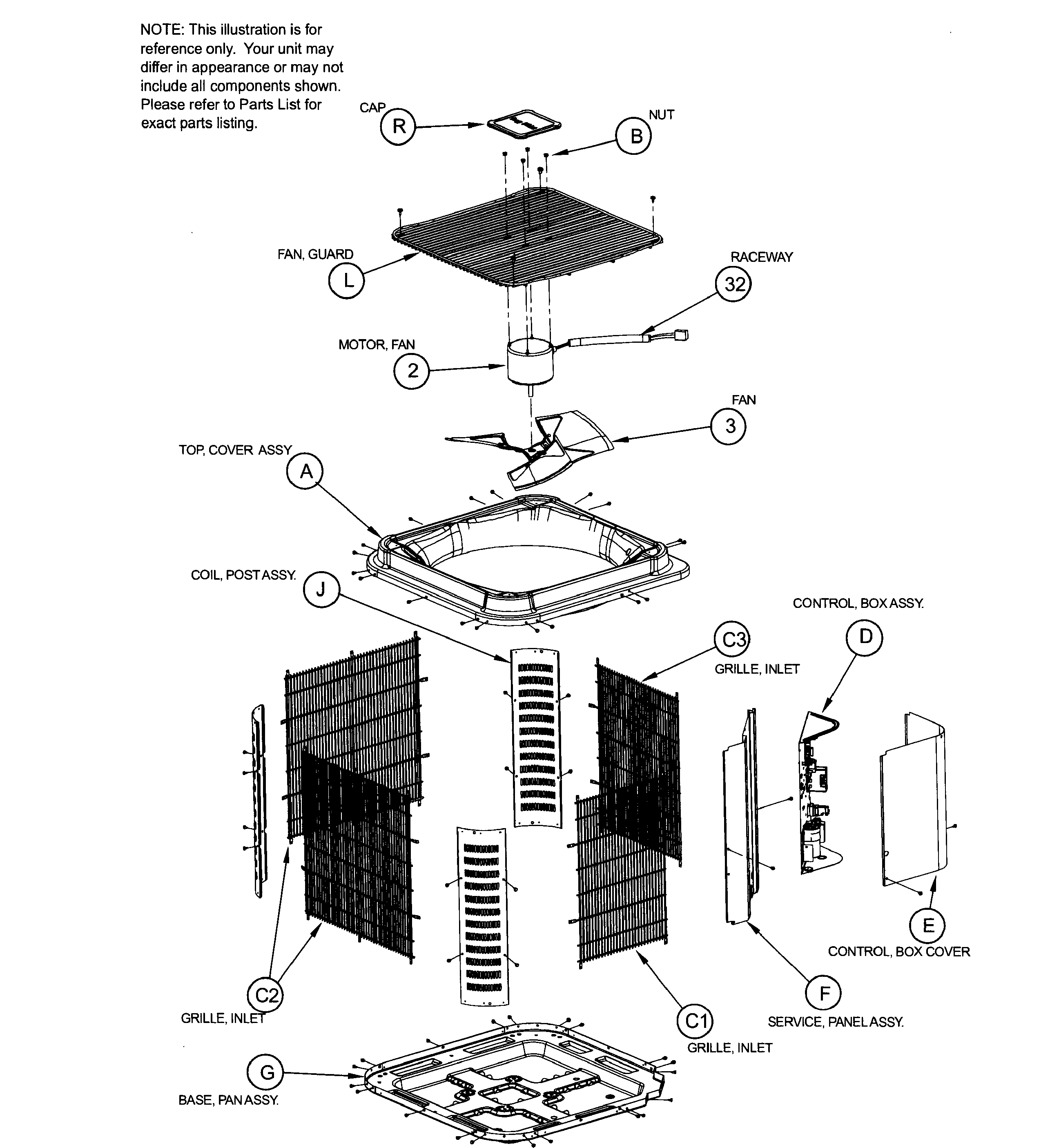

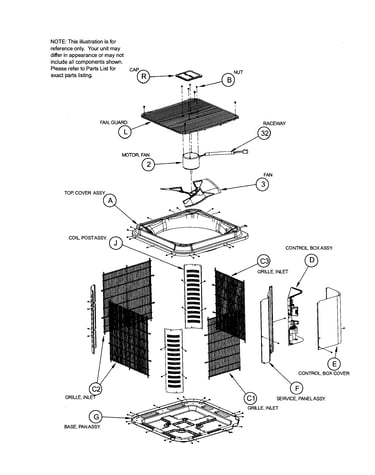

Central Air Conditioner Condenser Fan Blade 1174760
#3

Outer asy diagram

Central air conditioner condenser fan blade

Part #1174760

$84.51
In Stock

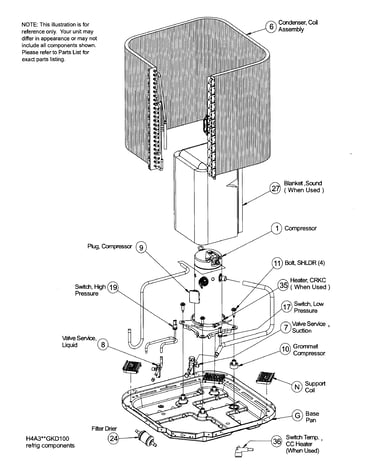

Switch 1174684
#19

Inner asy diagram

Switch

Part #1174684

$54.62
In Stock
Motor Cond 1177857
#2

Outer asy diagram

Motor cond

Part #1177857

Replaced by #1184553

?
Manufacturer substitution
This part replaces 1177857. Substitute parts can look different from the original.
$490.21 |
$10.00 OFF Phone Price : $500.21
In Stock
Valve 1172726
#7

Inner asy diagram

Valve

Part #1172726

Replaced by #1185862

?
Manufacturer substitution
This part replaces 1172726. Substitute parts can look different from the original.
$70.56
In Stock
Valve Svc 1172728
#8

Inner asy diagram

Valve svc

Part #1172728

Replaced by #1186248

?
Manufacturer substitution
This part replaces 1172728. Substitute parts can look different from the original.
$47.73
In Stock
