Northland U305L/1747 freezer Parts
Here are the diagrams and repair parts for Northland U305L/1747 freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for U305L/1747 Freestanding Freezers

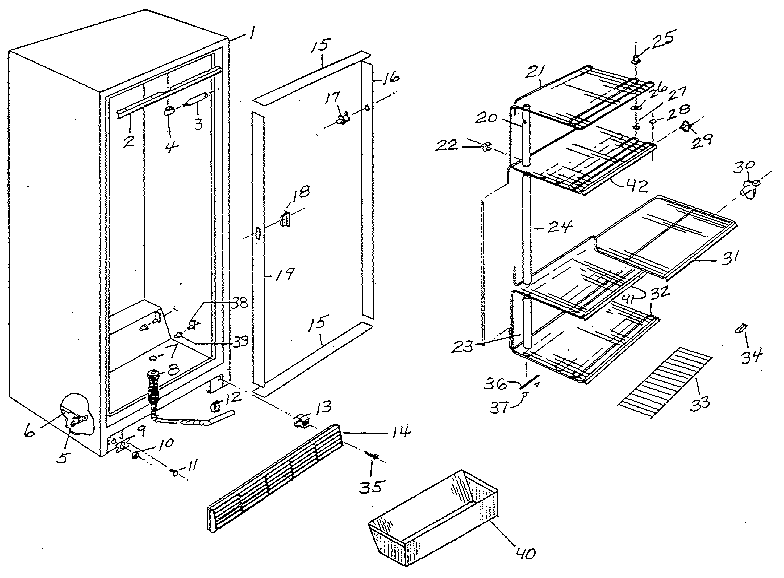

Cabinet diagram
Imperial Screw
Part #91200-000
The manufacturer no longer makes this part, and there's no substitute part

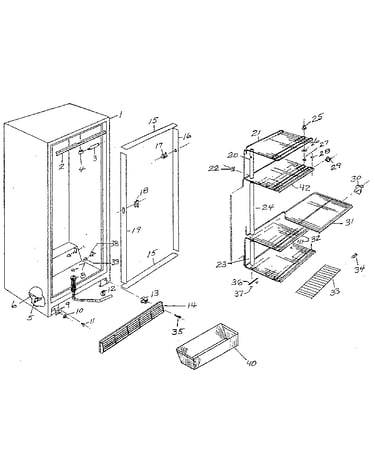

Cabinet diagram
Lamp Holder
Part #13787-000
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Kenmore Tube
Part #17760-000
The manufacturer no longer makes this part, and there's no substitute part

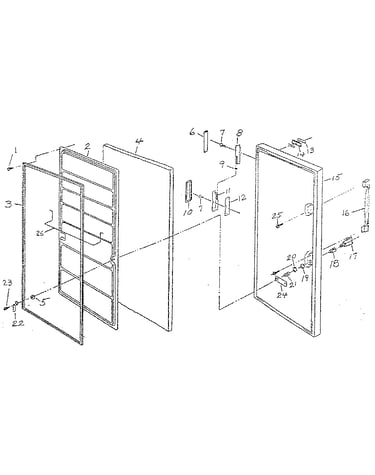

Door diagram
Imperial Screw
Part #91161-000
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Freezer Shelf Support
Part #11869-000
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Washer
Part #96029-000
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Rear Caster
Part #14336-002
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Escutcheon
Part #11568-001
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Cover
Part #16674-001
The manufacturer no longer makes this part, and there's no substitute part

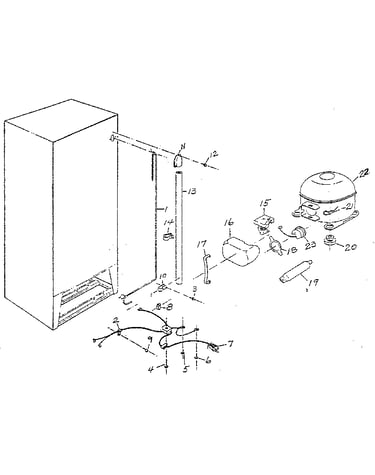

Freezer unit diagram
Clip
Part #11477-000
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
