Countertop Microwave

Model # ZEM200SF06 Official GE microwave

Here are the diagrams and repair parts for Official GE ZEM200SF06 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Switch-micro WB24X10038
#21

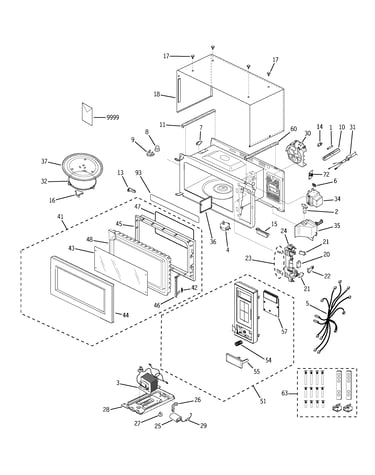

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Microwave High-voltage Diode (replaces Wb27t10552, Wb27x10169, Wb27x10434, Wb27x10772) WB27X10597
#29

Microwave diagram

Microwave high-voltage diode (replaces wb27t10552, wb27x10169, wb27x10434, wb27x10772)

Part #WB27X10597

$34.80
13% OFF Phone Price : $39.80
In Stock
Push Button WB03X10314
#55

Microwave diagram

Push button

Part #WB03X10314

In Stock
Transformer WB27X11024
#3

Microwave diagram

Transformer

Part #WB27X11024

In Stock
Microwave Fuse WB27X10454
#1

Microwave diagram

Microwave fuse

Part #WB27X10454

This item is not returnable
$14.34
12% OFF Phone Price : $16.34
In Stock
Mounting Bracket WB06X10909
#11

Microwave diagram

Mounting bracket

Part #WB06X10909

In Stock
Microwave Thermostat WB20X10003
#6

Microwave diagram

Microwave thermostat

Part #WB20X10003

$30.39
14% OFF Phone Price : $35.39
In Stock
Microwave Glass Turntable Tray WB49X10097
#37

Microwave diagram

Microwave glass turntable tray

Part #WB49X10097

$76.69
6% OFF Phone Price : $81.69
In Stock
Cover Door A WB55X10940
#44

Microwave diagram

Cover door a

Part #WB55X10940

In Stock
Outer Case WB56X10976
#18

Microwave diagram

Outer case

Part #WB56X10976

In Stock
