GE WR87X0276 refrigerator Parts

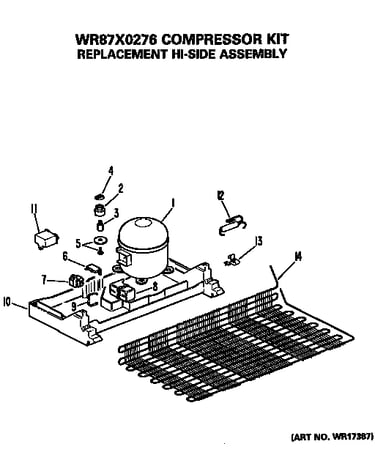

Here are the diagrams and repair parts for GE WR87X0276 refrigerator, as well as links to manuals and error code tables, if available.

GE WR87X0276 refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WR87X0276 Refrigerators

  • Refrigerator Compressor Kit for GE WR87X0276 - Part WR87X10079

    #725

    All parts diagram

    Hi Side Asm

    Part #WR87X246

    Replaced by #WR87X10079

    Info Icon
    Manufacturer substitution
    This part replaces WR87X246. Substitute parts can look different from the original.
    In Stock
    $828.58
    $12.00 OFF Phone Price : $840.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Release Clamp for GE WR87X0276 - Part WR2X7915

    #734

    All parts diagram

    Release Clamp

    Part #WR2X7915
    In Stock
    $29.53
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Mounting Post for GE WR87X0276 - Part WR1X1779

    #737

    All parts diagram

    Refrigerator Compressor Mounting Post

    Part #WR1X1779
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for GE WR87X0276 - Part WR86X25269

    #740

    All parts diagram

    Dryer Assembly

    Part #WR86X86

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X86. Substitute parts can look different from the original.
    In Stock
    $83.96
    7% OFF Phone Price : $89.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Run Capacitor for GE WR87X0276 - Part WR62X51

    #729

    All parts diagram

    Refrigerator Capacitor

    Part #WR62X46

    Replaced by #WR62X51

    Info Icon
    Manufacturer substitution
    This part replaces WR62X46. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $75.46
    7% OFF Phone Price : $81.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for GE WR87X0276 - Part WR1X1786

    #750

    All parts diagram

    Refrigerator Screw

    Part #WR1X1781

    Replaced by #WR1X1786

    Info Icon
    Manufacturer substitution
    This part replaces WR1X1781. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Mounting Clip for GE WR87X0276 - Part WR2X8203

    #736

    All parts diagram

    Refrigerator Clip

    Part #WR2X7228

    Replaced by #WR2X8203

    Info Icon
    Manufacturer substitution
    This part replaces WR2X7228. Substitute parts can look different from the original.
    In Stock
    $9.85
    9% OFF Phone Price : $10.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Start Relay for GE WR87X0276 - Part WR07X26748

    #733

    All parts diagram

    Refrigerator Relay

    Part #WR7X192

    Replaced by #WR07X26748

    Info Icon
    Manufacturer substitution
    This part replaces WR7X192. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.86
    11% OFF Phone Price : $18.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Guard for GE WR87X0276 - Part WR8X99

    #735

    All parts diagram

    Refrigerator Guard

    Part #WR8X99

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for GE WR87X0276 - Part WR1X1780

    #736

    All parts diagram

    Washer

    Part #WR1X1780

    The manufacturer no longer makes this part, and there's no substitute part
