Sears 867815116 electric cooling & gas heating Parts
Here are the diagrams and repair parts for Sears 867815116 electric cooling & gas heating, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

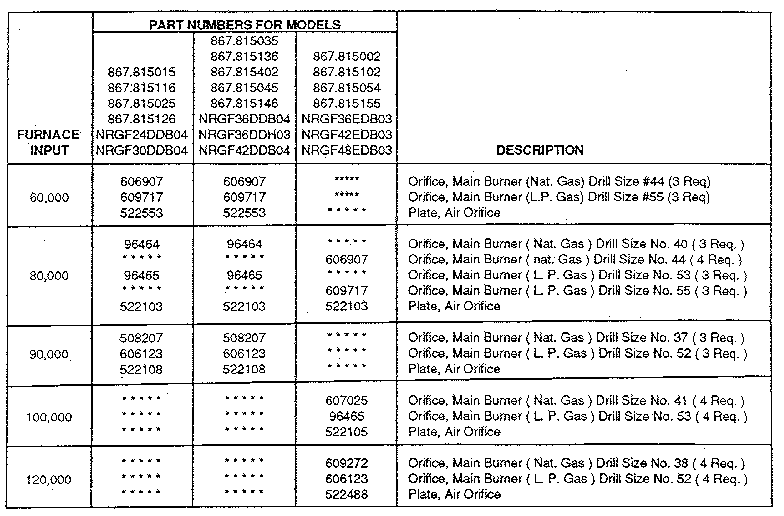

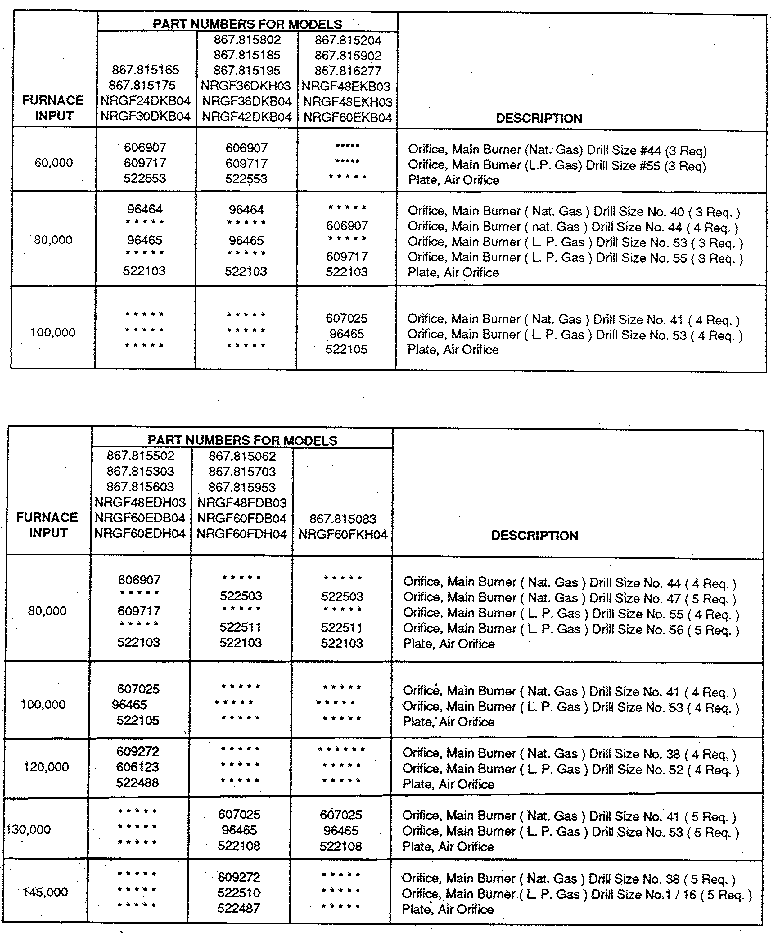

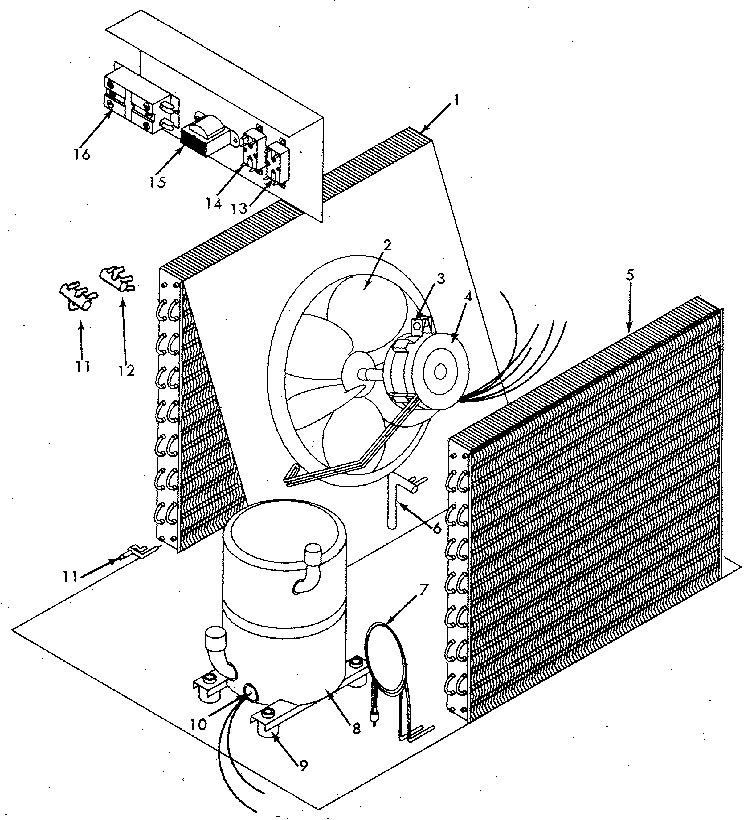

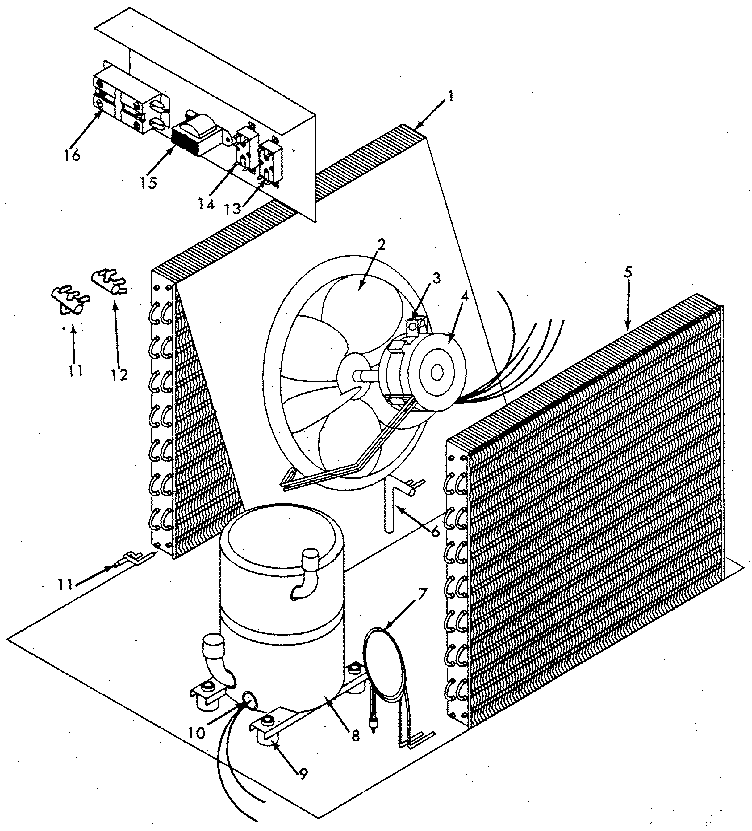

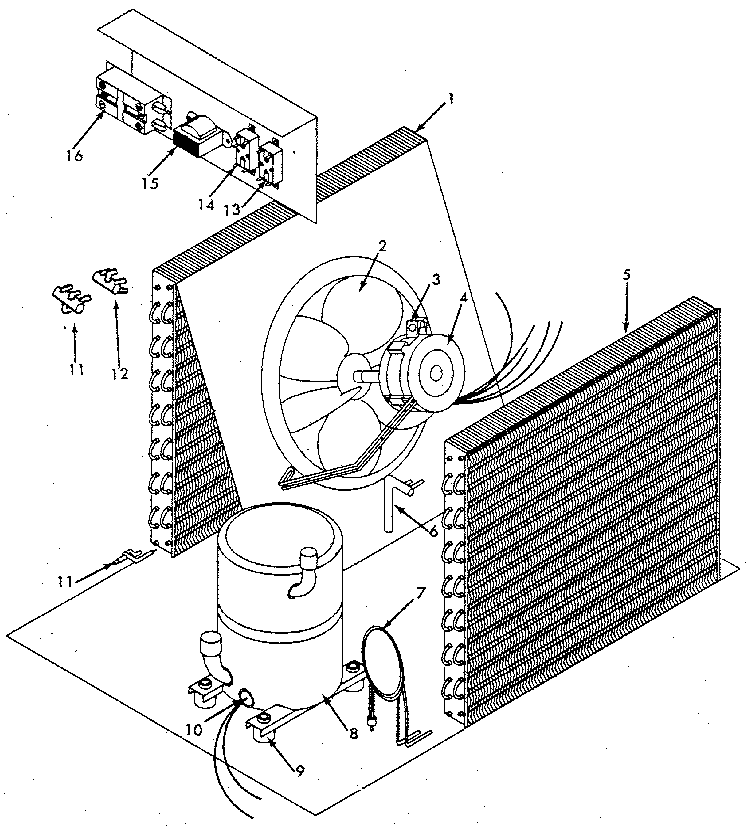

Browse Parts for 867815116 Electric Cooling & Gas Heating
Capacitor
Part #602974Replaced by #TRCF5
Manufacturer substitutionThis part replaces 602974. Substitute parts can look different from the original.In Stock$29.15
Qty
Motor
Part #520939
The manufacturer no longer makes this part, and there's no substitute part
Flame Sensor
Part #612922Replaced by #1149944
Manufacturer substitutionThis part replaces 612922. Substitute parts can look different from the original.In Stock$148.727% OFF Phone Price : $160.72

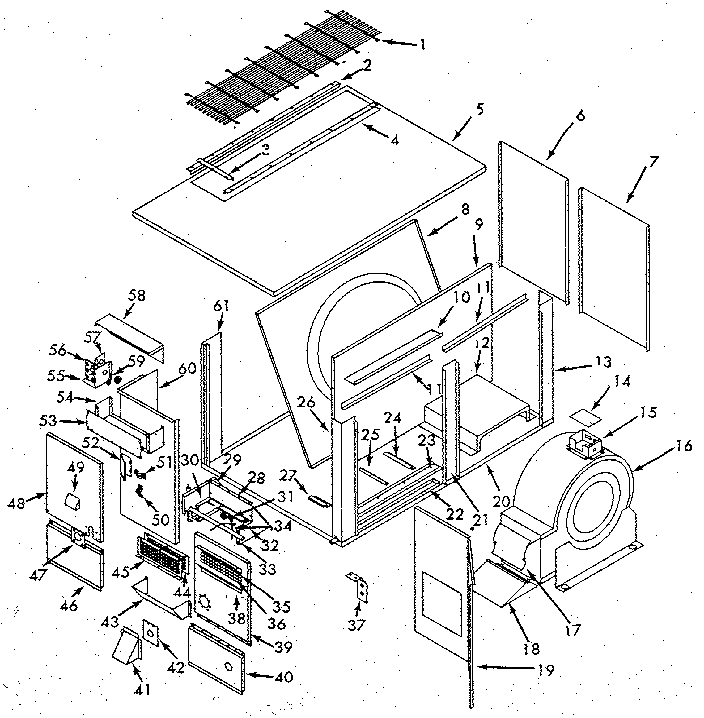

QtyNonfunctional replacement diagram
Bulk Head
In Stock$40.65QtyDoor Blower
In Stock$196.42QtyCover D Pan

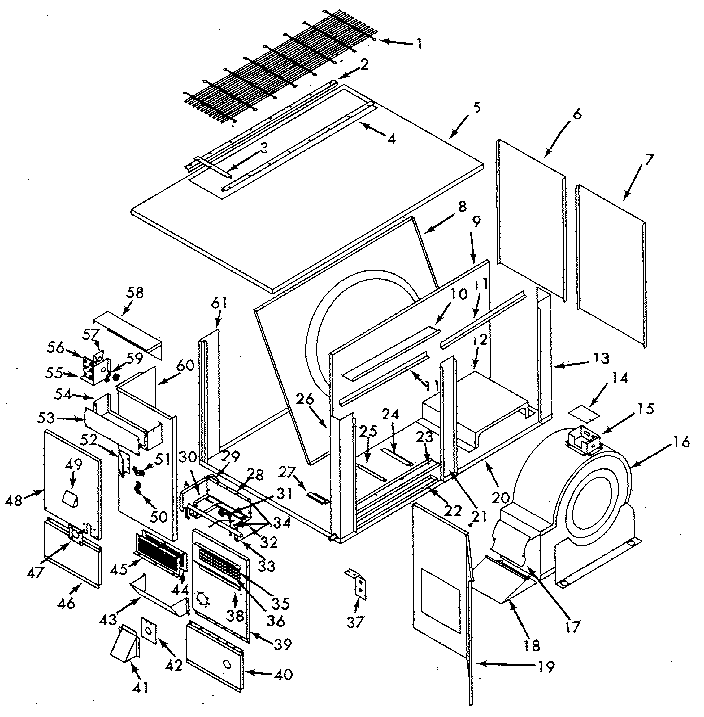

In Stock$34.85QtyNonfunctional replacement diagram
Outlet Grille

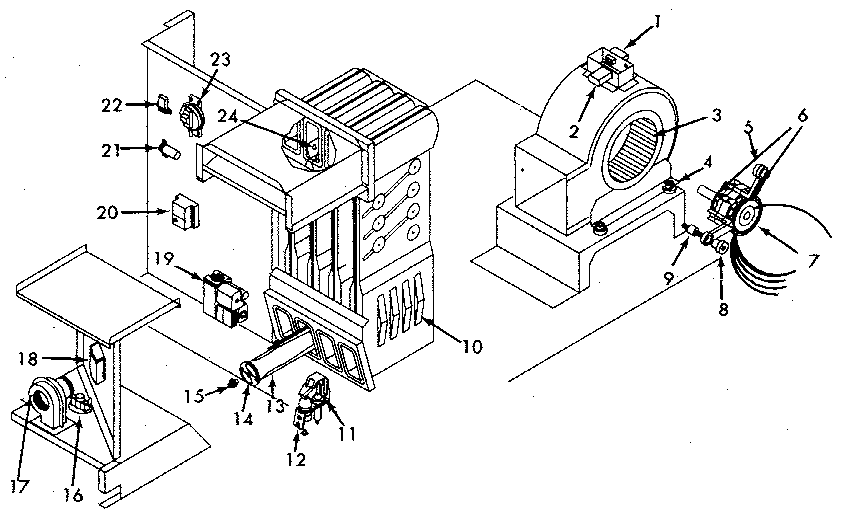

In Stock$95.64QtyHeating section and blower diagram
Capacitor
In Stock$130.58QtyNonfunctional replacement diagram
Manifold
In Stock$182.66QtyFurnace Burner
In Stock$168.787% OFF Phone Price : $180.78Qty
Most common symptoms to help you fix your heating & cooling combined units
Choose a symptom to see related heating and air conditioning system repairs.
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Thermostat problem, clogged air filter, burner failure…
Main causes: Errant thermostat settings, lack of power, bad interlock switches, lack of exhaust ventilation, wiring fail…
Dirty flame sensor, failed flame sensor, damaged burner, bad high limit switch…
