Samsung
Microwave/Hood Combo

Model # ME19R7041FS/AA-00 Official Samsung microwave/hood combo

Here are the diagrams and repair parts for Official Samsung ME19R7041FS-AA-00 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

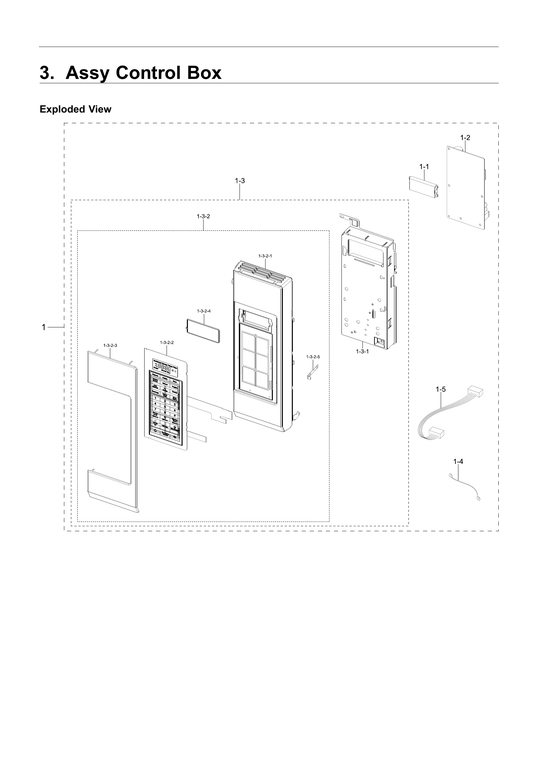

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Microwave Magnetron (replaces Om75p21esgn) OM75P-21-ESGN
#38

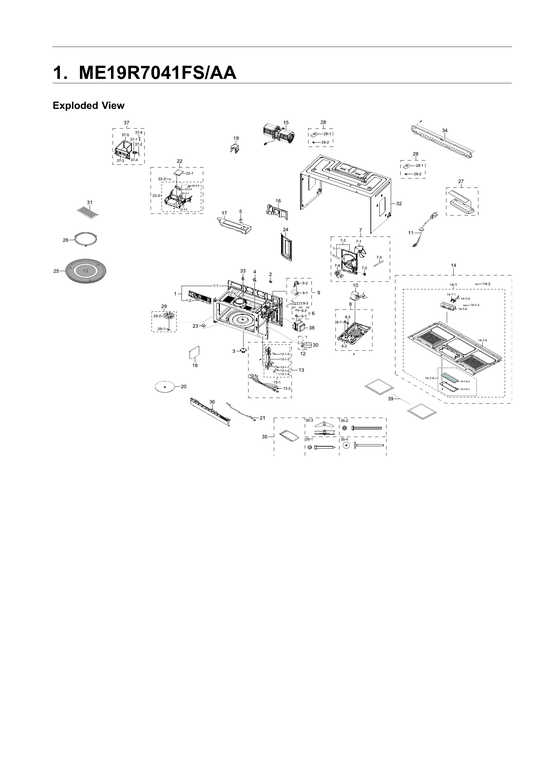

Main unit assy diagram

Microwave magnetron (replaces om75p21esgn)

Part #OM75P-21-ESGN

BEST SELLER
$143.07 |
7% OFF Phone Price : $153.07
In Stock
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#9-3

Main unit assy diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave High-voltage Capacitor DE96-00269A
#9

Main unit assy diagram

Microwave high-voltage capacitor

Part #DE96-00269A

BEST SELLER
$36.17 |
12% OFF Phone Price : $41.17
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#13-1-2

Main unit assy diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Microwave Door Latch DE64-01308A
#1-3

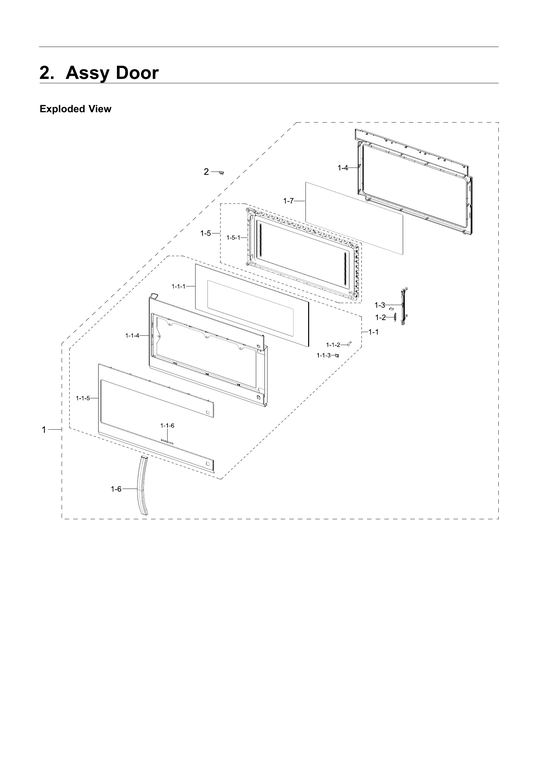

Door assy diagram

Microwave door latch

Part #DE64-01308A

Replaced by #DE64-00760A

?
Manufacturer substitution
This part replaces DE64-01308A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.50 |
18% OFF Phone Price : $27.50
In Stock
Microwave High-voltage Capacitor (replaces 2501-000258) 2501-001011
#9-1

Main unit assy diagram

Microwave high-voltage capacitor (replaces 2501-000258)

Part #2501-001011

BEST SELLER
$55.81 |
8% OFF Phone Price : $60.81
In Stock
Microwave Halogen Light Bulb (replaces 4713001165) 4713-001165
#14-1-1

Main unit assy diagram

Microwave halogen light bulb (replaces 4713001165)

Part #4713-001165

BEST SELLER
$38.67 |
11% OFF Phone Price : $43.67
In Stock
Microwave Door Interlock Support DE96-00414D
#13-1

Main unit assy diagram

Microwave door interlock support

Part #DE96-00414D

BEST SELLER
$37.98 |
12% OFF Phone Price : $42.98
In Stock
Microwave High-voltage Transformer DE26-00126A
#10

Main unit assy diagram

Microwave high-voltage transformer

Part #DE26-00126A

BEST SELLER
$126.26 |
7% OFF Phone Price : $136.26
In Stock
Microwave Vent Grille DE64-02629A
#36

Main unit assy diagram

Microwave vent grille

Part #DE64-02629A

BEST SELLER
$59.42 |
8% OFF Phone Price : $64.42
In Stock
