Craftsman
Drill/Driver

Model # 12521417 Official Craftsman drill cordless

Here are the diagrams and repair parts for Official Craftsman 12521417 drill cordless, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

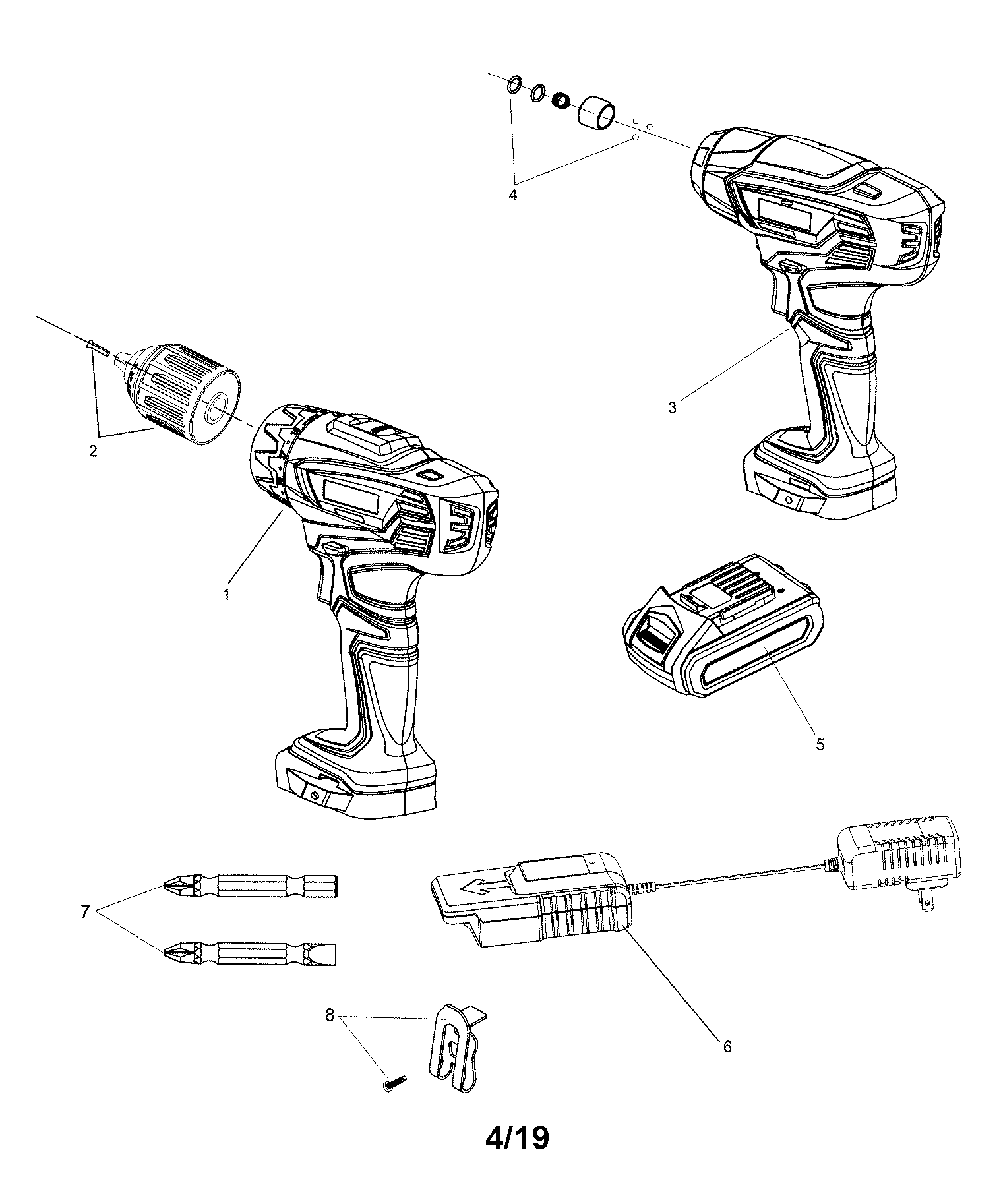

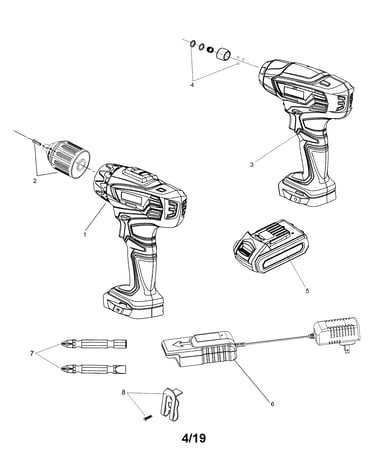

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |

Chuck 411001102
#2

Cordless drill diagram

Chuck

Part #411001102

In Stock
Chuck Sleeve Set 411001104
#4

Cordless drill diagram

Chuck sleeve set

Part #411001104

In Stock
Driver Bit (set Of 2) 411001107
#7

Cordless drill diagram

Driver bit (set of 2)

Part #411001107

This item is not returnable
In Stock
Drill / Driver Tool Body 125.DD20A-B
#1

Cordless drill diagram

Drill / driver tool body

Part #125.DD20A-B

The manufacturer no longer makes this part, and there's no substitute part

Belt Hook Set (available Separately) 411001108
#8

Cordless drill diagram

Belt hook set (available separately)

Part #411001108

The manufacturer no longer makes this part, and there's no substitute part

0.5a Charger 125.CL05
#6

Cordless drill diagram

0.5a charger

Part #125.CL05

The manufacturer no longer makes this part, and there's no substitute part

Impact Driver Tool Body 125.ID20A-B
#3

Cordless drill diagram

Impact driver tool body

Part #125.ID20A-B

The manufacturer no longer makes this part, and there's no substitute part

Battery (2) 125.BL2015
#5

Cordless drill diagram

Battery (2)

Part #125.BL2015

The manufacturer no longer makes this part, and there's no substitute part
