Kenmore 867773730 gas-fired space saver furnace Parts

Name: Kenmore 867773730 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 867773730
Availability: InStock

Here are the diagrams and repair parts for Kenmore 867773730 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for867773730 Gas-Fired Space Saver Furnace

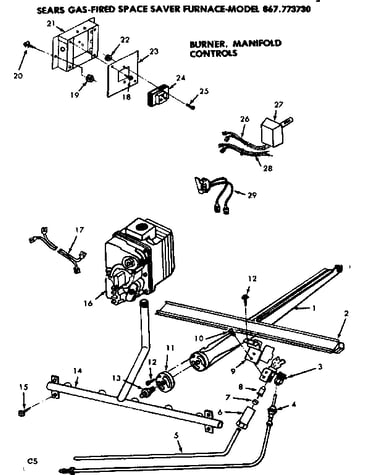

Burners, manifold, controls diagram
Tube Pilot
Part #608693
Replaced by #100108370
Manufacturer substitution
This part replaces 608693. Substitute parts can look different from the original.
In Stock
$64.56
Qty
#NI
All parts diagram
Thermostate
Part #42-9235
The manufacturer no longer makes this part, and there's no substitute part
Burners, manifold, controls diagram
Thermocouple
Part #91465
Replaced by #H06E-36
Manufacturer substitution
This part replaces 91465. Substitute parts can look different from the original.
In Stock
$16.89
11% OFF Phone Price : $18.89
Qty

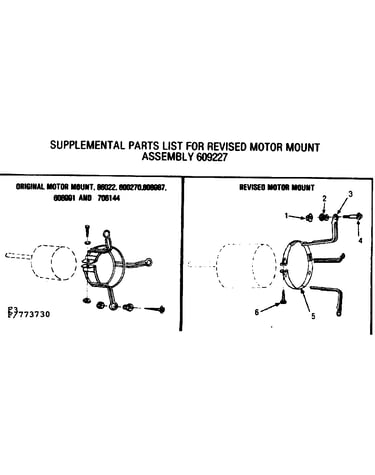

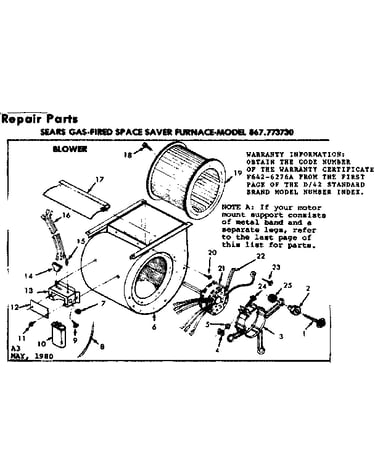

Motor mount assembly diagram
Grommet
Part #609194
Replaced by #1149537
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
In Stock
$100.28
Qty

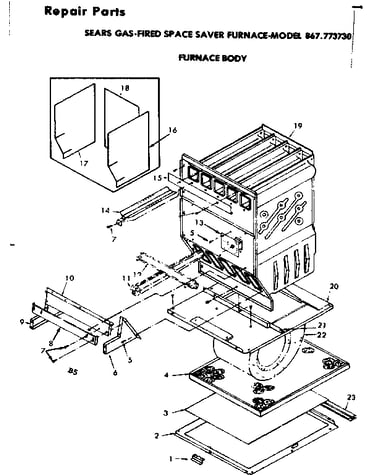

Furnace body diagram
Air Filter
Part #64488
The manufacturer no longer makes this part, and there's no substitute part

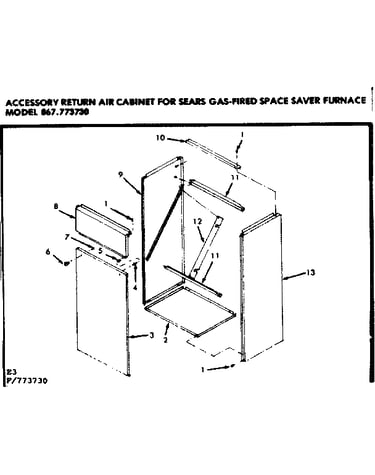

Accessory return air cabinet diagram
Top Panel
Part #608760
Replaced by #1004934
Manufacturer substitution
This part replaces 608760. Substitute parts can look different from the original.
In Stock
$27.73
Qty
#NI
All parts diagram
Guarantee
Part #F642-6276A
The manufacturer no longer makes this part, and there's no substitute part

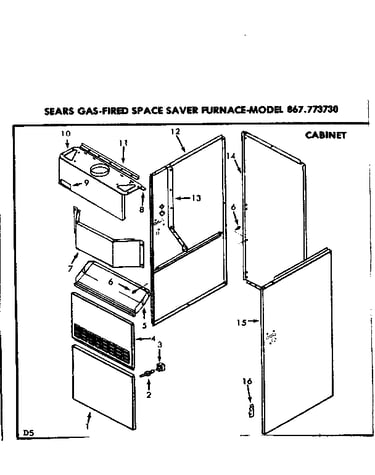

Cabinet diagram
Scoop
Part #608180
The manufacturer no longer makes this part, and there's no substitute part
Motor mount assembly diagram
Band Mount
Part #609200
The manufacturer no longer makes this part, and there's no substitute part
Accessory return air cabinet diagram
Screw
Part #STD510802
The manufacturer no longer makes this part, and there's no substitute part
