Drill Press

Model # 113213840 Official Craftsman 13" floor model drill press

Here are the diagrams and repair parts for Official Craftsman 113213840 13" floor model drill press, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for113213840 Power Tools

  • Drill Press Fence Knob 71339
    #24

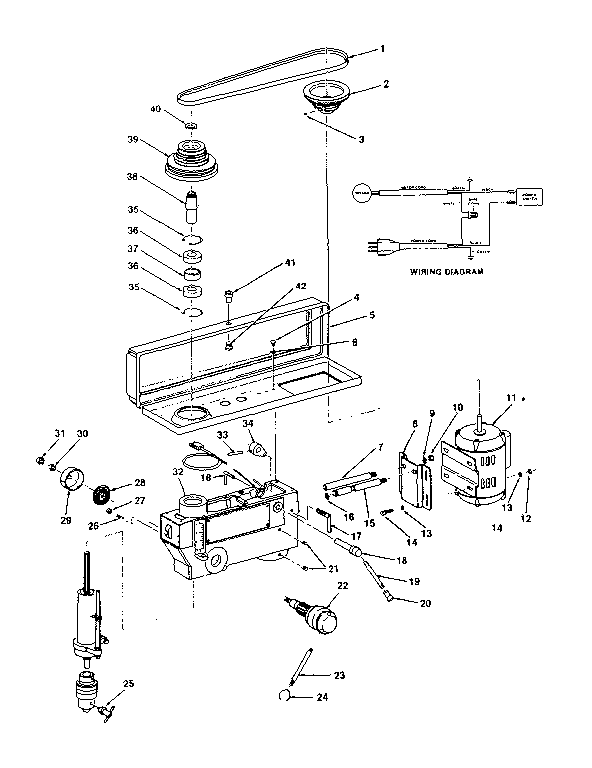

    Motor and pulley assembly with guard diagram

    Drill press fence knob

    Part #71339

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 805517
    #4

    Motor and pulley assembly with guard diagram

    Screw

    Part #805517

    The manufacturer no longer makes this part, and there's no substitute part

  • Chuck Key 71338
    #25

    Motor and pulley assembly with guard diagram

    Chuck key

    Part #71338

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket 71331
    #12

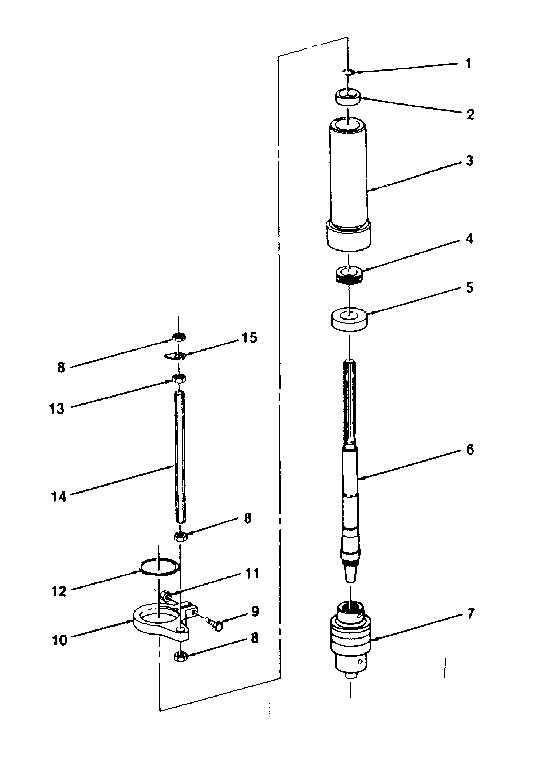

    Spindle assembly diagram

    Gasket

    Part #71331

    The manufacturer no longer makes this part, and there's no substitute part

  • Rack 71402
    #5

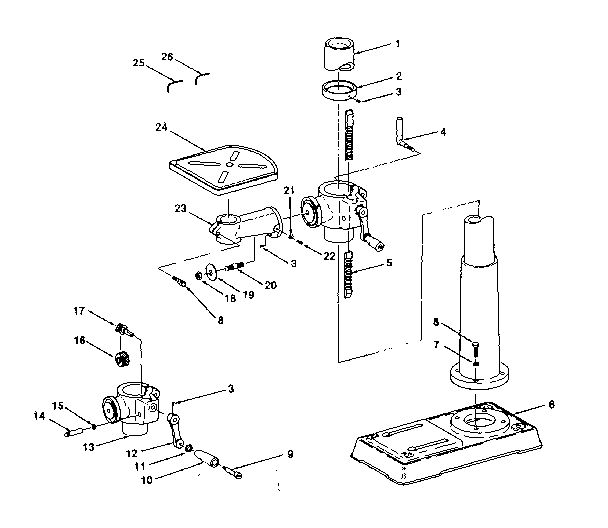

    Base assembly diagram

    Rack

    Part #71402

    The manufacturer no longer makes this part, and there's no substitute part

  • Bolt 71243
    #9

    Base assembly diagram

    Bolt

    Part #71243

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle Rod 71367
    #23

    Motor and pulley assembly with guard diagram

    Handle rod

    Part #71367

    The manufacturer no longer makes this part, and there's no substitute part

  • Cap Spring 71317
    #29

    Motor and pulley assembly with guard diagram

    Cap spring

    Part #71317

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulley 71362
    #39

    Motor and pulley assembly with guard diagram

    Pulley

    Part #71362

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Cord 71393
    #3

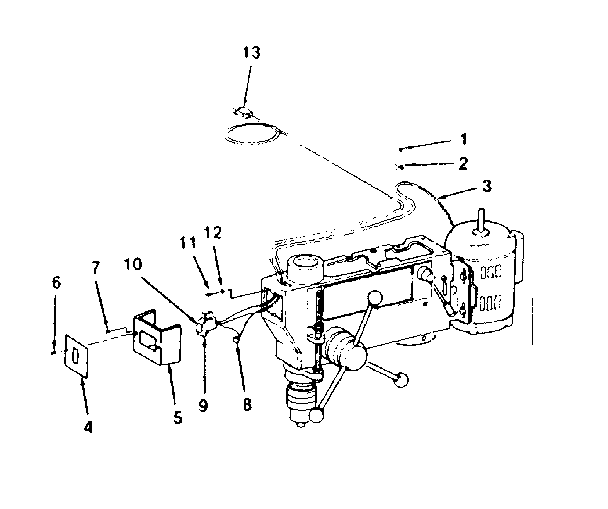

    Key switch assembly diagram

    Motor cord

    Part #71393

    The manufacturer no longer makes this part, and there's no substitute part
