Whirlpool RM235PXL0 30" electric built-in oven with microwave

Whirlpool RM235PXL0 30" electric built-in oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool RM235PXL0 30" electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM235PXL0 30" Electric Built-In Oven with Microwave

  • Dryer Lint Duct Housing Seal for Whirlpool RM235PXL0 - Part WP339956

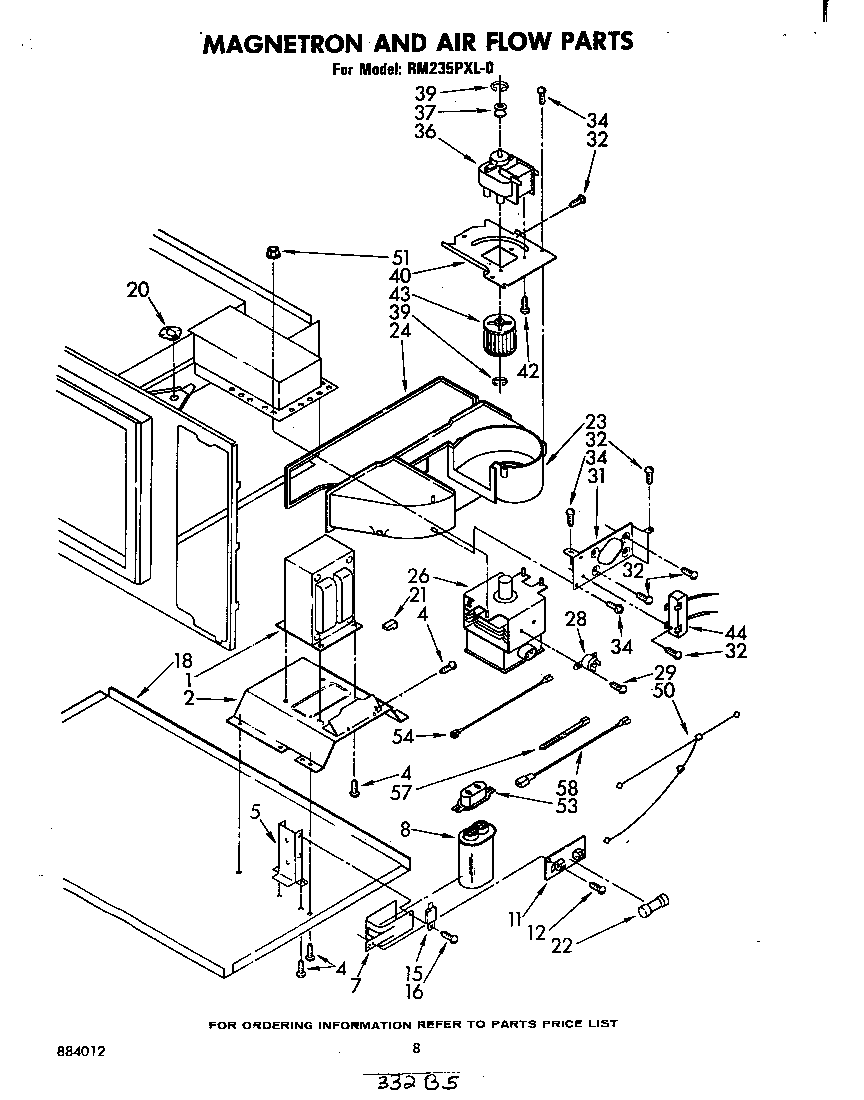

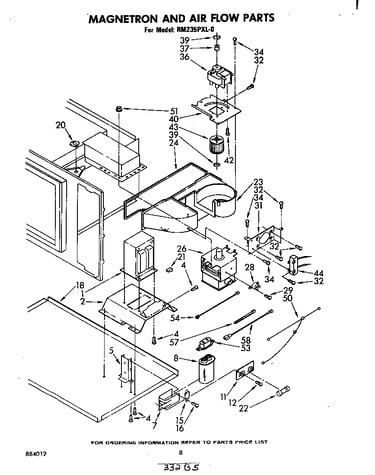

    Magnetron and air flow diagram

    Seal

    Part #311956

    Replaced by #WP339956

    Info Icon
    Manufacturer substitution
    This part replaces 311956. Substitute parts can look different from the original.
    In Stock
    $7.44
    12% OFF Phone Price : $8.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Laundry Appliance Push Nut for Whirlpool RM235PXL0 - Part WP90296

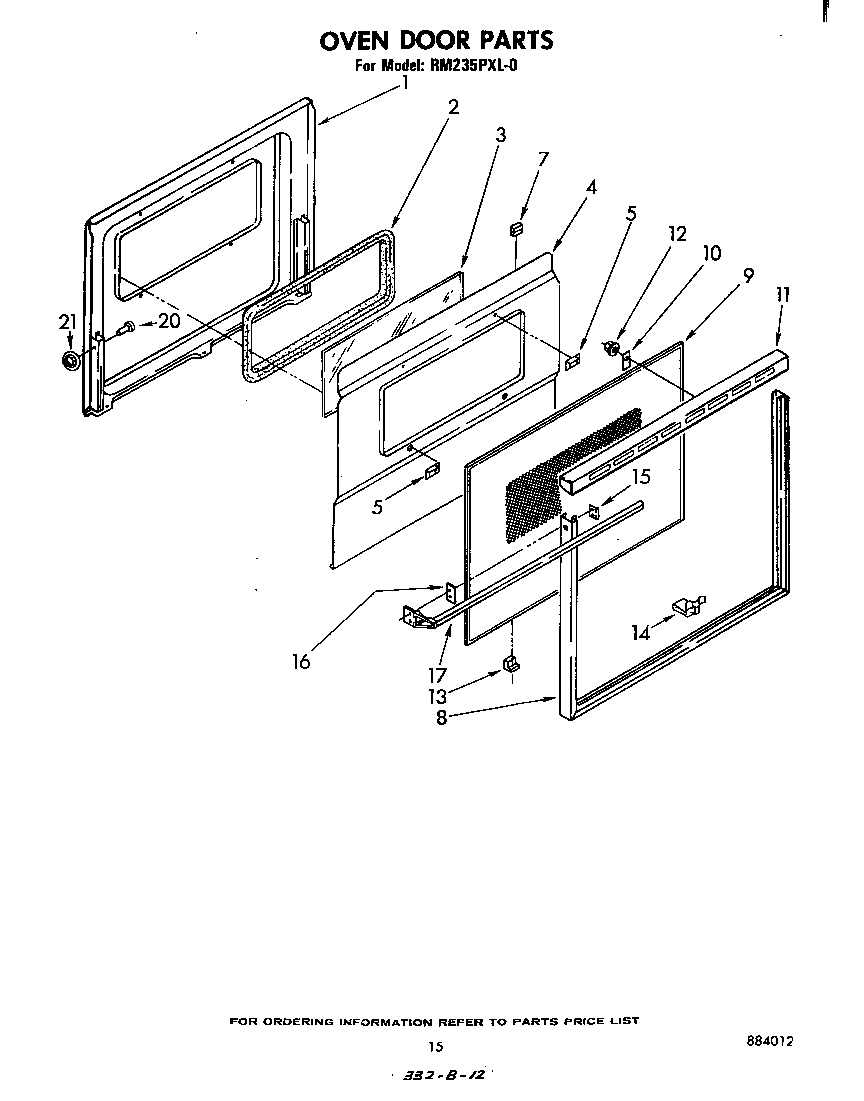

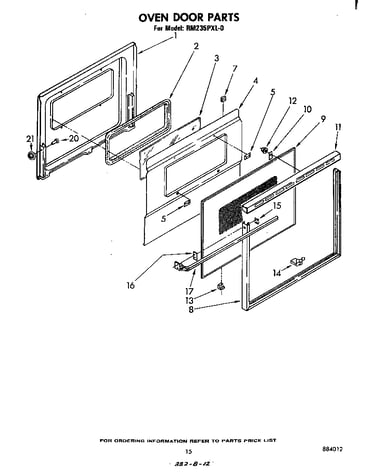

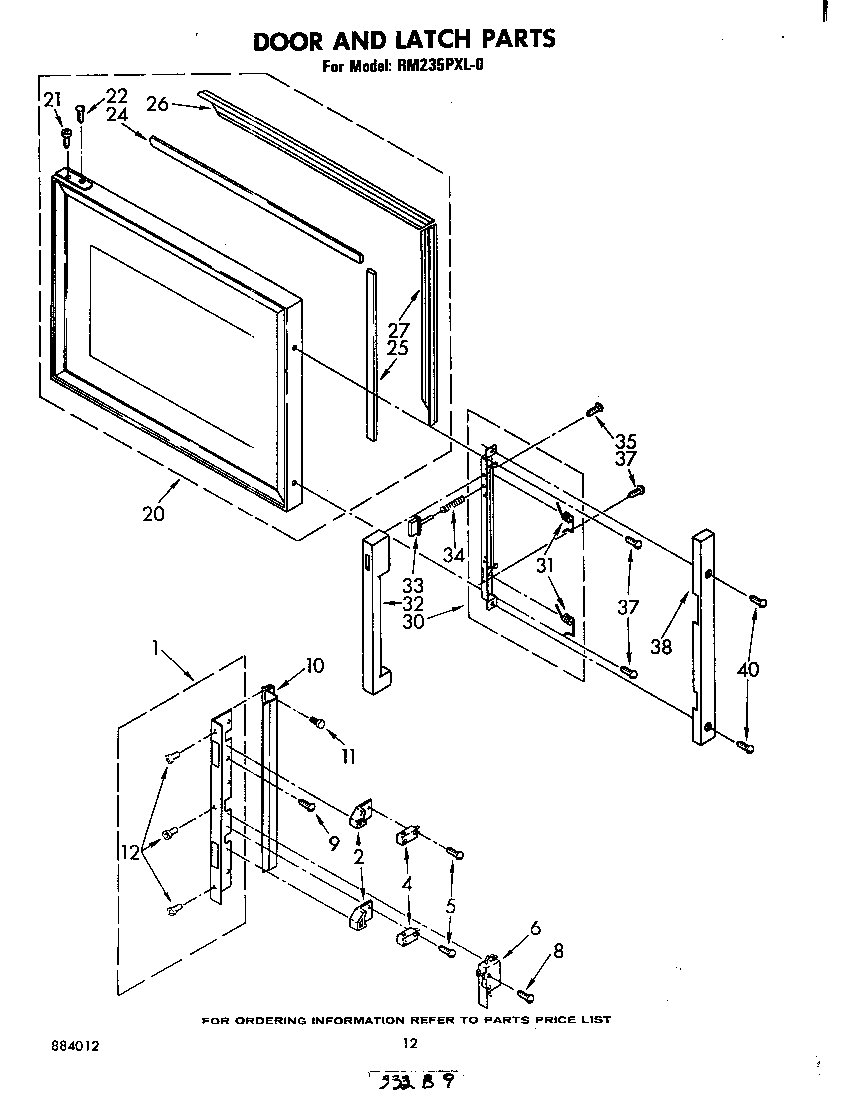

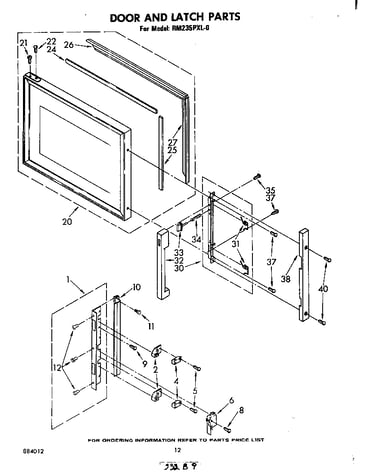

    Oven door diagram

    Clip

    Part #90296

    Replaced by #WP90296

    Info Icon
    Manufacturer substitution
    This part replaces 90296. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Whirlpool RM235PXL0 - Part WPW10017410

    Magnetron and air flow diagram

    Line Fuse

    Part #311167

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 311167. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Knob for Whirlpool RM235PXL0 - Part WP3150371

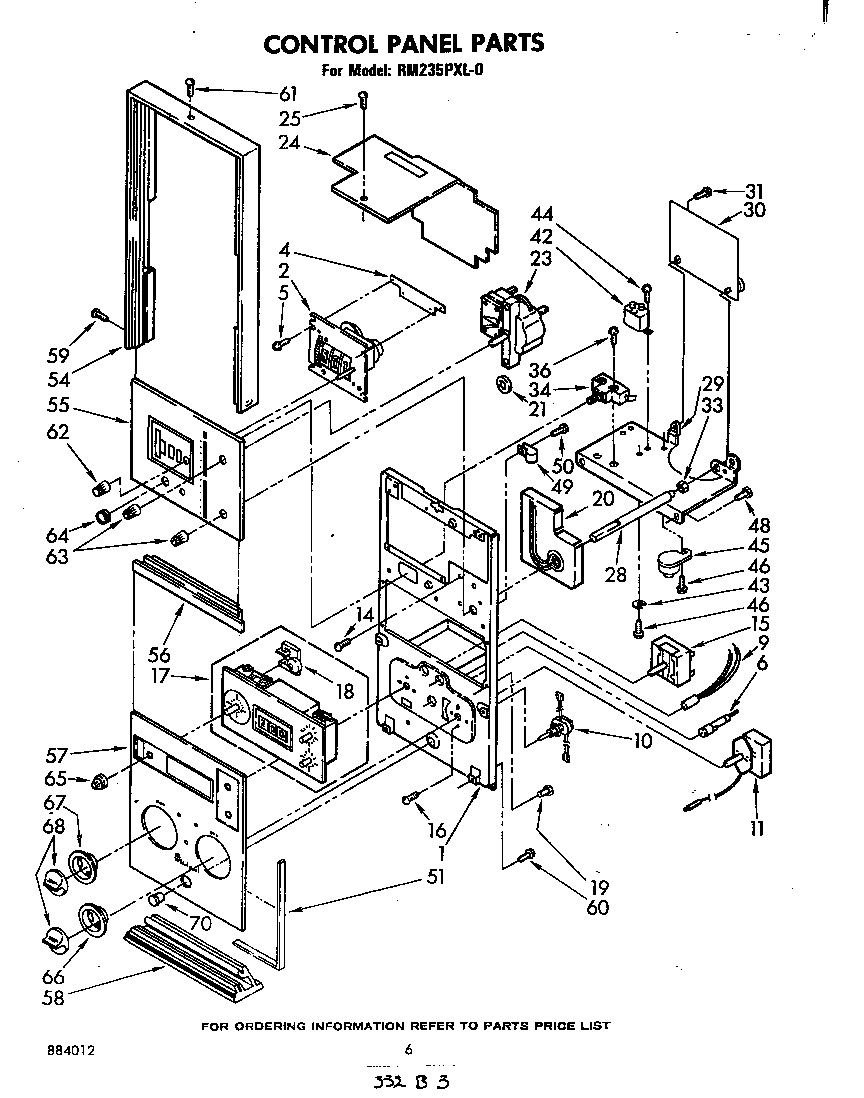

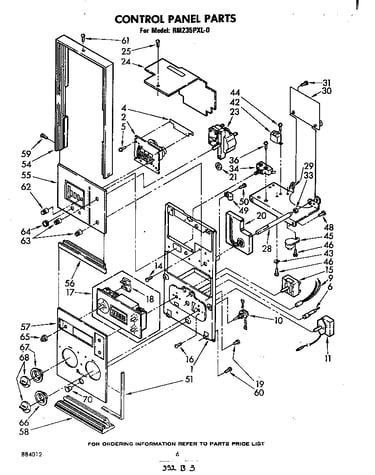

    Control panel diagram

    Control Knob

    Part #310834

    Replaced by #WP3150371

    Info Icon
    Manufacturer substitution
    This part replaces 310834. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.11
    23% OFF Phone Price : $26.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Insulation for Whirlpool RM235PXL0 - Part WPW10208653

    #NI

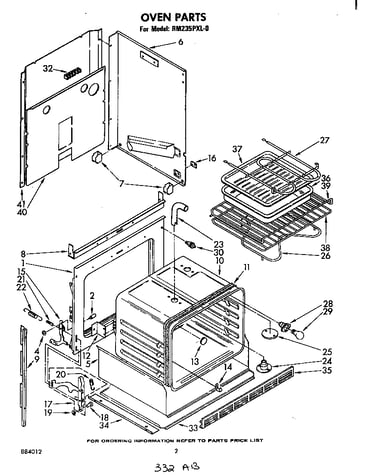

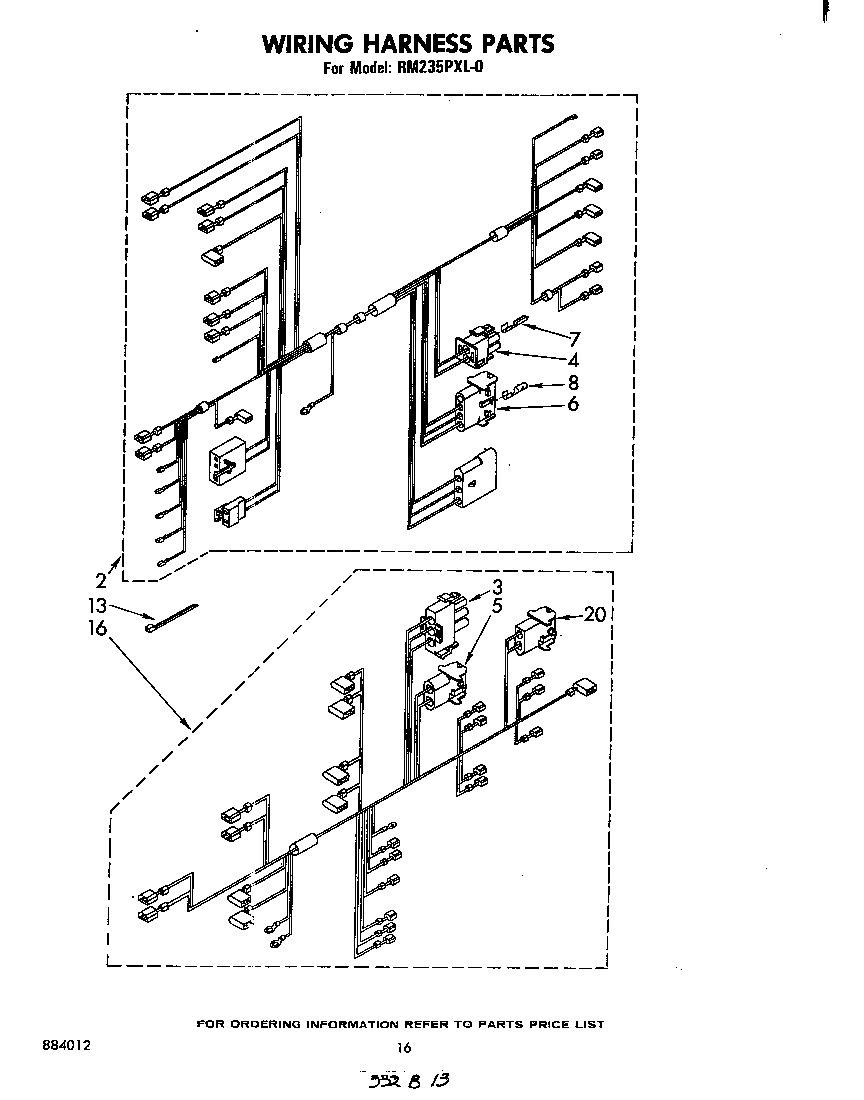

    All parts diagram

    Insulation

    Part #240132

    Replaced by #WPW10208653

    Info Icon
    Manufacturer substitution
    This part replaces 240132. Substitute parts can look different from the original.
    In Stock
    $47.42
    11% OFF Phone Price : $53.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for Whirlpool RM235PXL0 - Part WP8203546

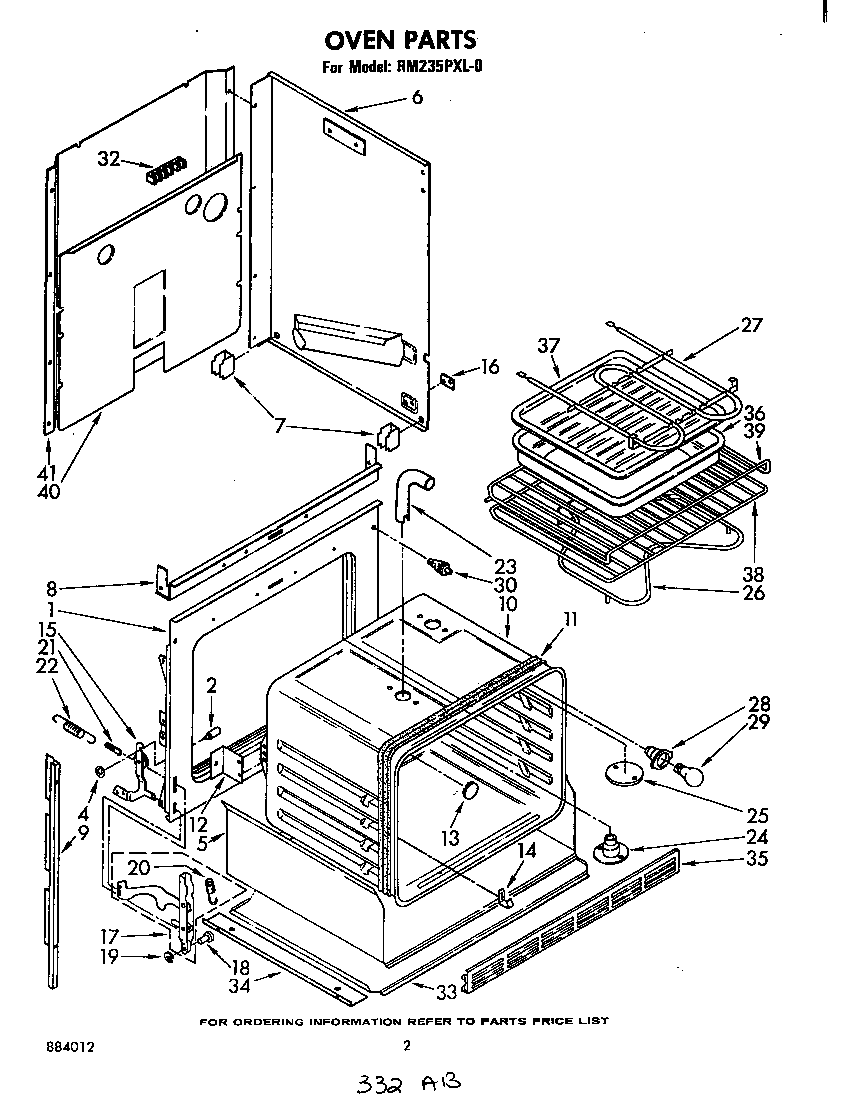

    Oven diagram

    Terminal Block

    Part #258076

    Replaced by #WP8203546

    Info Icon
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.93
    22% OFF Phone Price : $26.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Insulation for Whirlpool RM235PXL0 - Part WPW10208653

    #NI

    All parts diagram

    Insulation

    Part #261514

    Replaced by #WPW10208653

    Info Icon
    Manufacturer substitution
    This part replaces 261514. Substitute parts can look different from the original.
    In Stock
    $47.42
    11% OFF Phone Price : $53.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Whirlpool RM235PXL0 - Part 4396923

    Oven diagram

    Grid Pan

    Part #258171

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 258171. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Nut for Whirlpool RM235PXL0 - Part WP487939

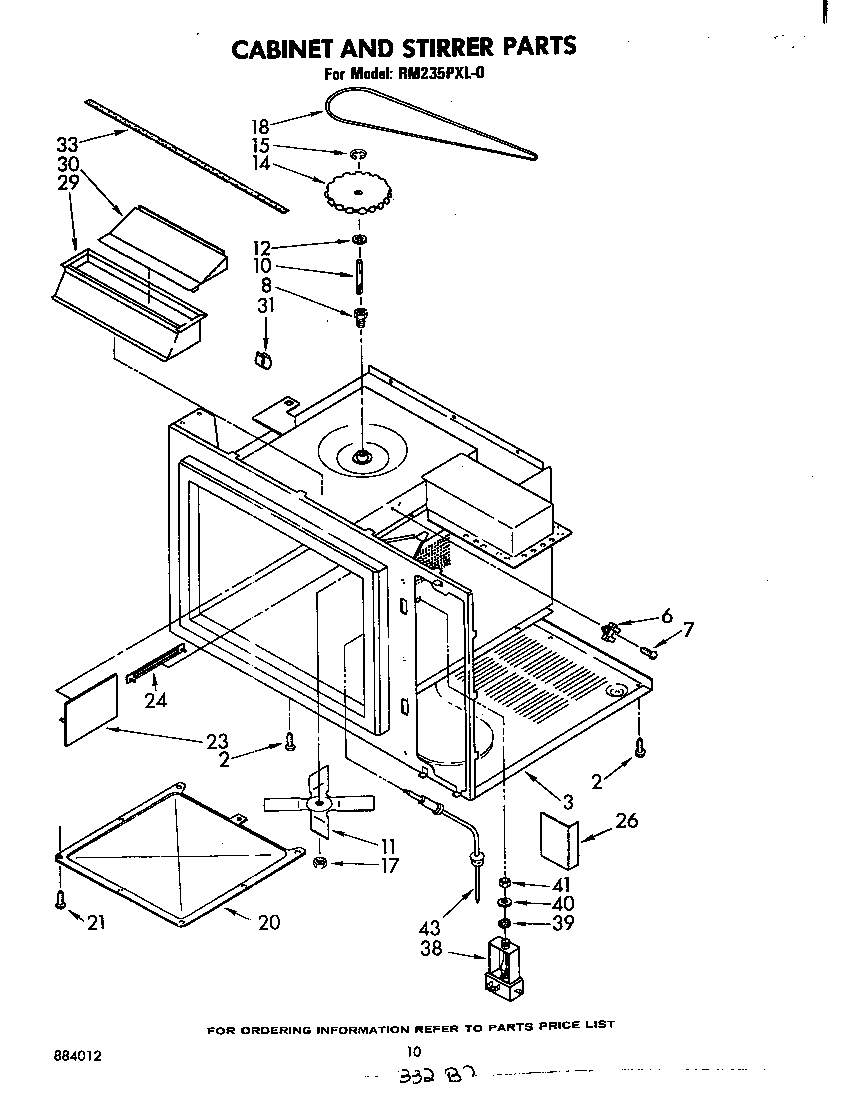

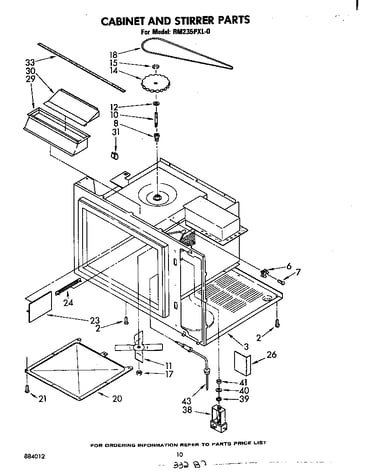

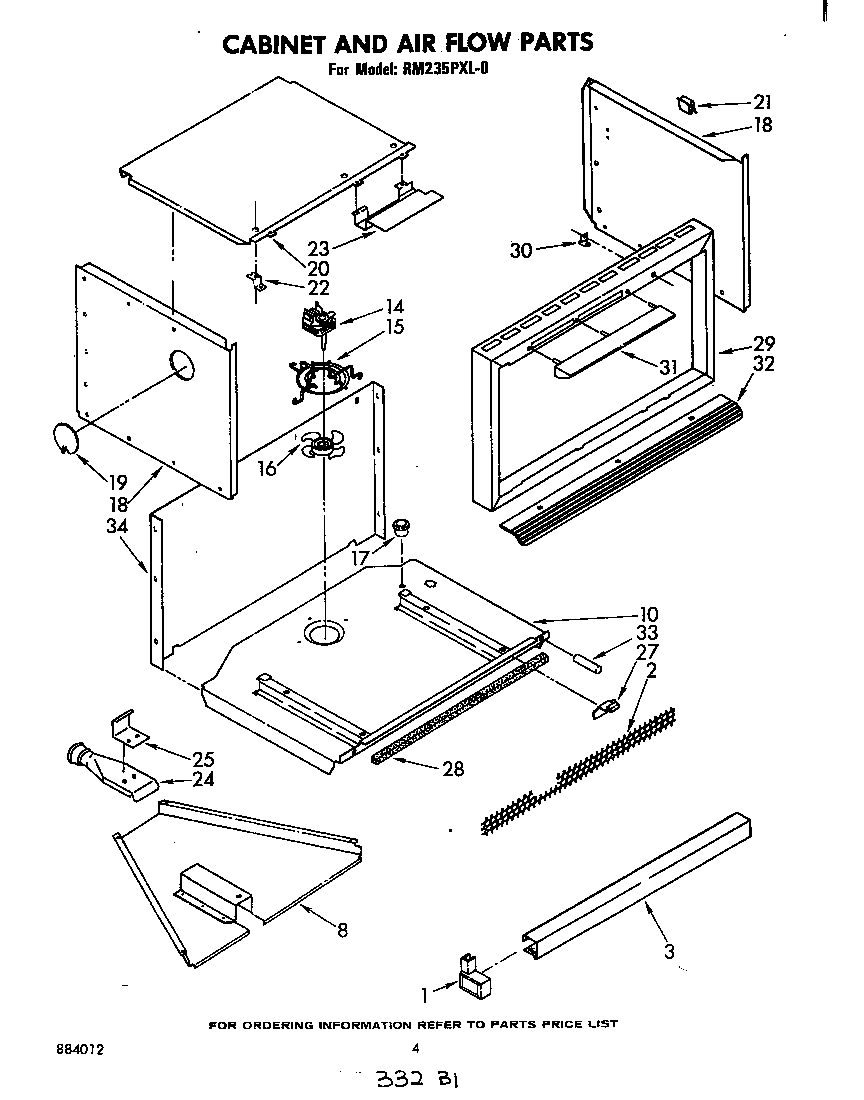

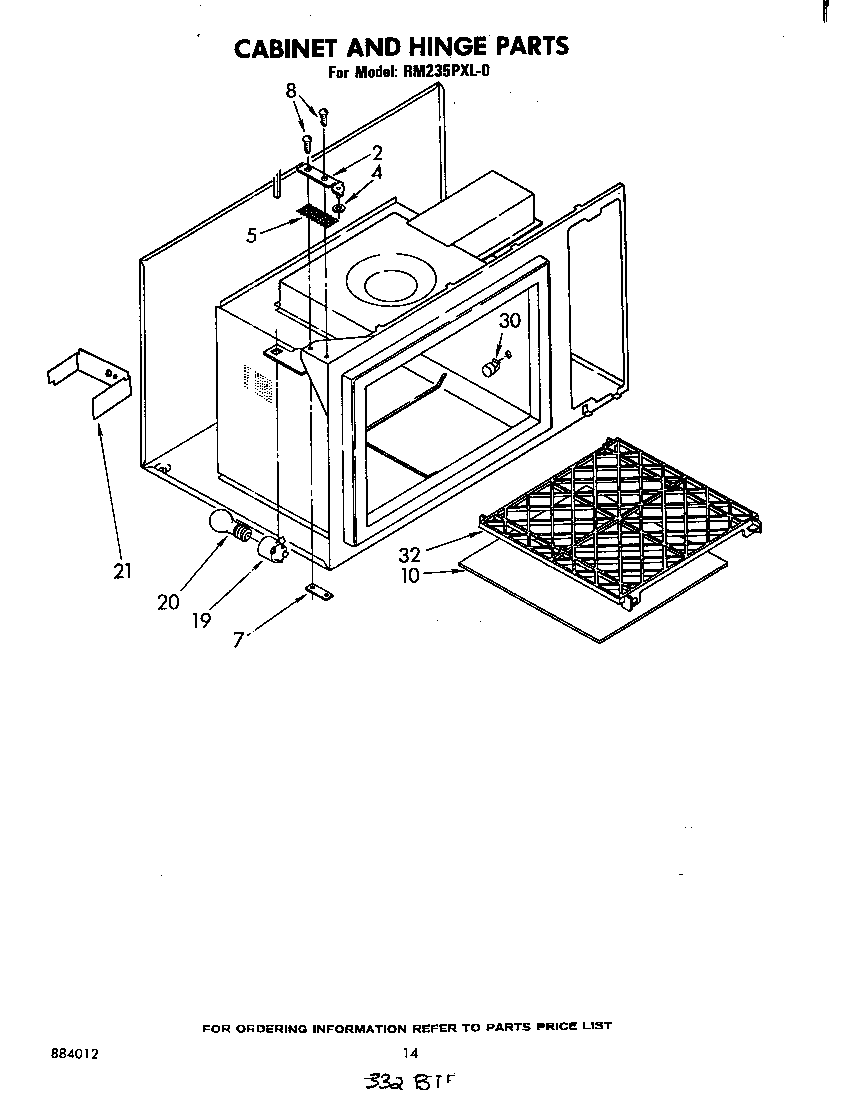

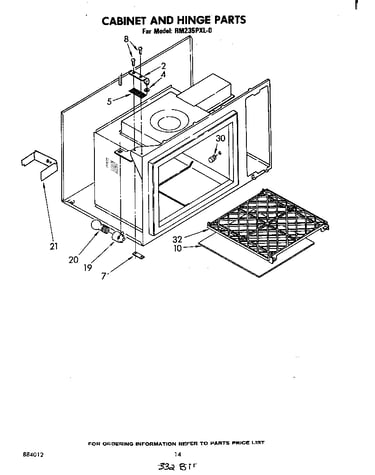

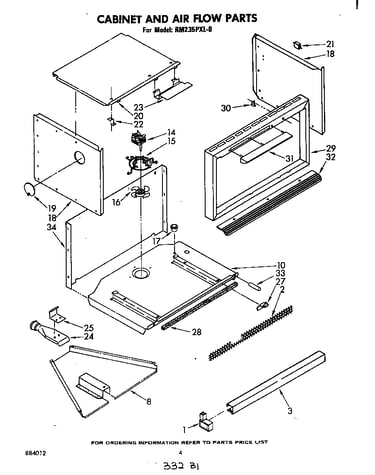

    Cabinet and stirrer diagram

    Nut

    Part #311721

    Replaced by #WP487939

    Info Icon
    Manufacturer substitution
    This part replaces 311721. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.82
    17% OFF Phone Price : $5.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RM235PXL0 - Part WP308544

    Oven diagram

    Range Screw

    Part #308544

    Replaced by #WP308544

    Info Icon
    Manufacturer substitution
    This part replaces 308544. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
