Model # 042Q3RA Official Nordyne heat pump

Here are the diagrams and repair parts for Official Nordyne 042Q3RA heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Capacitor 621435
#39

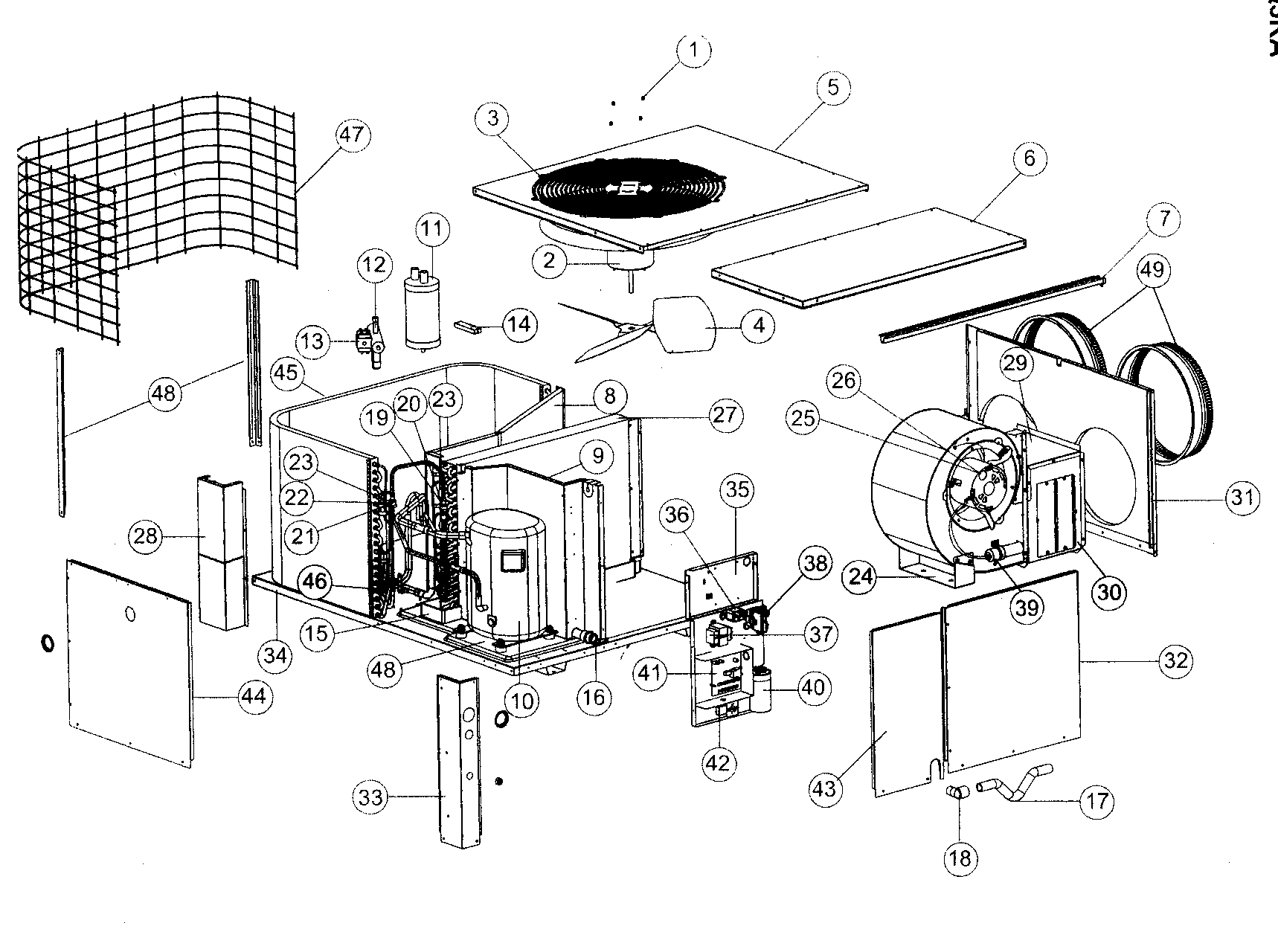

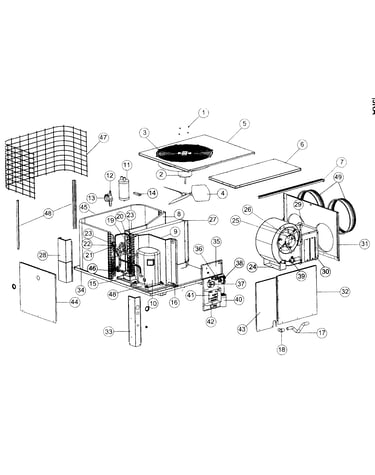

Heat pump diagram

Capacitor

Part #621435

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Relay 621931
#36

Heat pump diagram

Air conditioner blower relay

Part #621931

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 621721
#2

Heat pump diagram

Fan motor

Part #621721

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 667037
#26

Heat pump diagram

Blower wheel

Part #667037

The manufacturer no longer makes this part, and there's no substitute part

Restrictor 664077
#19

Heat pump diagram

Restrictor

Part #664077

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Motor 621939
#25

Heat pump diagram

Evaporator motor

Part #621939

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Relay 621869
#36A

Heat pump diagram

Air conditioner blower relay

Part #621869

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 626488
#46

Heat pump diagram

Thermostat

Part #626488

The manufacturer no longer makes this part, and there's no substitute part

Distributor 663581
#22

Heat pump diagram

Distributor

Part #663581

The manufacturer no longer makes this part, and there's no substitute part

Compressor 912958
#10

Heat pump diagram

Compressor

Part #912958

The manufacturer no longer makes this part, and there's no substitute part
