Model # 65M Official Minn Kota electric fishing motor

Here are the diagrams and repair parts for Official Minn Kota 65M electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Washer 405170
#9

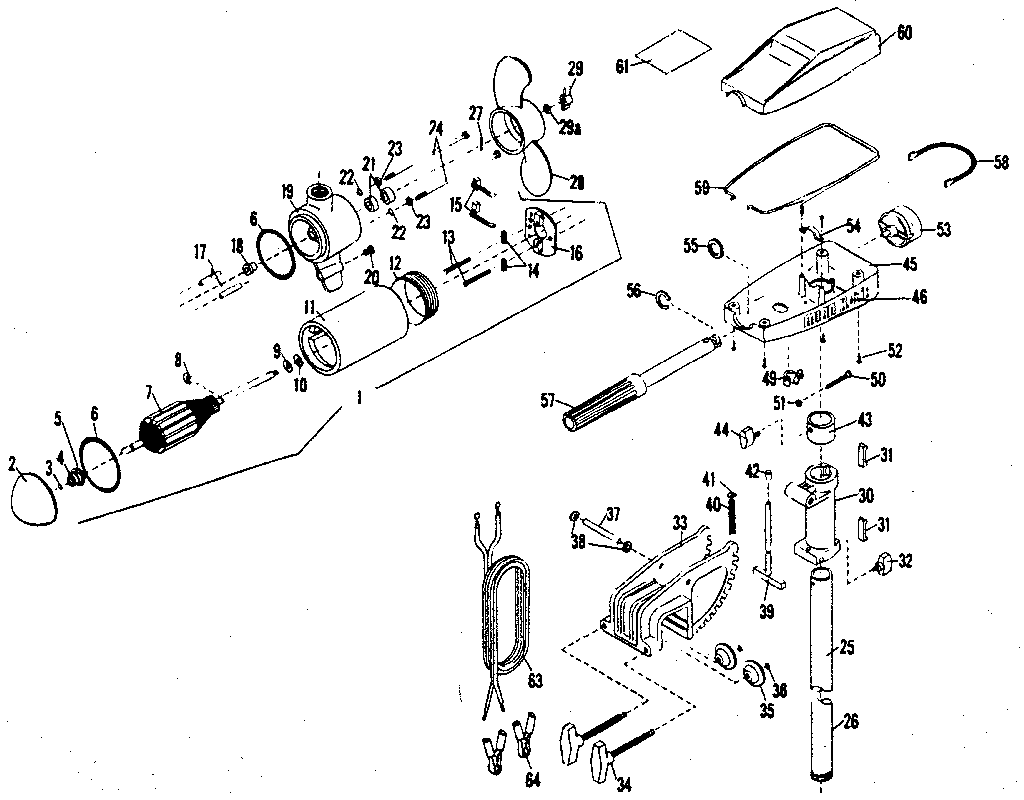

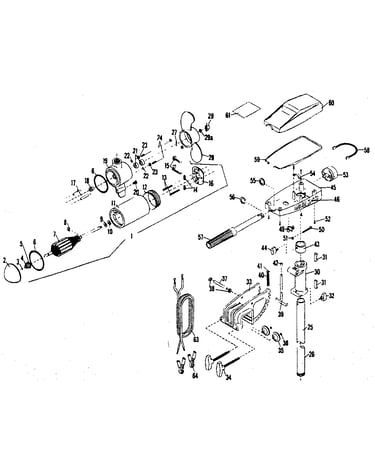

Unit parts diagram

Washer

Part #405170

The manufacturer no longer makes this part, and there's no substitute part

Control Box 206252
#45

Unit parts diagram

Control box

Part #206252

The manufacturer no longer makes this part, and there's no substitute part

Speed Coil 406244
#12

Unit parts diagram

Speed coil

Part #406244

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 201137
#34

Unit parts diagram

Clamp screw

Part #201137

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 201050
#37

Unit parts diagram

Hinge pin

Part #201050

The manufacturer no longer makes this part, and there's no substitute part

Wire 202031
#58

Unit parts diagram

Wire

Part #202031

The manufacturer no longer makes this part, and there's no substitute part

Screw 201210
#52

Unit parts diagram

Screw

Part #201210

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 201310
#38

Unit parts diagram

Speed nut

Part #201310

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 65m (complete) 206700
#1

Unit parts diagram

Motor assembly 65m (complete)

Part #206700

The manufacturer no longer makes this part, and there's no substitute part

Bearing 201003
#54

Unit parts diagram

Bearing

Part #201003

The manufacturer no longer makes this part, and there's no substitute part
