Rheem (RXHE-CE030YA) auxiliary heater kit Parts

Here are the diagrams and repair parts for Rheem (RXHE-CE030YA) auxiliary heater kit, as well as links to manuals and error code tables, if available.

Rheem (RXHE-CE030YA) auxiliary heater kit
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for (RXHE-CE030YA) Auxiliary Heater Kit

  • Limit Control for Rheem (RXHE-CE030YA) - Part 47-41590-03

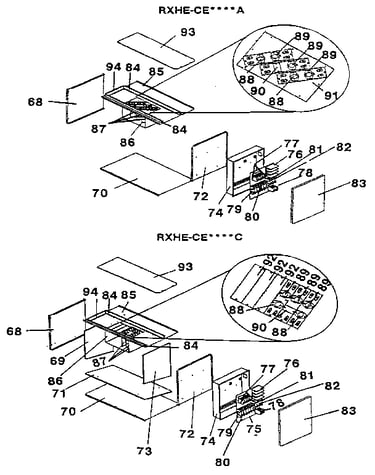

    Functional replacement parts diagram

    Limit Control

    Part #47-41590-03
    In Stock
    $94.51
    Minus Item
    Qty
    Plus Item
  • Terminl Blck for Rheem (RXHE-CE030YA) - Part 45-21134-04

    Functional replacement parts diagram

    Terminl Blck

    Part #45-21134-04
    In Stock
    $148.26
    Minus Item
    Qty
    Plus Item
  • Switch for Rheem (RXHE-CE030YA) - Part 47-19554-89

    Functional replacement parts diagram

    L Switch

    Part #47-19554-01

    Replaced by #47-19554-89

    Info Icon
    Manufacturer substitution
    This part replaces 47-19554-01. Substitute parts can look different from the original.
    In Stock
    $52.50
    Minus Item
    Qty
    Plus Item
  • Central Air Conditioner 3-pole Contactor, 24-volt, 30-amp for Rheem (RXHE-CE030YA) - Part 42-25103-01

    Contactor

    Part #42-17810-83

    Replaced by #42-25103-01

    Info Icon
    Manufacturer substitution
    This part replaces 42-17810-83. Substitute parts can look different from the original.
    In Stock
    $90.35
    Minus Item
    Qty
    Plus Item
  • Fuse Block-blower Motor for Rheem (RXHE-CE030YA) - Part 45-19985-03

    Functional replacement parts diagram

    Fuse Block-blower Motor

    Part #45-19985-03

    The manufacturer no longer makes this part, and there's no substitute part

  • Wireway End for Rheem (RXHE-CE030YA) - Part AE-90431-01

    Functional replacement parts diagram

    Wireway End

    Part #AE-90431-01

    The manufacturer no longer makes this part, and there's no substitute part

  • 07e 24jk 30jk for Rheem (RXHE-CE030YA) - Part DNA

    07e 24jk 30jk

    Part #DNA

    The manufacturer no longer makes this part, and there's no substitute part

  • Bottom for Rheem (RXHE-CE030YA) - Part AE-90326-01

    Functional replacement parts diagram

    Bottom

    Part #AE-90326-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Wireway Cover for Rheem (RXHE-CE030YA) - Part AE-90325-01

    Functional replacement parts diagram

    Wireway Cover

    Part #AE-90325-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Steam Coil (rxhc-74s) Replacemnt Steam Coil for Rheem (RXHE-CE030YA) - Part 65-41547-01

    #NI

    All parts diagram

    Steam Coil (rxhc-74s) Replacemnt Steam Coil

    Part #65-41547-01

    The manufacturer no longer makes this part, and there's no substitute part
