Model # DCR-SR200 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR200 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

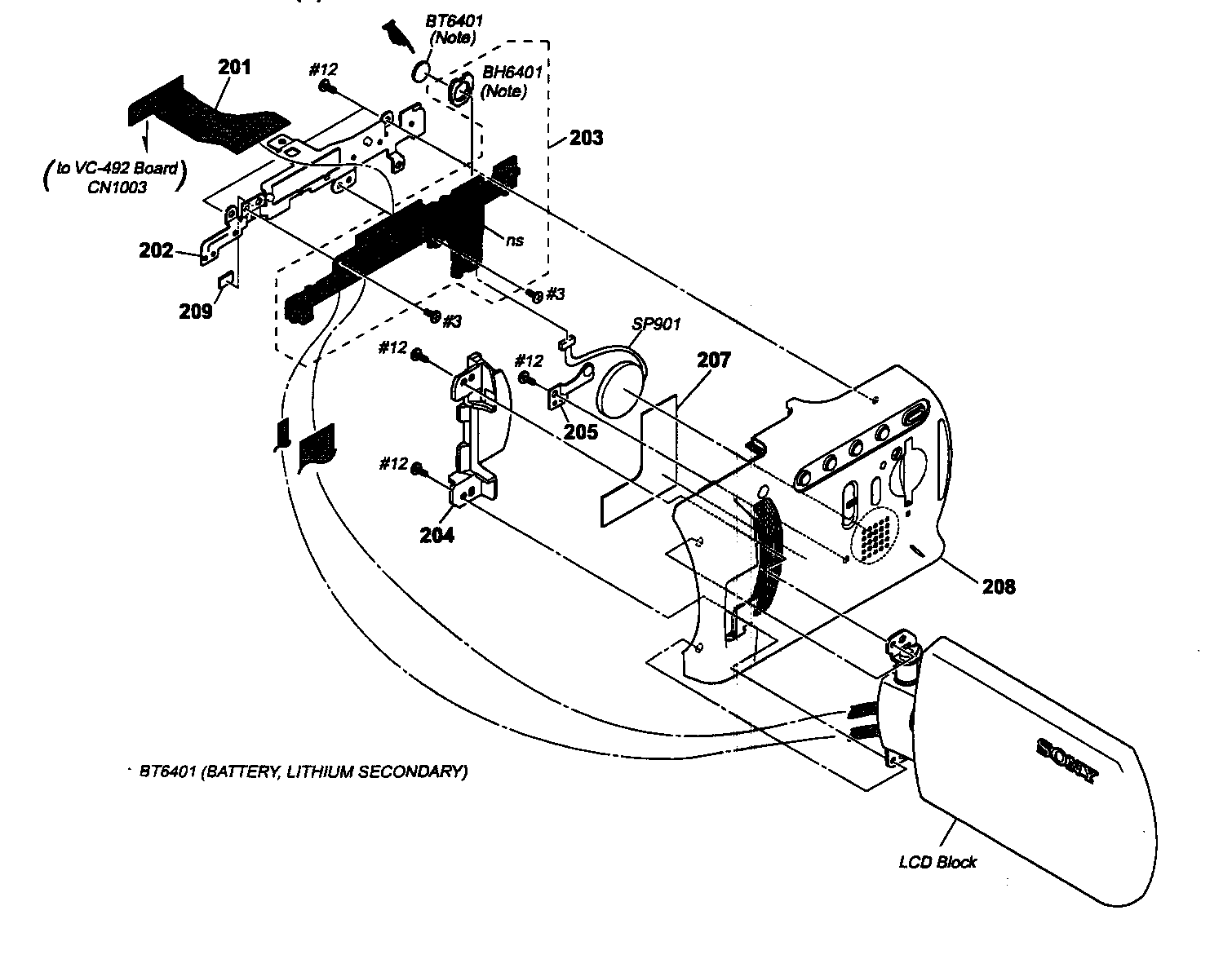

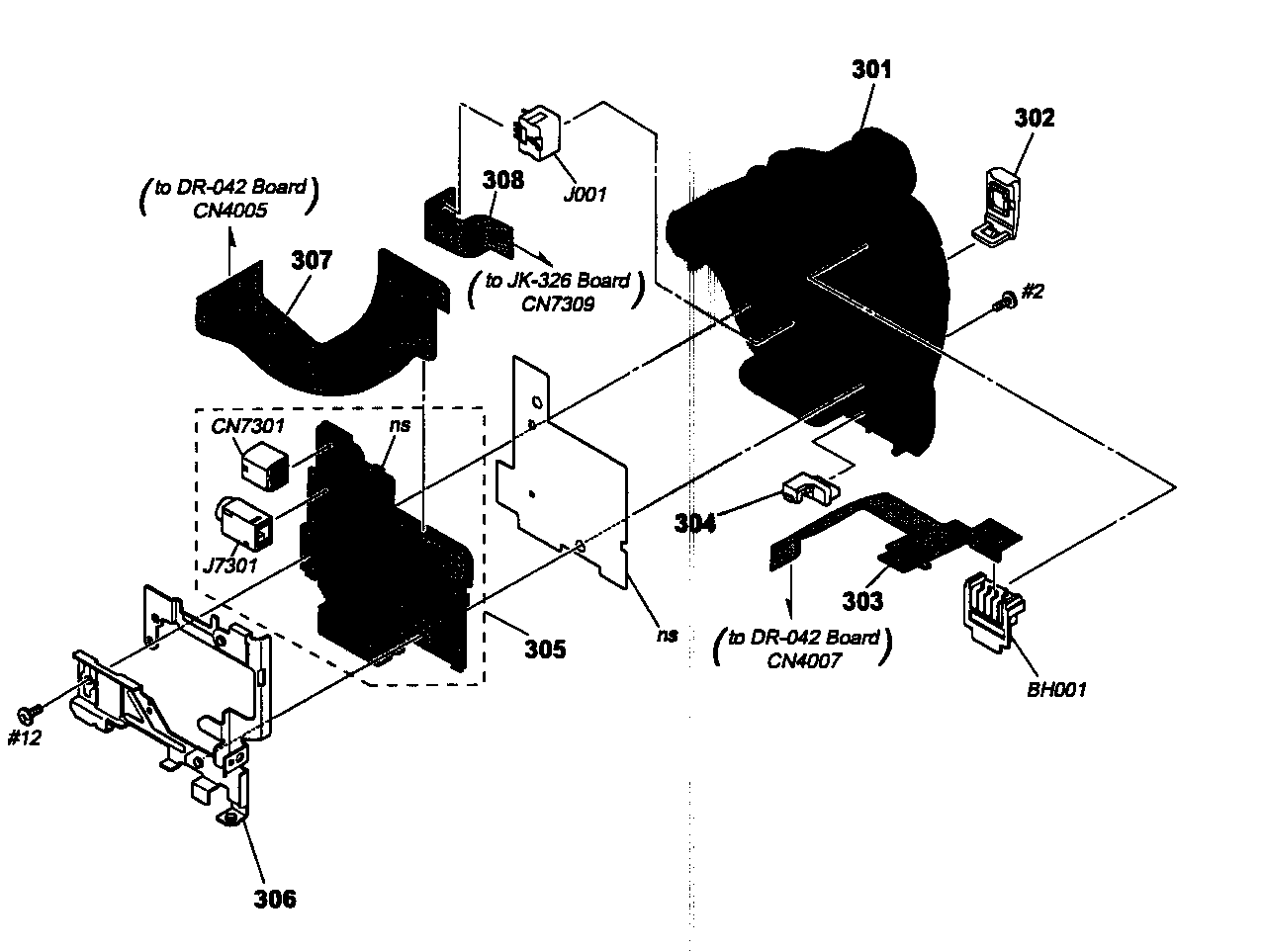

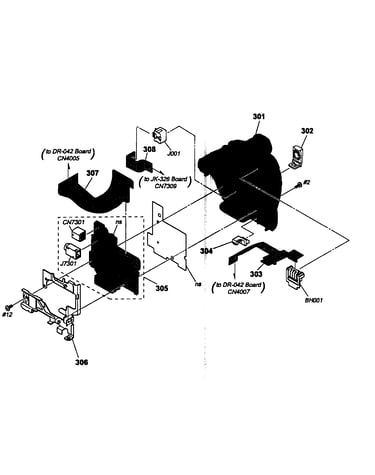

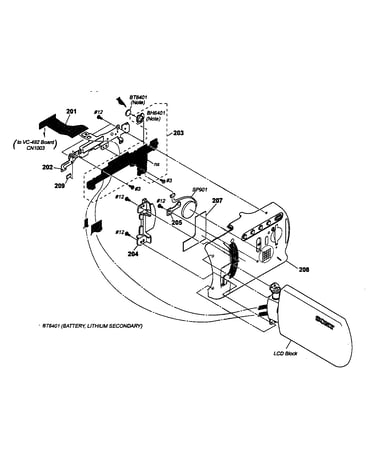

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Damper, Dm 309817501
#13

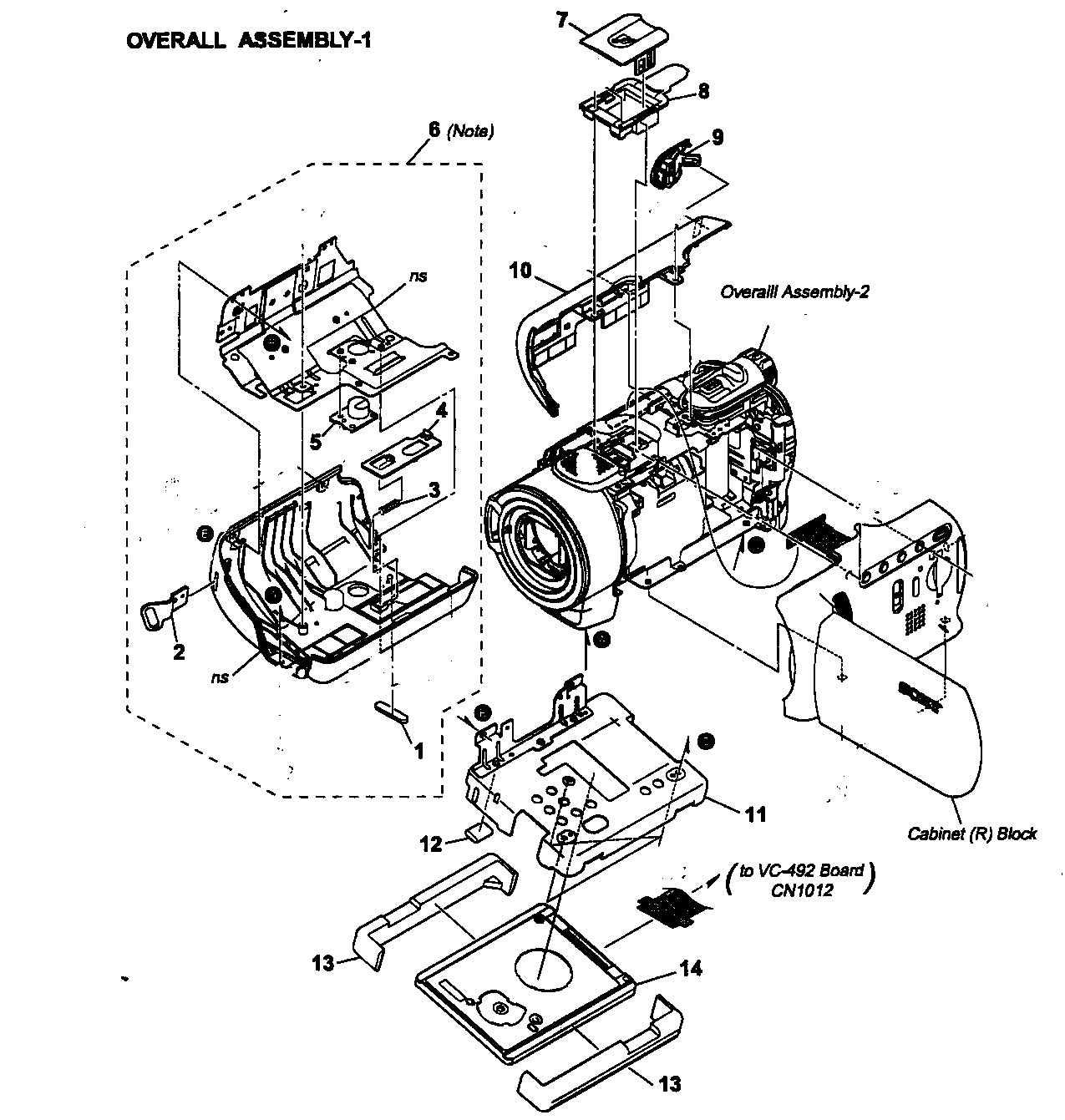

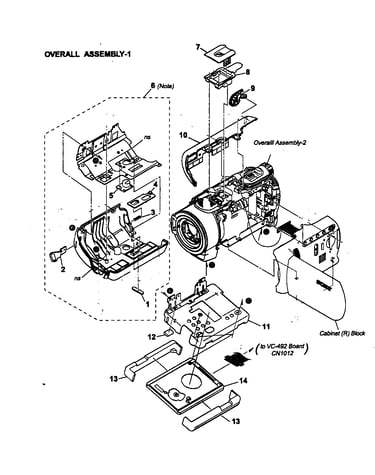

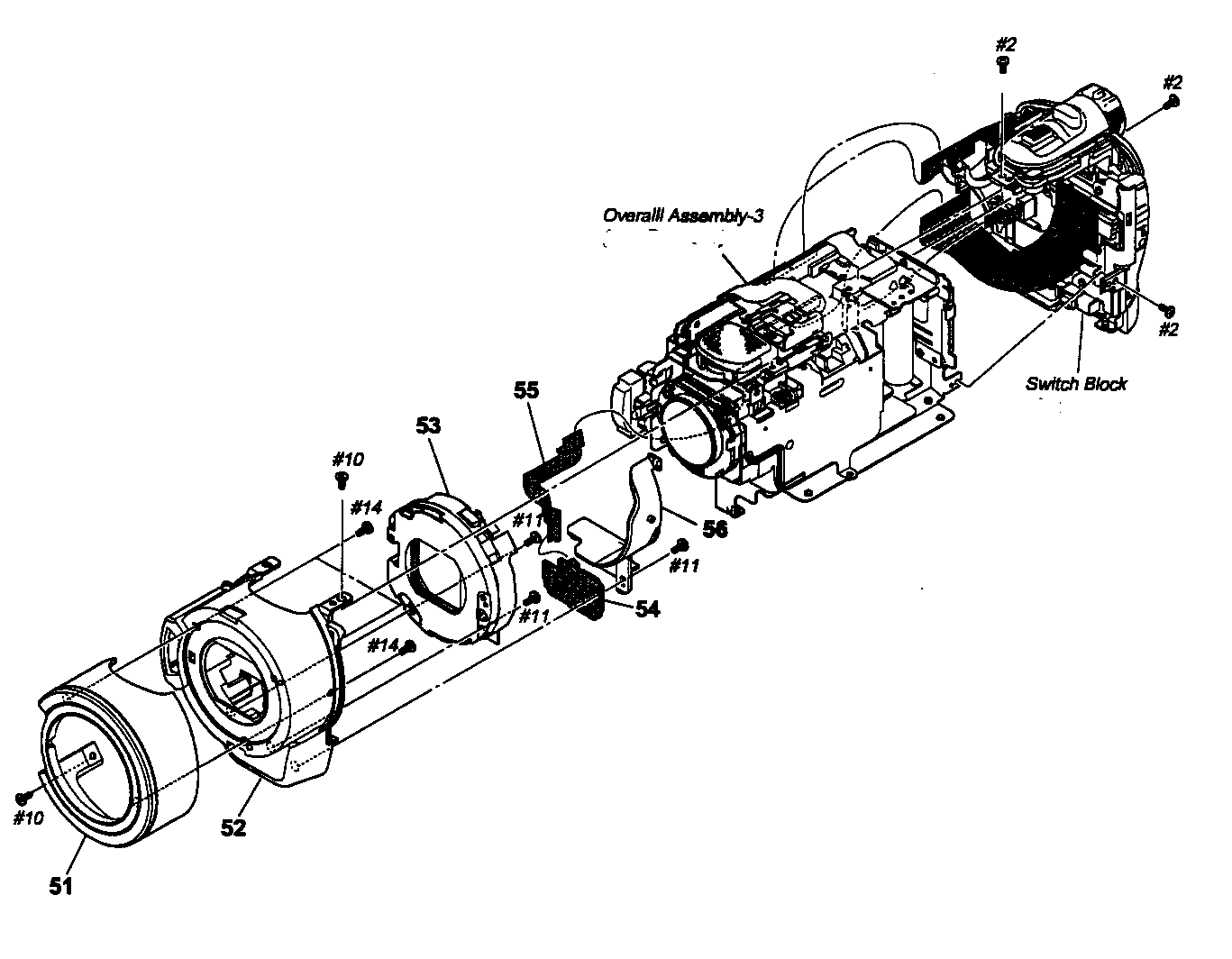

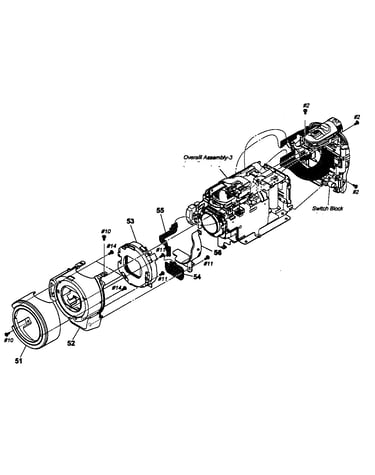

Cabinet parts diagram

Damper, dm

Part #309817501

Replaced by #309817501

?
Manufacturer substitution
This part replaces 309817501. Substitute parts can look different from the original.
$14.79
In Stock
St-159 Pcb A1244921A
#159

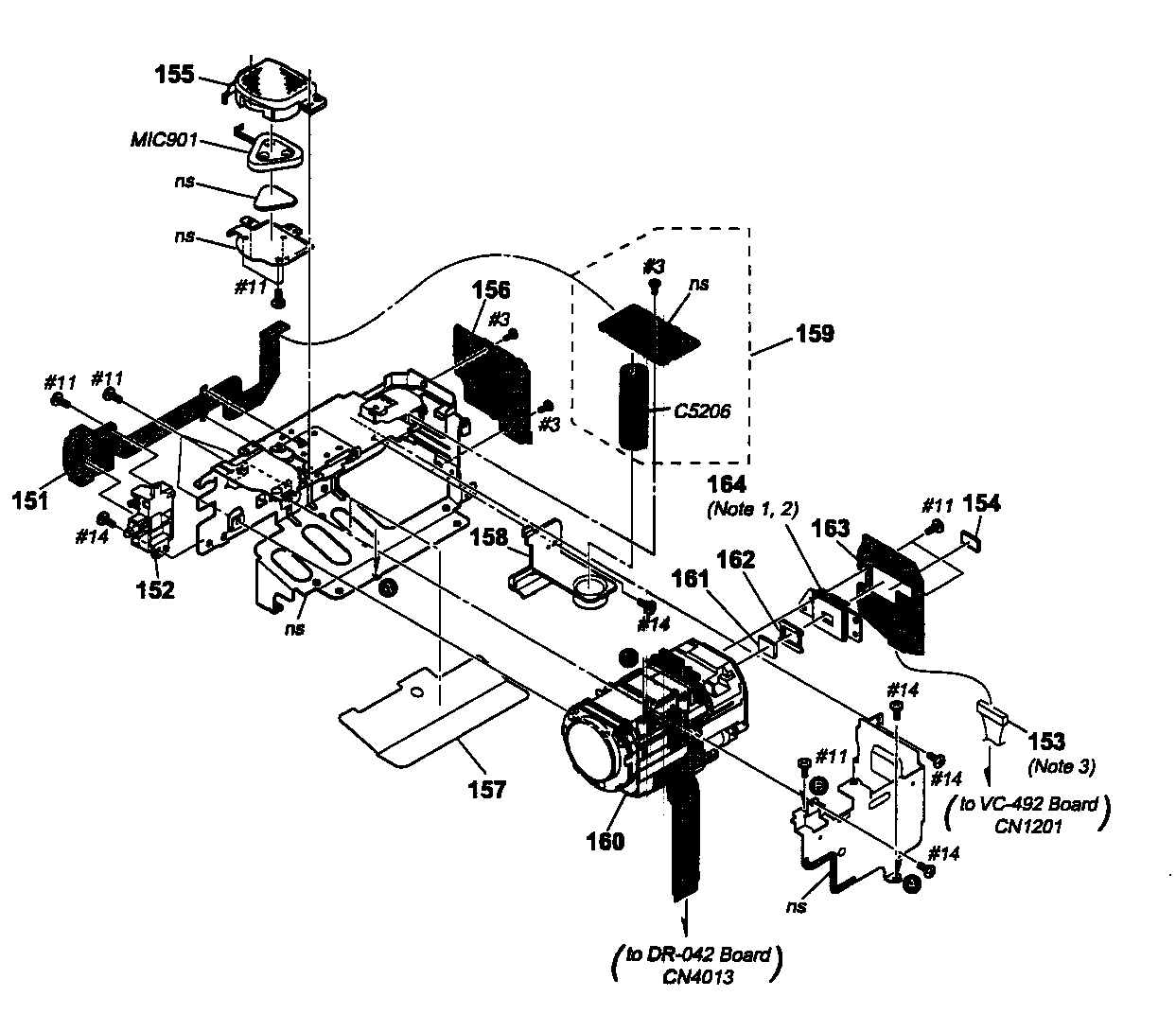

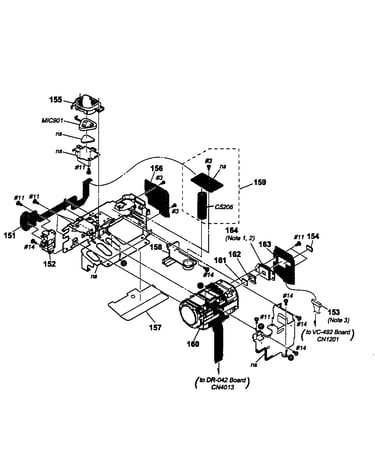

Lens block diagram

St-159 pcb

Part #A1244921A

Replaced by #A1244921A

?
Manufacturer substitution
This part replaces A1244921A. Substitute parts can look different from the original.
$57.89
In Stock
Cover 309826311
#270

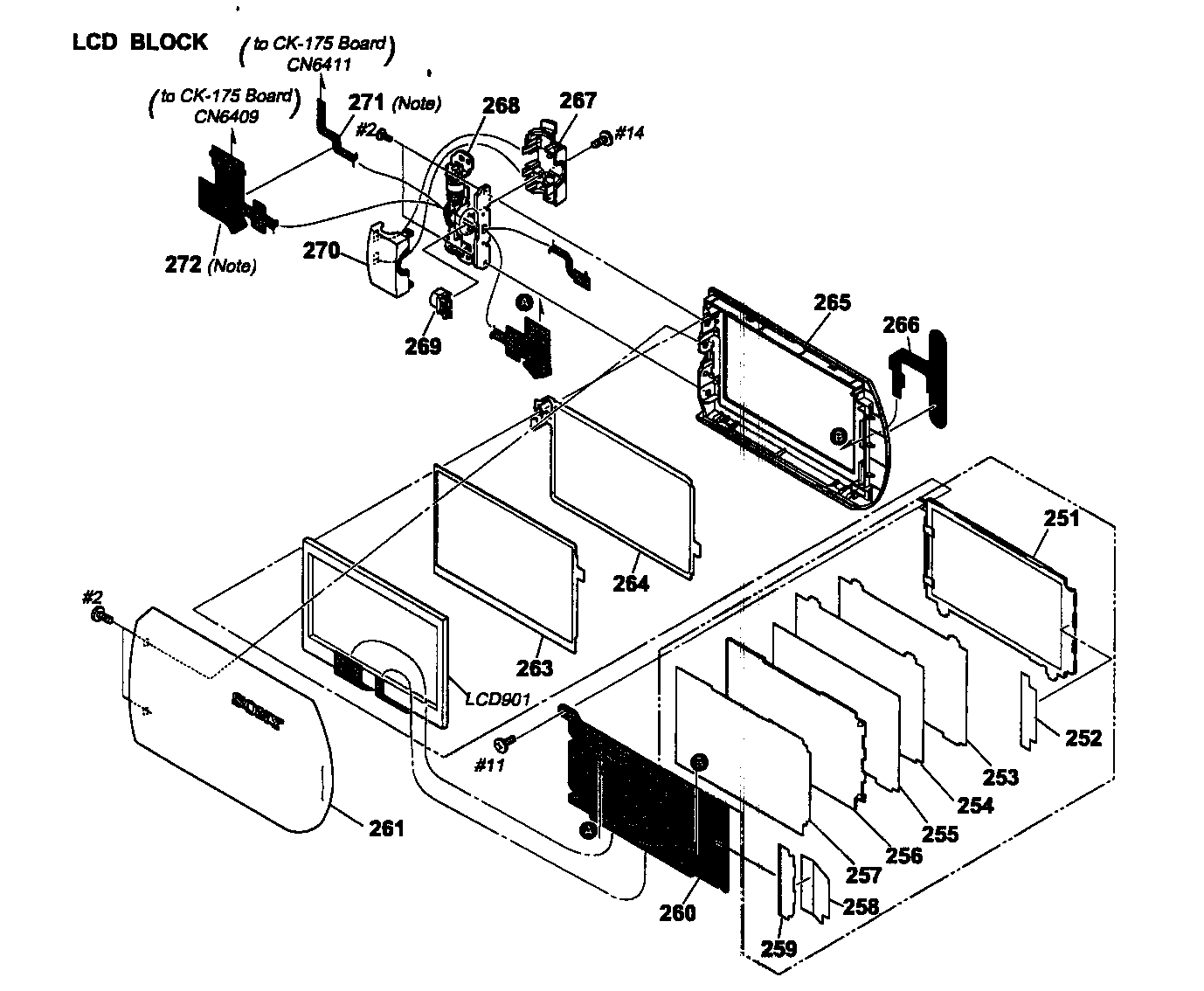

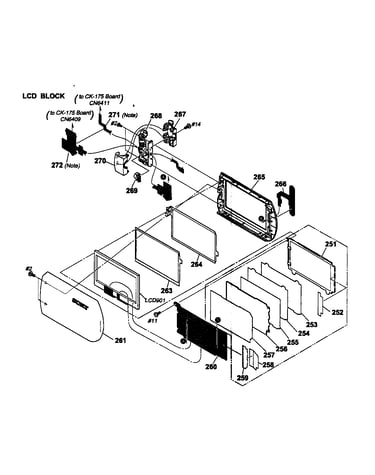

Lcd block diagram

Cover

Part #309826311

The manufacturer no longer makes this part, and there's no substitute part

Cabinet, P 309863311
#265

Lcd block diagram

Cabinet, p

Part #309863311

Replaced by #309863311

?
Manufacturer substitution
This part replaces 309863311. Substitute parts can look different from the original.
$16.51
In Stock
Ac Adapter 147928521
#NI

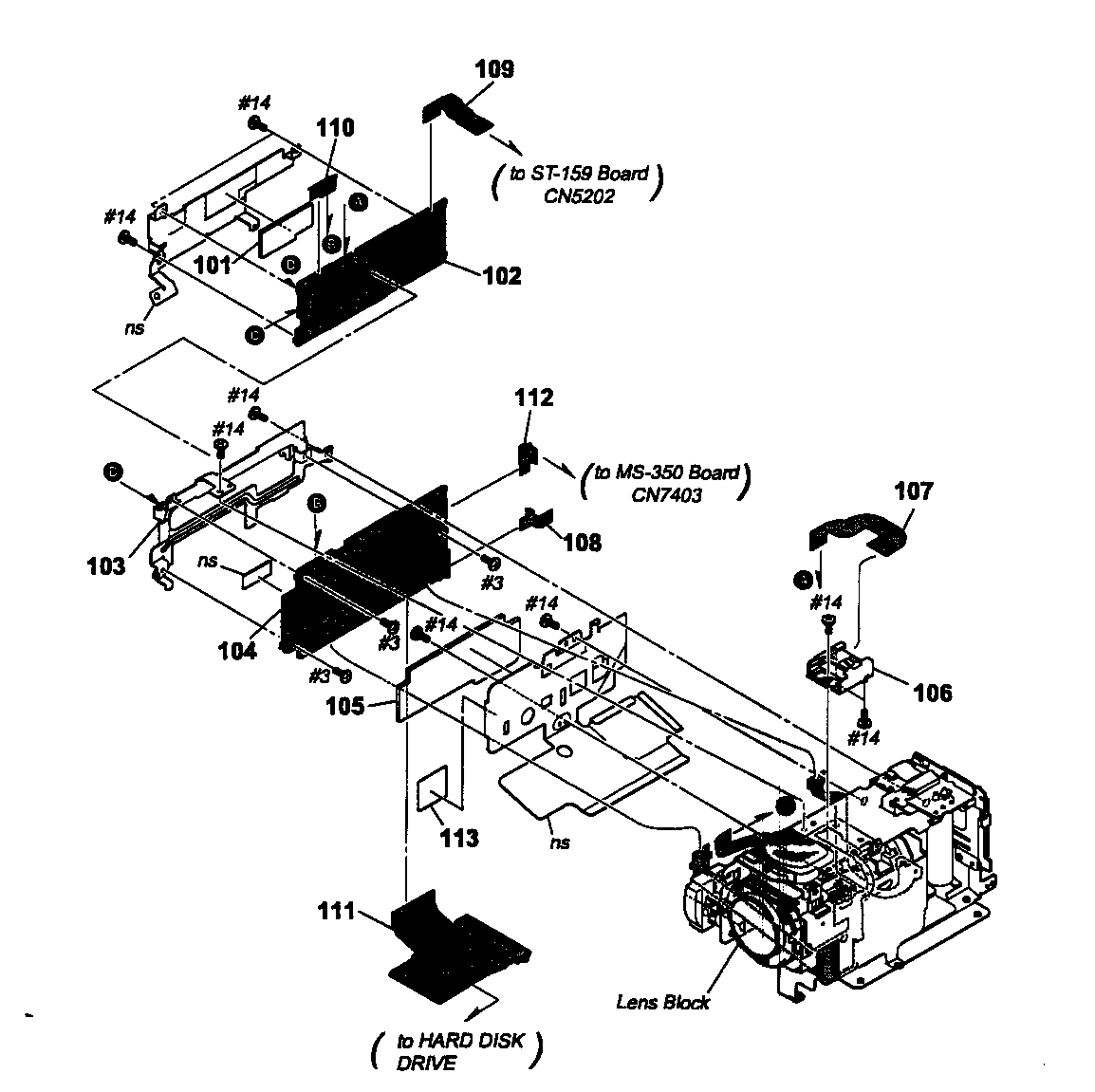

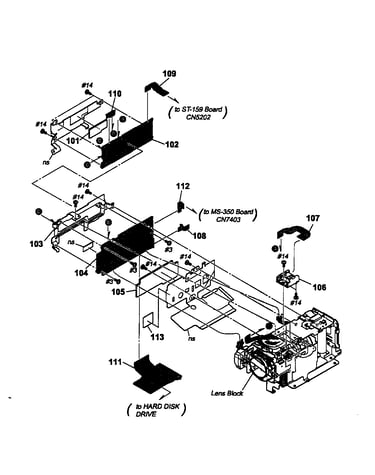

Cabinet parts diagram

Ac adapter

Part #147928521

The manufacturer no longer makes this part, and there's no substitute part

Frame 288799901
#251

Lcd block diagram

Frame

Part #288799901

Replaced by #288799901

?
Manufacturer substitution
This part replaces 288799901. Substitute parts can look different from the original.
$11.75
In Stock
Cover 309825601
#267

Lcd block diagram

Cover

Part #309825601

The manufacturer no longer makes this part, and there's no substitute part

Diffusion Sheet 266680401
#255

Lcd block diagram

Diffusion sheet

Part #266680401

The manufacturer no longer makes this part, and there's no substitute part

Control Switch 147992611
#266

Lcd block diagram

Control switch

Part #147992611

The manufacturer no longer makes this part, and there's no substitute part

Cap, 70uf 111276611
#NI

Lens block diagram

Cap, 70uf

Part #111276611

Replaced by #111276611

?
Manufacturer substitution
This part replaces 111276611. Substitute parts can look different from the original.
$11.90
In Stock
