Model #66569682990 Kenmore microwave

Here are the diagrams and repair parts for Kenmore 66569682990 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

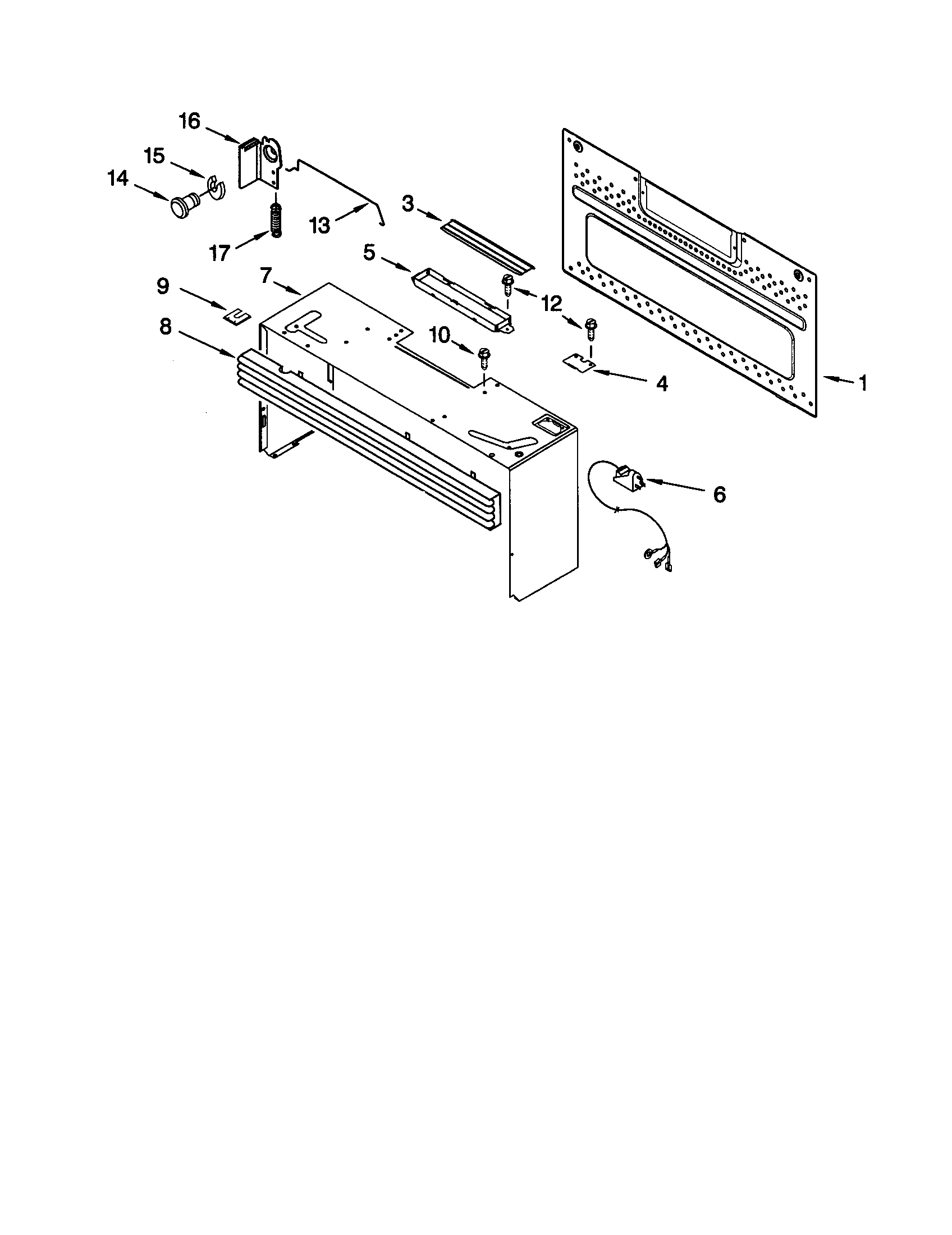

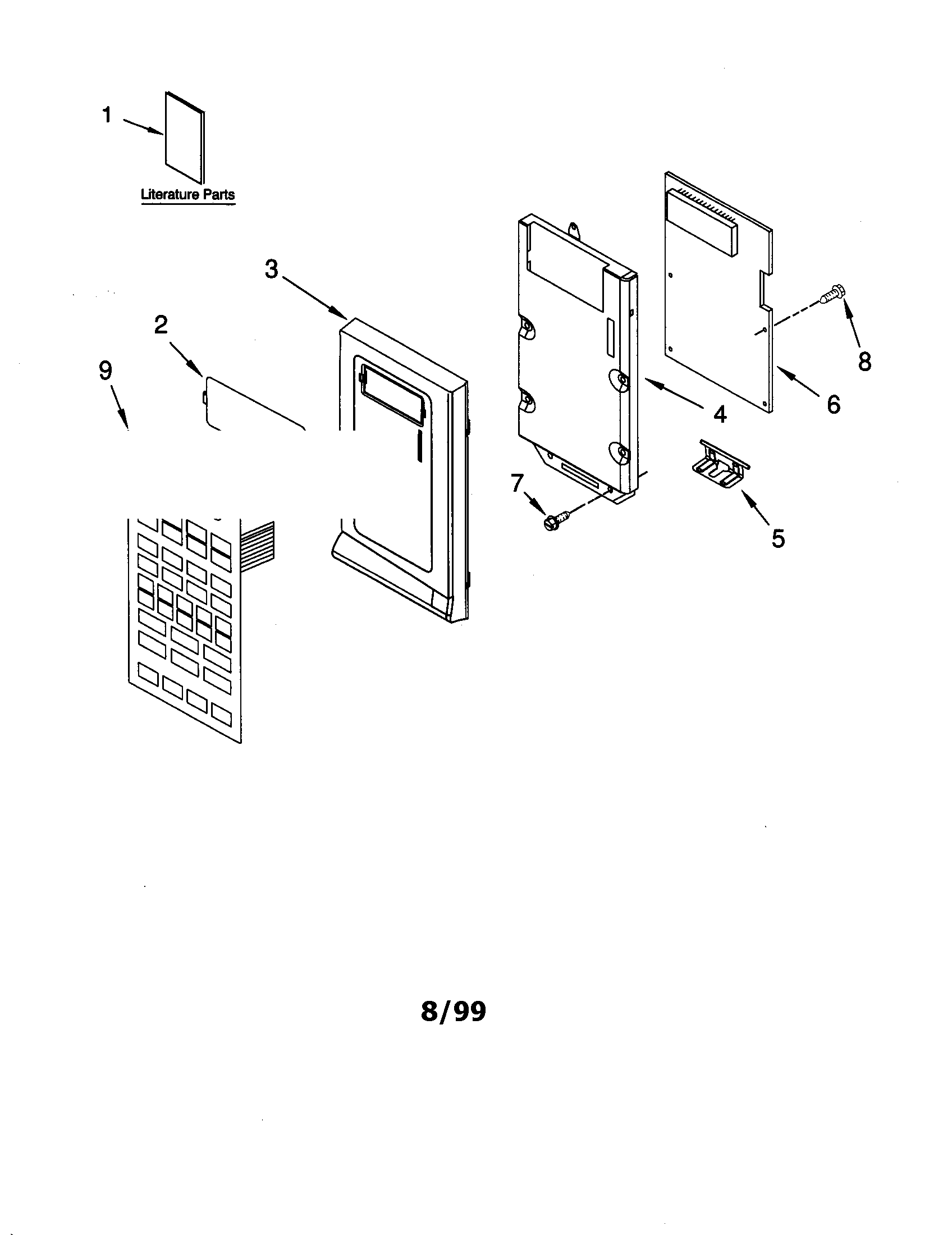

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 132 parts

    Microwave Door Outer Frame (White)

    #10

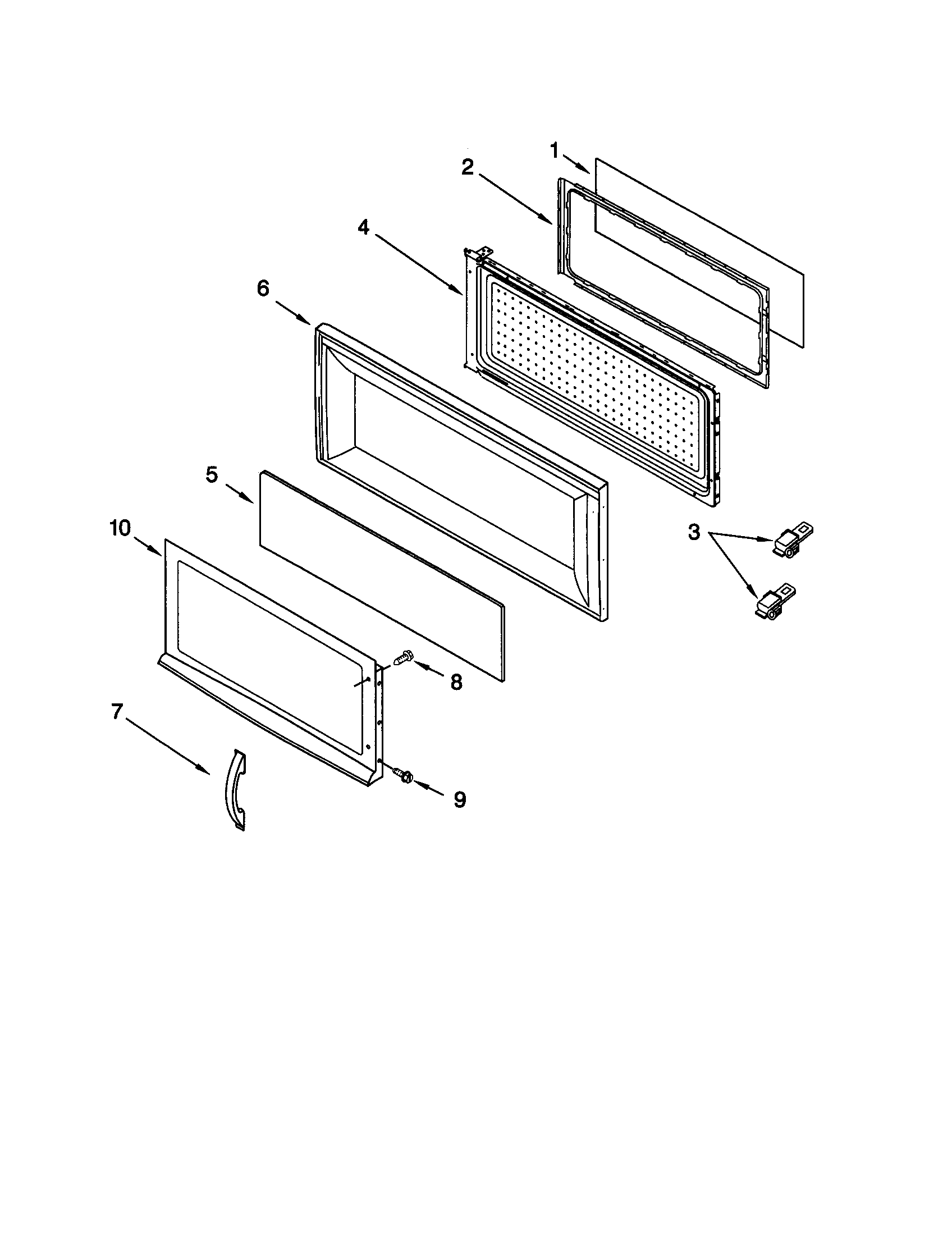

    Door Diagram

    $112.08 |
    14% OFF MSRP:$130.00

    In Stock

    Microwave Door Handle

    #7

    Door Diagram

    Microwave door handle

    Part #4393823
    $79.42

    In Stock

    Microwave Turntable Tray Support Wheel

    #10

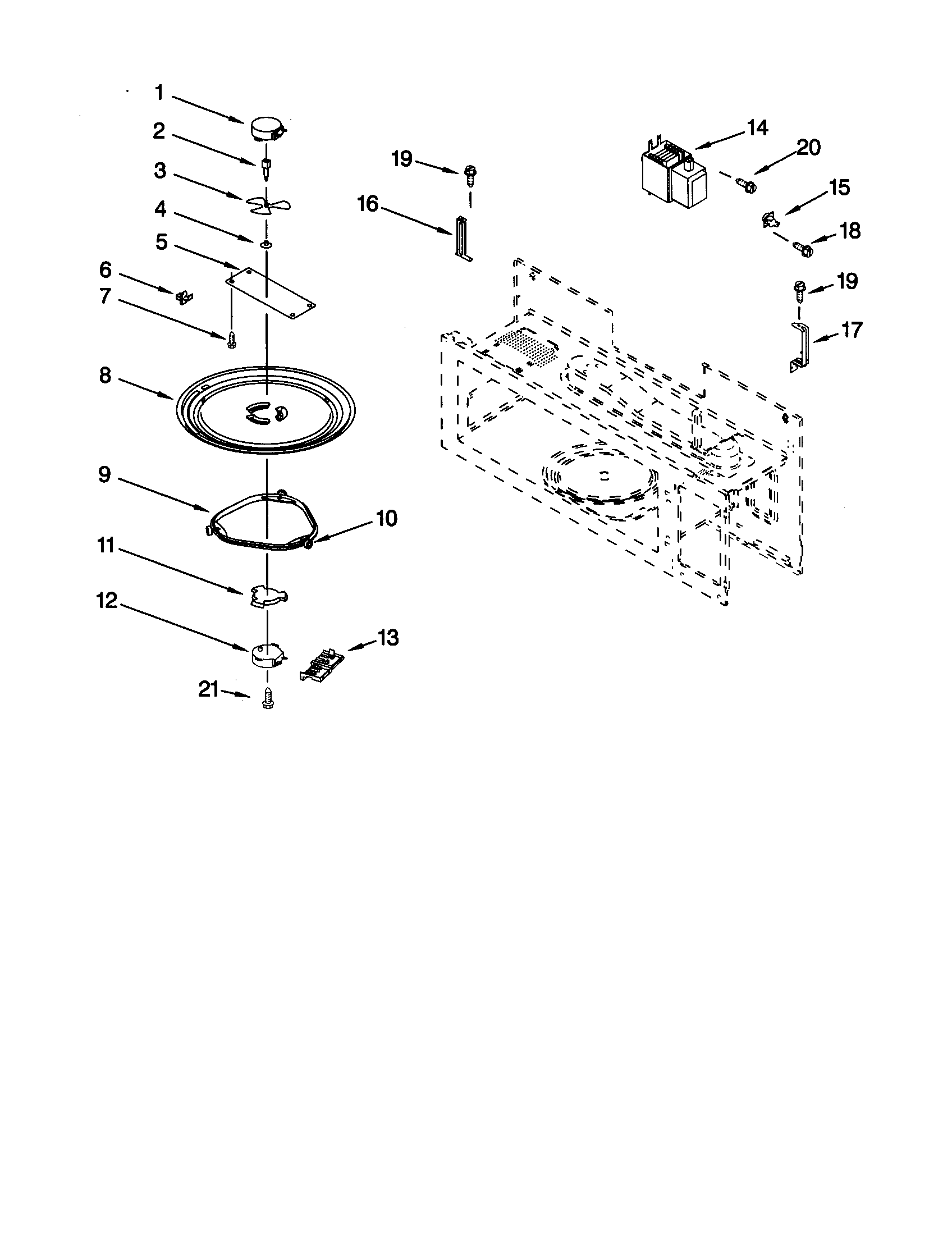

    Magnetron and turntable Diagram

    Microwave turntable tray support wheel

    Part #4393861
    This item is not returnable
    $3.27

    In Stock

    Screw

    #36

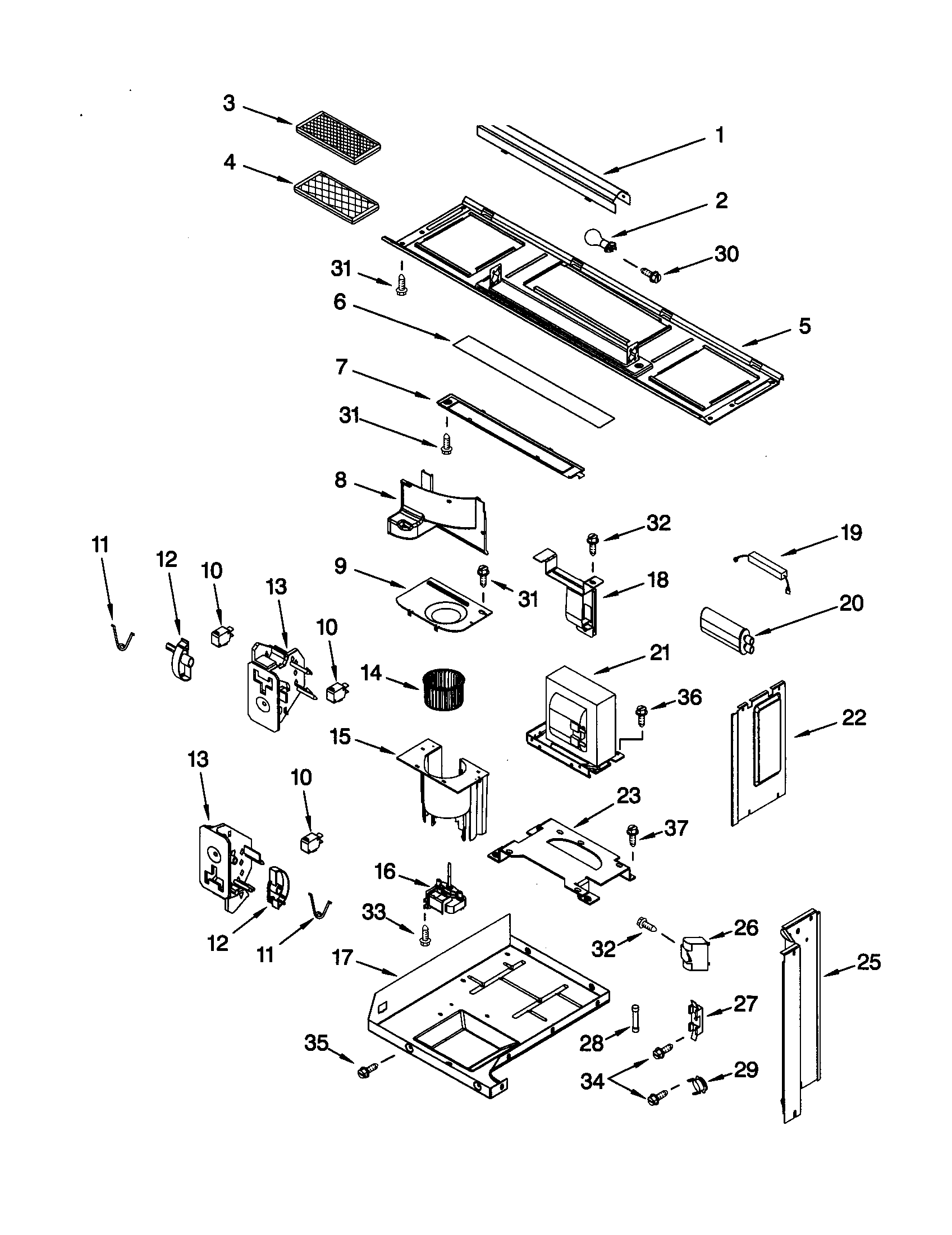

    Interior and ventilation Diagram

    Screw

    Part #4393836
    This item is not returnable
    $3.58

    In Stock

    Microwave Screw

    #13

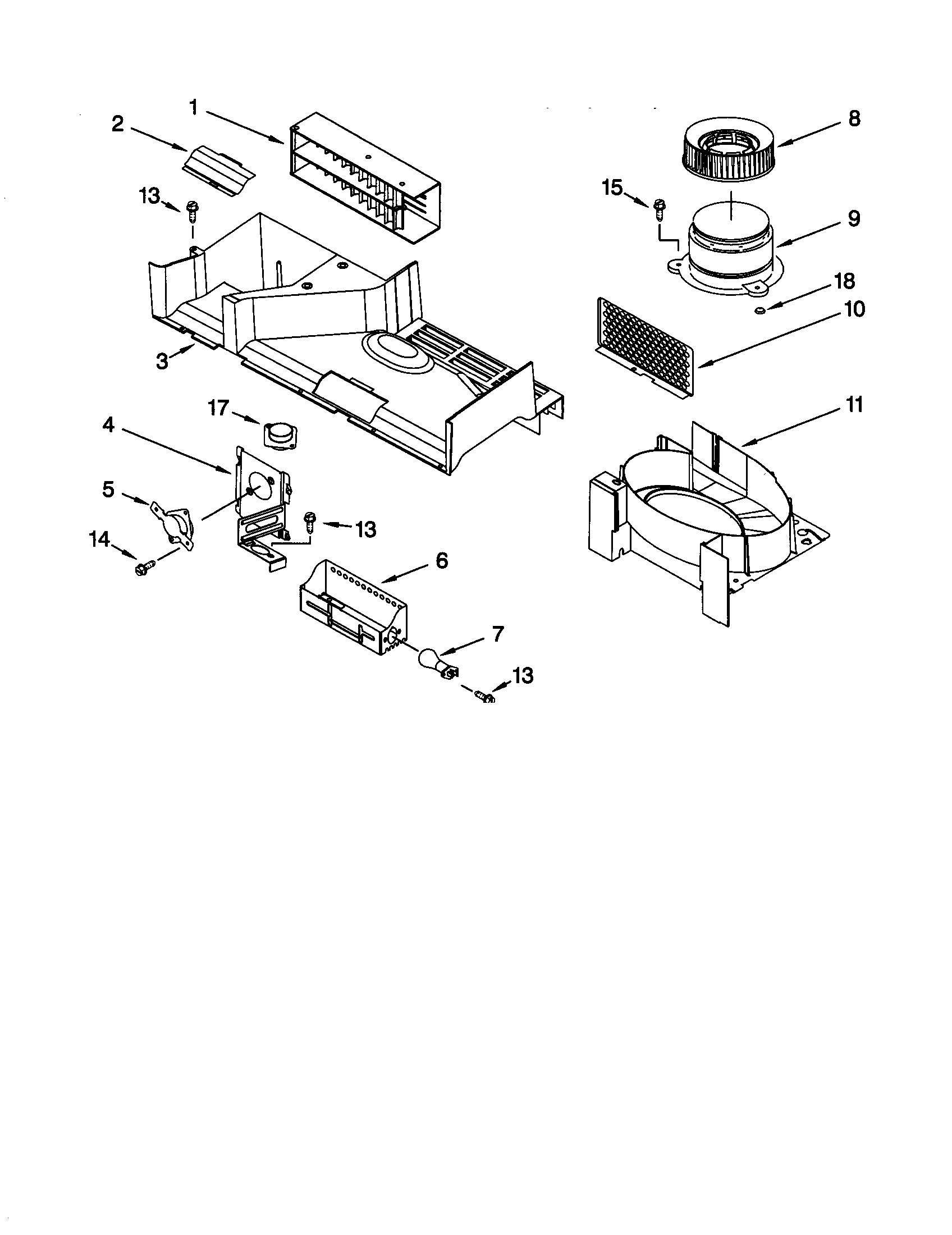

    Air flow Diagram

    Microwave screw

    Part #8169474
    This item is not returnable
    $3.58

    In Stock

    Microwave Screw

    #35

    Interior and ventilation Diagram

    Microwave screw

    Part #8169479
    This item is not returnable
    $4.89

    In Stock

    Microwave Door Latch

    #3

    Door Diagram

    Microwave door latch

    Part #4393913
    $20.05 |
    46% OFF MSRP:$37.00

    In Stock

    Microwave Door Interlock Spring

    #11

    Interior and ventilation Diagram

    Microwave door interlock spring

    Part #8169438
    This item is not returnable
    $6.27

    In Stock

    Microwave Door Outer Frame

    #10A

    Door Diagram

    $108.93

    In Stock

    Microwave Turntable Tray

    #8

    Magnetron and turntable Diagram

    $61.58

    In Stock
