Kenmore
Countertop Microwave

Model #5648548310 Kenmore microwave

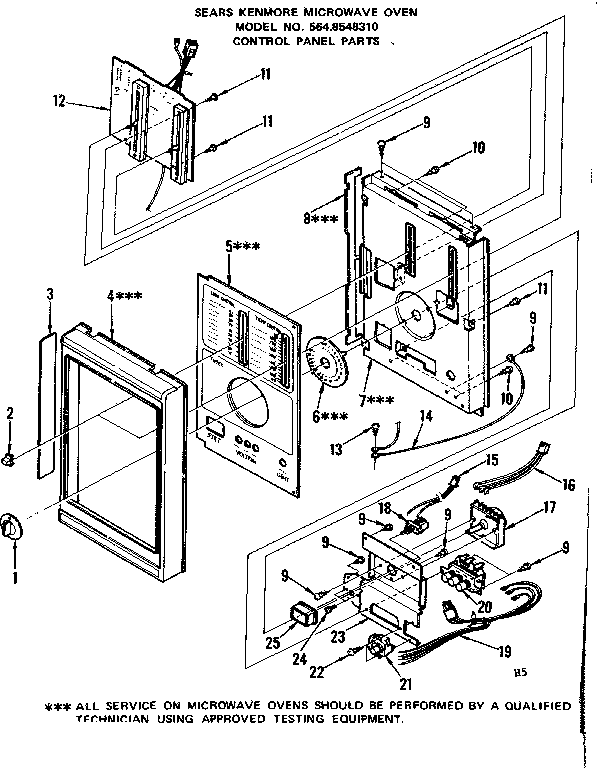

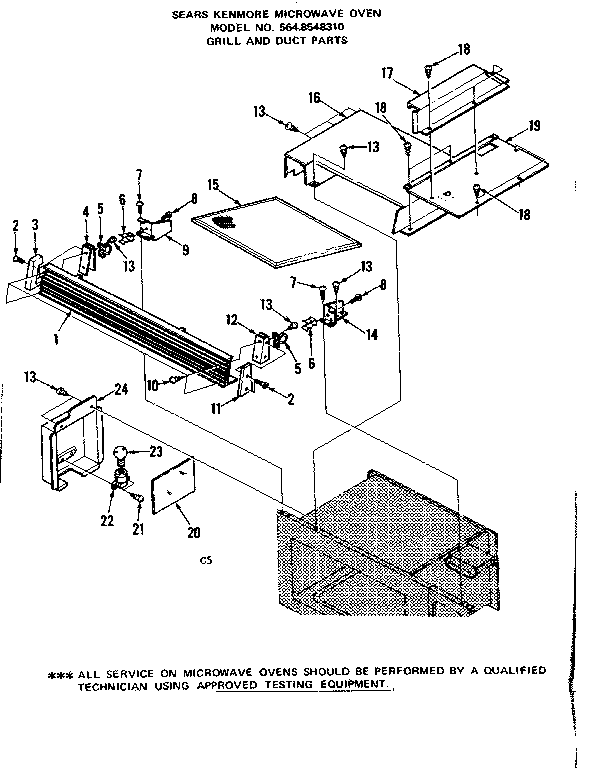

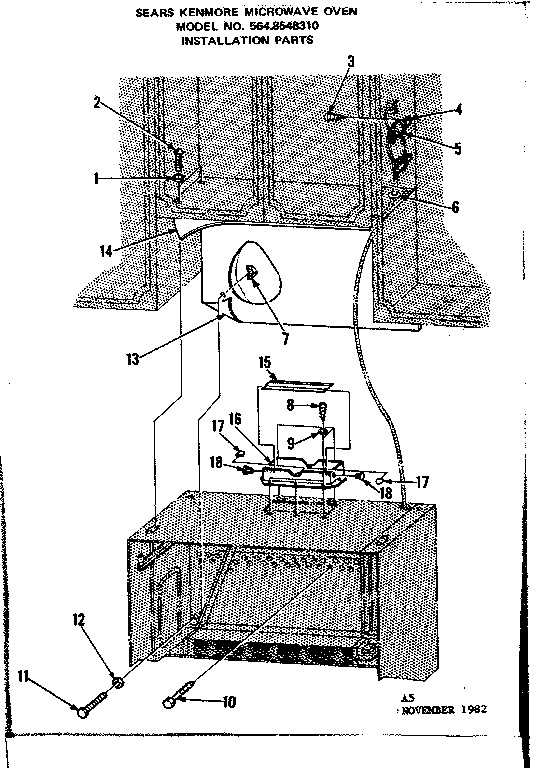

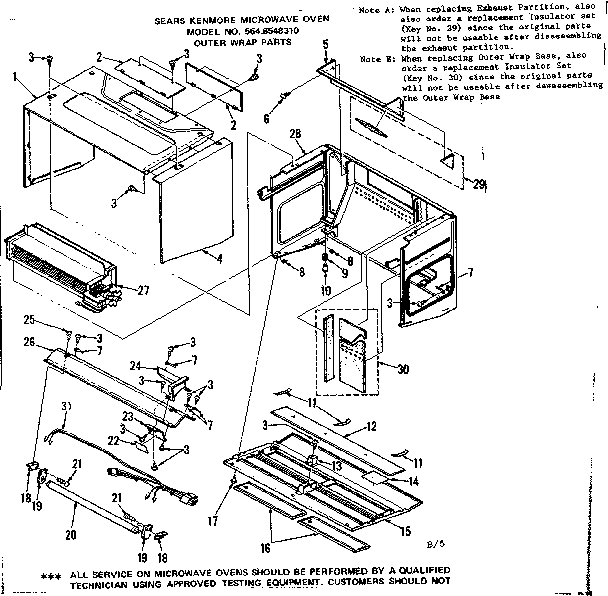

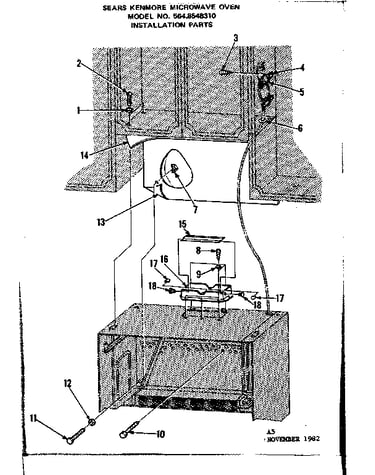

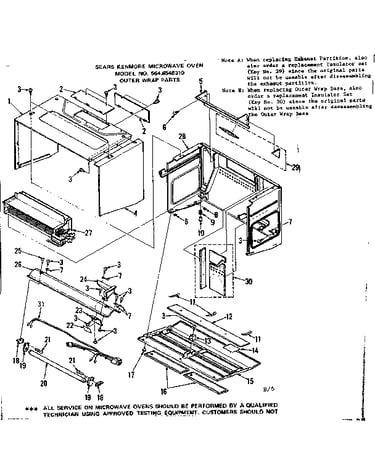

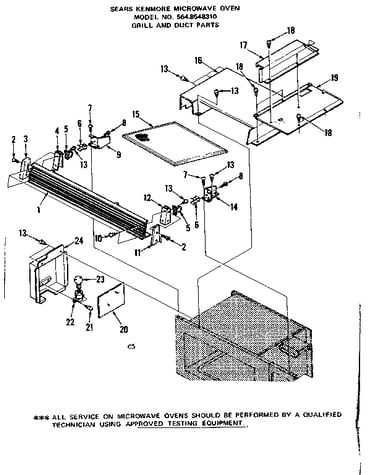

Here are the diagrams and repair parts for Kenmore 5648548310 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 260 parts

|

Microwave Fuse, 15-amp

#5

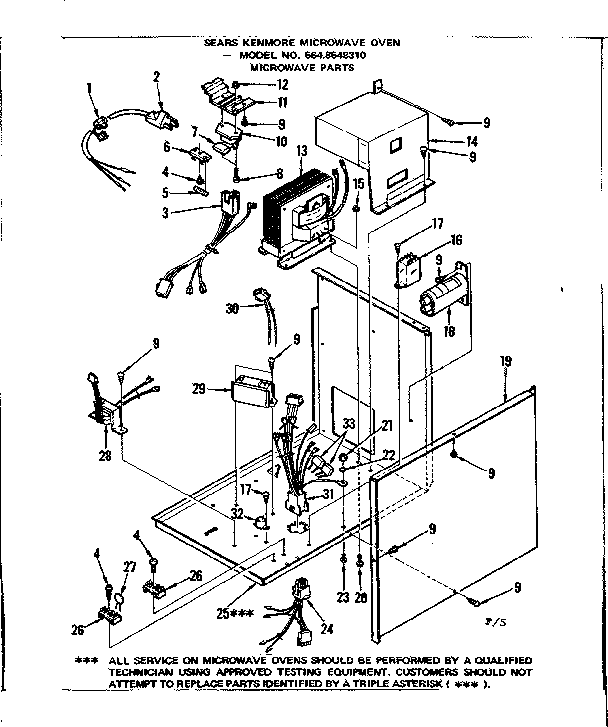

Microwave parts Diagram

Microwave fuse, 15-amp

Part #11255
This item is not returnable
$4.33

In Stock

Microwave Door Latch Lever

#19

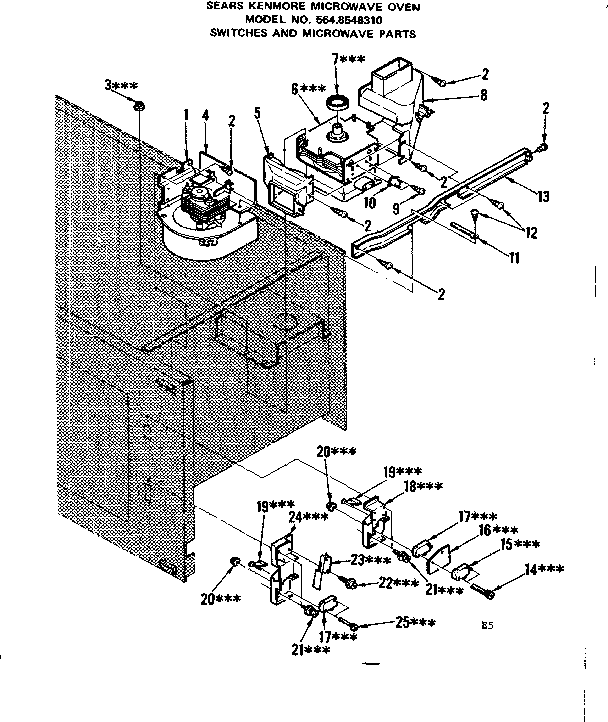

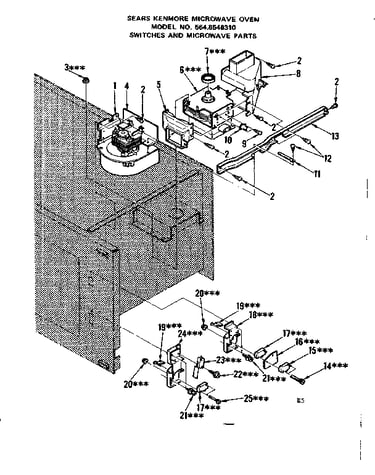

Switches and microwave parts Diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Nut

#5

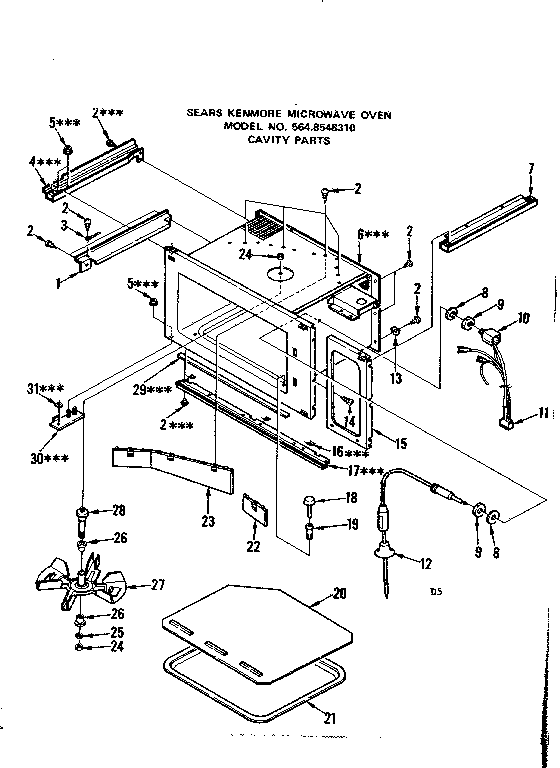

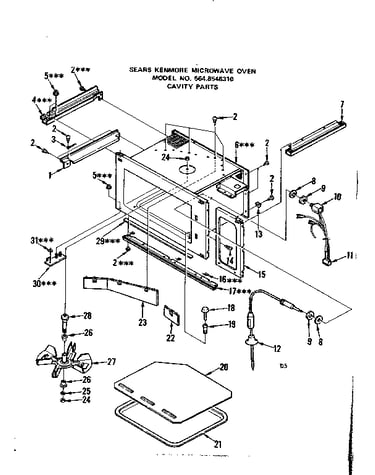

Cavity parts Diagram

Nut

Part #10107

The manufacturer no longer makes this part, and there's no substitute part

Micro-Switch

#17

Switches and microwave parts Diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Micro-Switch

#15

Switches and microwave parts Diagram

Micro-switch

Part #11628

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#6

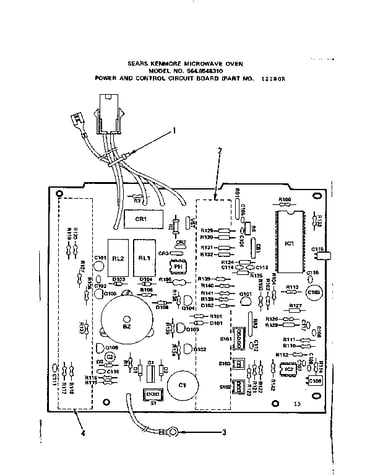

Wire diagram Diagram

Capacitor

Part #11182

The manufacturer no longer makes this part, and there's no substitute part

Screw

#3

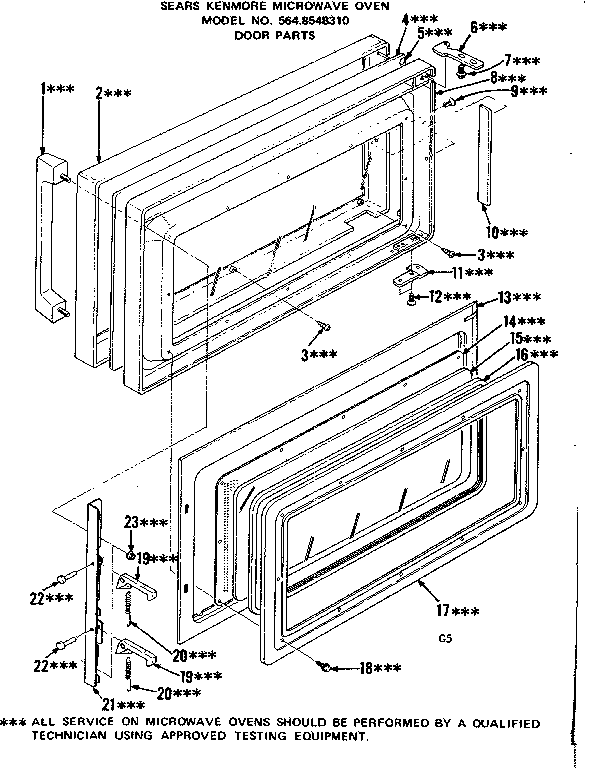

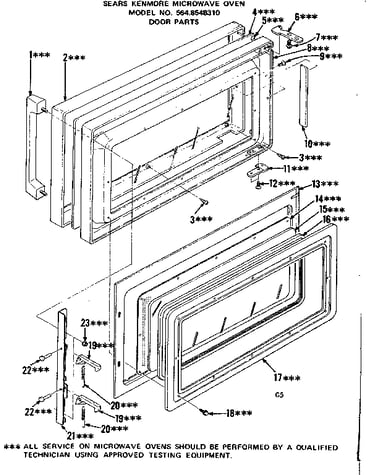

Door parts Diagram

Screw

Part #10506

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder

#6

Microwave parts Diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Diode

#10

Wire diagram Diagram

Diode

Part #11181

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#31

Wire diagram Diagram

Capacitor

Part #11654

The manufacturer no longer makes this part, and there's no substitute part

Showing 10 of 260 parts
