Sharp
Microwave/Hood Combo

Model # R-1512 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1512 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Switch QSW-MA085WRE0
#1-10

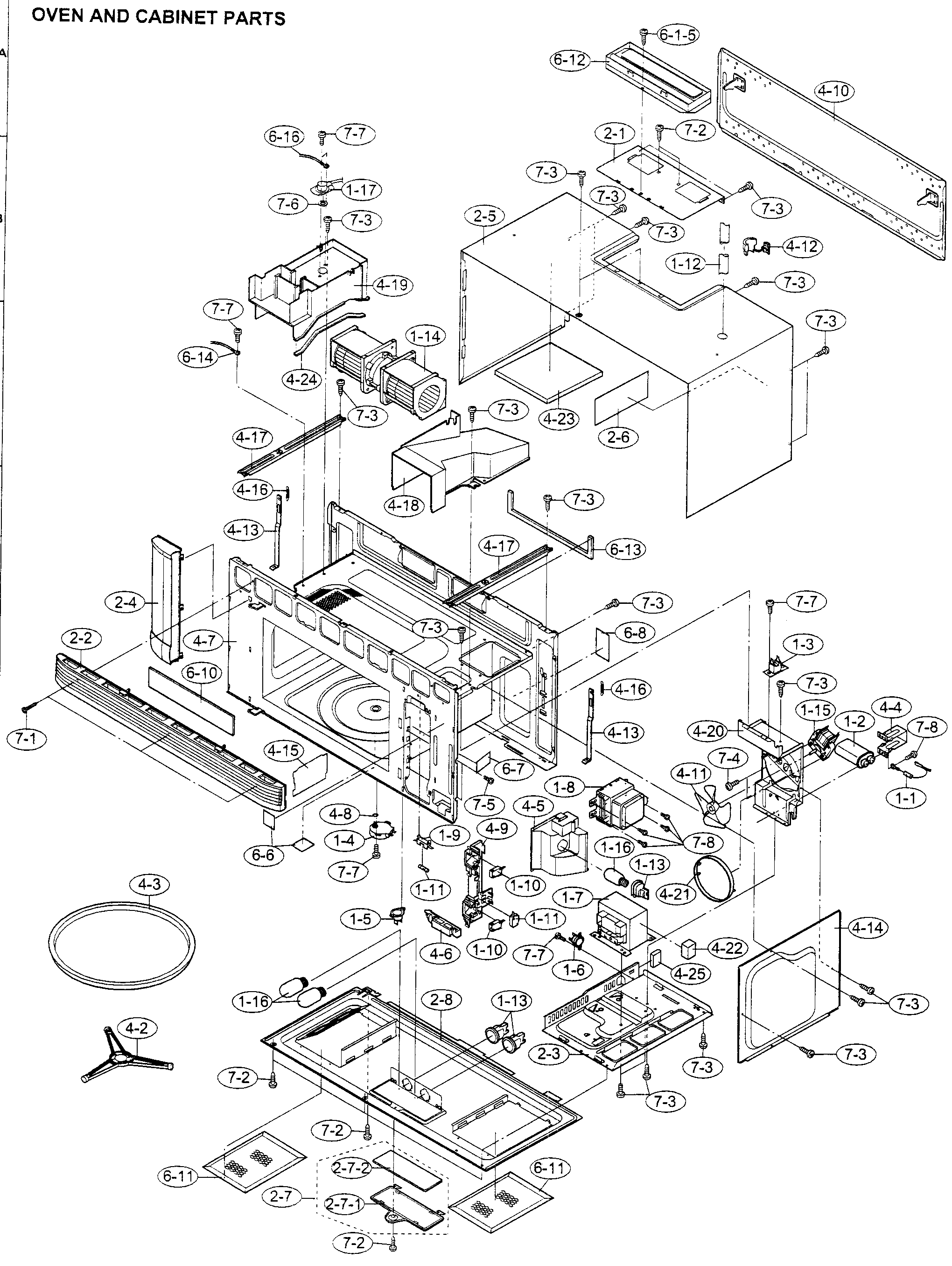

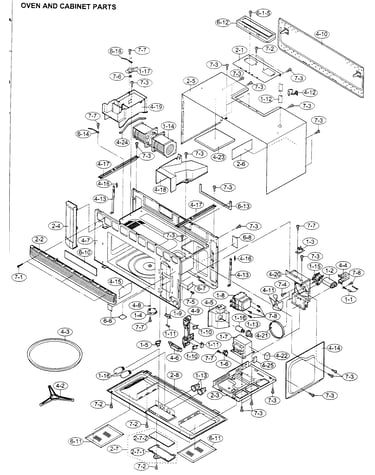

Cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Display Board Holder LHLD-B018MRF0
#3-3

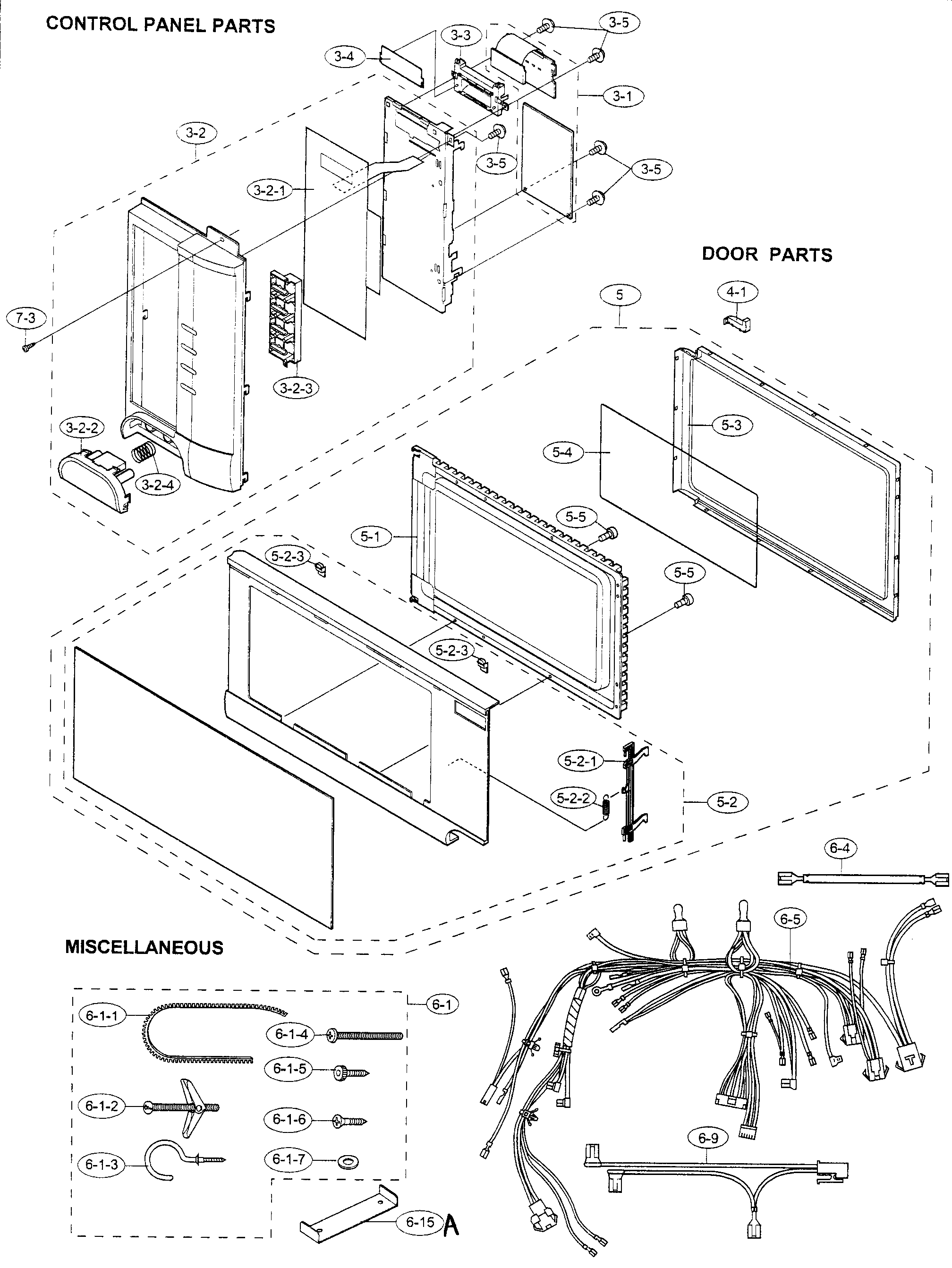

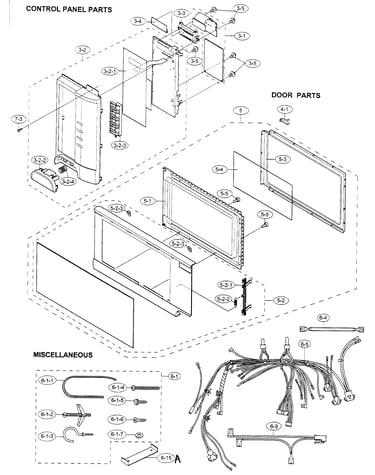

Control panel/door/miscellaneous diagram

Microwave display board holder

Part #LHLD-B018MRF0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Relay Control Board CPWBFB076MRU0
#3-1

Control panel/door/miscellaneous diagram

Microwave relay control board

Part #CPWBFB076MRU0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Choke Cover GCOVHB044MRF0
#5-3

Control panel/door/miscellaneous diagram

Microwave door choke cover

Part #GCOVHB044MRF0

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire QW-VZB011MRE0
#6-14

Cabinet parts diagram

Ground wire

Part #QW-VZB011MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Display Board PSHEPB023MRE0
#3-4

Control panel/door/miscellaneous diagram

Microwave display board

Part #PSHEPB023MRE0

The manufacturer no longer makes this part, and there's no substitute part

Label TCAUAB050MRR0
#6-07

Cabinet parts diagram

Label

Part #TCAUAB050MRR0

The manufacturer no longer makes this part, and there's no substitute part

Support LANGTB055MRP0
#4-17

Cabinet parts diagram

Support

Part #LANGTB055MRP0

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor RMOTEB031MRE0
#1-15

Cabinet parts diagram

Fan motor

Part #RMOTEB031MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb RLMPTA086WRZZ
#1-16

Cabinet parts diagram

Microwave light bulb

Part #RLMPTA086WRZZ

The manufacturer no longer makes this part, and there's no substitute part
