Model # T4H430GKB100 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP T4H430GKB100 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Capacitor 1172147
#5

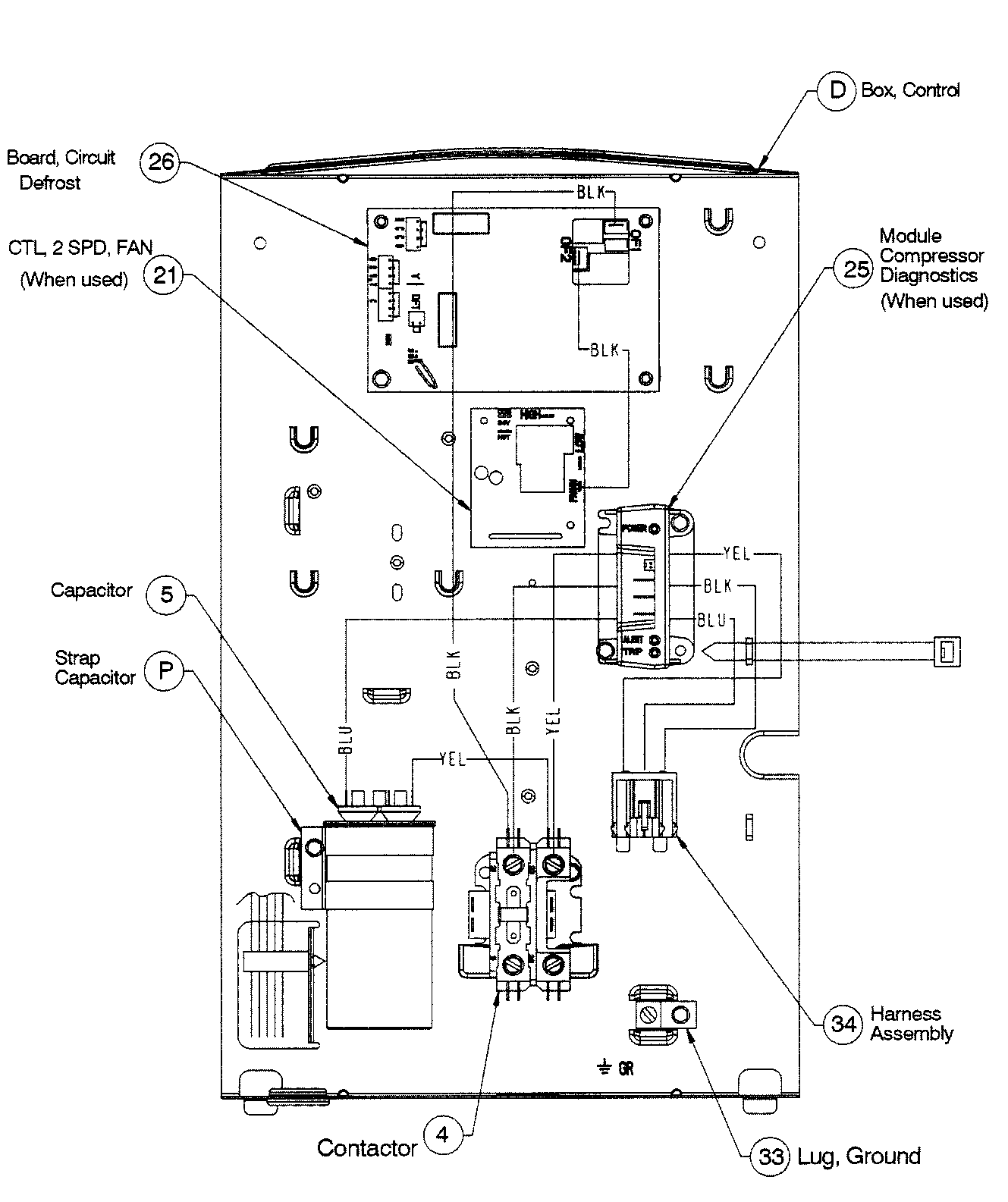

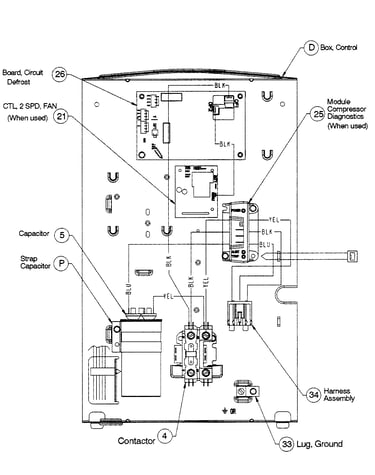

Control board diagram

Capacitor

Part #1172147

Replaced by #1172148

?
Manufacturer substitution
This part replaces 1172147. Substitute parts can look different from the original.
$24.69 |
17% OFF Phone Price : $29.69
In Stock
Central Air Conditioner Condenser Fan Motor 1173776
#2

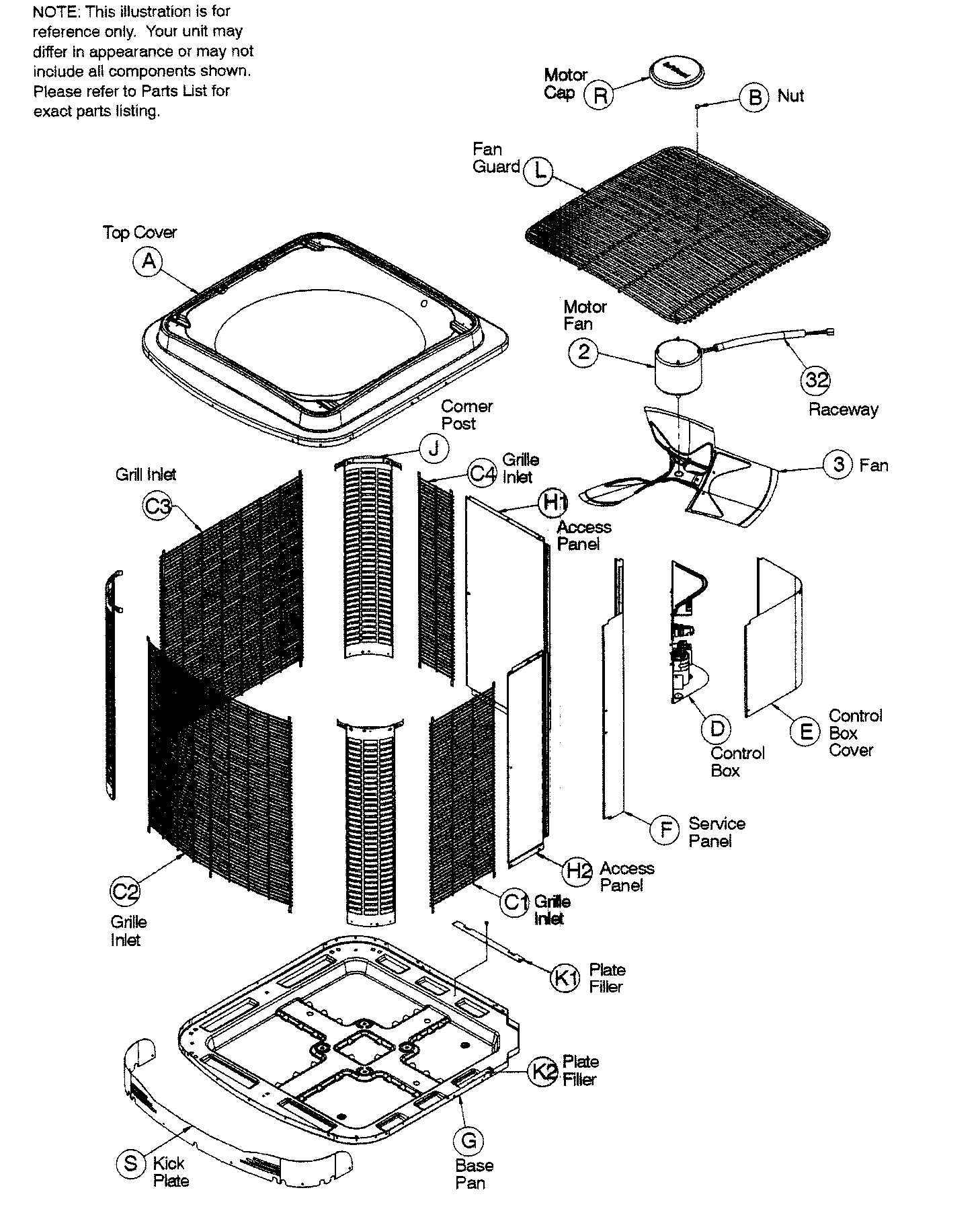

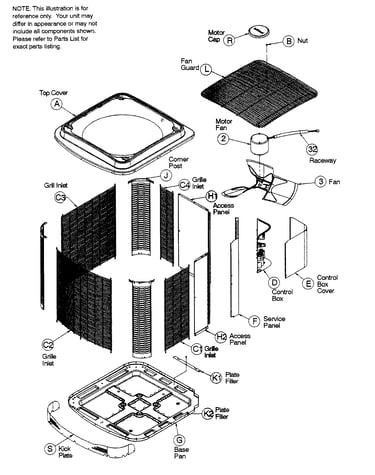

Outside cabinet parts diagram

Central air conditioner condenser fan motor

Part #1173776

$437.60
In Stock
Central Air Conditioner Contactor 1172472
#4

Control board diagram

Central air conditioner contactor

Part #1172472

$61.35 |
8% OFF Phone Price : $66.35
In Stock
Blanket 1172015
#27

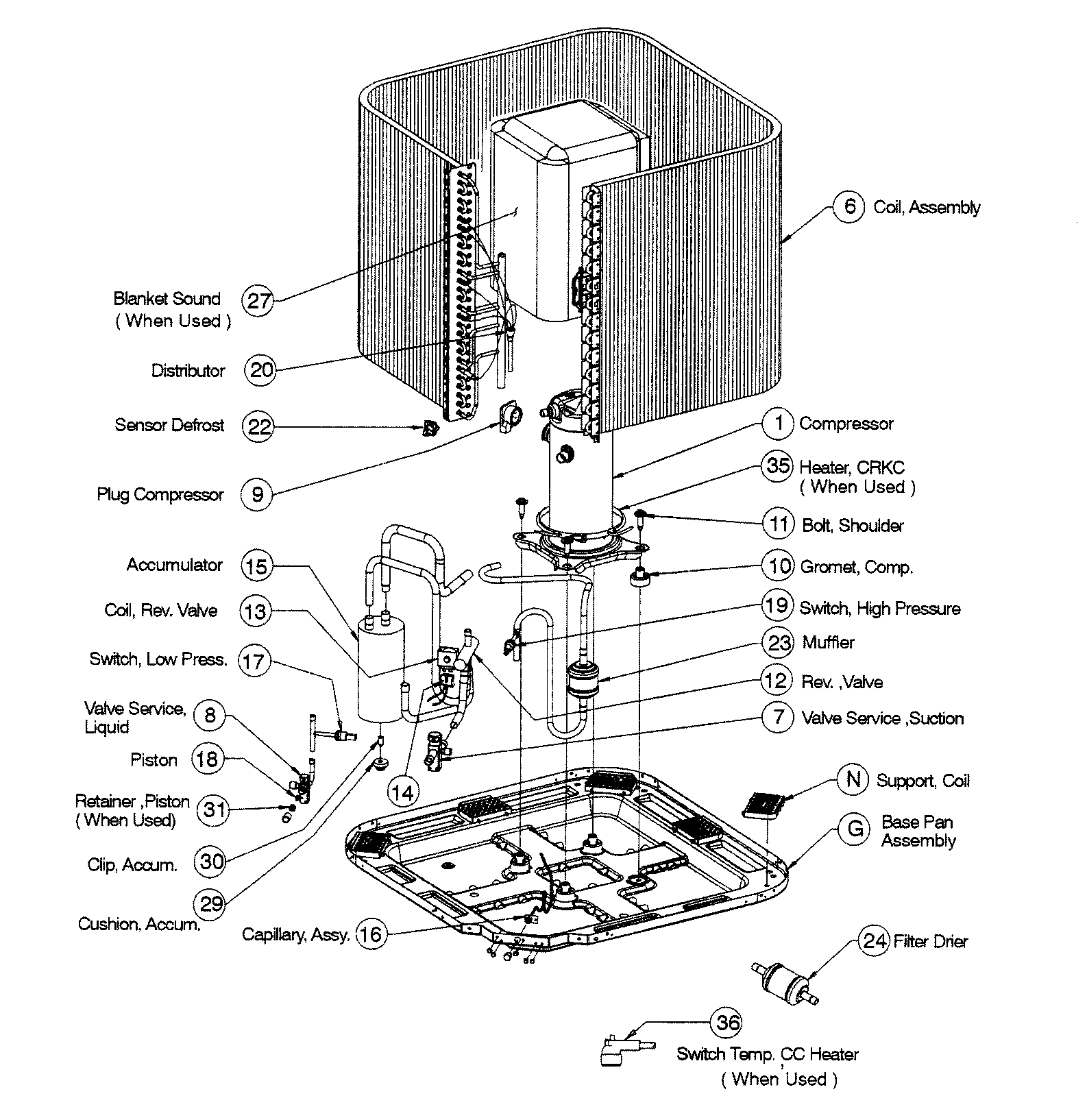

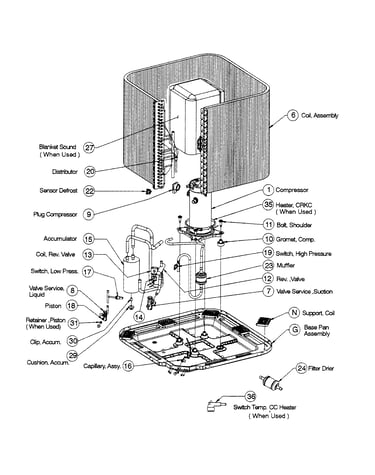

Inside cabinet parts diagram

Blanket

Part #1172015

$80.60
In Stock
Central Air Conditioner Heat Pump Defrost Control 1173637
#22

Inside cabinet parts diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73
In Stock
Condensing Unit Defrost Control Board 1173636
#26

Control board diagram

Condensing unit defrost control board

Part #1173636

$179.69 |
5% OFF Phone Price : $189.69
In Stock
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

Control board diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
6% OFF Phone Price : $90.61
In Stock
Heater 1174709
#35

Inside cabinet parts diagram

Heater

Part #1174709

$84.91
In Stock
Kit 1174192
#NI

Inside cabinet parts diagram

Kit

Part #1174192

The manufacturer no longer makes this part, and there's no substitute part

Switch 1174695
#19

Inside cabinet parts diagram

Switch

Part #1174695

$52.53 |
9% OFF Phone Price : $57.53
In Stock
