Model # EG5,12-3/P55199-48C Official Amana gas & electric package hvac unit

Here are the diagrams and repair parts for Official Amana EG512-3-P55199-48C gas & electric package hvac unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

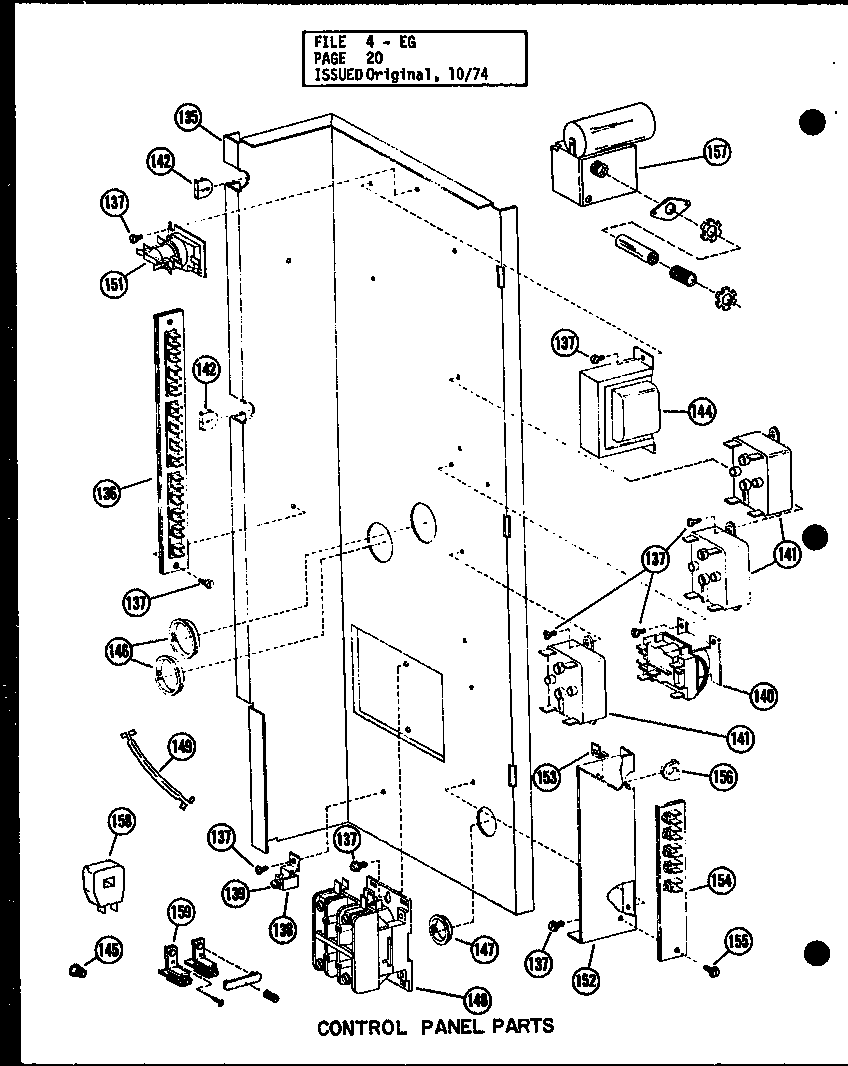

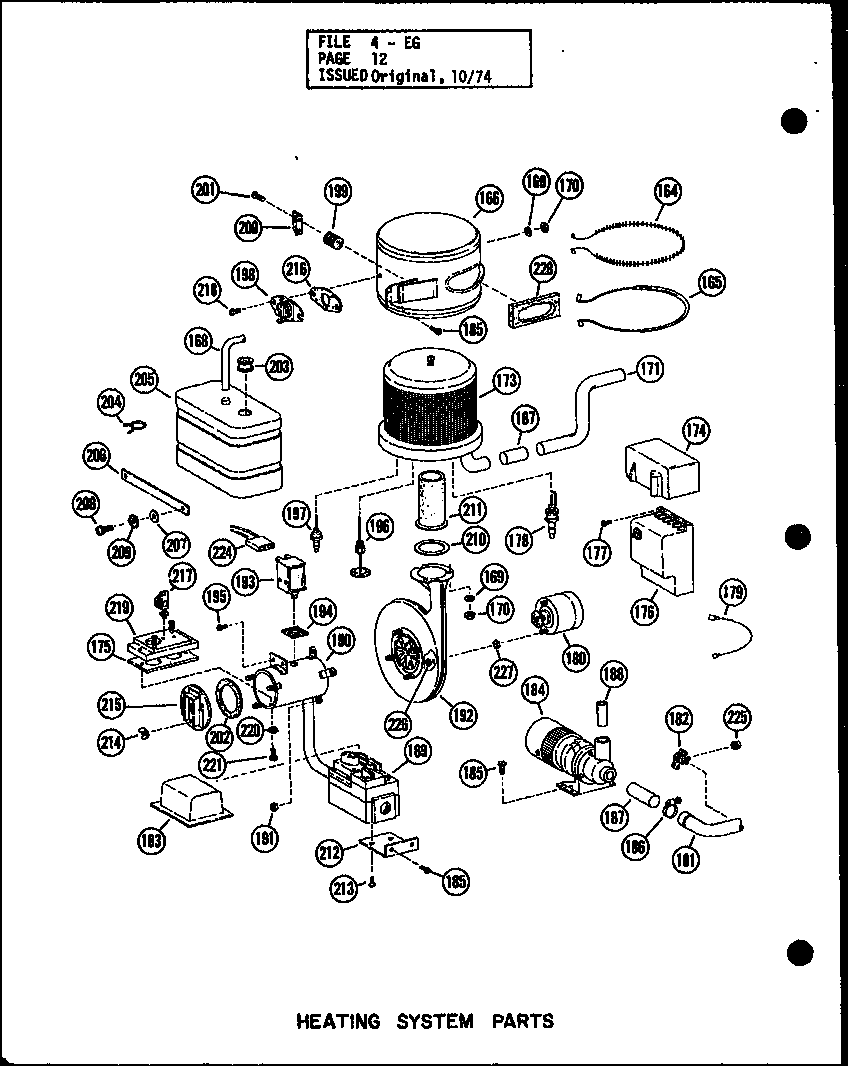

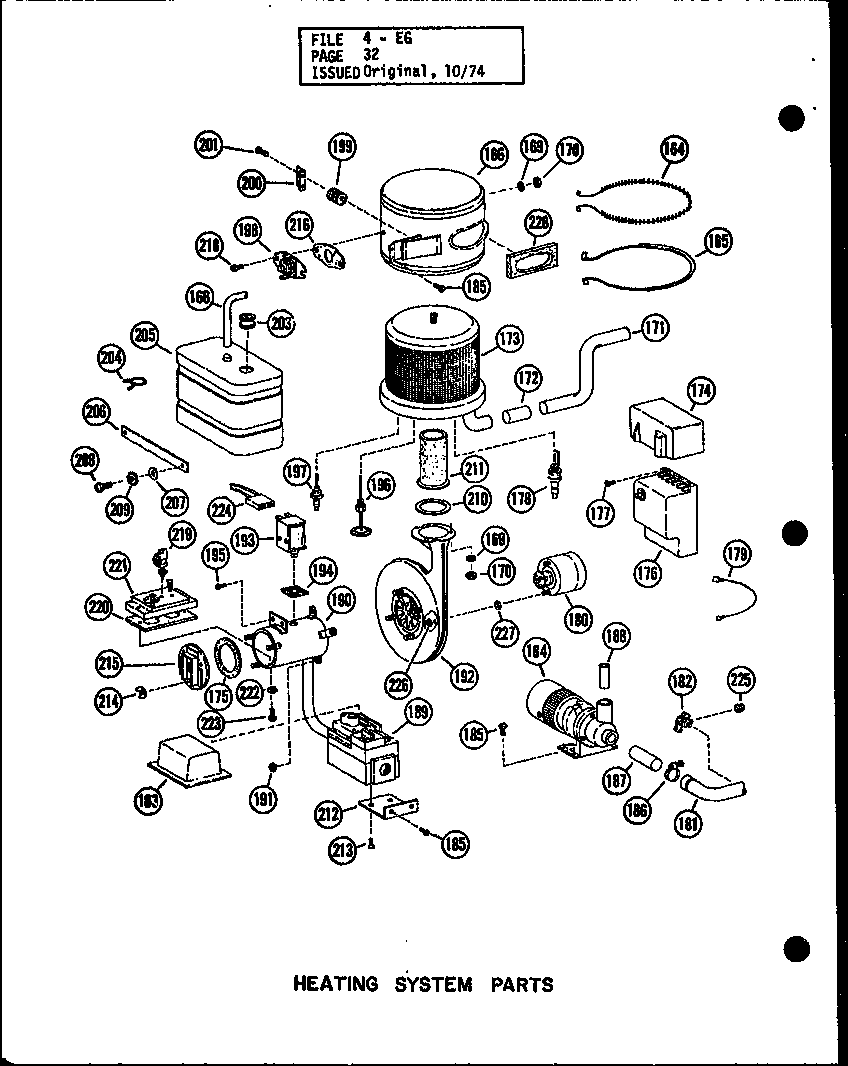

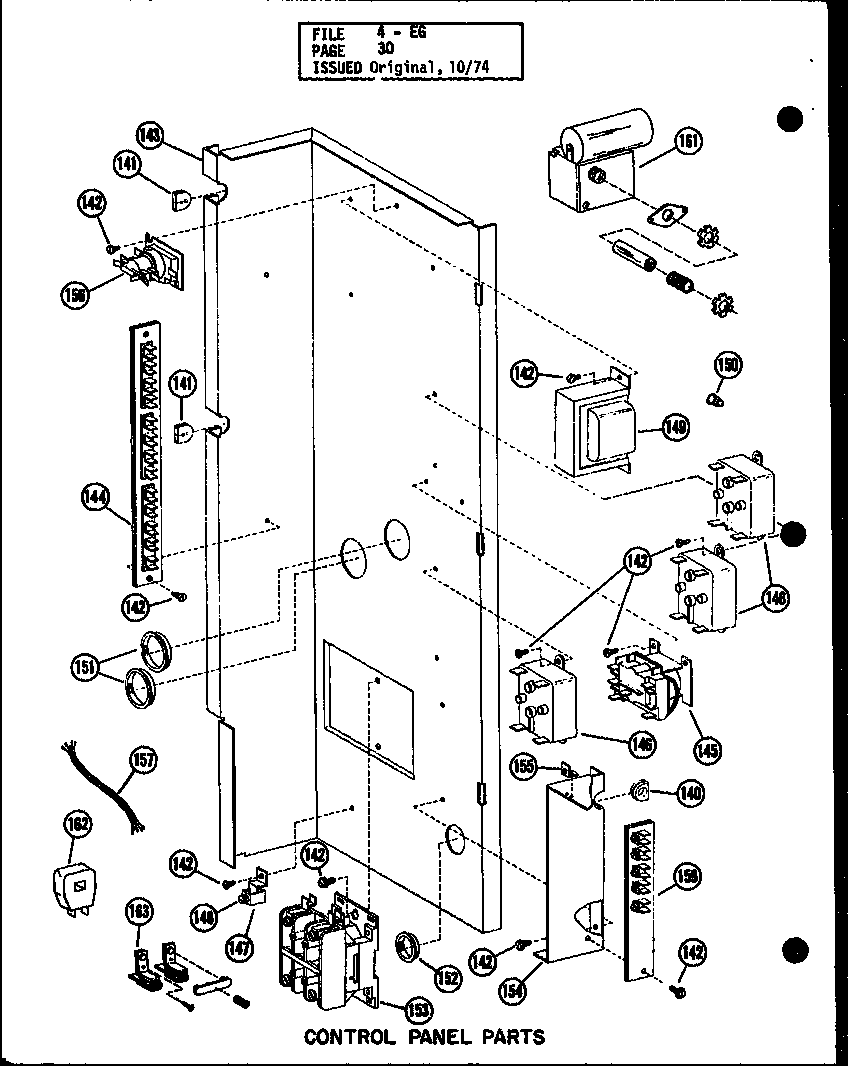

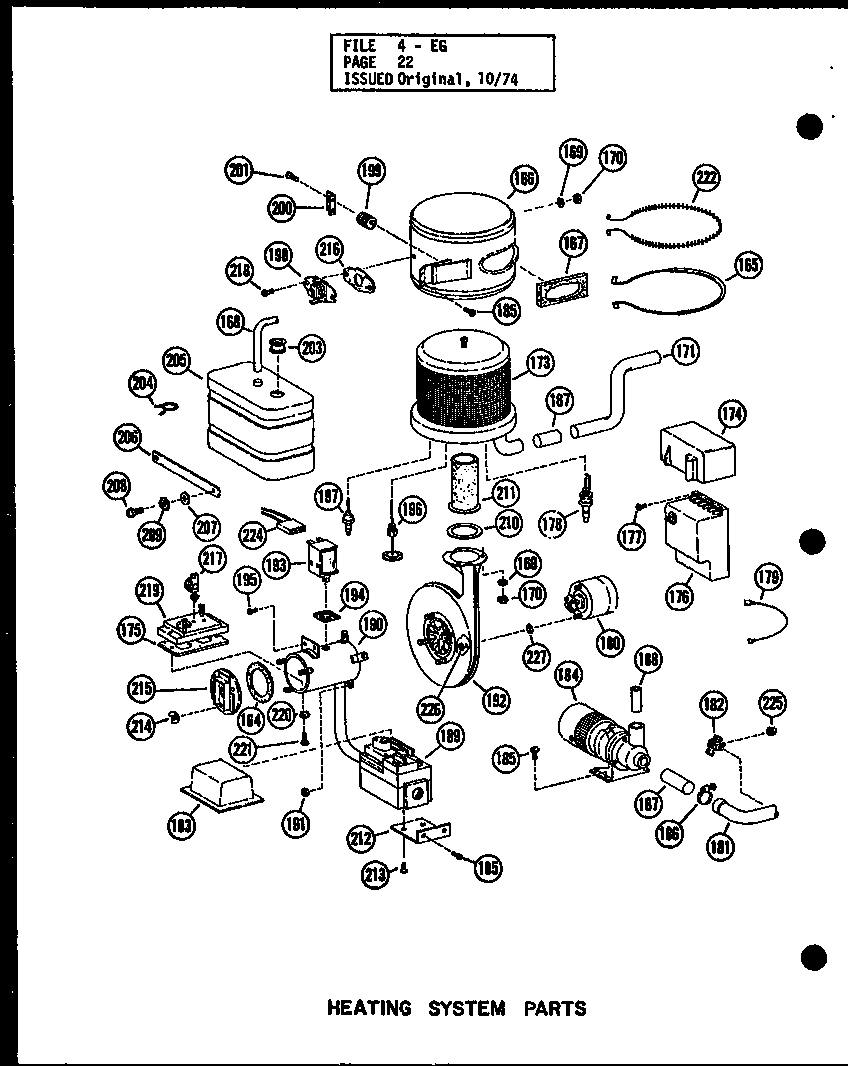

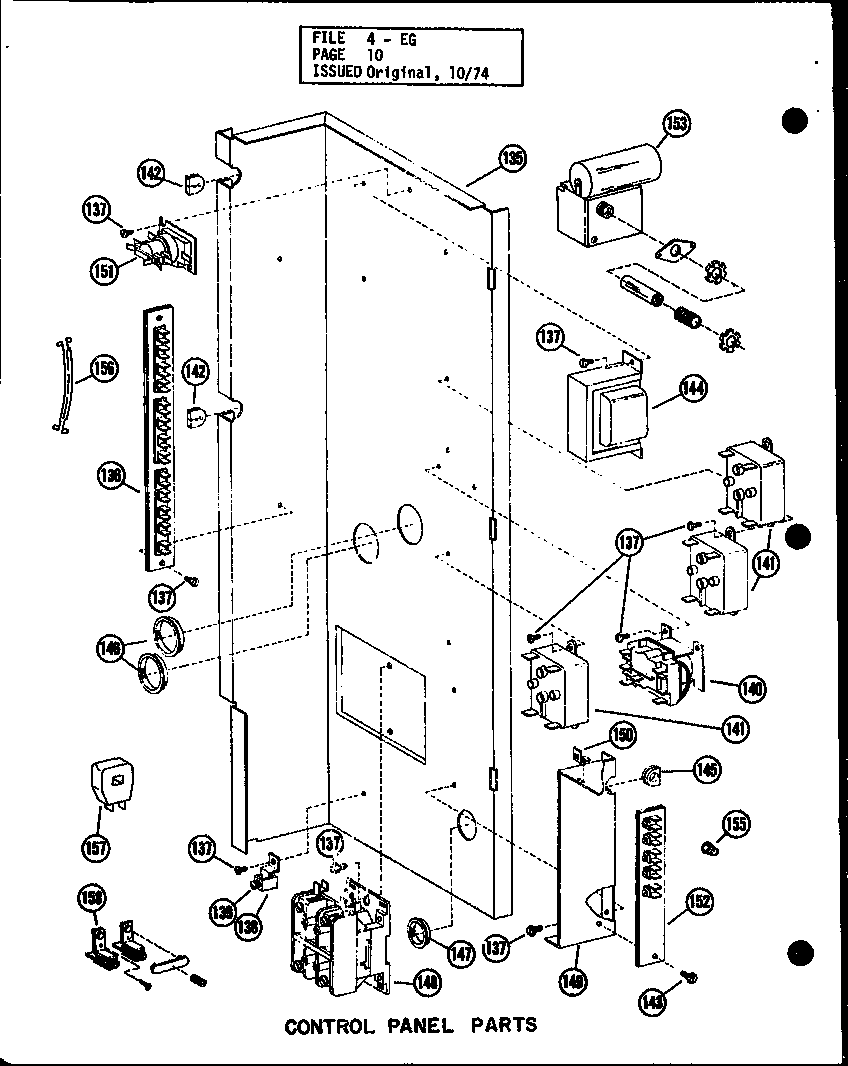

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 345 parts  |
Use A3326003 A3326001
Use a3326003

Part #A3326001

Replaced by #WP285655

?
Manufacturer substitution
This part replaces A3326001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Screw M0211030
Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Grommet M0282015
Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0211003
Screw

Part #M0211003

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0211003. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Wire Joint A0317601
Wire joint

Part #A0317601

Replaced by #WPA0317601

?
Manufacturer substitution
This part replaces A0317601. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Base Pan Assembly D5435113
#20A

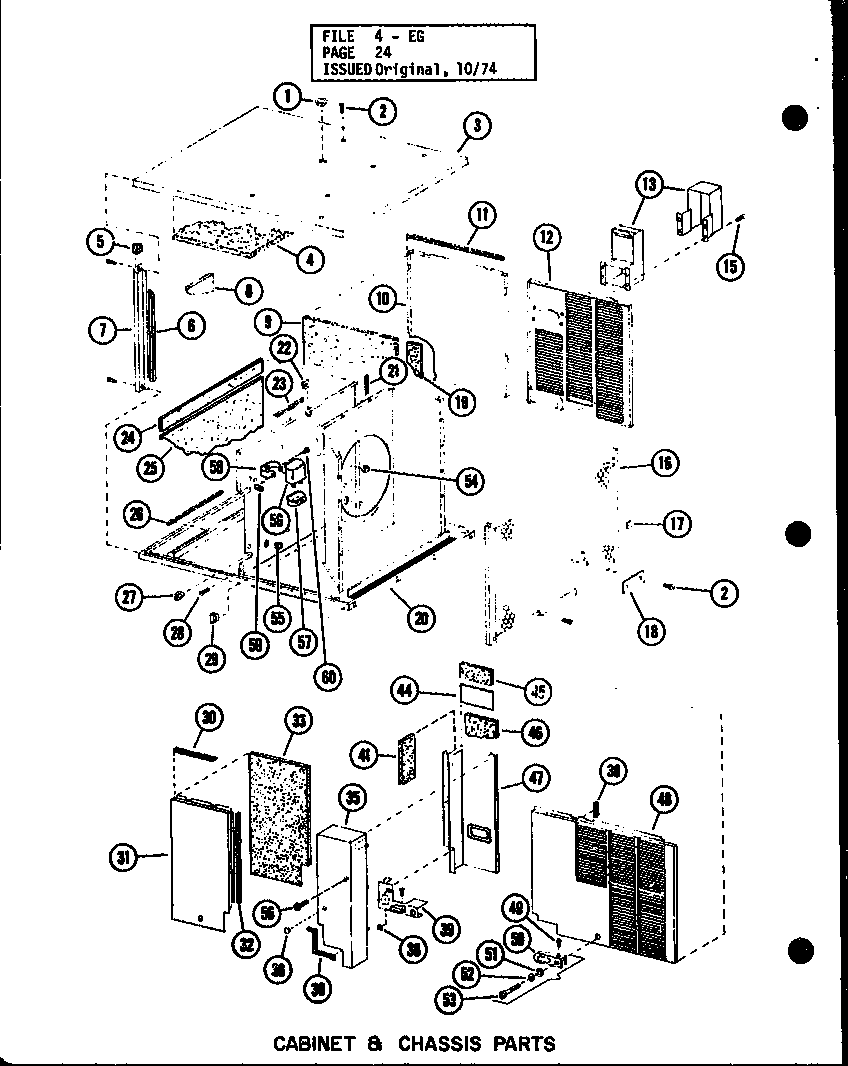

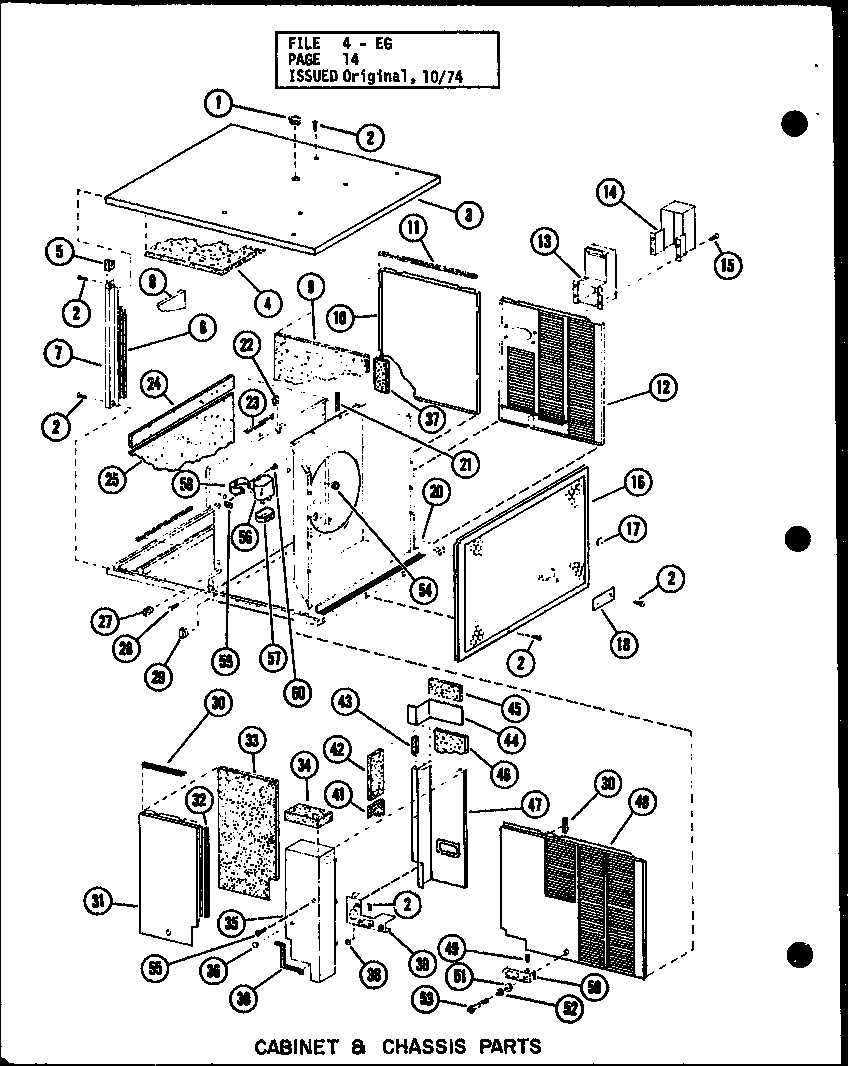

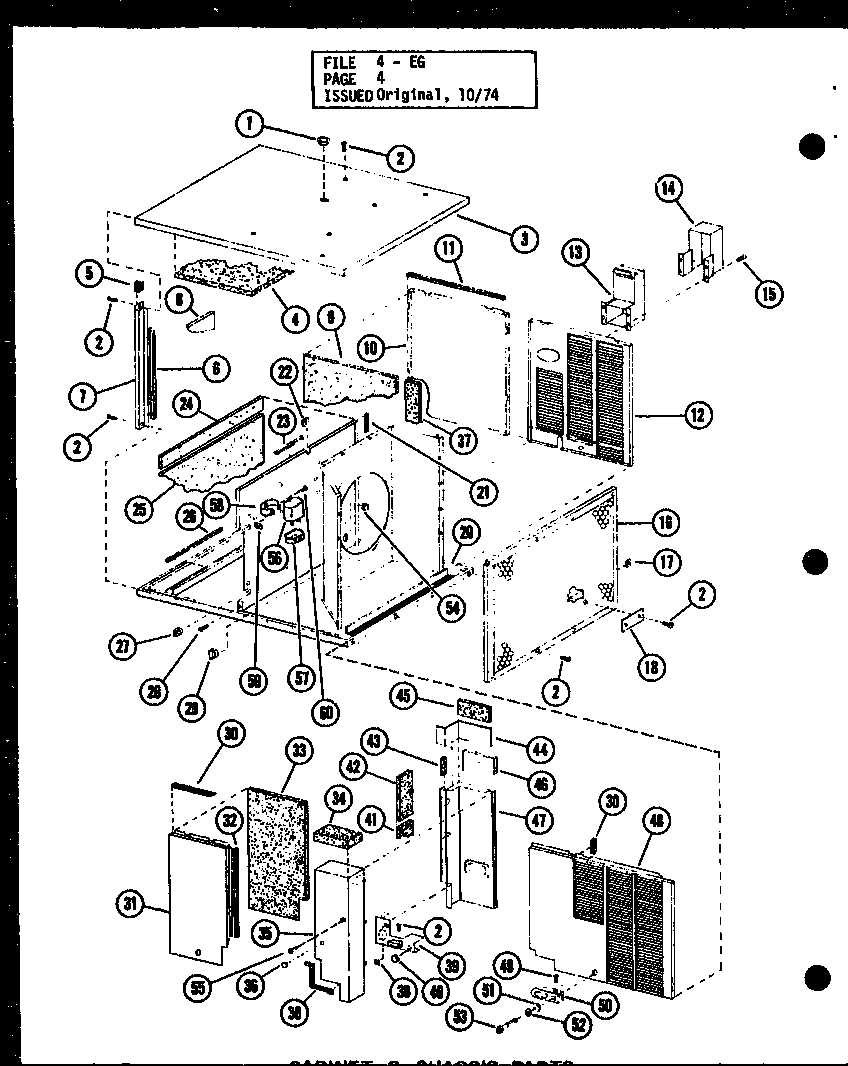

Cabinet & chassis parts (eg2,12-1/p55198-16c) (eg2.5,12-1/p55198-17c) (eg3,12-1/p55198-18c) diagram

Base pan assembly

Part #D5435113

The manufacturer no longer makes this part, and there's no substitute part

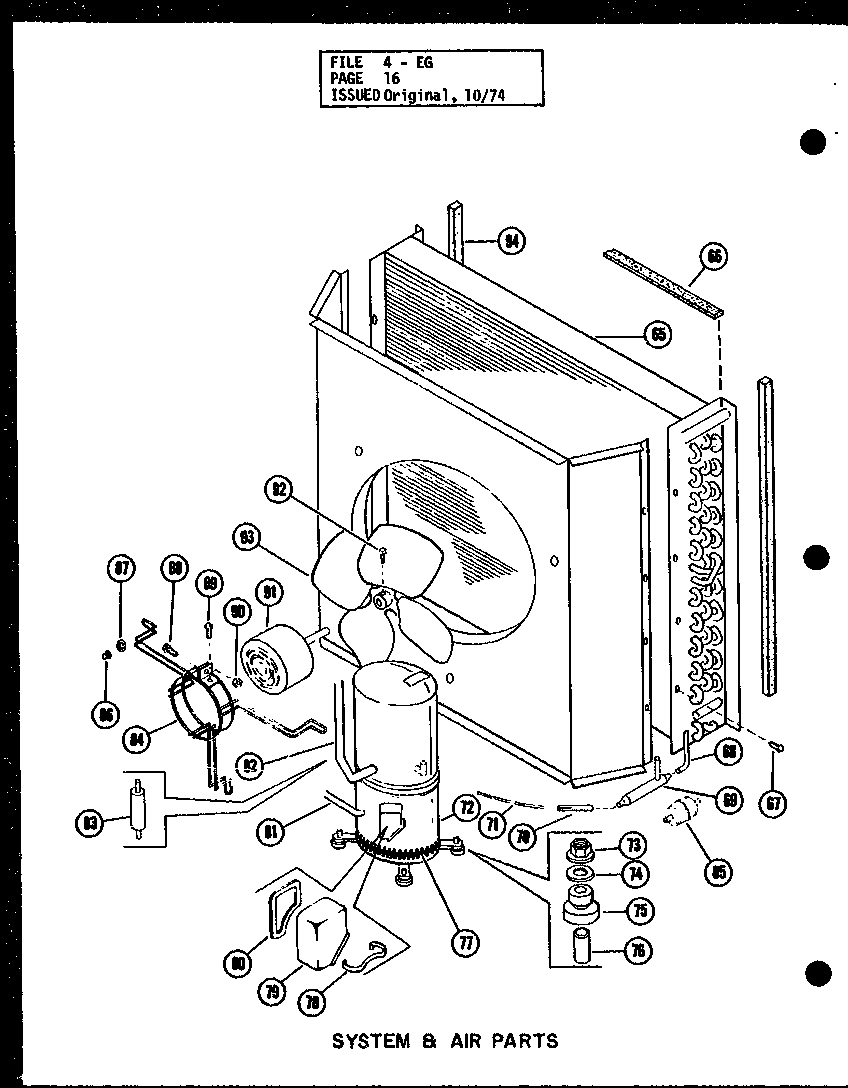

Condenser Coil Assembly D5453905
#65B

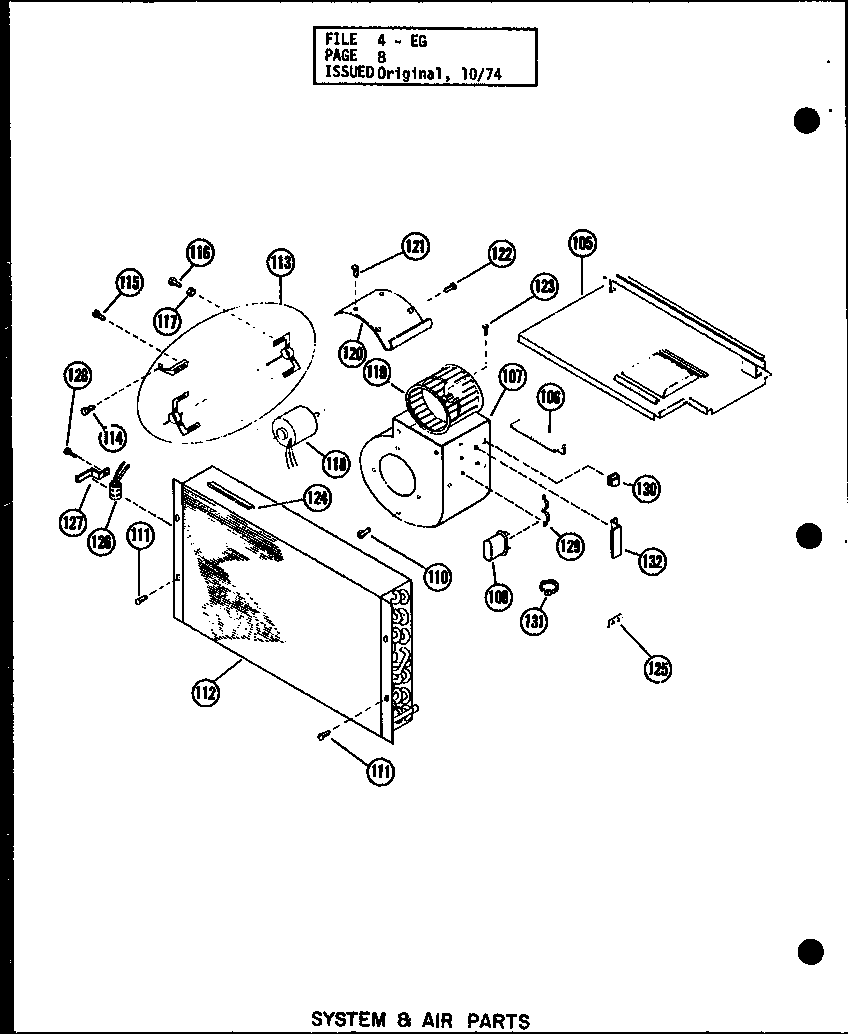

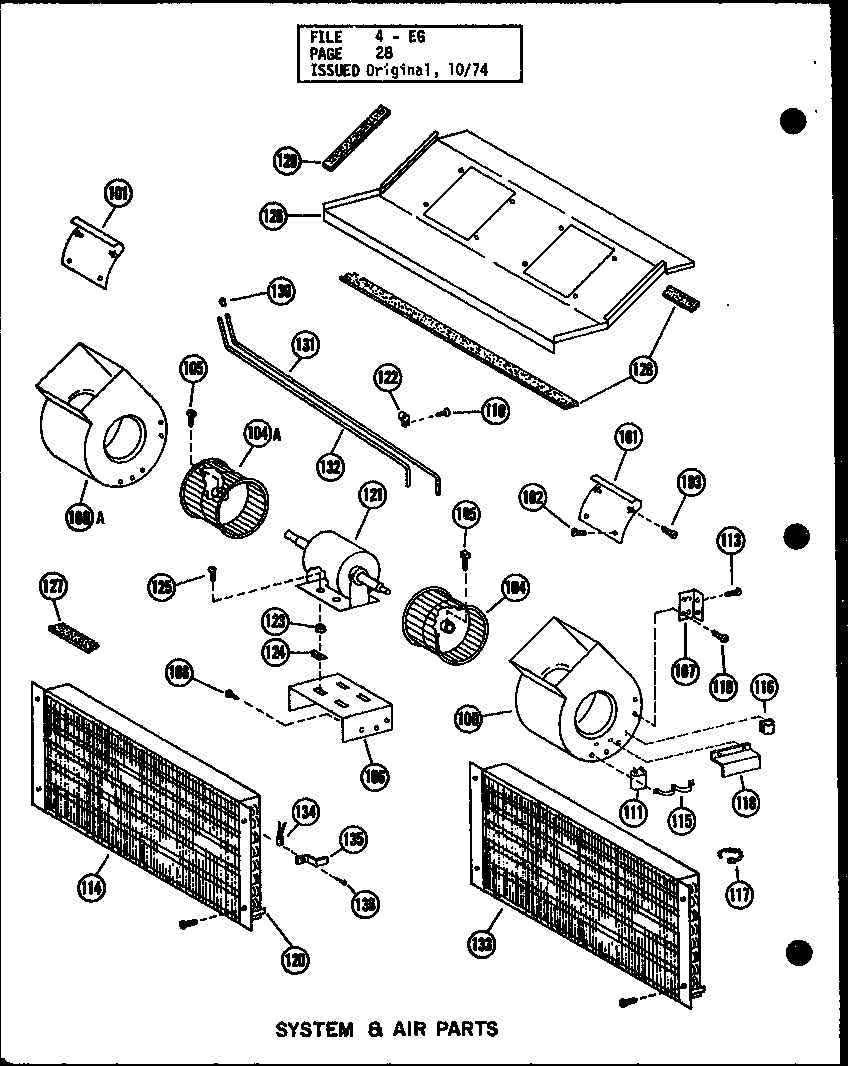

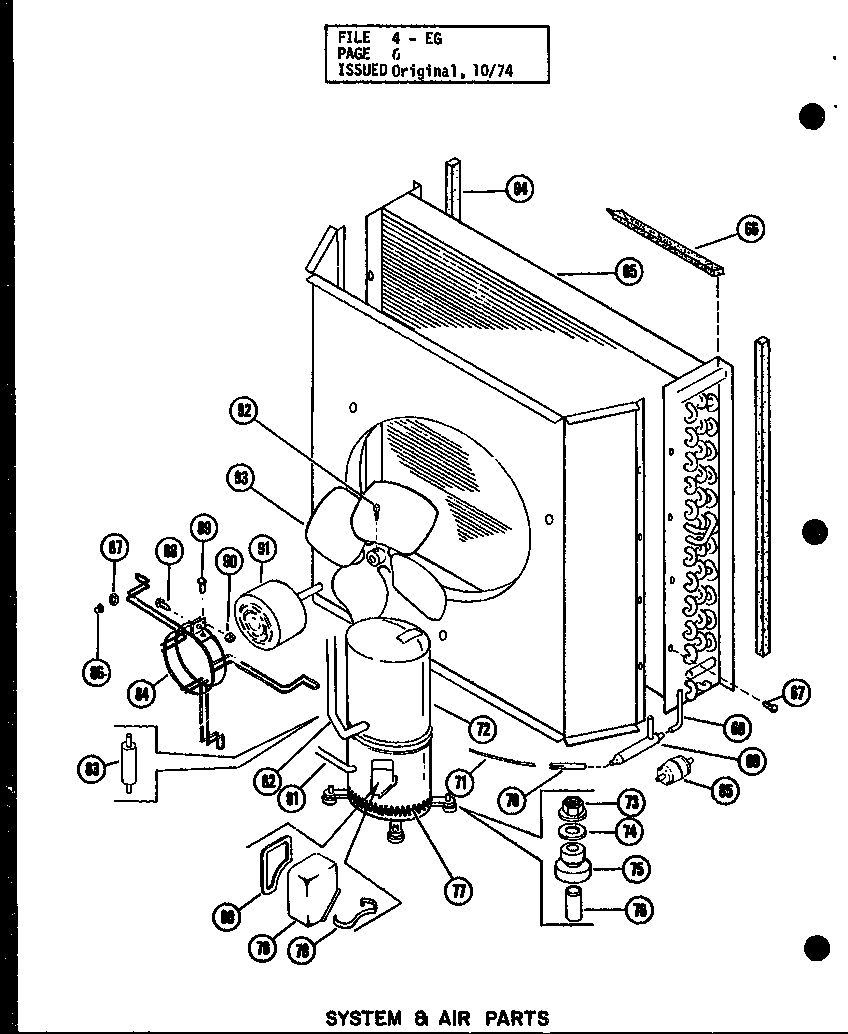

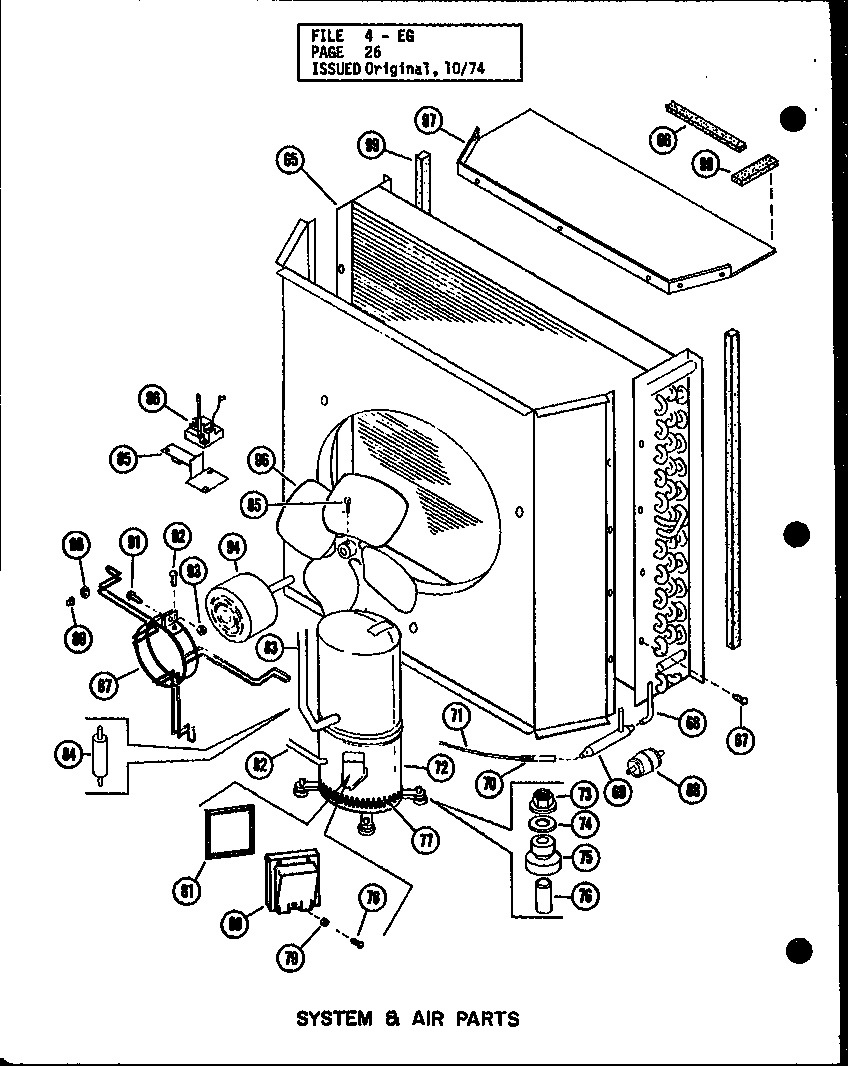

System & air parts (eg3.5,12-1k/p55199-44c) (eg4,12-1/p55199-45c) (eg5,12-1/p55199-47c) (eg5,12-3/p55199-48c) (eg4,12-3/p55199-46c) (eg3.5,12-1k/p55199-49c) (eg4,12-1/p55199-50c) (eg4,12-3/p55199-51c) (eg5,12-1/p55199-52c) (eg5,12-3/p55199-53c) diagram

Condenser coil assembly

Part #D5453905

The manufacturer no longer makes this part, and there's no substitute part
