Craftsman
Radial Arm Saw

Model # 11329320 Official Craftsman 9" radial saw

Here are the diagrams and repair parts for Official Craftsman 11329320 9" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

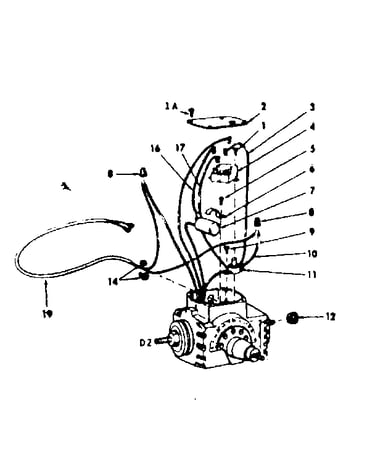

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Washer 131201
#11

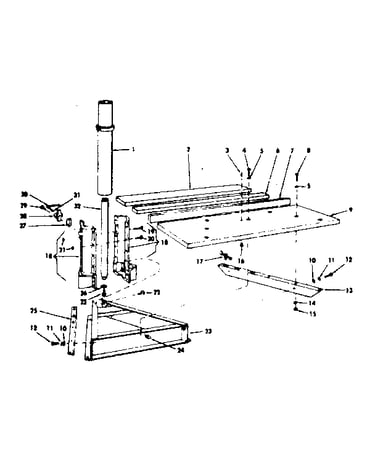

Rip fence and base assembly diagram

Washer

Part #131201

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 60033
#12

Rip fence and base assembly diagram

Machine screw

Part #60033

The manufacturer no longer makes this part, and there's no substitute part

Lockwashr 138540
#7

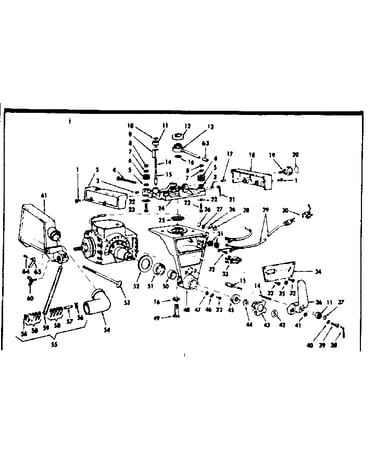

Yoke assembly diagram

Lockwashr

Part #138540

The manufacturer no longer makes this part, and there's no substitute part

Screw 9416187
#22

Rip fence and base assembly diagram

Screw

Part #9416187

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 116120
#11

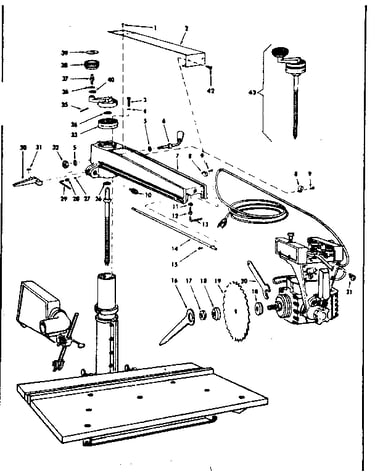

Unit diagram

Lock washer

Part #116120

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw T-nut 37384
#16

Rip fence and base assembly diagram

Radial arm saw t-nut

Part #37384

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Track 63034
#14

Unit diagram

Radial arm saw track

Part #63034

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Wing Screw, 1/4-in 30540
#60

Yoke assembly diagram

Power tool wing screw, 1/4-in

Part #30540

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#17

Unit diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Switch Key 37861
#21

Unit diagram

Radial arm saw switch key

Part #37861

The manufacturer no longer makes this part, and there's no substitute part
