Model #VL-AH130U Official Sharp 8mm camcorder

Here are the diagrams and repair parts for Sharp VL-AH130U 8mm camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 81 parts

    Lock Lever#6-10

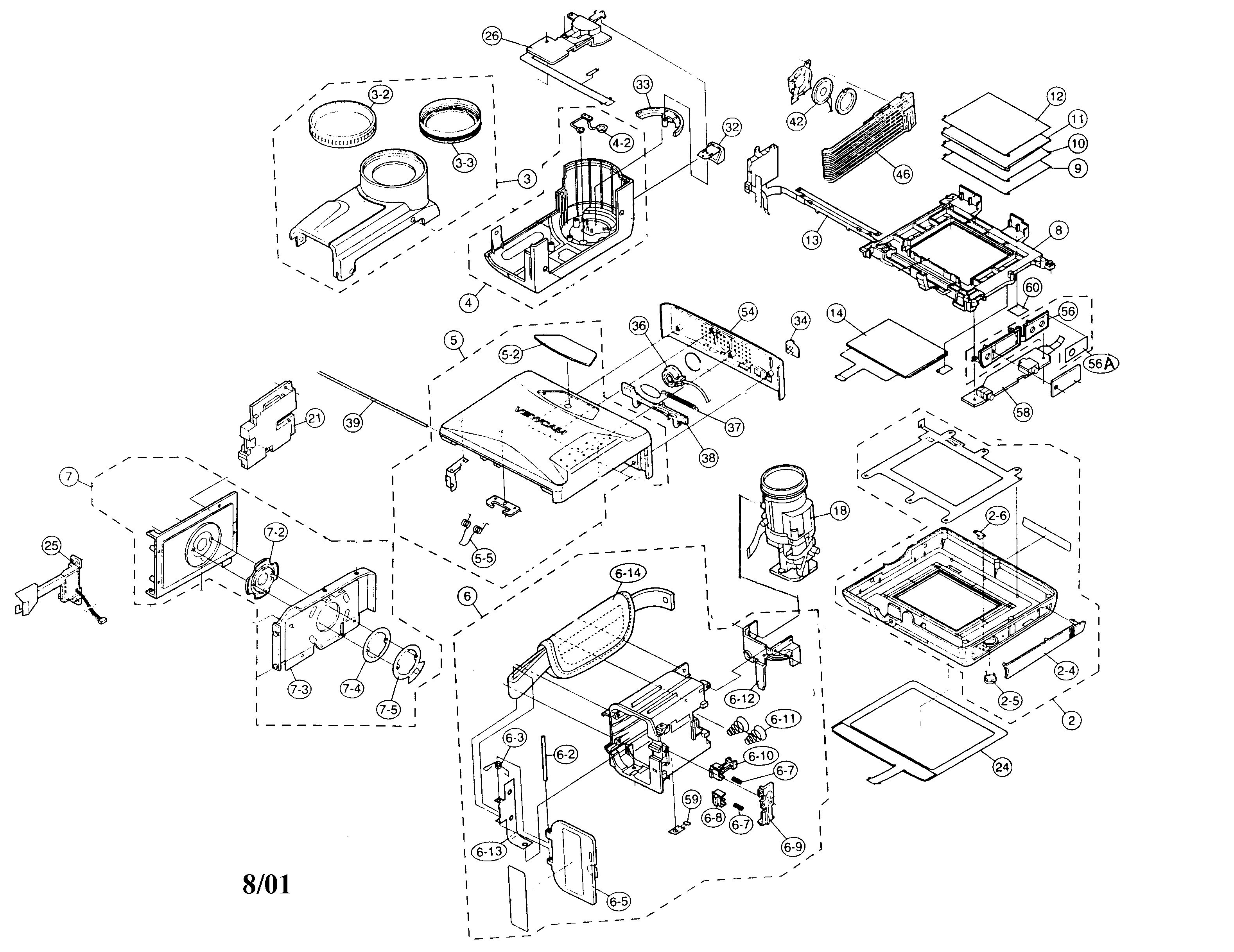

    Cabinet parts Diagram

    Lock lever

    Part #MLEVP0044TASA

    The manufacturer no longer makes this part, and there's no substitute part

    Holder#6-9

    Cabinet parts Diagram

    Holder

    Part #LHLDZ1532TAZZ

    The manufacturer no longer makes this part, and there's no substitute part

    Remote#NI

    Cabinet parts Diagram

    Remote

    Part #RRMCG0084TASA

    The manufacturer no longer makes this part, and there's no substitute part

    Battery#NI

    Cabinet parts Diagram

    Battery

    Part #UBATL0011TAZZ

    The manufacturer no longer makes this part, and there's no substitute part

    I.c.#NI

    Cabinet parts Diagram

    I.c.

    Part #VHILZ2413H5-1

    The manufacturer no longer makes this part, and there's no substitute part

    Microphone#36

    Cabinet parts Diagram

    Microphone

    Part #RMICC0090TAZZ

    The manufacturer no longer makes this part, and there's no substitute part

    PCB#58

    Cabinet parts Diagram

    Pcb

    Part #RUNTK0352TAZZ

    The manufacturer no longer makes this part, and there's no substitute part

    Holder#NI

    Cabinet parts Diagram

    Holder

    Part #CHLDX3077GE01

    The manufacturer no longer makes this part, and there's no substitute part

    Cover#NI

    Cabinet parts Diagram

    Cover

    Part #GCOVH1225TASA

    The manufacturer no longer makes this part, and there's no substitute part

    PCB Assembly#21

    Cabinet parts Diagram

    Pcb assembly

    Part #DUNTK2934QA00

    The manufacturer no longer makes this part, and there's no substitute part
