Kenmore
Central Air Conditioner

Model # 2538740654 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538740654 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Spacer 520763
#20

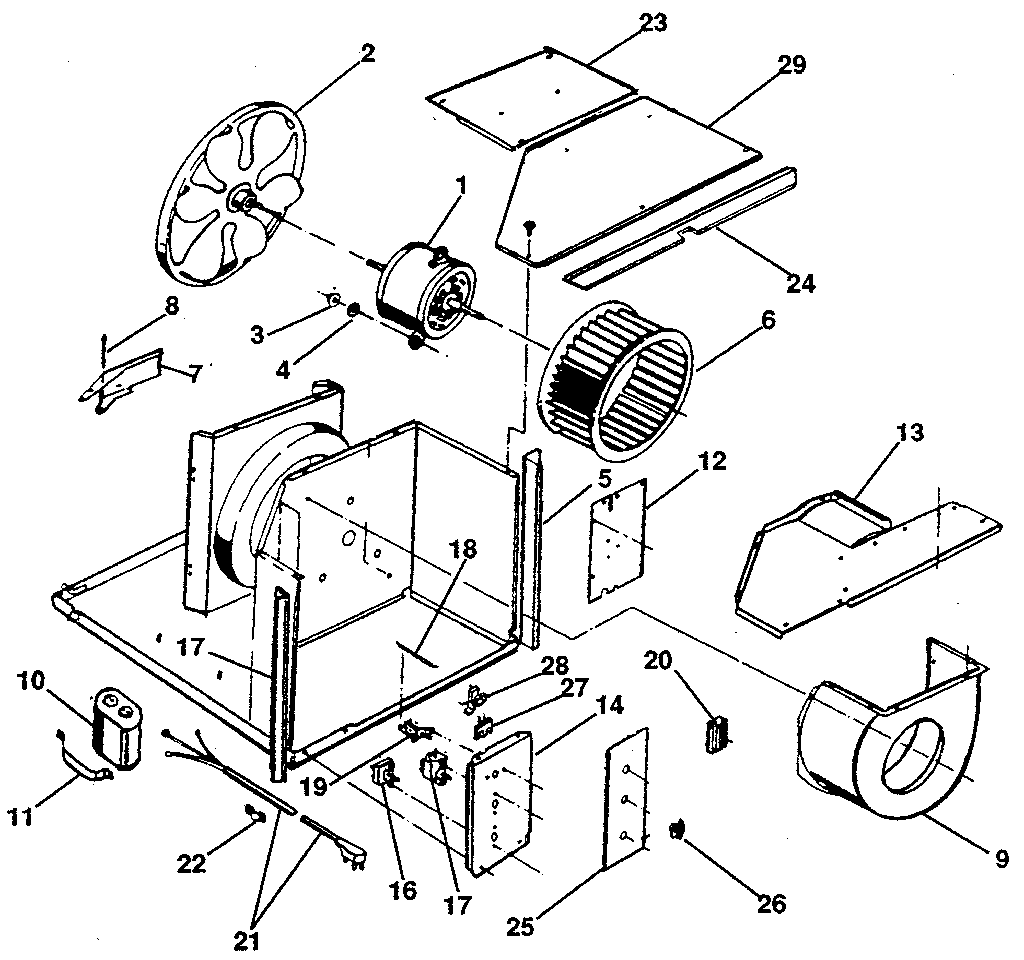

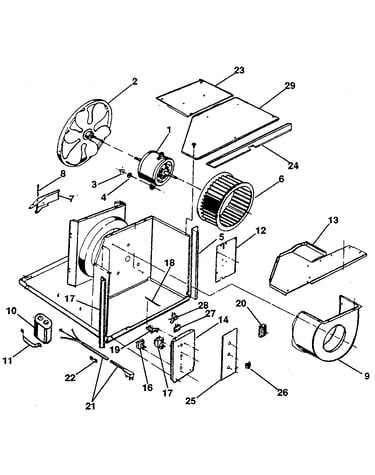

Electrical system and air handling diagram

Spacer

Part #520763

Replaced by #5303211009

?
Manufacturer substitution
This part replaces 520763. Substitute parts can look different from the original.
This item is not returnable
$3.24
In Stock
Control Cover 157001
#12

Electrical system and air handling diagram

Control cover

Part #157001

Replaced by #5303209553

?
Manufacturer substitution
This part replaces 157001. Substitute parts can look different from the original.
$16.49
In Stock
Strainer 479607
#1

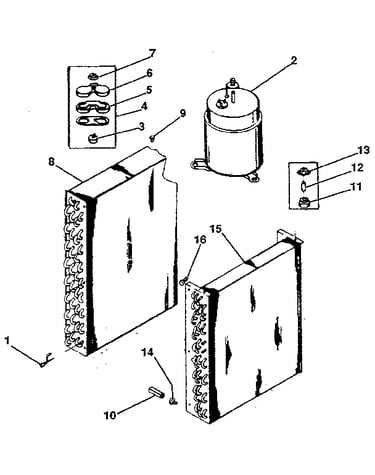

Unit diagram

Strainer

Part #479607

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 479607. Substitute parts can look different from the original.
$110.08
In Stock
Nut 3211017
#7

Unit diagram

Nut

Part #3211017

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 517950
#14

Electrical system and air handling diagram

Control panel

Part #517950

The manufacturer no longer makes this part, and there's no substitute part

Filter 510431
#8

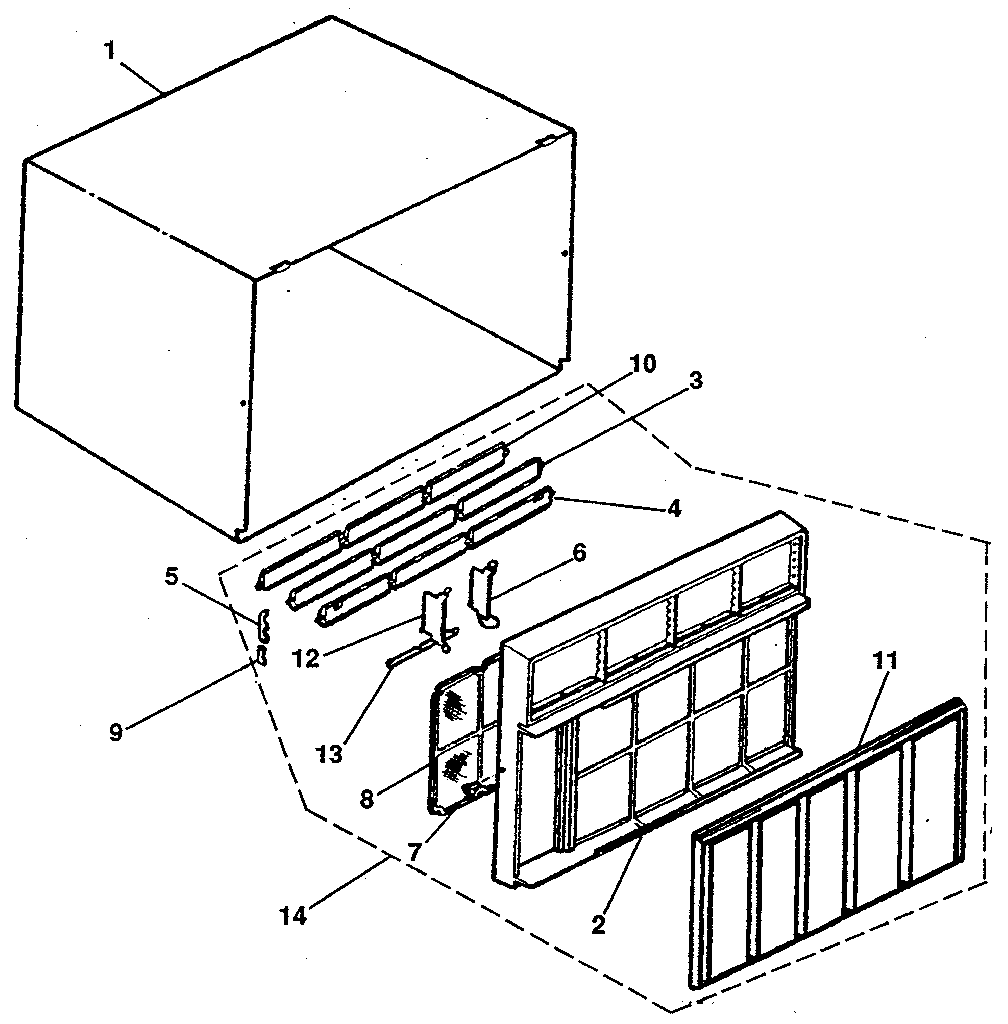

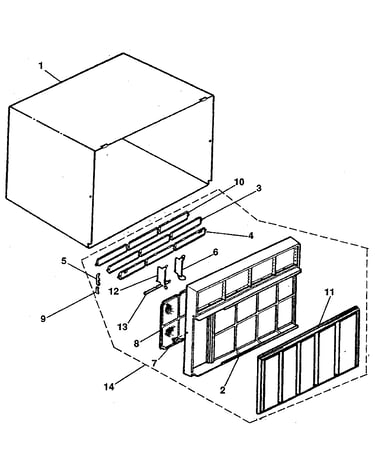

Cabinet and front panel diagram

Filter

Part #510431

The manufacturer no longer makes this part, and there's no substitute part

Condenser 472501
#8

Unit diagram

Condenser

Part #472501

The manufacturer no longer makes this part, and there's no substitute part

Knob 519126-01
#26

Electrical system and air handling diagram

Knob

Part #519126-01

The manufacturer no longer makes this part, and there's no substitute part

Louver 506000-05
#4

Cabinet and front panel diagram

Louver

Part #506000-05

The manufacturer no longer makes this part, and there's no substitute part

Link 119621
#13

Cabinet and front panel diagram

Link

Part #119621

The manufacturer no longer makes this part, and there's no substitute part
