Model # NAC042GKA1 Official ICP condensing unit

Here are the diagrams and repair parts for Official ICP NAC042GKA1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Central Air Conditioner Condenser Fan Blade (replaces 1080796, 1085685, 1085686) 1085958
#3

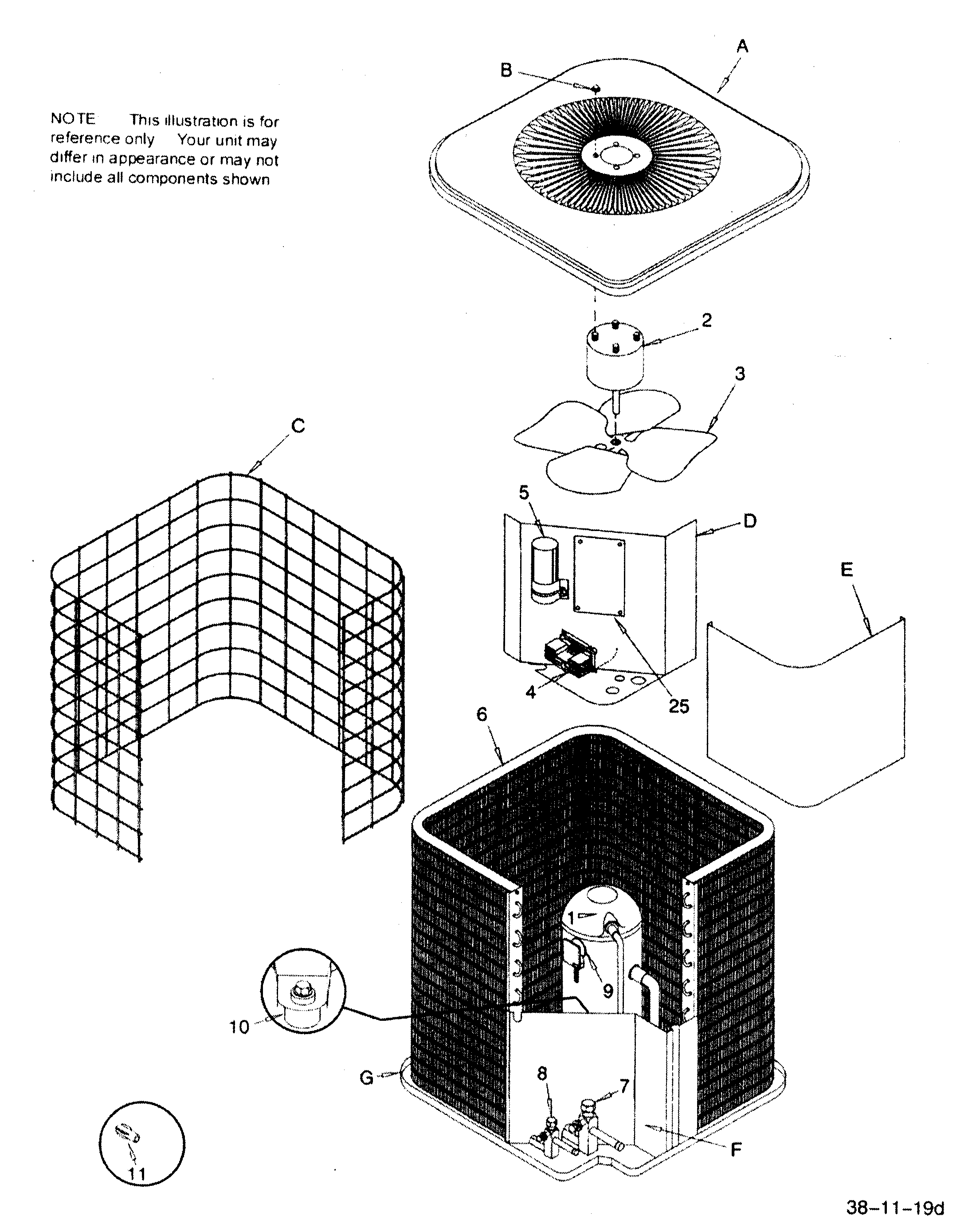

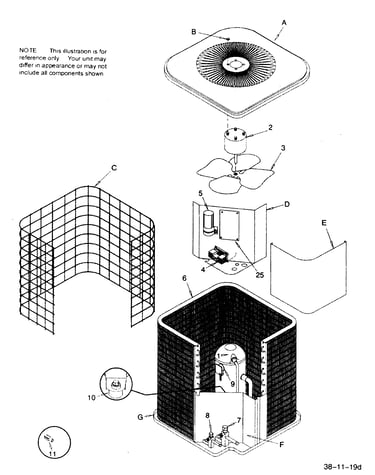

Condensing unit diagram

Central air conditioner condenser fan blade (replaces 1080796, 1085685, 1085686)

Part #1085958

$127.74 |
7% OFF Phone Price : $137.74
In Stock
Contactor 1050839
#4

Condensing unit diagram

Contactor

Part #1050839

Replaced by #94-394

?
Manufacturer substitution
This part replaces 1050839. Substitute parts can look different from the original.
$29.95 |
14% OFF Phone Price : $34.95
In Stock
Valve 1085989
#8

Condensing unit diagram

Valve

Part #1085989

$73.29
In Stock
Cap Rn Rp 1086680
#5

Condensing unit diagram

Cap rn rp

Part #1086680

Replaced by #1172095

?
Manufacturer substitution
This part replaces 1086680. Substitute parts can look different from the original.
$41.09
In Stock
Condenser 1086136
#6

Condensing unit diagram

Condenser

Part #1086136

Replaced by #1088111

?
Manufacturer substitution
This part replaces 1086136. Substitute parts can look different from the original.
$1569.42
In Stock
Plug Wire 1081939
#9

Condensing unit diagram

Plug wire

Part #1081939

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081939. Substitute parts can look different from the original.
$54.17 |
8% OFF Phone Price : $59.17
In Stock
Compressor 1082719
#1

Condensing unit diagram

Compressor

Part #1082719

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 1086004
#E

Condensing unit diagram

Box cover

Part #1086004

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Compressor Grommet 1053188
#10

Condensing unit diagram

Central air conditioner compressor grommet

Part #1053188

The manufacturer no longer makes this part, and there's no substitute part

Grille 1086305
#C

Condensing unit diagram

Grille

Part #1086305

The manufacturer no longer makes this part, and there's no substitute part
