Kenmore 2539103310 chest freezer Parts
Here are the diagrams and repair parts for Kenmore 2539103310 chest freezer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM

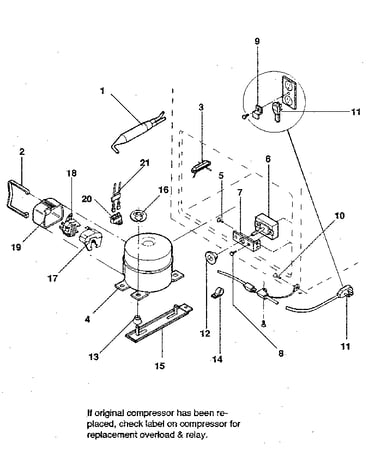

Browse Parts for 2539103310 Freestanding Freezers

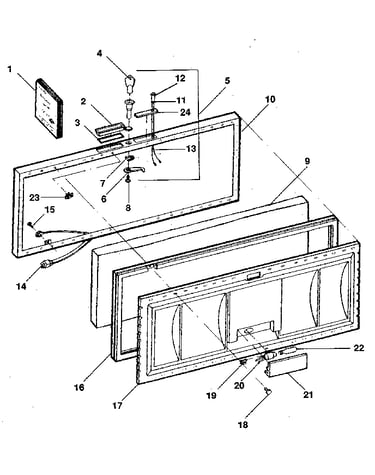

Lid diagram
Key
Part #08037402Replaced by #297147700
Manufacturer substitutionThis part replaces 08037402. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31
Qty
Bulb
Part #3091423Replaced by #5304517886
Manufacturer substitutionThis part replaces 3091423. Substitute parts can look different from the original.In Stock$56.3510% OFF Phone Price : $62.35Qty#NI
All parts diagram
Paint
Part #094566-64Replaced by #350930
Manufacturer substitutionThis part replaces 094566-64. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyUnit diagram
Grommet
Part #08008778Replaced by #218513300
Manufacturer substitutionThis part replaces 08008778. Substitute parts can look different from the original.In Stock$41.8913% OFF Phone Price : $47.89Qty#NI
All parts diagram
Al Enamel
Part #094566-50Replaced by #350956

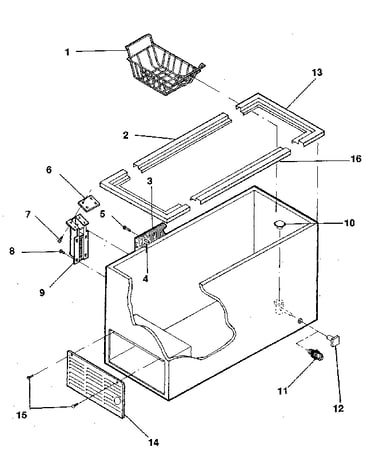

Manufacturer substitutionThis part replaces 094566-50. Substitute parts can look different from the original.This item is not returnableIn Stock$31.0216% OFF Phone Price : $37.02QtyCabinet diagram
Hinge (almond)
Part #3925007Replaced by #297321900
Manufacturer substitutionThis part replaces 3925007. Substitute parts can look different from the original.In Stock$52.3132% OFF Was : $77.21QtyCabinet diagram
Hinge (white)
Part #3925006Replaced by #297321900
Manufacturer substitutionThis part replaces 3925006. Substitute parts can look different from the original.In Stock$52.3132% OFF Was : $77.21QtyUnit diagram
Retainer
In Stock$28.11QtyLid diagram
Signal Light
In Stock$52.97QtyLid diagram
Label
In Stock$25.84Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for chest freezers
How to replace a freezer temperature control thermostat
The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…
Repair time and Difficulty
15 minutes or less
How to replace a freezer compressor start relay
The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…
Repair time and Difficulty
15 minutes or less
How to replace a freezer lid gasket
The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…
Repair time and Difficulty
30 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
