Amana R-1J/P71520-1M countertop microwave Parts

Here are the diagrams and repair parts for Amana R-1J/P71520-1M countertop microwave, as well as links to manuals and error code tables, if available.

Amana R-1J/P71520-1M countertop microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-1J/P71520-1M Microwaves

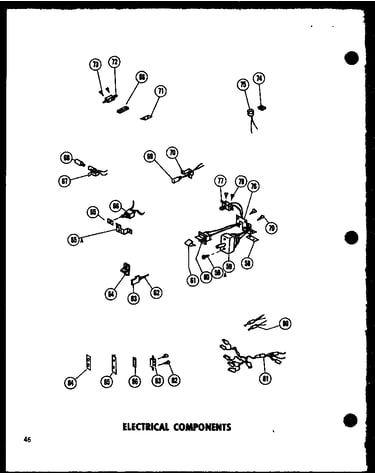

  • Capacitor, 80 M. F. D., 450 D. C. Volts for Amana R-1J/P71520-1M - Part M0300201

    Capacitor, 80 M. F. D., 450 D. C. Volts

    Part #M0300201

    The manufacturer no longer makes this part, and there's no substitute part

  • Bezel, Outer Case for Amana R-1J/P71520-1M - Part D7108603

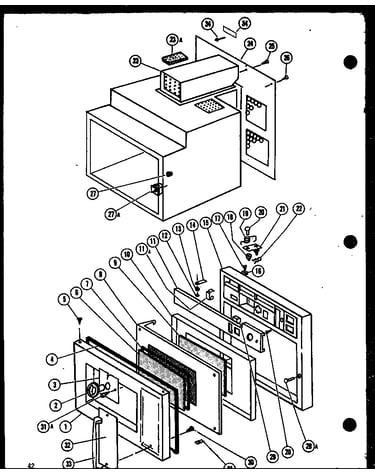

    Exterior parts (r-1j/p71520-1m) diagram

    Bezel, Outer Case

    Part #D7108603

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate, Air Baffle for Amana R-1J/P71520-1M - Part B5668301

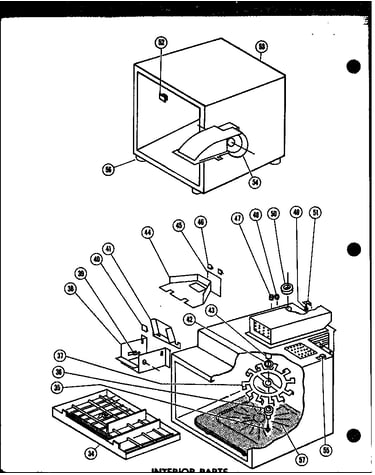

    Interior parts (r-1j/p71520-1m) diagram

    Plate, Air Baffle

    Part #B5668301

    The manufacturer no longer makes this part, and there's no substitute part

  • Grease Shield for Amana R-1J/P71520-1M - Part D7104601

    Grease Shield

    Part #D7104601

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket, Paddle Switch for Amana R-1J/P71520-1M - Part B5658301

    Bracket, Paddle Switch

    Part #B5658301

    The manufacturer no longer makes this part, and there's no substitute part

  • Insert, Transparent Inner Door for Amana R-1J/P71520-1M - Part A3166301

    Insert, Transparent Inner Door

    Part #A3166301

    The manufacturer no longer makes this part, and there's no substitute part

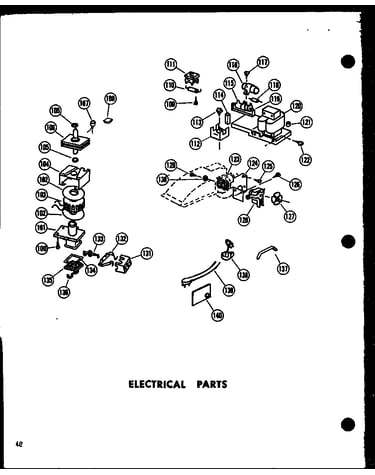

  • Coil Housing & Tube Support for Amana R-1J/P71520-1M - Part C3596101

    Coil Housing & Tube Support

    Part #C3596101

    The manufacturer no longer makes this part, and there's no substitute part

  • Weldment, Oven Cavity for Amana R-1J/P71520-1M - Part D7109402

    Exterior parts (r-1j/p71520-1m) diagram

    Weldment, Oven Cavity

    Part #D7109402

    The manufacturer no longer makes this part, and there's no substitute part

  • Barrie, Light Shield for Amana R-1J/P71520-1M - Part B5660101

    Barrie, Light Shield

    Part #B5660101

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut for Amana R-1J/P71520-1M - Part M0283401

    Exterior parts (r-1j/p71520-1m) diagram

    Nut

    Part #M0283401

    The manufacturer no longer makes this part, and there's no substitute part
