Amana R-1J/P71520-1M countertop microwave Parts

Here are the diagrams and repair parts for Amana R-1J/P71520-1M countertop microwave, as well as links to manuals and error code tables, if available.

Amana R-1J/P71520-1M countertop microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-1J/P71520-1M Microwaves

  • Washer Screw for Amana R-1J/P71520-1M - Part WP90767

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana R-1J/P71520-1M - Part WP489464

    Head Screw

    Part #M0211217

    Replaced by #WP489464

    Info Icon
    Manufacturer substitution
    This part replaces M0211217. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Amana R-1J/P71520-1M - Part WP488130

    Nut

    Part #M0282007

    Replaced by #WP488130

    Info Icon
    Manufacturer substitution
    This part replaces M0282007. Substitute parts can look different from the original.
    In Stock
    $29.24
    Minus Item
    Qty
    Plus Item

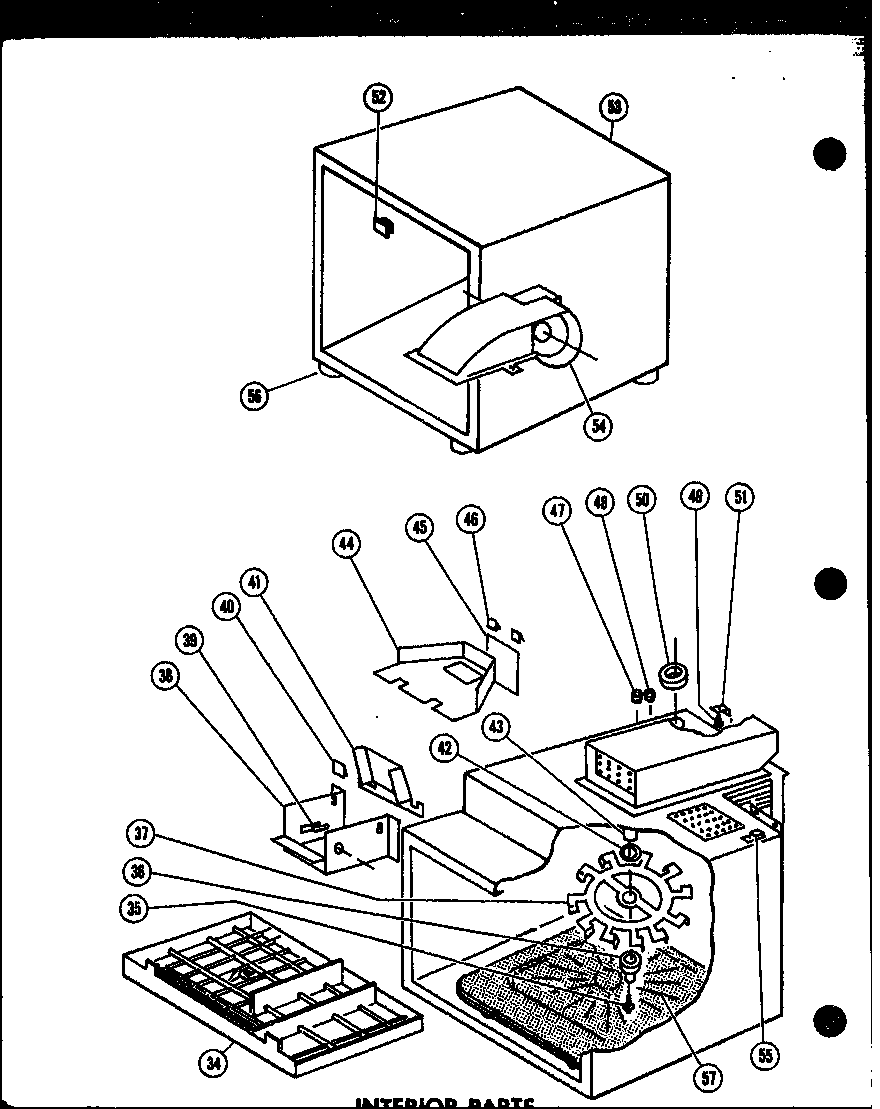

  • Stirrer (incl. With Item 33) for Amana R-1J/P71520-1M - Part B5663801

    Stirrer (incl. With Item 33)

    Part #B5663801

    The manufacturer no longer makes this part, and there's no substitute part

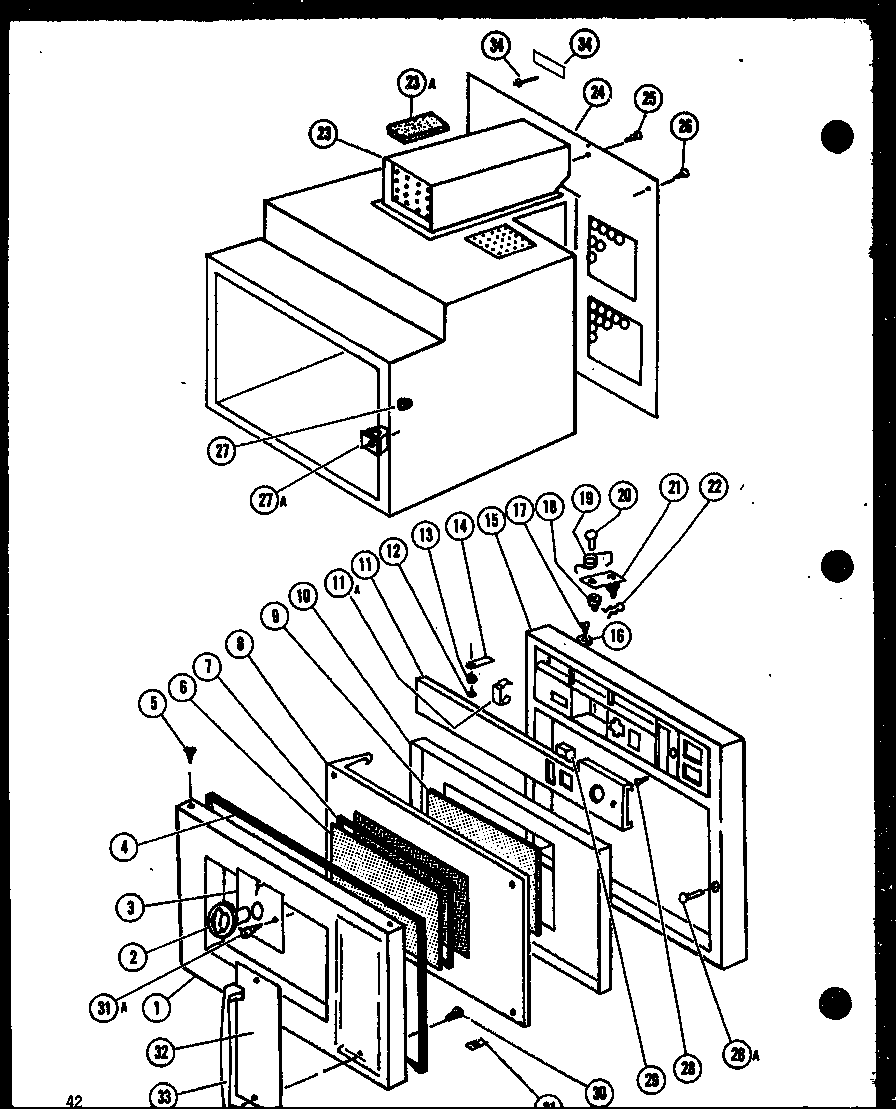

  • Escutcheon Control for Amana R-1J/P71520-1M - Part D7103501

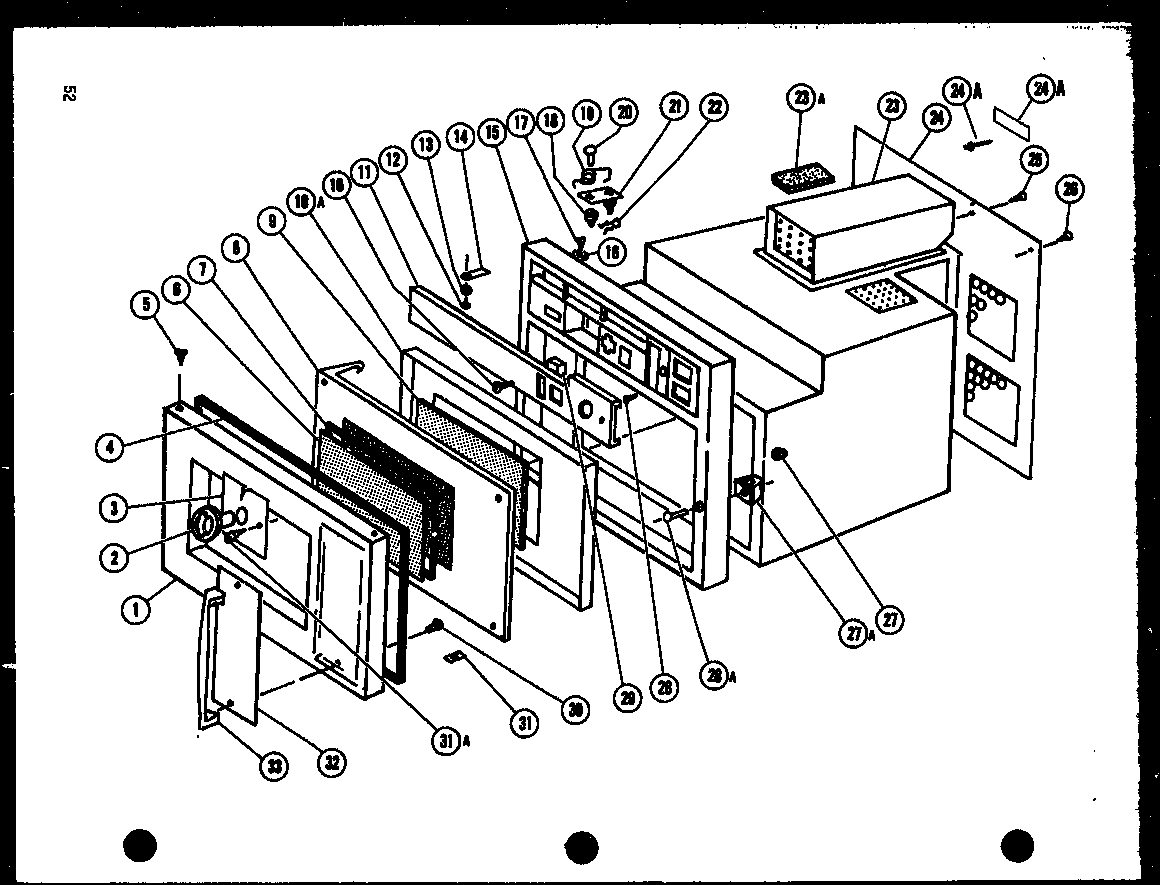

    (r-1/p71079-1m) (r-1h/p71079-1m) diagram

    Escutcheon Control

    Part #D7103501

    The manufacturer no longer makes this part, and there's no substitute part

  • Bale Strap for Amana R-1J/P71520-1M - Part A3145401

    Bale Strap

    Part #A3145401

    The manufacturer no longer makes this part, and there's no substitute part

  • Access Panel for Amana R-1J/P71520-1M - Part D7104101

    Access Panel

    Part #D7104101

    The manufacturer no longer makes this part, and there's no substitute part

  • Weldment, Inner Door Ring, Includes (a31654-2, Door Stop for Amana R-1J/P71520-1M - Part D7110401

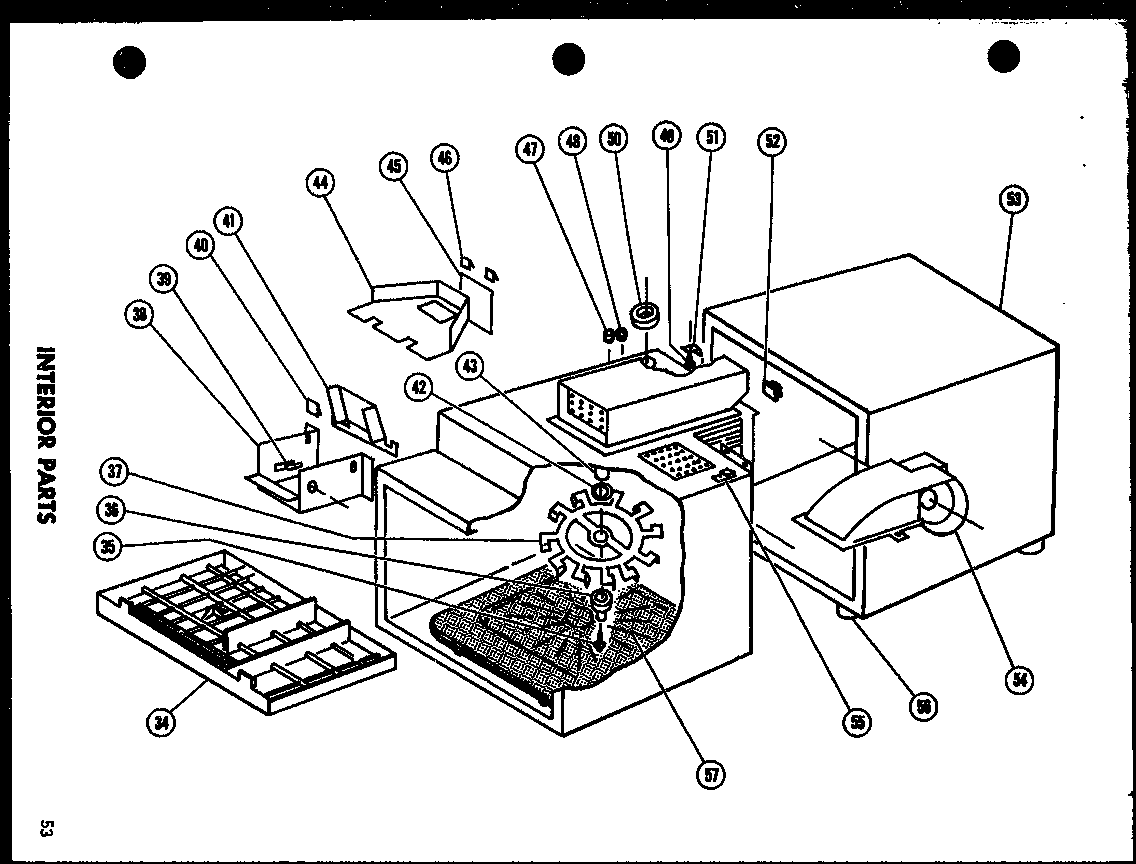

    (r-1/p71079-1m) (r-1h/p71079-1m) diagram

    Weldment, Inner Door Ring, Includes (a31654-2, Door Stop

    Part #D7110401

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket, Timer Escutcheon Screw M2151-2 for Amana R-1J/P71520-1M - Part B5667001

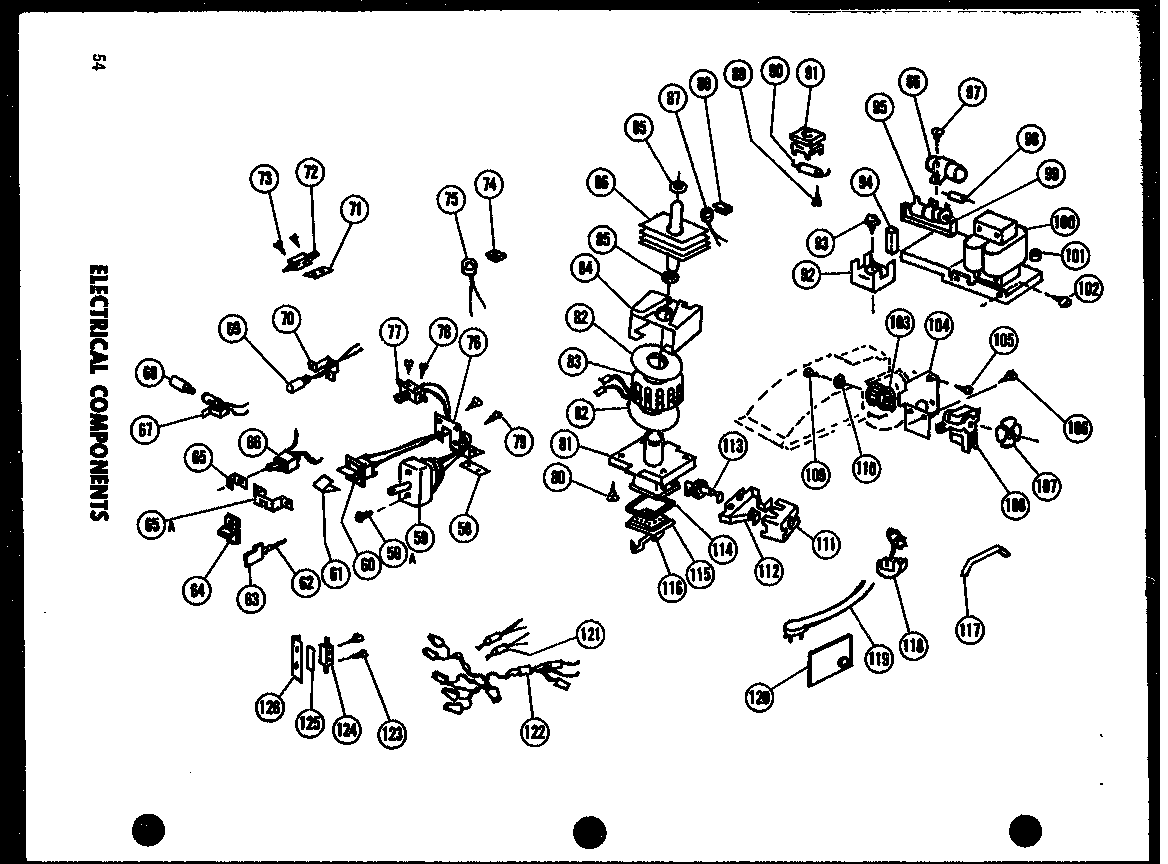

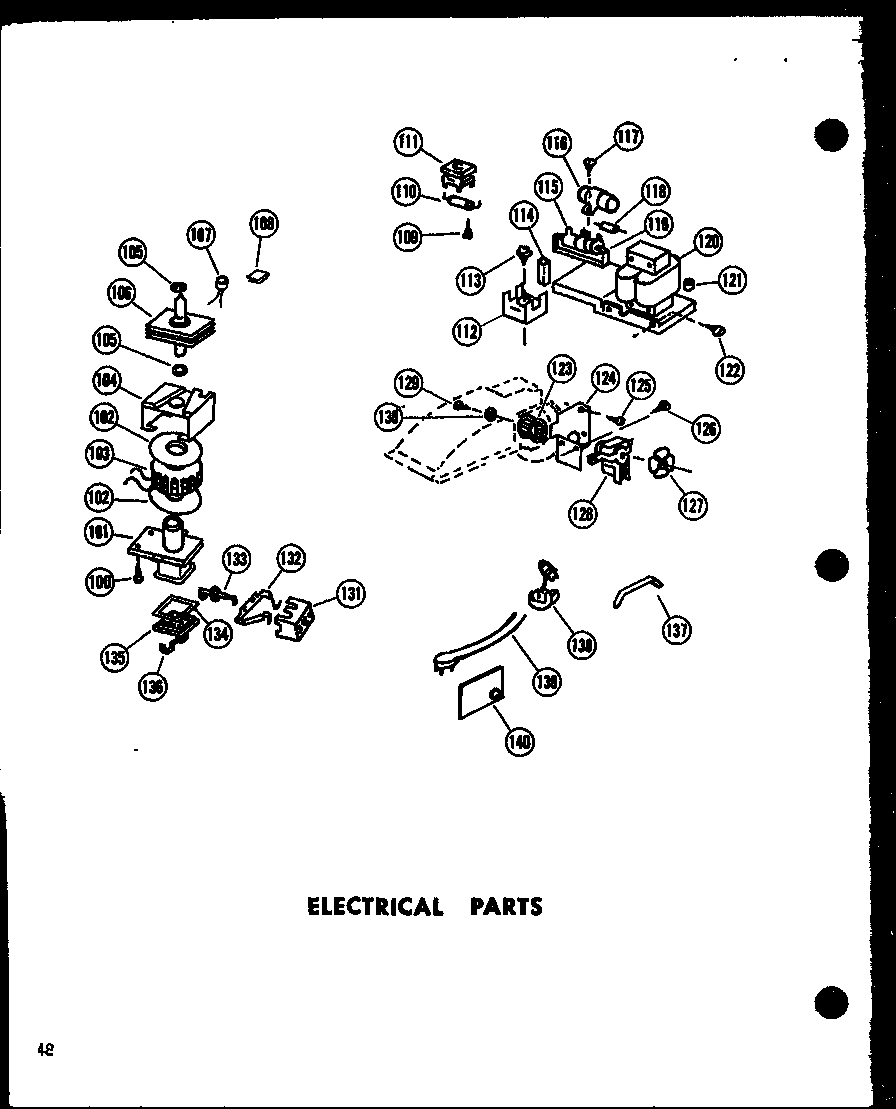

    Electrical components (r-1/p71079-1m) (r-1h/p71079-1m) diagram

    Bracket, Timer Escutcheon Screw M2151-2

    Part #B5667001

    The manufacturer no longer makes this part, and there's no substitute part

  • Barrie, Light Shield for Amana R-1J/P71520-1M - Part B5660101

    Barrie, Light Shield

    Part #B5660101

    The manufacturer no longer makes this part, and there's no substitute part
