Model # 351518580 Official Craftsman jaw bench vise

Here are the diagrams and repair parts for Official Craftsman 351518580 jaw bench vise, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
E-ring 09845.00
#23

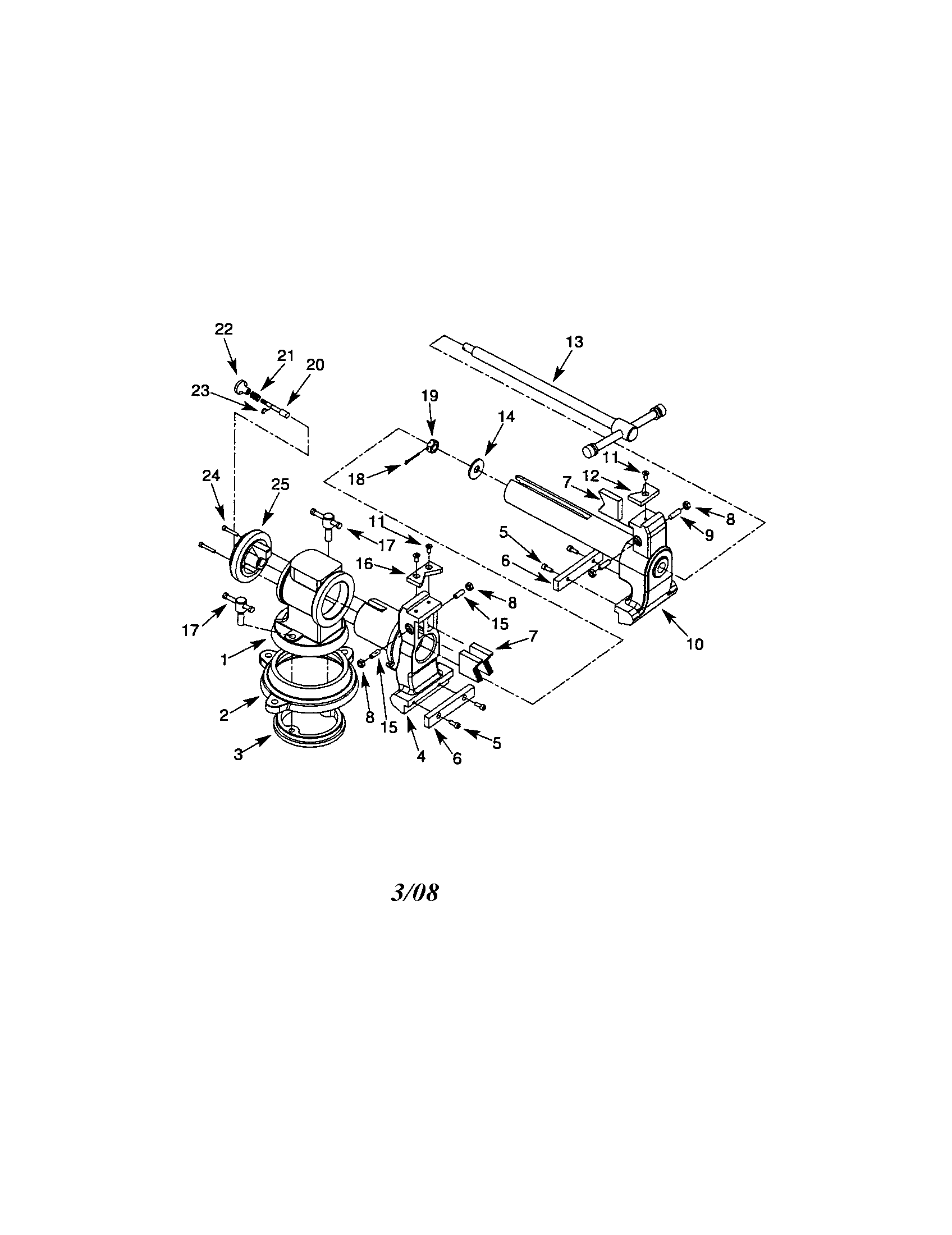

Multi-jaw bench vise diagram

E-ring

Part #09845.00

The manufacturer no longer makes this part, and there's no substitute part

Pipe Jaw Insert (3) 09835.00
#7

Multi-jaw bench vise diagram

Pipe jaw insert (3)

Part #09835.00

The manufacturer no longer makes this part, and there's no substitute part

Body 09830.00
#1

Multi-jaw bench vise diagram

Body

Part #09830.00

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD840812
#8

Multi-jaw bench vise diagram

Hex nut

Part #STD840812

The manufacturer no longer makes this part, and there's no substitute part

Moveable Jaw 17141.00
#10

Multi-jaw bench vise diagram

Moveable jaw

Part #17141.00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 09847.00
#9

Multi-jaw bench vise diagram

Set screw

Part #09847.00

The manufacturer no longer makes this part, and there's no substitute part

Lock Handle Assembly (2) 09840.00
#17

Multi-jaw bench vise diagram

Lock handle assembly (2)

Part #09840.00

The manufacturer no longer makes this part, and there's no substitute part

Base 09831.00
#2

Multi-jaw bench vise diagram

Base

Part #09831.00

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt 01505.00
#5

Multi-jaw bench vise diagram

Head bolt

Part #01505.00

The manufacturer no longer makes this part, and there's no substitute part

Spring 09843.00
#21

Multi-jaw bench vise diagram

Spring

Part #09843.00

The manufacturer no longer makes this part, and there's no substitute part
