Radial Arm Saw

Model # 113197210 Official Craftsman radial arm saw

Here are the diagrams and repair parts for Official Craftsman 113197210 radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

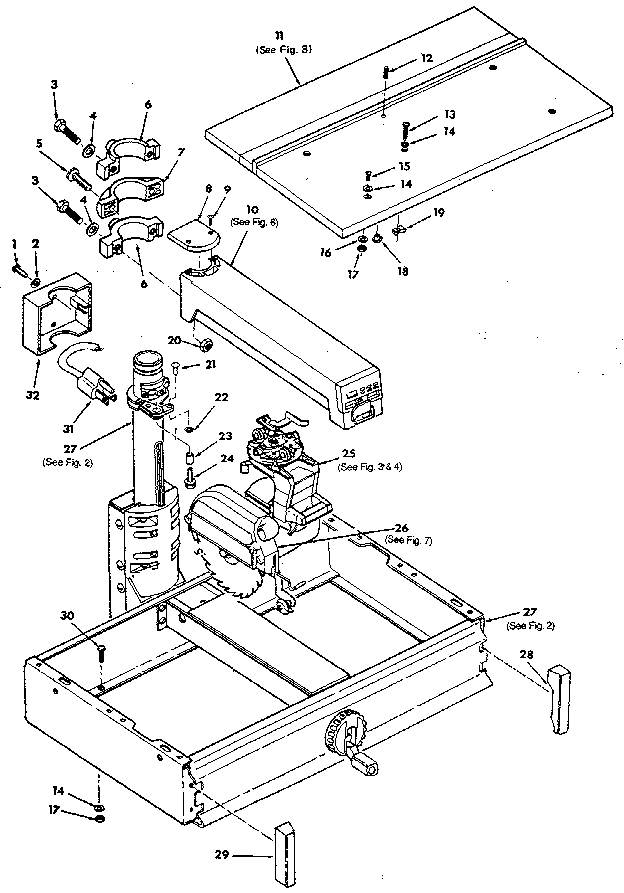

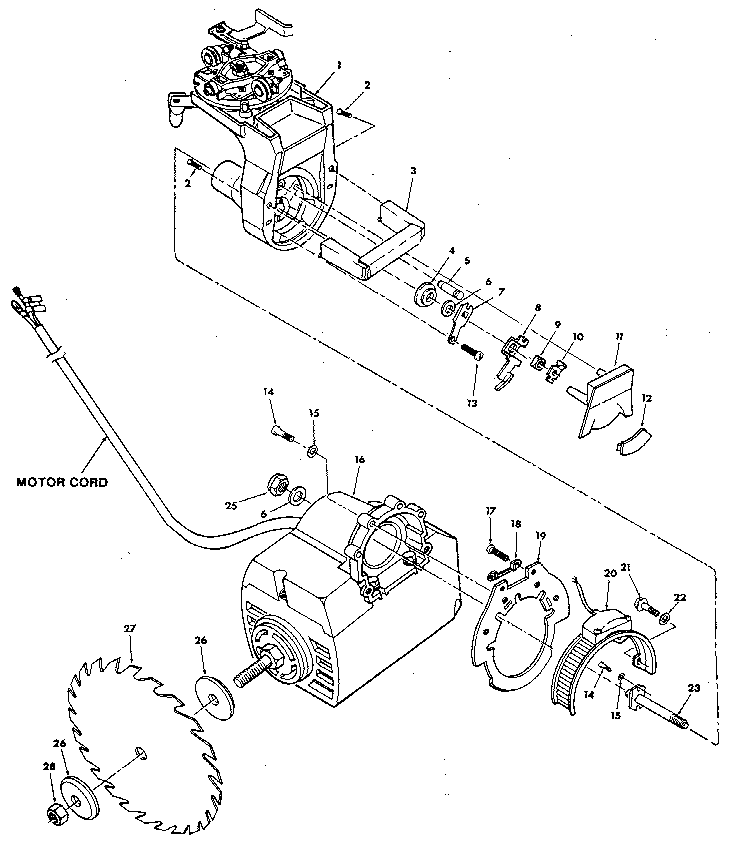

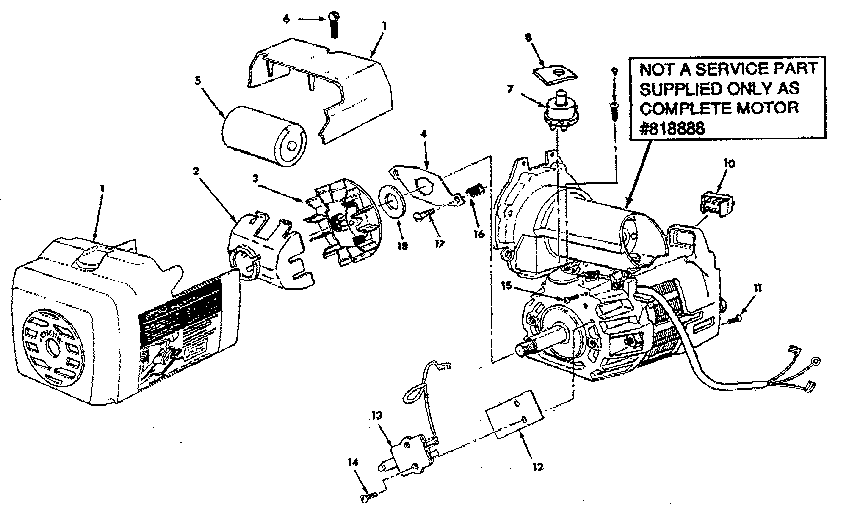

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 272 parts  |
Screw 9416187
#25

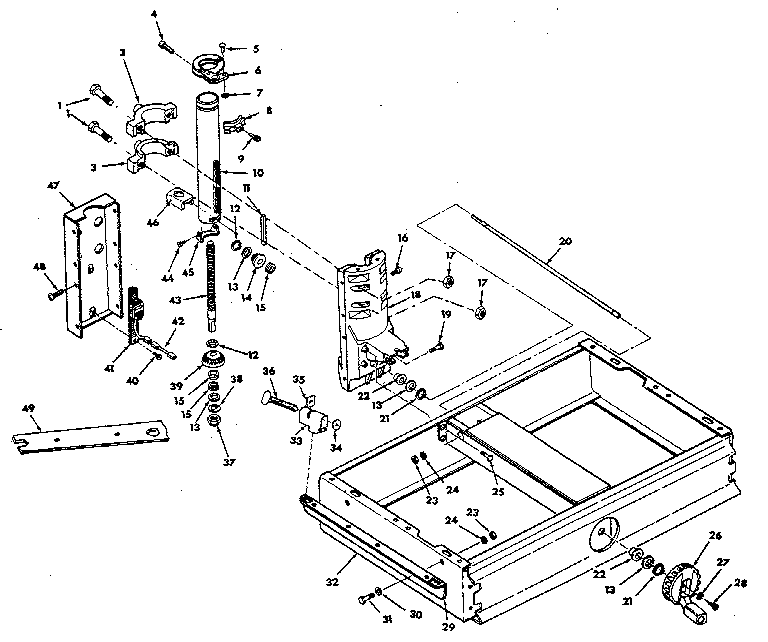

Figure 2-base and column assembly diagram

Screw

Part #9416187

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Screw 815856
#9

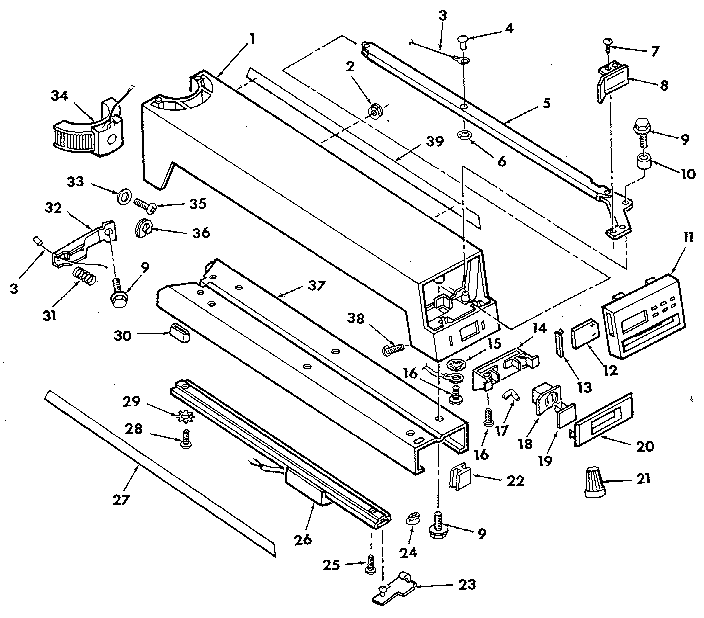

Figure 6-arm assembly diagram

Screw

Part #815856

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#21

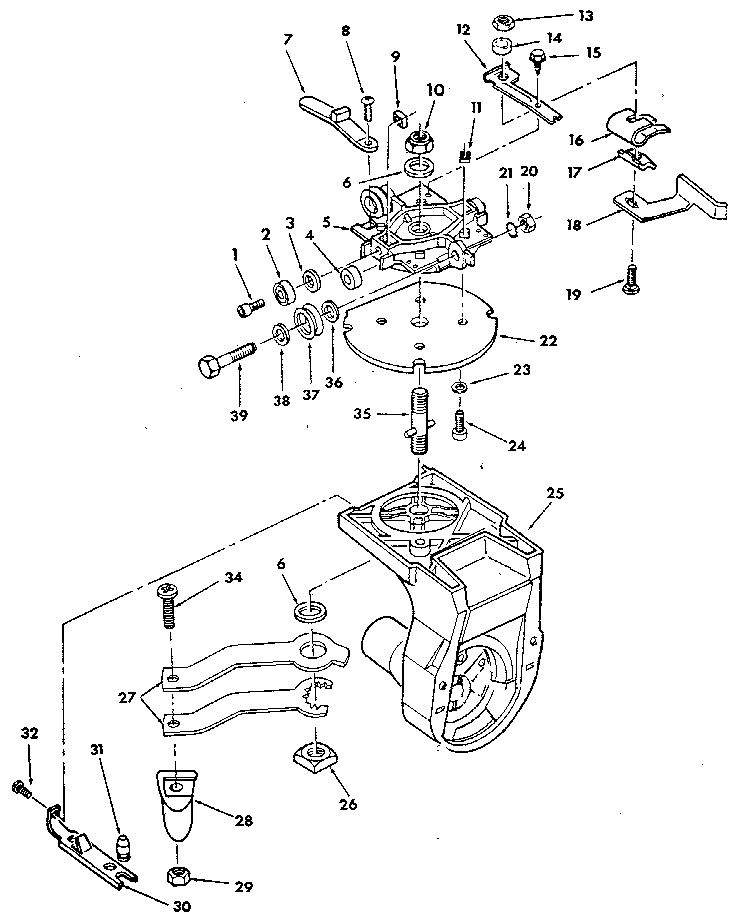

Figure 4-yoke assembly diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 818169
Radial arm saw table, rear

Part #818169

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer 820573
Radial arm saw table spacer

Part #820573

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing (replaces 819039) 63777
#37

Figure 4-yoke assembly diagram

Radial arm saw carriage bearing (replaces 819039)

Part #63777

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Screw, 1/4-20 X 5/8-in 817398-1
Radial arm saw screw, 1/4-20 x 5/8-in

Part #817398-1

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 820219-2
#17

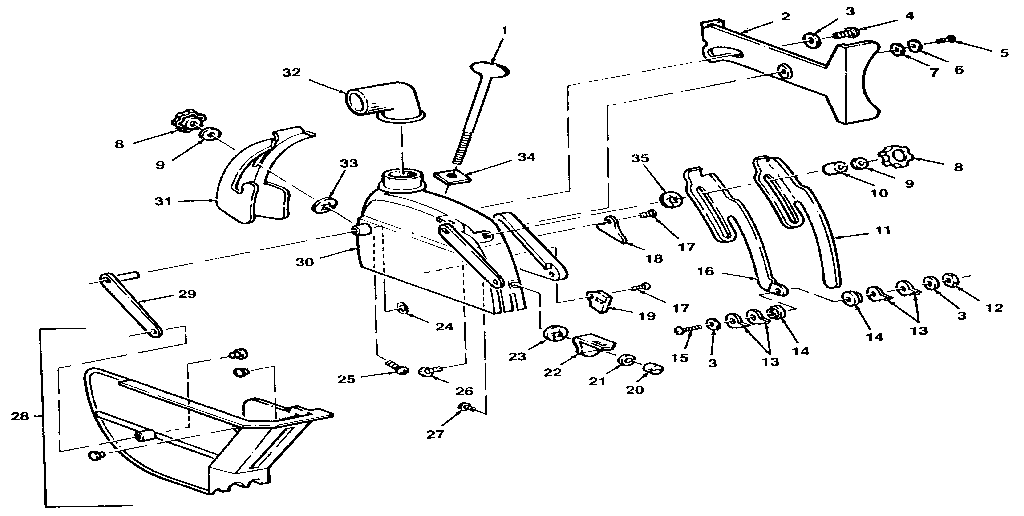

Figure 12 - guard diagram

Pan screw

Part #820219-2

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Eccentric Screw 810214-3
#1

Figure 4-yoke assembly diagram

Radial arm saw eccentric screw

Part #810214-3

The manufacturer no longer makes this part, and there's no substitute part
