Craftsman
Power Sander

Model # 315277041 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315277041 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Screw 999162-001
#4

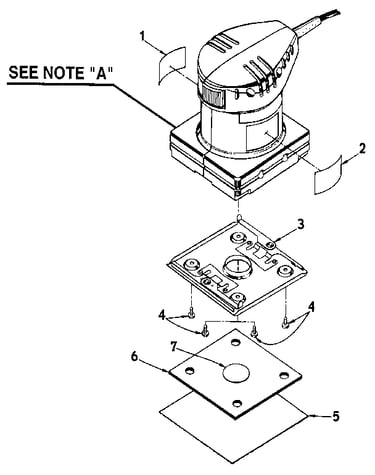

Platen assembly diagram

Screw

Part #999162-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 971264-001
#2

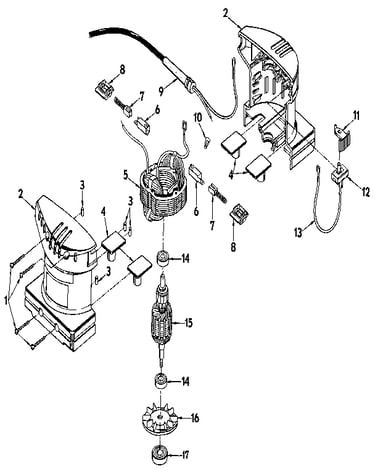

Motor assembly diagram

Housing assembly

Part #971264-001

The manufacturer no longer makes this part, and there's no substitute part

Disc 999740-001
#7

Platen assembly diagram

Disc

Part #999740-001

The manufacturer no longer makes this part, and there's no substitute part

Rubber Post 999158-003
#4

Motor assembly diagram

Rubber post

Part #999158-003

The manufacturer no longer makes this part, and there's no substitute part

Platen 968124-001
#3

Platen assembly diagram

Platen

Part #968124-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 623019-004
#3

Motor assembly diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Cntrbalnce 999179-002
#16

Motor assembly diagram

Cntrbalnce

Part #999179-002

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-042
#7

Motor assembly diagram

Brush assembly

Part #610784-042

The manufacturer no longer makes this part, and there's no substitute part

Armature 999223-003
#15

Motor assembly diagram

Armature

Part #999223-003

The manufacturer no longer makes this part, and there's no substitute part

Plate 971262-001
#1

Platen assembly diagram

Plate

Part #971262-001

The manufacturer no longer makes this part, and there's no substitute part
