GE
Upright Freezer

Model #FUF14DPERWH GE freezer

Here are the diagrams and repair parts for GE FUF14DPERWH freezer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 84 parts

    Freezer Door Closer Bearing

    #36

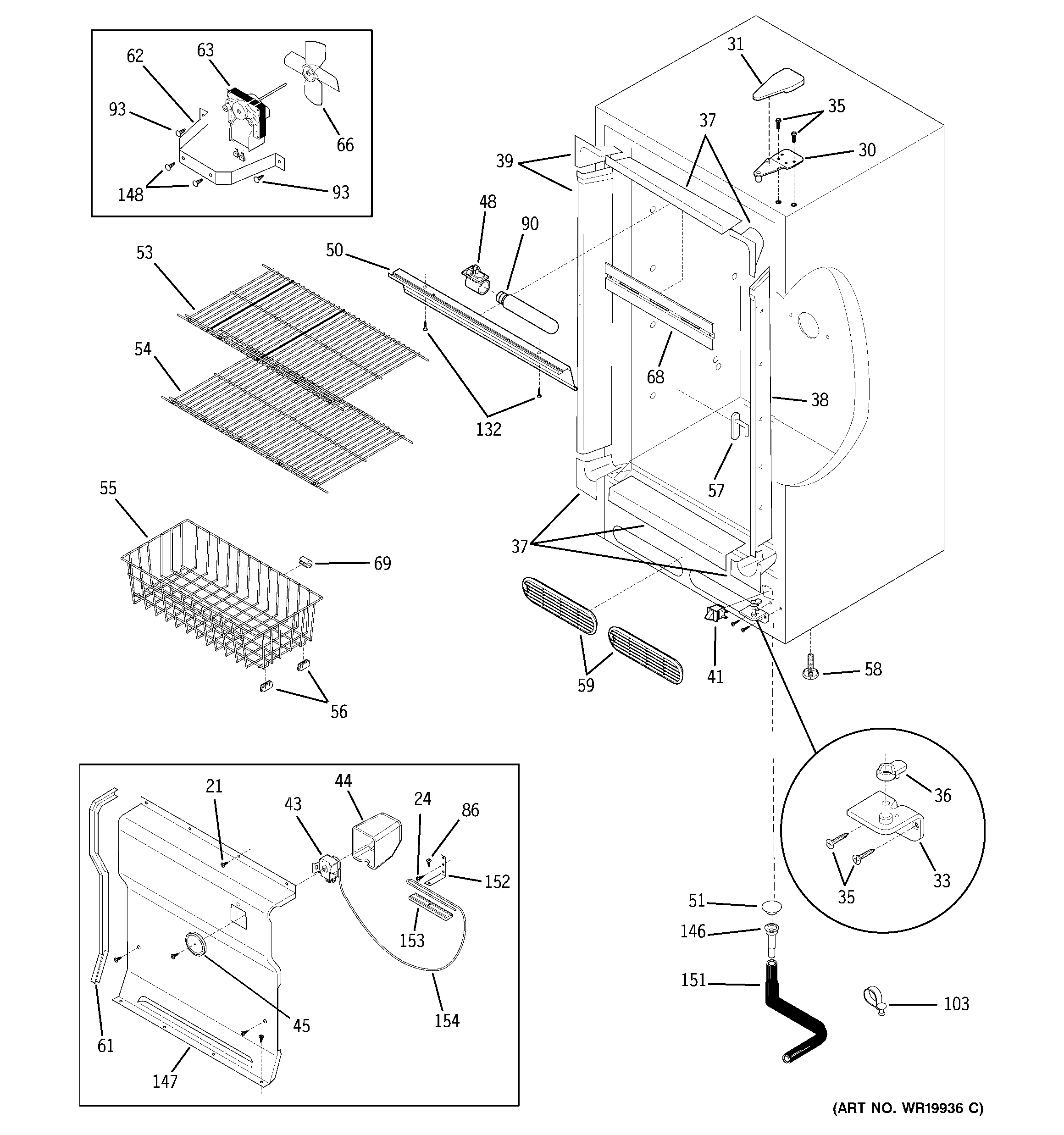

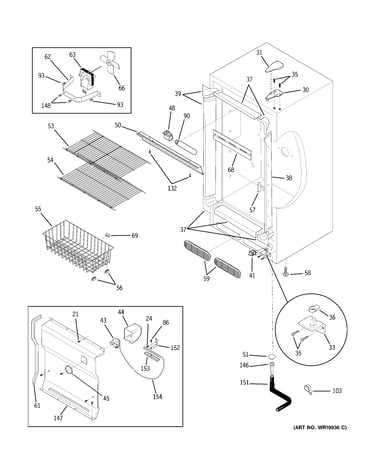

    Cabinet Diagram

    $26.56

    In Stock

    Control Bracket

    #152

    Cabinet Diagram

    Control bracket

    Part #WR02X11440
    $8.80

    In Stock

    Inner Panel

    #7

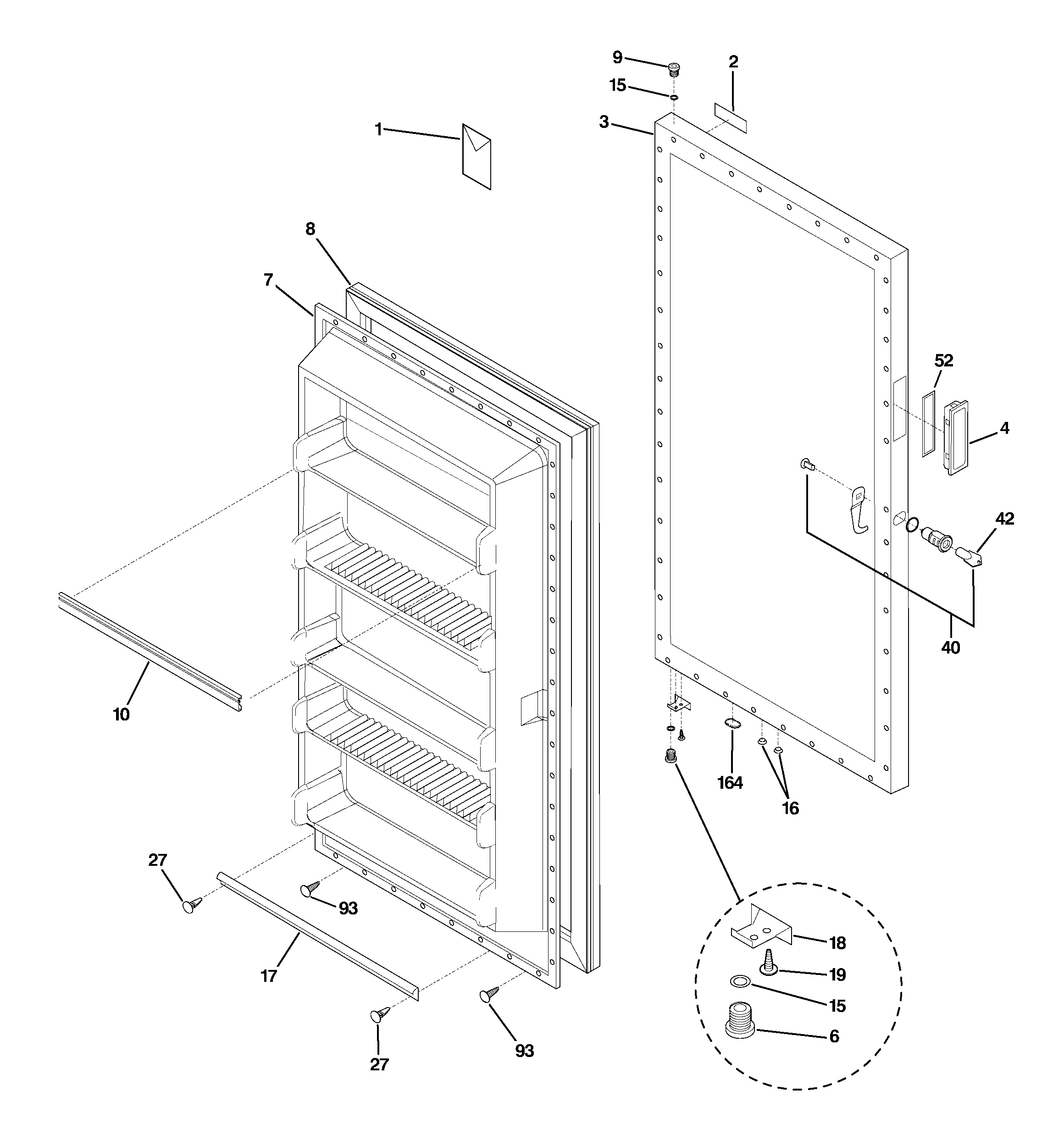

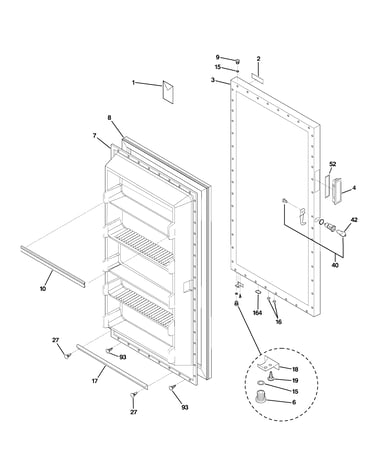

    Freezer door Diagram

    Inner panel

    Part #WR77X10059
    $211.01

    In Stock

    Evaporator Assembly

    #104

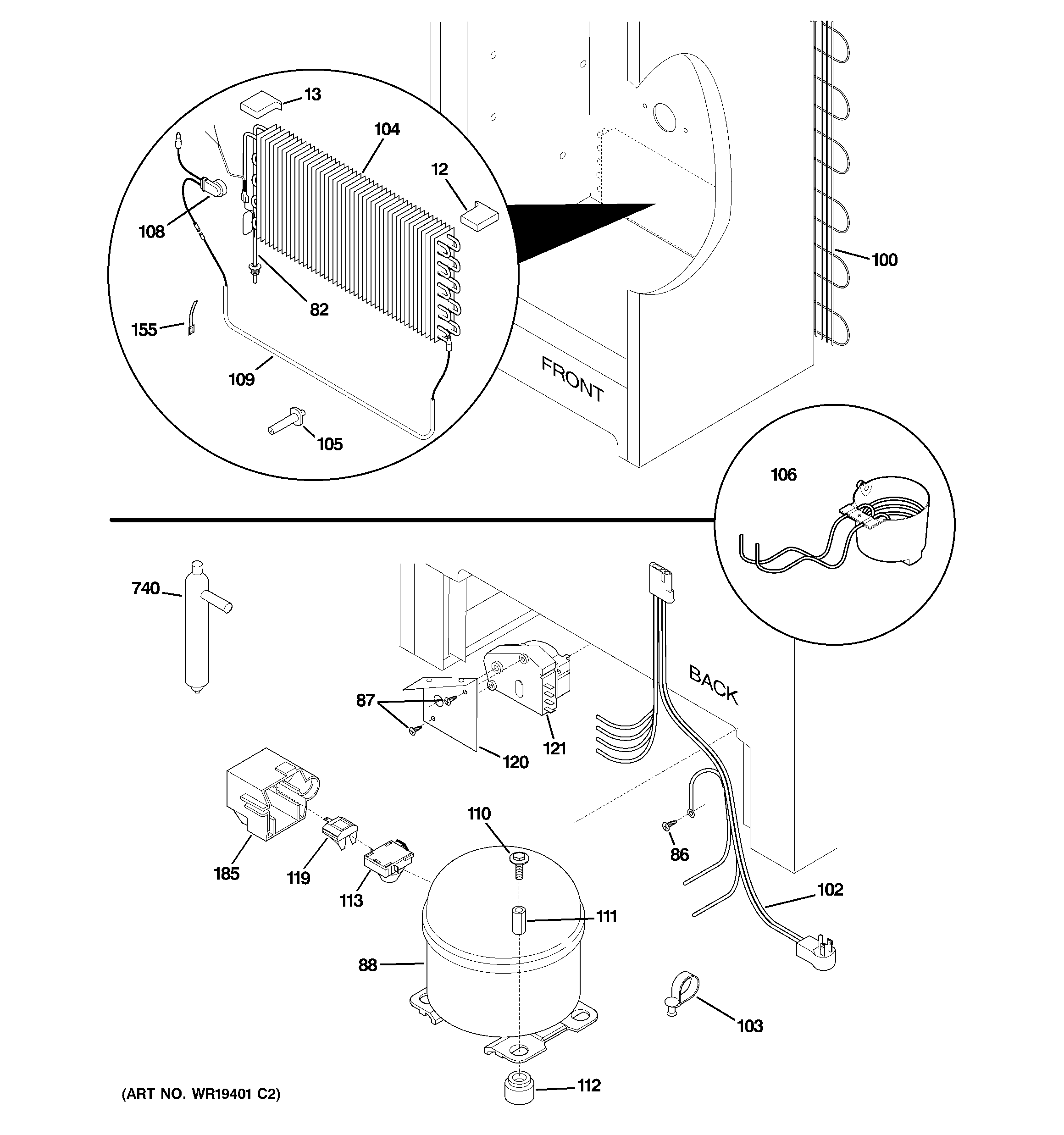

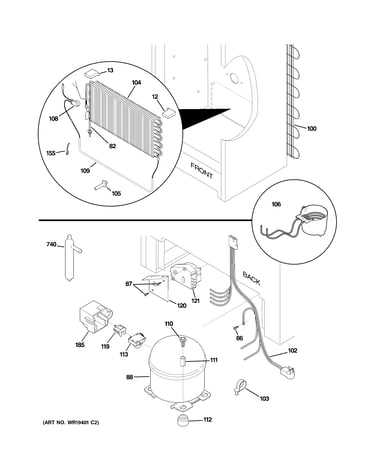

    Unit parts Diagram

    Evaporator assembly

    Part #WR85X10032
    $123.72

    In Stock

    Baffle Plate

    #68

    Cabinet Diagram

    Baffle plate

    Part #WR17X10515
    $51.60

    In Stock

    Freezer Door Switch

    #41

    Cabinet Diagram

    Freezer door switch

    Part #WR23X10303
    $53.64

    In Stock

    Heat Exchanger

    #82

    Unit parts Diagram

    Heat exchanger

    Part #WR86X10007
    $100.23

    In Stock

    Hinge Screw

    #148

    Cabinet Diagram

    Hinge screw

    Part #WR01X10148
    This item is not returnable
    $4.49

    In Stock

    Door Stop

    #18

    Freezer door Diagram

    Door stop

    Part #WR02X11443
    $17.76

    In Stock

    Freezer Evaporator Fan Blade

    #63

    Cabinet Diagram

    $111.55

    In Stock

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
