Countertop Microwave

Model # LTM9020B Official LG microwave

Here are the diagrams and repair parts for Official LG LTM9020B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

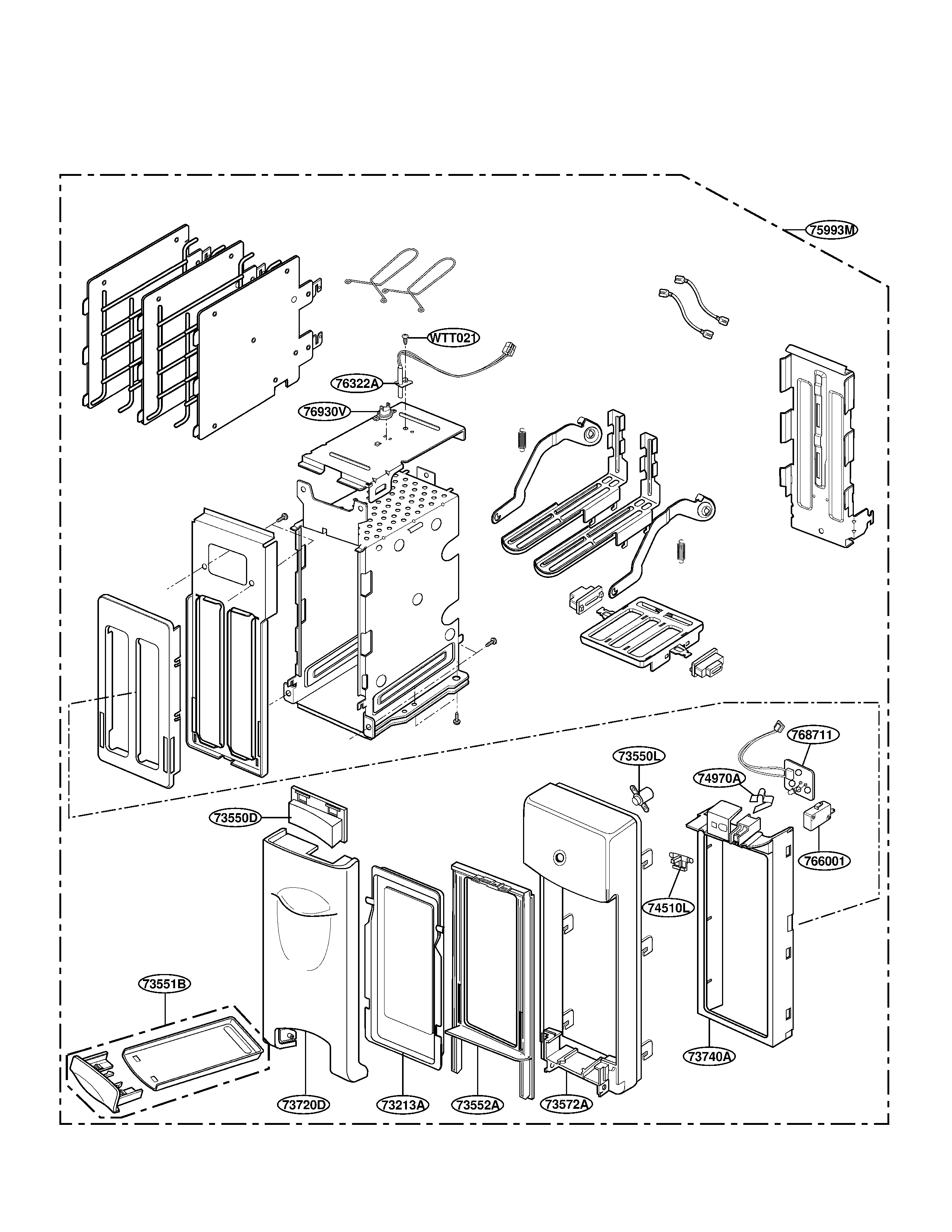

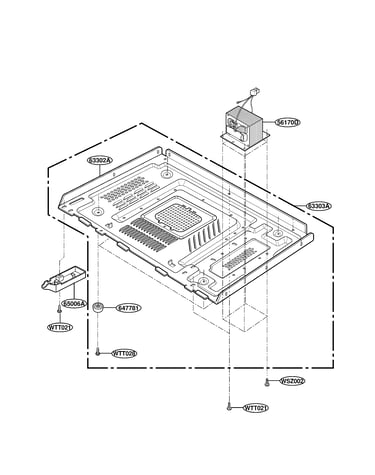

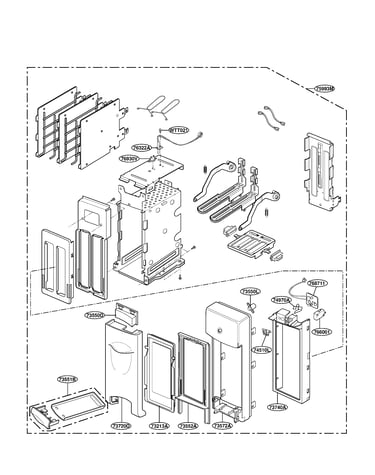

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Microwave Door Interlock Switch 3B73361E
#4660A

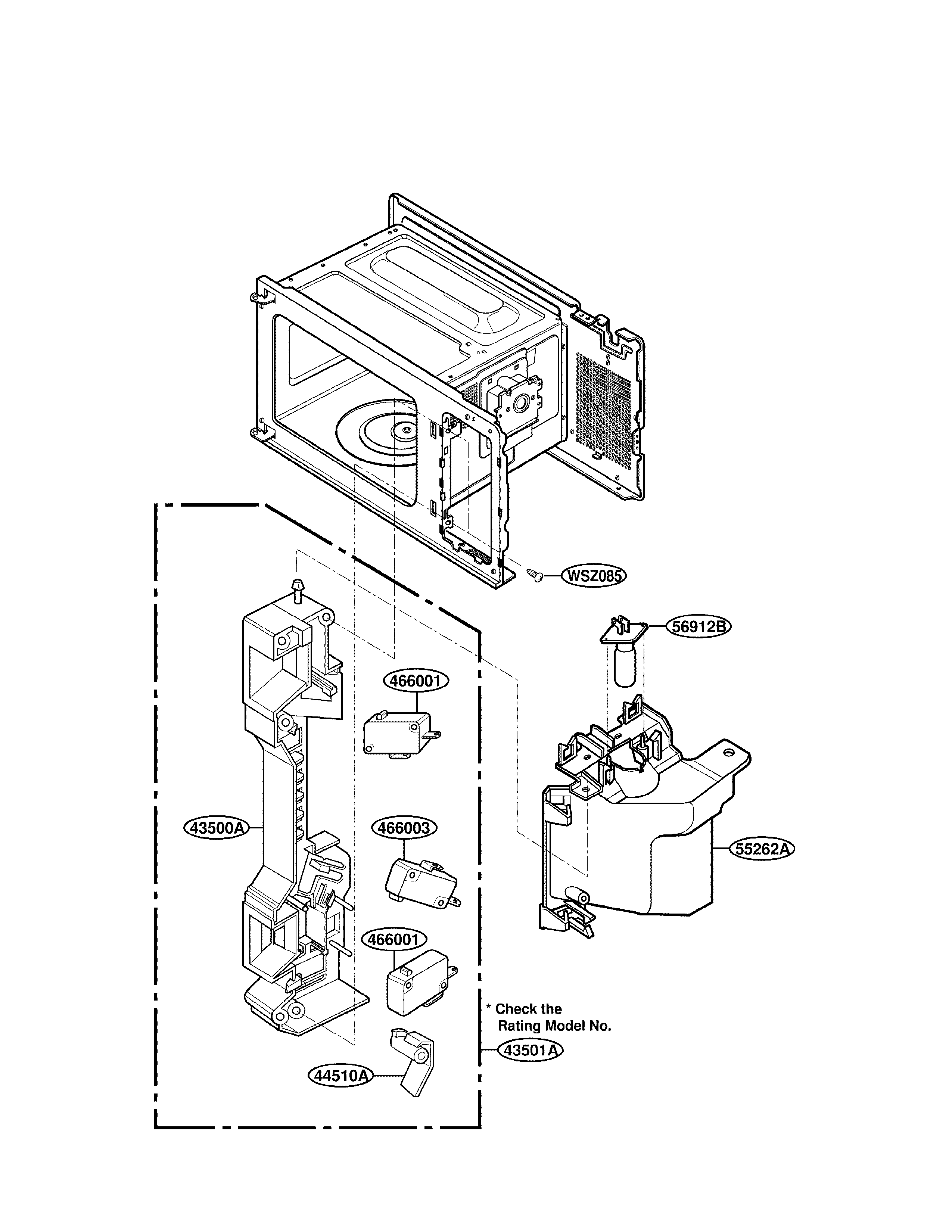

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Latch Hook 4026W2A015A
#1402

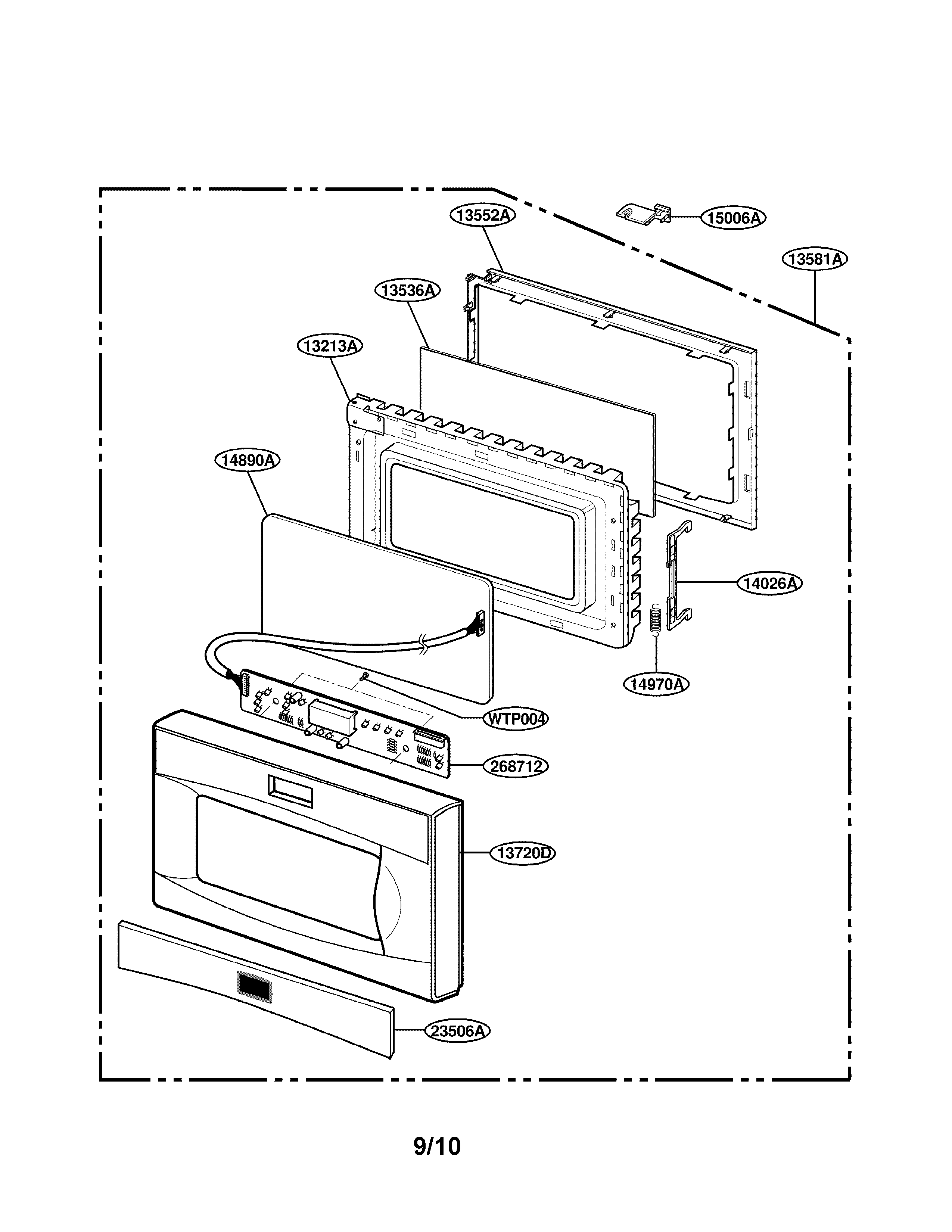

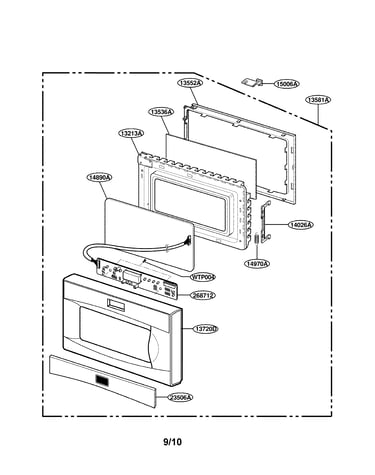

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave/hood Holder Locker Assembly 3501W1A019A
#4350A

Latch board parts diagram

Microwave/hood holder locker assembly

Part #3501W1A019A

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Microwave Thermostat 6930W1A003B
Microwave thermostat

Part #6930W1A003B

This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Microwave Door Latch Holder 3500W1A013A
#4350

Latch board parts diagram

Microwave door latch holder

Part #3500W1A013A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A013A. Substitute parts can look different from the original.
This item is not returnable
$13.63 |
13% OFF Phone Price : $15.63
In Stock
Microwave Door Latch Lever 4510W4A005A
#4451

Latch board parts diagram

Microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Microwave Screw 4B70188C
#WSZ0

Latch board parts diagram

Microwave screw

Part #4B70188C

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Screw 1TTL0402418
Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock

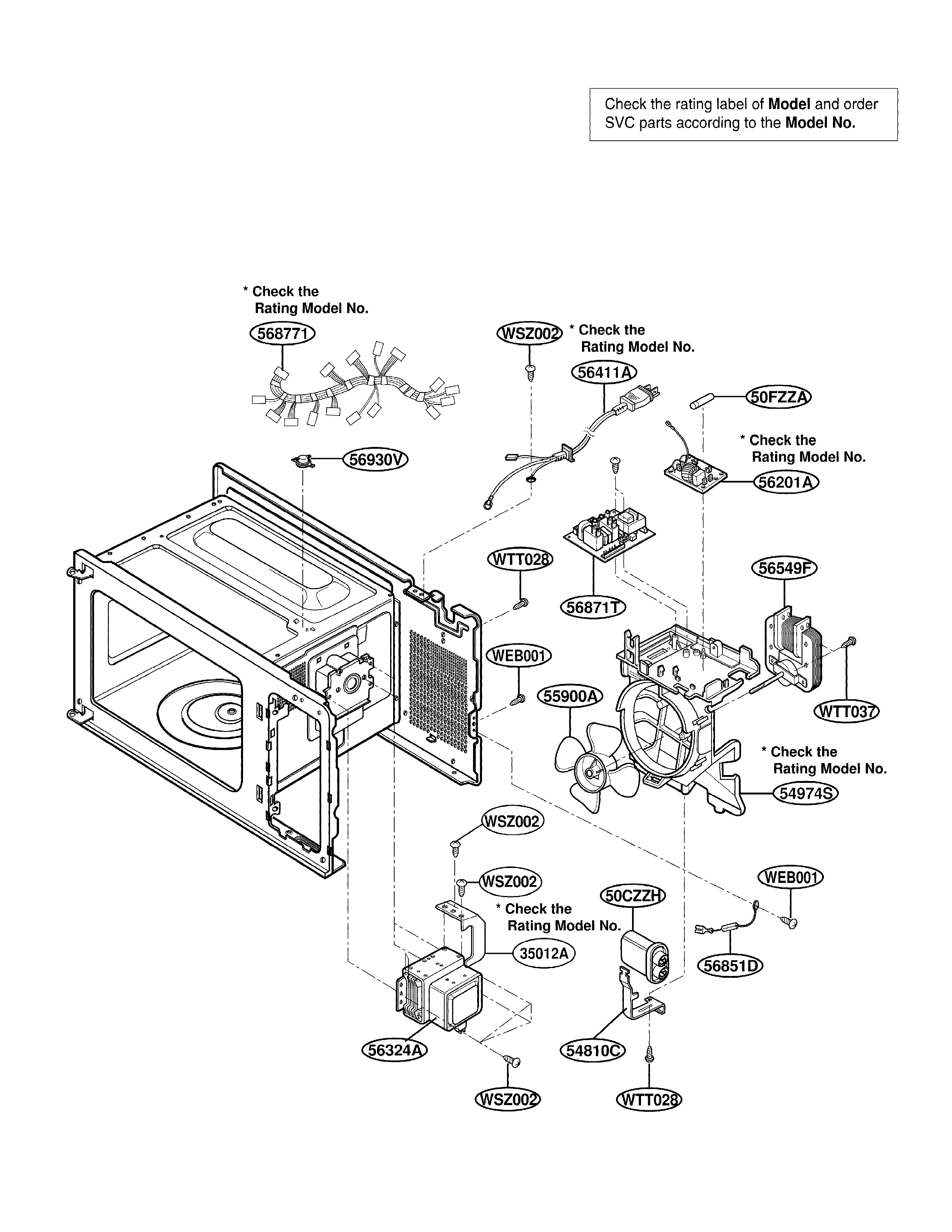

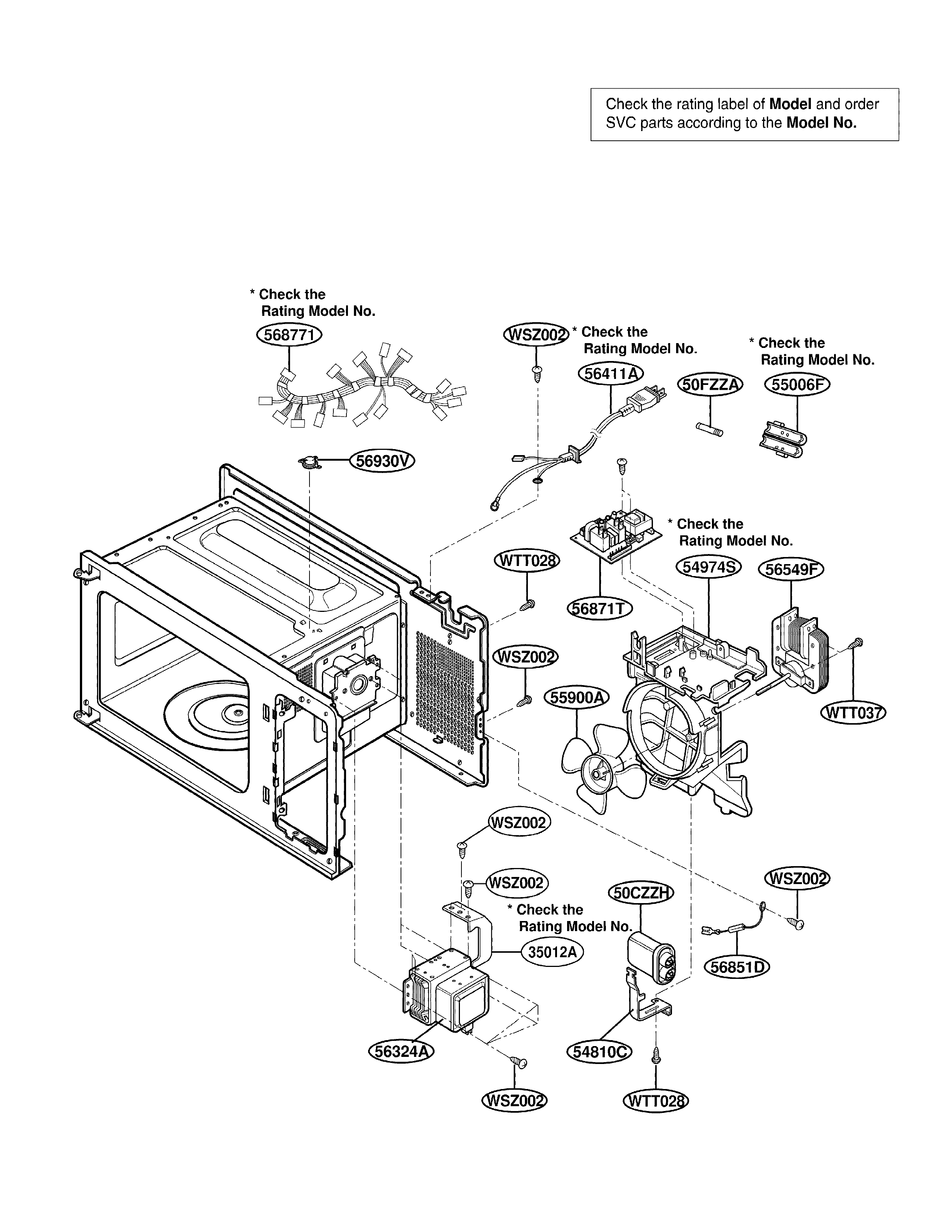

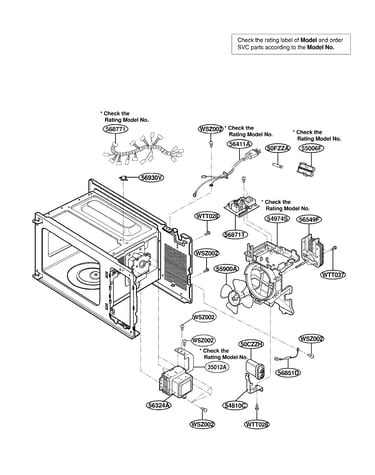

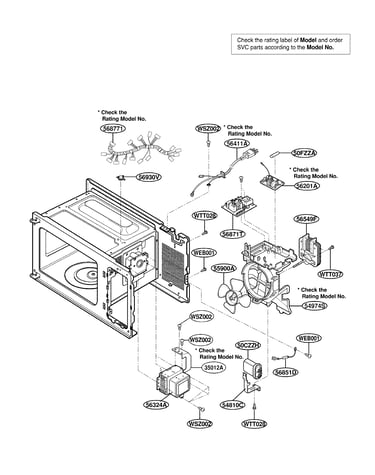

Circulating Motor 6549W1S007G
#3654

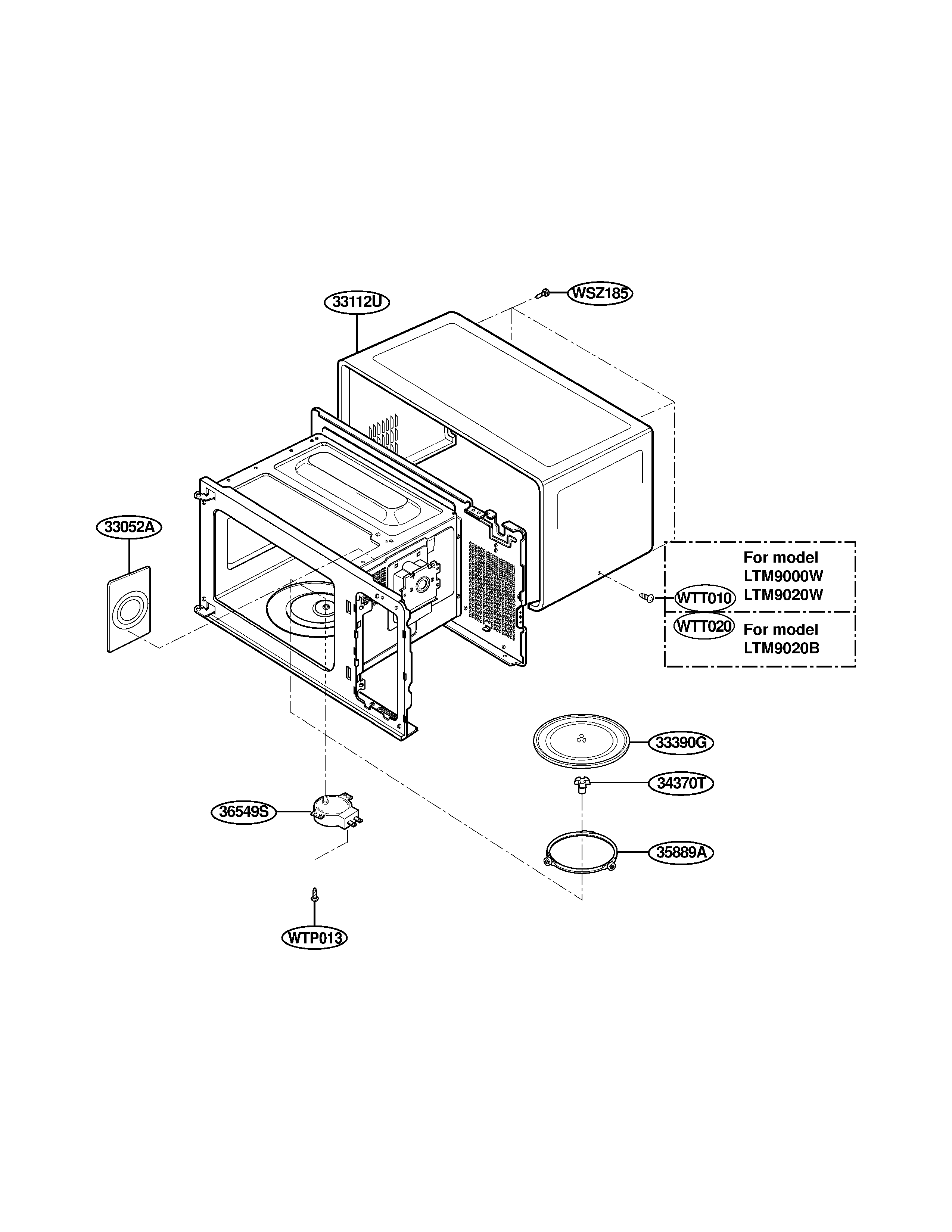

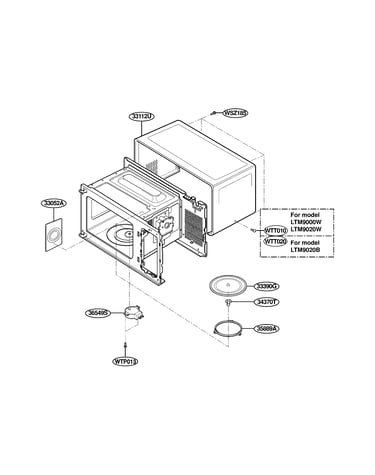

Oven cavity parts diagram

Circulating motor

Part #6549W1S007G

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 6549W1S007G. Substitute parts can look different from the original.
$29.52 |
14% OFF Phone Price : $34.52
In Stock
Microwave Screw 1TTL0402818
Microwave screw

Part #1TTL0402818

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
