Model # 2538705080 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538705080 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

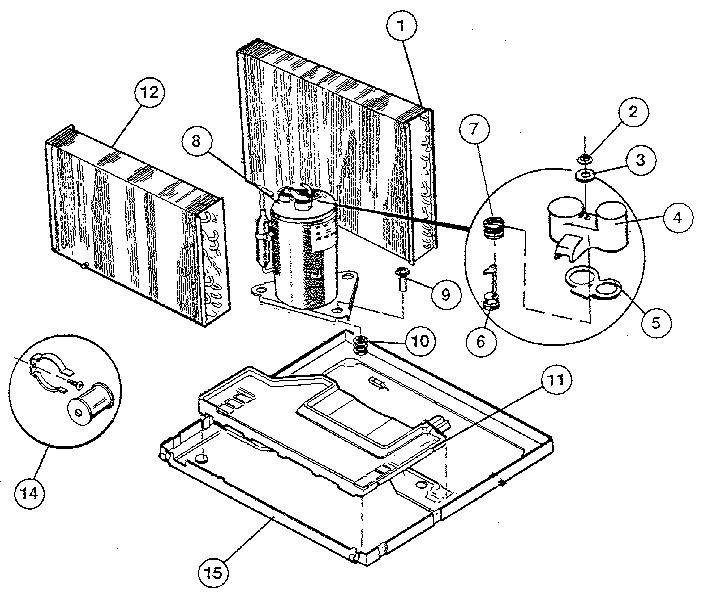

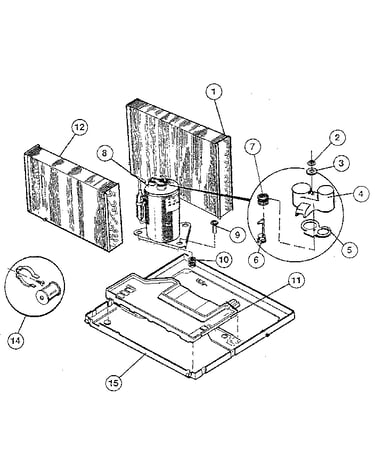

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Filter 000265301

#NI

All parts diagram

Filter

Part #000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 000265301. Substitute parts can look different from the original.
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cord 5303270109
#13

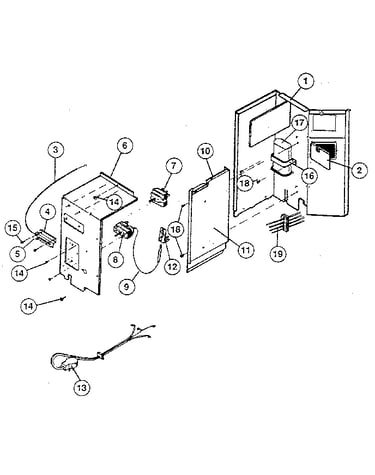

Electrical system and unit diagram

Cord

Part #5303270109

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5303270109. Substitute parts can look different from the original.
In Stock
Room Air Conditioner Screw 5303015427
#18

Electrical system and unit diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Room Air Conditioner Fan Blade Clamp 5303012110
Room air conditioner fan blade clamp

Part #5303012110

The manufacturer no longer makes this part, and there's no substitute part

Motor 5303202805
#8

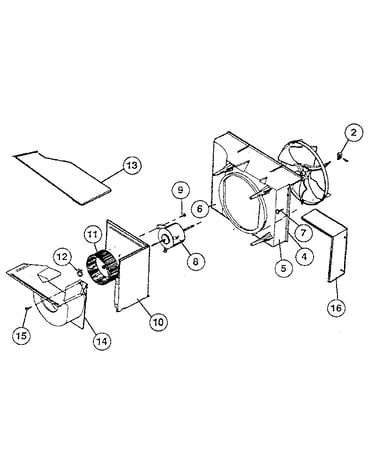

Air system handling diagram

Motor

Part #5303202805

The manufacturer no longer makes this part, and there's no substitute part

Rear Grille 5303208912
#1

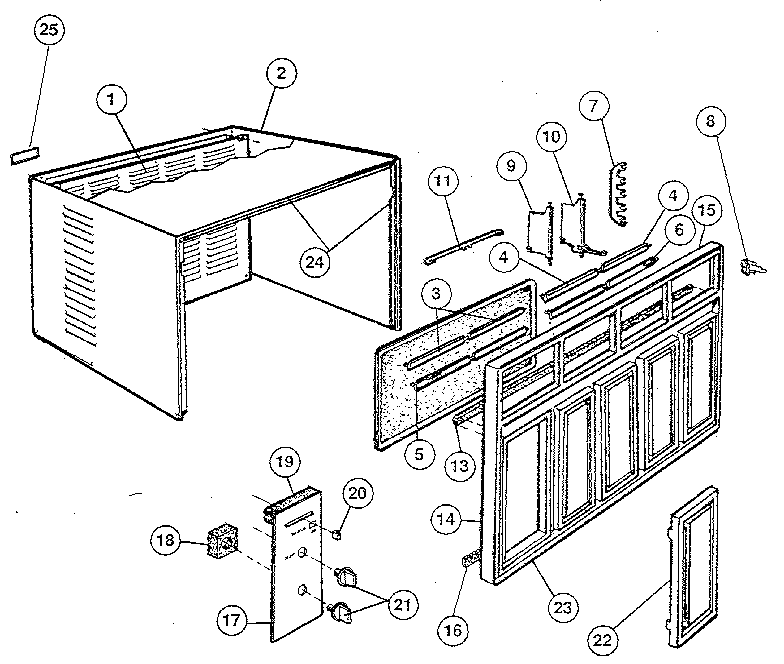

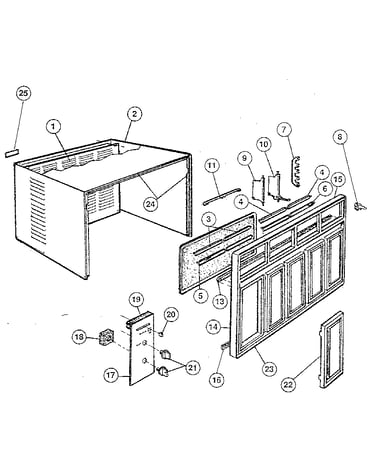

Cabinet and front panel diagram

Rear grille

Part #5303208912

The manufacturer no longer makes this part, and there's no substitute part

Trim 5303270147

#NI

All parts diagram

Trim

Part #5303270147

The manufacturer no longer makes this part, and there's no substitute part

Cantilever Parts 5995200036

#NI

All parts diagram

Cantilever parts

Part #5995200036

The manufacturer no longer makes this part, and there's no substitute part
