Model # A06LE2N1 Official Frigidaire room air conditioner - lf34090100

Here are the diagrams and repair parts for Official Frigidaire A06LE2N1 room air conditioner - lf34090100, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

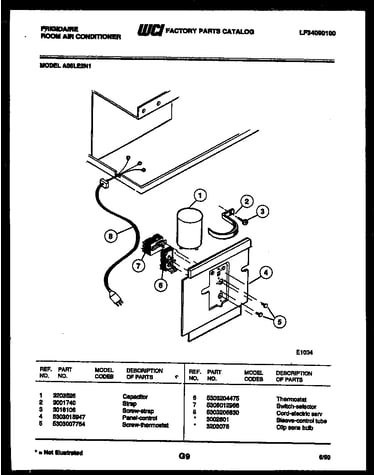

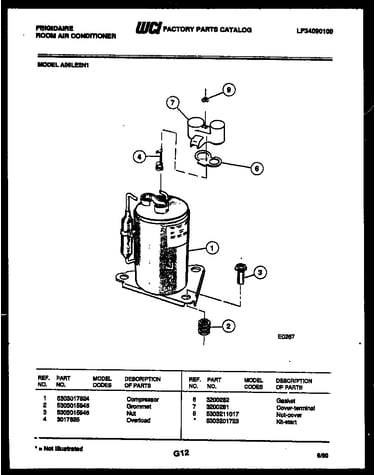

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Washer 3007766
#15A

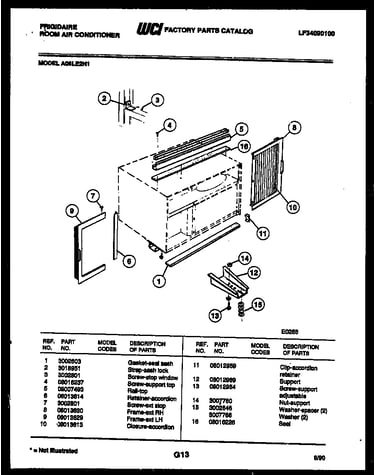

Window mounting parts diagram

Washer

Part #3007766

This item is not returnable
In Stock
Screw 08012954
#13

Window mounting parts diagram

Screw

Part #08012954

This item is not returnable
In Stock
Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#5

Window mounting parts diagram

Support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

In Stock
Screw 5308007473
Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
In Stock
Filter 08004930
#12

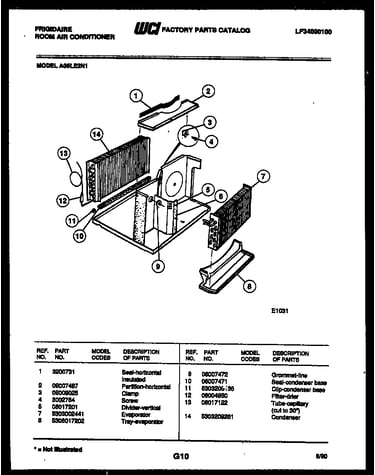

Unit parts diagram

Filter

Part #08004930

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 08004930. Substitute parts can look different from the original.
In Stock
Gasket 3002603
#1

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
In Stock
Insulation 3200731
#1

Unit parts diagram

Insulation

Part #3200731

The manufacturer no longer makes this part, and there's no substitute part

Support 08012989
#12

Window mounting parts diagram

Support

Part #08012989

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5303200891
#3

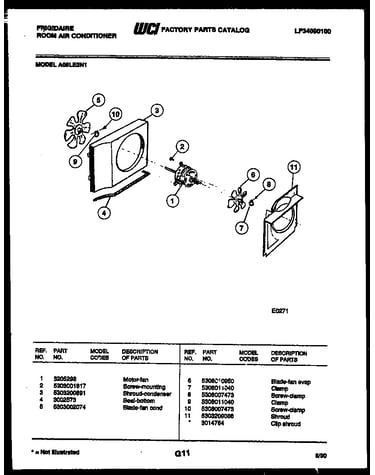

Air handling parts diagram

Condenser

Part #5303200891

The manufacturer no longer makes this part, and there's no substitute part

Clip 5303001784
#14

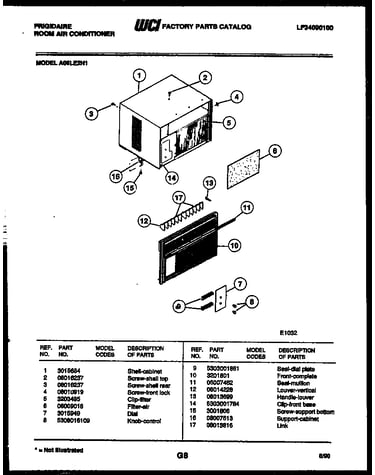

Cabinet parts diagram

Clip

Part #5303001784

The manufacturer no longer makes this part, and there's no substitute part
