Kenmore
Room Air Conditioner

Model # 25365090 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25365090 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Filter 101451
#23

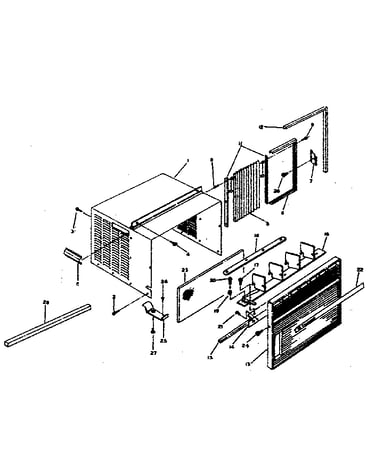

Cabinet and front parts diagram

Filter

Part #101451

The manufacturer no longer makes this part, and there's no substitute part

Clamp 88727
#29

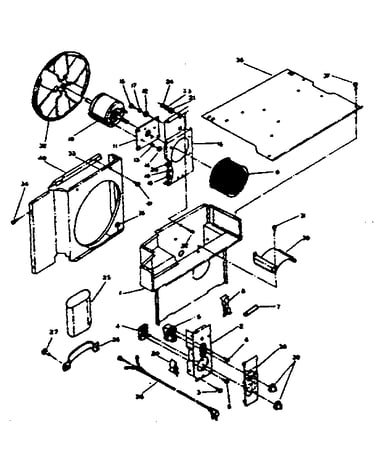

Air handling system diagram

Clamp

Part #88727

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 88727. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 113268
#10

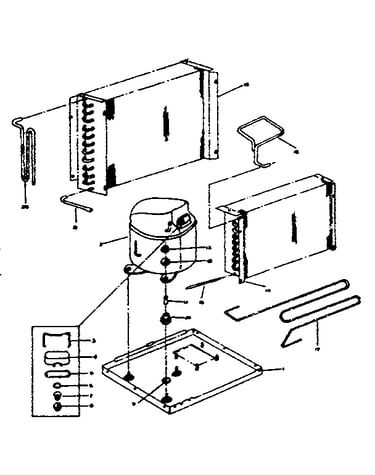

Unit diagram

Grommet

Part #113268

Replaced by #216498900

?
Manufacturer substitution
This part replaces 113268. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Washer 100260
Washer

Part #100260

Replaced by #5300037109

?
Manufacturer substitution
This part replaces 100260. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Channel 122145
#6

Cabinet and front parts diagram

Channel

Part #122145

The manufacturer no longer makes this part, and there's no substitute part

Shroud 117136
#33

Air handling system diagram

Shroud

Part #117136

The manufacturer no longer makes this part, and there's no substitute part

Carton 122808

#NI

All parts diagram

Carton

Part #122808

The manufacturer no longer makes this part, and there's no substitute part

Angle 122149
#14

Cabinet and front parts diagram

Angle

Part #122149

The manufacturer no longer makes this part, and there's no substitute part

Spacer 117554
#9

Unit diagram

Spacer

Part #117554

The manufacturer no longer makes this part, and there's no substitute part

Screw 99573
#27

Cabinet and front parts diagram

Screw

Part #99573

The manufacturer no longer makes this part, and there's no substitute part
