Model # A2B536A3S1 Official ICP indoor blower section

Here are the diagrams and repair parts for Official ICP A2B536A3S1 indoor blower section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Capacitor 706338
#1

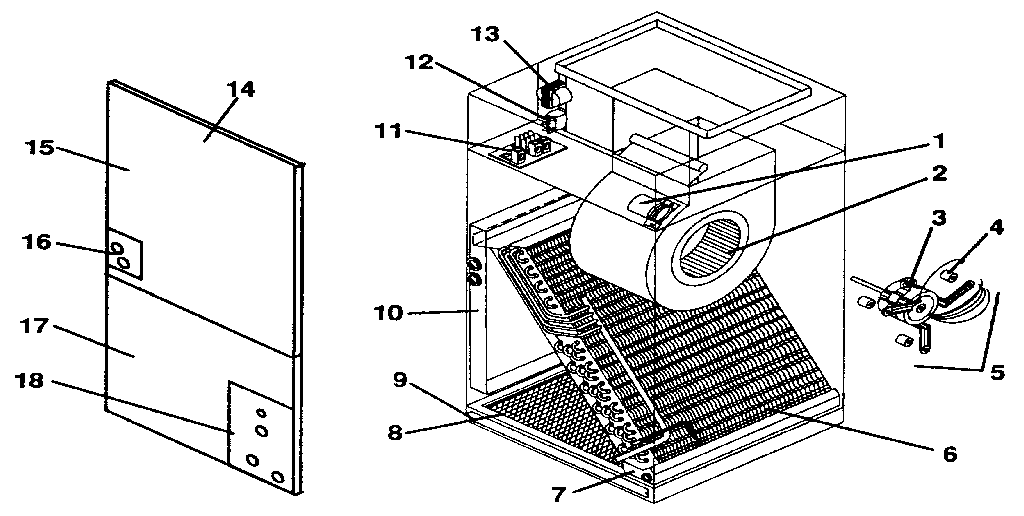

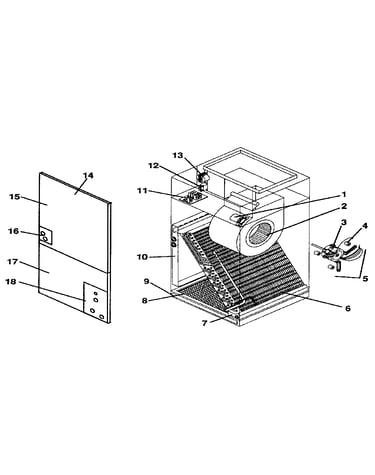

Blower assembly diagram

Capacitor

Part #706338

Replaced by #12907

?
Manufacturer substitution
This part replaces 706338. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Blower Wheel 600585
#2

Blower assembly diagram

Blower wheel

Part #600585

Replaced by #600586

?
Manufacturer substitution
This part replaces 600585. Substitute parts can look different from the original.
$127.13 |
7% OFF Phone Price : $137.13
In Stock
Drain Pan 1055152
#7

Blower assembly diagram

Drain pan

Part #1055152

$155.58
In Stock
Motor 1055080
#3

Blower assembly diagram

Motor

Part #1055080

$586.88
In Stock
Terminal Board 1055193
#11

Blower assembly diagram

Terminal board

Part #1055193

$29.09
In Stock
Mount Kit 1050254
#5

Blower assembly diagram

Mount kit

Part #1050254

$125.18
In Stock
Relay Spdt 1058148
#12

Blower assembly diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63 |
19% OFF Phone Price : $26.63
In Stock
Transformer 1056899
#13

Blower assembly diagram

Transformer

Part #1056899

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 1056899. Substitute parts can look different from the original.
$10.99
In Stock
Cap Tubing 1055337

#NI

All parts diagram

Cap tubing

Part #1055337

The manufacturer no longer makes this part, and there's no substitute part

Door Upr P 1062151
#15

Blower assembly diagram

Door upr p

Part #1062151

The manufacturer no longer makes this part, and there's no substitute part
